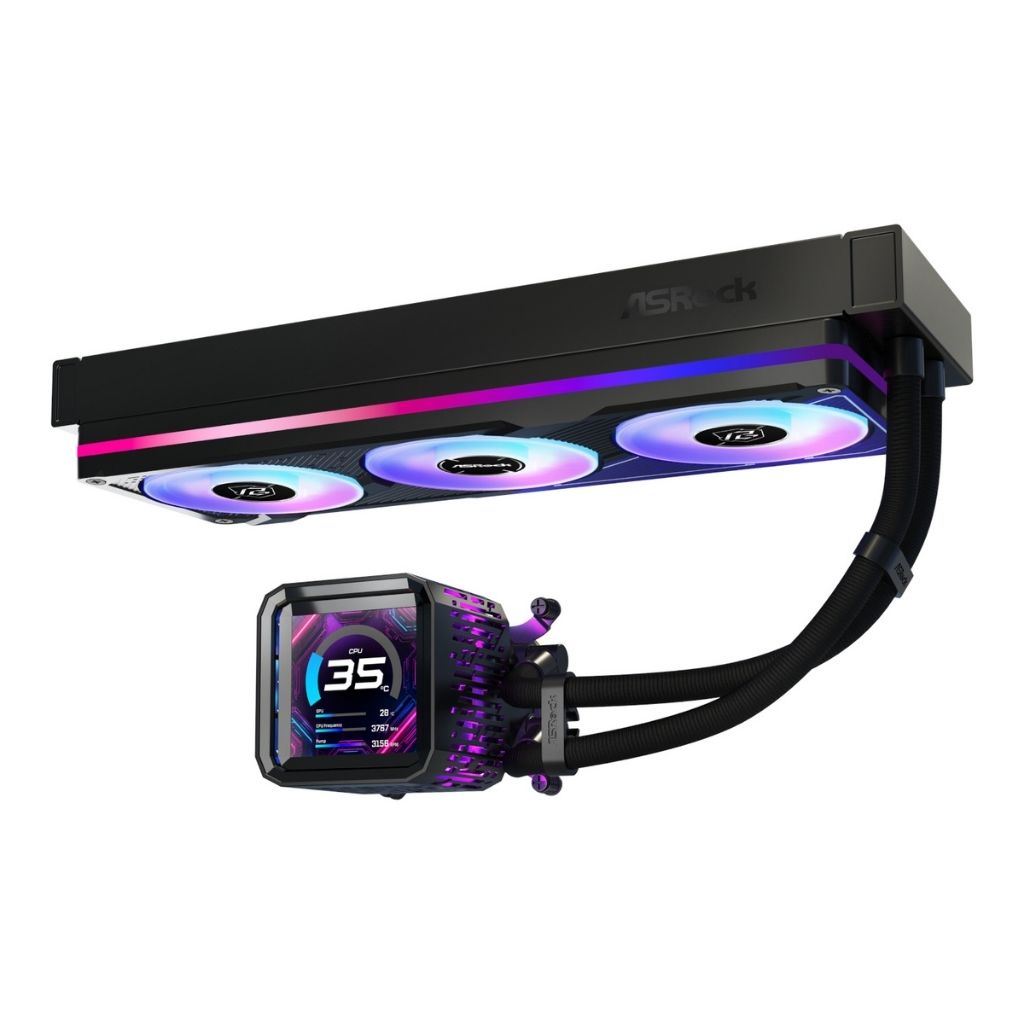

ASRock Phantom Gaming 360 LCD All-in-one Liquid CPU Cooler – Black
Full description ASRock.
- The ASRock Phantom Gaming 360 LCD is a premium all-in-one liquid CPU cooler designed for gaming and enthusiast PC builds, combining a 360mm radiator, copper cold plate, ARGB lighting, and a vibrant 3.4-inch IPS LCD screen.
- The built-in 3.4-inch 480 x 480 IPS LCD supports 24-bit colour, 250 cd/m² brightness, 60Hz refresh rate, and custom visual display options, helping turn your CPU cooler into a stylish system monitoring centrepiece.
- Cooling performance is handled by a 397 x 120 x 32mm aluminium radiator, copper cold plate, 1200–3100 RPM pump, and high-performance radiator fans delivering up to 61.28 CFM airflow and 3.11 mmH2O pressure.
- The cooler includes ARGB lighting on the water block and radiator fans, giving builders synchronised lighting control for a cleaner, more personalised gaming PC aesthetic that matches modern RGB-enabled components.
- Broad compatibility includes Intel LGA1851 / LGA1700 and AMD AM5 / AM4, while IIR + EPDM tubing, fluid dynamic bearing fans, included mounting kit, and split module warranty support long-term reliability.
| Specifications | |
|---|---|
| Brand | ASRock |
| Series | Phantom Gaming |
| Model | Phantom Gaming 360 LCD |
| Colour | Black |
| Product Type | All-in-One Liquid CPU Cooler |
| Cooling System | |
| Radiator Size | 360mm |
| Radiator Dimensions | 397 x 120 x 32mm |
| Radiator Material | Aluminium |
| Water Block Dimensions | 100 x 86 x 107mm |
| Cold Plate Material | Copper |
| Pump Speed | 1200–3100 RPM ±10% |
| Pump Current / Voltage | 0.38A / 12V |
| Pump Connector | 4-pin PWM |
| Tubing Material | IIR + EPDM |
| Tube Length | 450mm |
| Display | |
| Screen Type | IPS LCD |
| Screen Size | 3.4″ |
| Resolution | 480 x 480 |
| Display Colour | 24-bit |
| Brightness | 250 cd/m² |
| Refresh Rate | 60Hz |
| Frames Per Second | 60 FPS |
| Display Connector | USB Type-C to motherboard 9-pin |
| Fan | |
| Radiator Fan Assembly Dimensions | 362 x 123 x 28mm |
| Fan Speed | 0–2400 RPM ±10% |
| Fan Airflow | Up to 61.28 CFM |
| Fan Air Pressure | Up to 3.11 mmH2O |
| Fan Noise | Up to 31.4 dB(A) |
| Fan Connector | 4-pin PWM |
| Fan Current / Voltage | 0.84A / 12V |
| Bearing Type | Fluid dynamic bearing |
| VRM Fan Dimensions | 70 x 70 x 25mm |
| VRM Fan Speed | Up to 3000 RPM ±10% |
| VRM Fan Connector | 4-pin PWM |
| VRM Fan Current / Voltage | 0.12A / 12V |
| Lighting | |
| LED Type | ARGB Gen1 |
| Water Block Lighting | ARGB |
| Radiator Fan Lighting | ARGB |
| Compatibility | |
| Intel Sockets | LGA1851, LGA1700 |
| AMD Sockets | AM5, AM4 |
| Included in the Box | |
| Included Items | ASRock Phantom Gaming 360 LCD All-in-One Liquid CPU Cooler – Black x1 Thermal paste x1 Mounting kit x1 |
| Warranty | AIO Cooler Module: 6 Year Warranty Display Module: 2 Year Warranty |
ASRock Phantom Gaming 360 LCD All-in-one Liquid CPU Cooler – Black
Contact us if you would like to enquire about this product.
