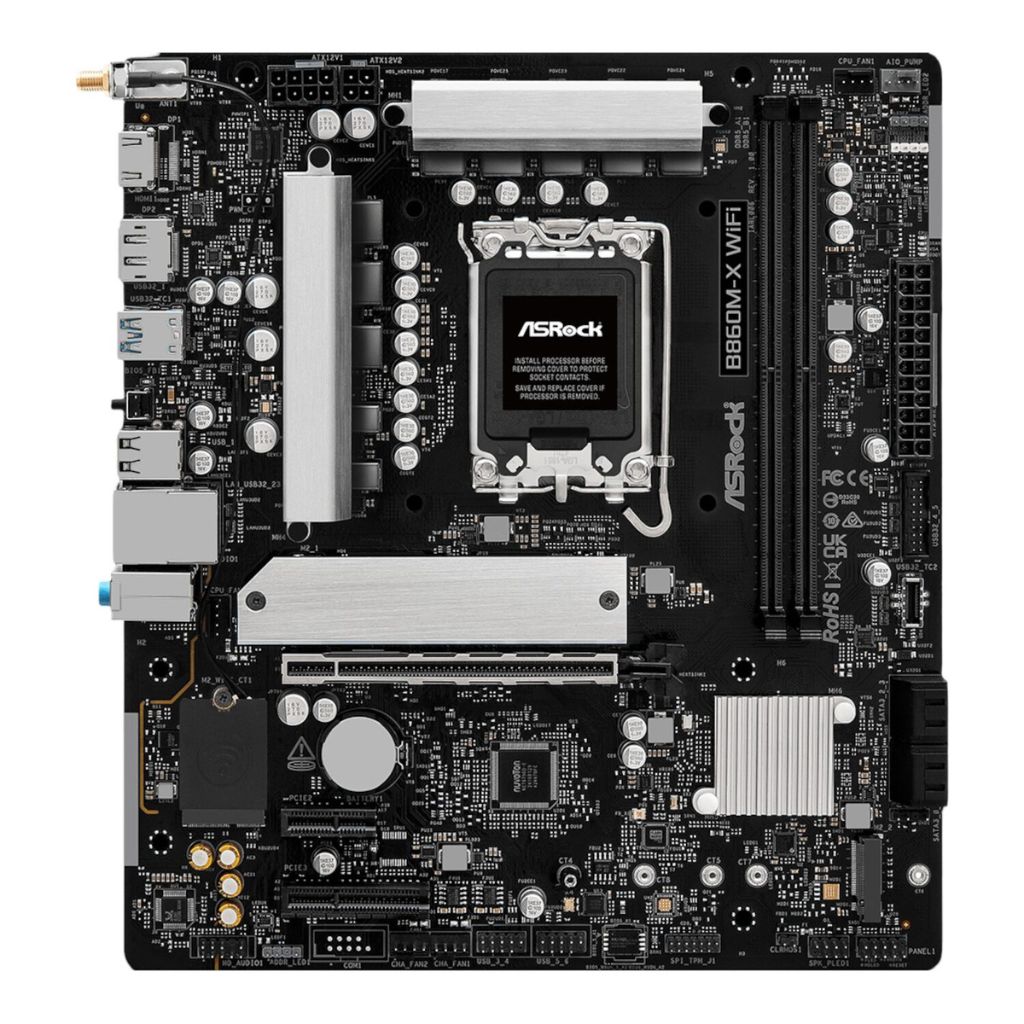

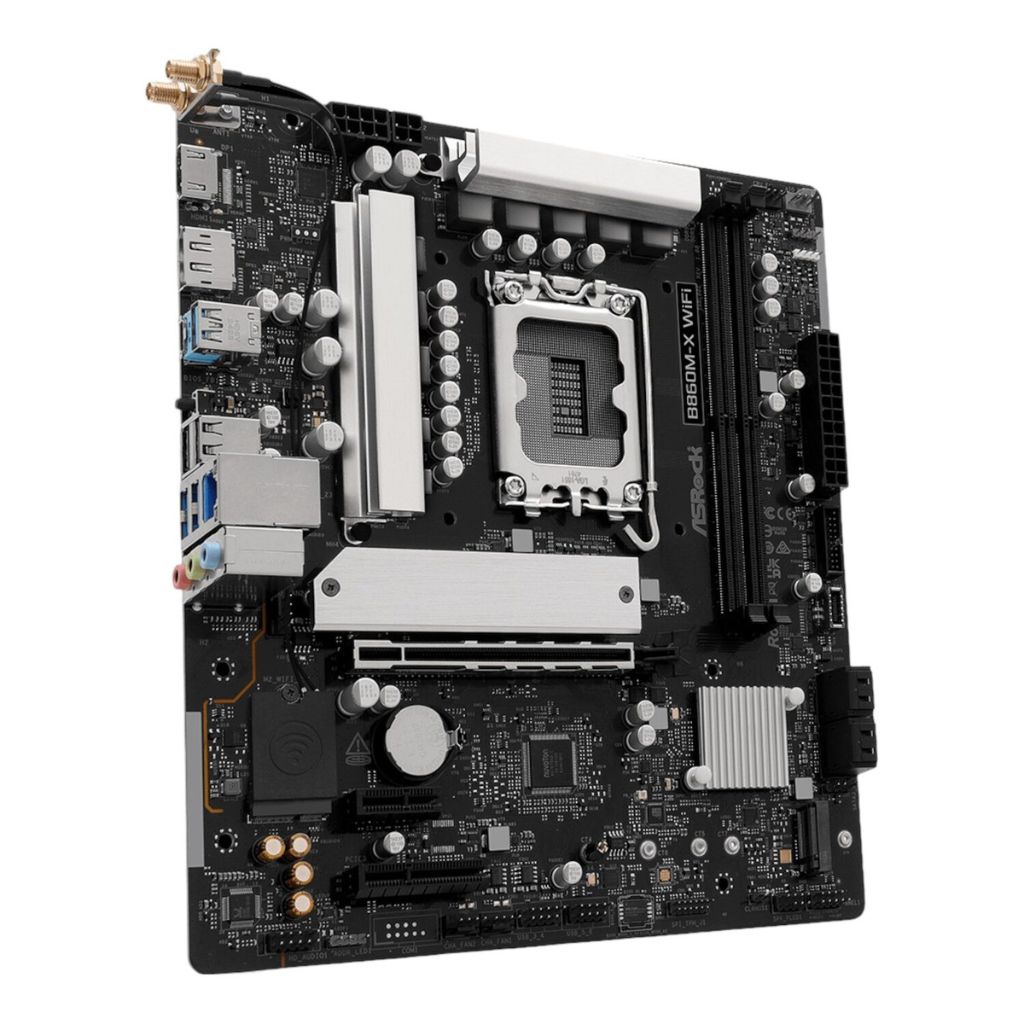

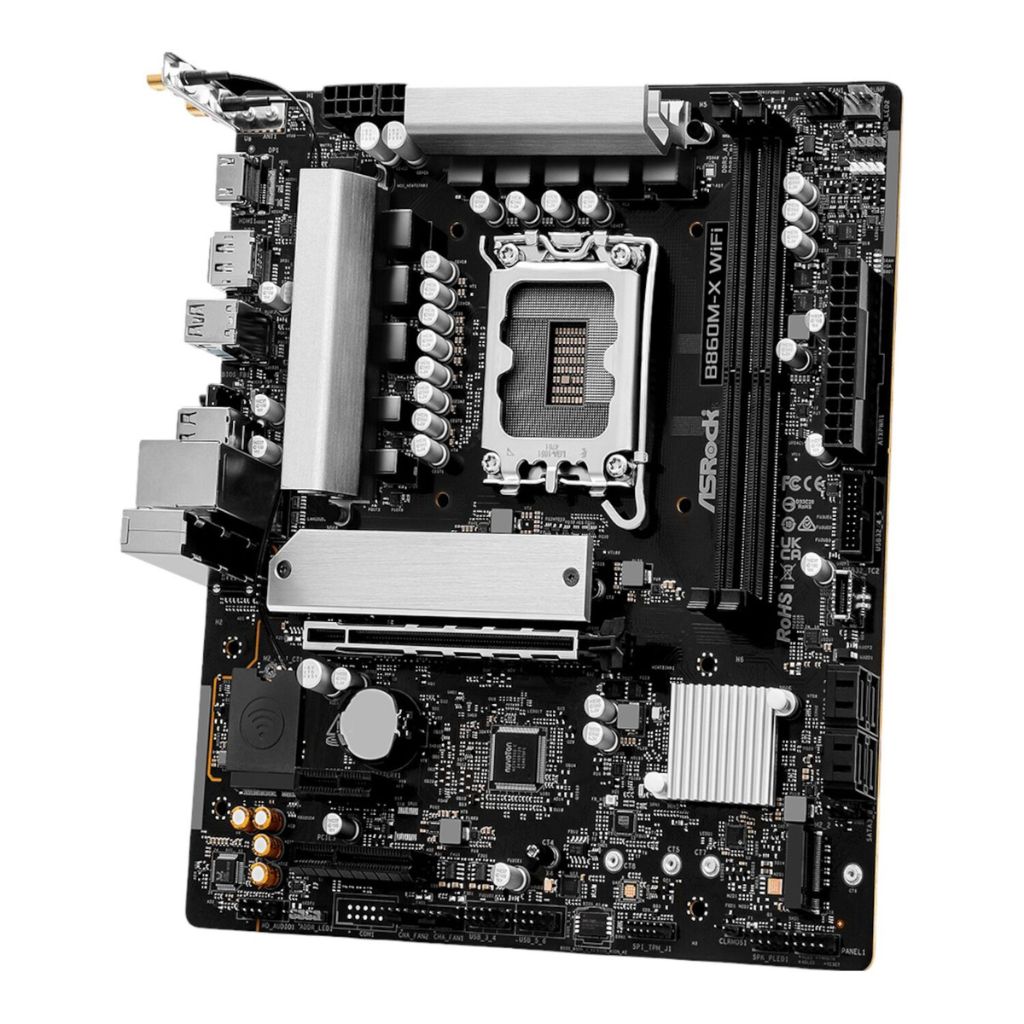

ASRock B860M-X WiFi DDR5 Micro-ATX LGA1851 Intel Motherboard
Full description ASRock.
- Next-Gen Intel® Core™ Ultra Performance (LGA1851)
Designed for Intel® Core™ Ultra (Series 2) processors, unlocking AI-enhanced computing, advanced multitasking and next-generation desktop performance. - Blazing-Fast DDR5 up to 9066+ MHz (OC)
Dual-channel DDR5 support with XMP 3.0 delivers ultra-high memory speeds and improved system responsiveness for gaming and productivity. - PCIe 5.0 & Hyper M.2 Gen4 Storage
Equipped with PCIe 5.0 graphics support and Gen4 M.2 NVMe slots for lightning-fast SSD performance and future-ready expansion. - WiFi 6E + 2.5GbE LAN for Ultra-Fast Networking
Integrated 802.11ax WiFi 6E and Dragon 2.5G LAN provide stable, low-latency connectivity for gaming, streaming and high-speed file transfers. - Rock-Solid Power Design with BIOS Flashback
7+1+1 phase power design, durable components and BIOS Flashback support ensure long-term reliability and easy system updates.
| Specifications | |
|---|---|
| Brand: | ASRock |
| Model: | B860M-X WiFi |
| Chipset: | Intel® B860 |
| Socket: | LGA1851 |
| Form Factor: | Micro-ATX (24.4 cm x 21.8 cm) |
| CPU Support | |
| Supported Processors: | Intel® Core™ Ultra (Series 2) |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 2 |
| Maximum Capacity: | 128GB |
| Memory Support: | Dual Channel, XMP 3.0, Non-ECC, Up to 9066+ MHz (OC) |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 4.0 x16 |
| PCIe x1 Slot: | 1x PCIe 4.0 x1 |
| M.2 (WiFi Key-E): | 1x M.2 Key-E (2230 WiFi/BT Module) |
| Storage | |
| M.2 Slots: | 1x Blazing M.2 (PCIe Gen4 x4), 1x Hyper M.2 (PCIe Gen4 x4) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 5 / 10 (SATA) |
| Networking | |
| LAN: | Dragon RTL8125BG 2.5 Gigabit LAN |
| Wireless: | WiFi 6E (802.11ax) |
| Bluetooth: | Bluetooth 5.3 |
| Graphics Outputs | |
| HDMI: | 1x HDMI 2.1 (Up to 4K 120Hz) |
| DisplayPort: | 1x DisplayPort 1.4 (Up to 8K 60Hz with DSC) |
| Audio | |
| Audio Codec: | Realtek® ALC897 7.1-Channel HD Audio |
| USB (Rear) | |
| USB 3.2 Gen2x2 Type-C: | 1 (20Gbps) |
| USB 3.2 Gen1 Type-A: | 3 |
| USB 2.0: | 2 |
| Internal I/O Connectors | |
| 24-pin ATX Power Connector: | 1 |
| 8-pin 12V Power Connector: | 1 |
| CPU Fan Header: | 1 |
| Chassis Fan Headers: | 2 |
| AIO Pump Header: | 1 |
| USB 3.2 Gen1 Header: | 1 |
| USB 2.0 Headers: | 2 |
| Front Panel Type-C Header: | 1 |
| Front Panel Audio Header: | Yes |
| TPM Header: | 1 |
| RGB Header: | 1 |
| Addressable RGB Headers: | 2 |

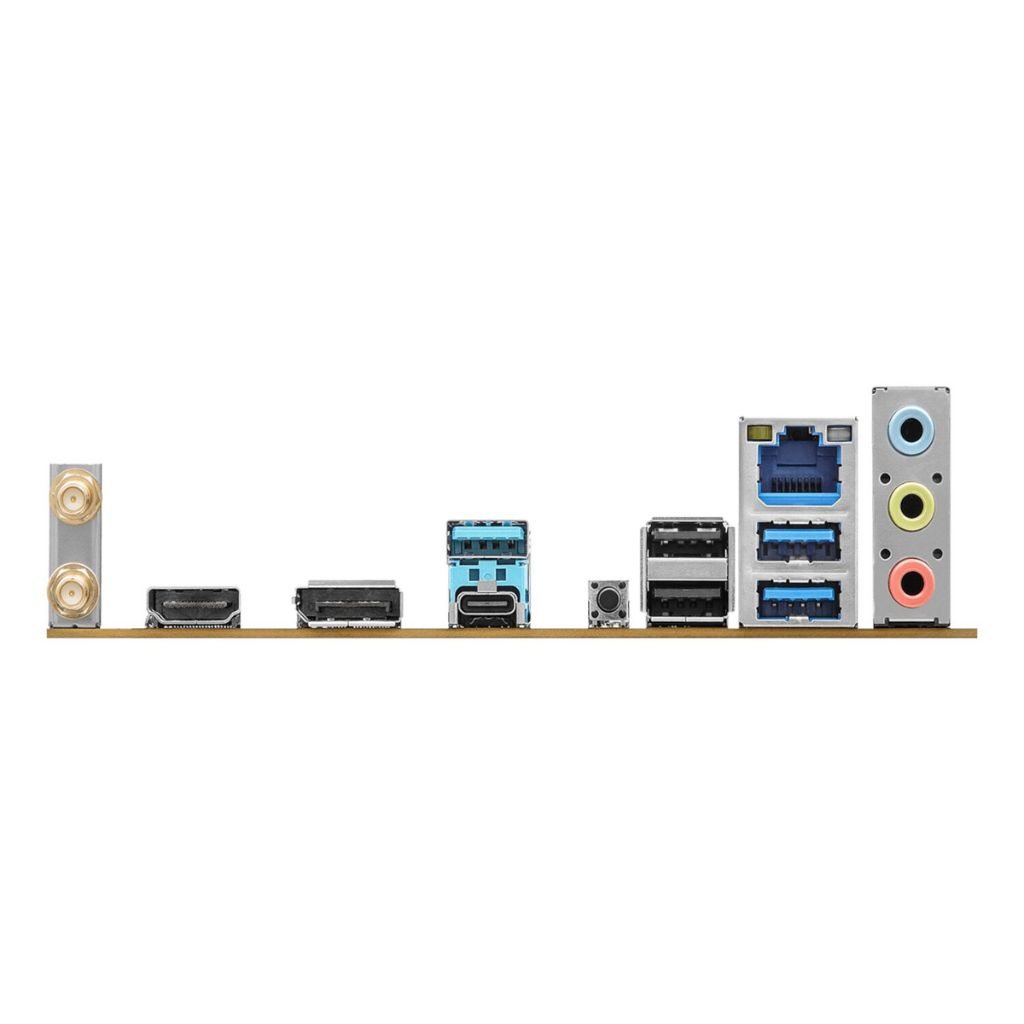

| Back Panel I/O Ports | |
| HDMI Port: | 1 |
| DisplayPort: | 1 |
| USB Type-C (20Gbps): | 1 |
| USB Type-A (USB 3.2 Gen1): | 3 |
| USB 2.0 Ports: | 2 |
| LAN Port: | 1x RJ-45 (2.5GbE) |
| WiFi Antenna Ports: | 2 |
| Audio Jacks: | Line In / Line Out / Mic |
| BIOS Flashback Button: | Yes |
| BIOS | |
| BIOS Type: | 256Mb AMI UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
