ASRock B850M-X WiFi DDR5 Micro-ATX AM5 AMD Motherboard
Full description ASRock.
- Built for AMD Ryzen™ 7000 / 8000 / 9000 Series (AM5)
Designed for the latest AMD AM5 processors, delivering next-generation performance for gaming, content creation and high-efficiency multitasking. - High-Speed DDR5 Memory up to 8200+ MHz (OC)
Dual-channel DDR5 support with AMD EXPO™ and XMP profiles ensures faster load times, improved responsiveness and optimized system stability. - PCIe 4.0 Graphics & Dual M.2 Gen4 NVMe Support
Equipped with PCIe 4.0 x16 for modern GPUs and dual Hyper M.2 Gen4 slots for ultra-fast NVMe SSD performance. - 2.5GbE LAN + WiFi 6E Connectivity
Integrated Dragon 2.5G LAN and 802.11ax WiFi 6E provide ultra-low latency networking for competitive gaming and high-speed streaming. - Durable Power Design with BIOS Flashback
8+1+1 phase power design, high-quality components and BIOS Flashback support for long-term reliability and easy firmware updates.
| Specifications | |
|---|---|
| Brand: | ASRock |
| Model: | B850M-X WiFi |
| Chipset: | AMD B850 |
| Socket: | AM5 |
| Form Factor: | Micro-ATX (24.4 cm x 22.6 cm) |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 2 |
| Maximum Capacity: | 128GB |
| Memory Support: | Dual Channel, EXPO™, XMP, Non-ECC, Up to 8200+ MHz (OC) |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 4.0 x16 |
| PCIe x1 Slot: | 1x PCIe 4.0 x1 |
| M.2 (WiFi Key-E): | 1x M.2 Key-E (2230 WiFi/BT Module) |
| Storage | |
| M.2 Slots: | 2x M.2 (PCIe 4.0 x4) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 10 (SATA), RAID 0 / 1 / 10 (NVMe) |
| Networking | |
| LAN: | Dragon RTL8125BG 2.5 Gigabit LAN |
| Wireless: | WiFi 6E (802.11ax) |
| Bluetooth: | Bluetooth 5.2 |
| Graphics Outputs | |
| HDMI: | 1x HDMI 2.1 (Up to 4K 120Hz) |
| DisplayPort: | 1x DisplayPort 1.4 |
| Audio | |
| Audio Codec: | Realtek® ALC897 7.1-Channel HD Audio |
| USB (Rear) | |
| USB 3.2 Gen1 Type-A: | 3 |
| USB 3.2 Gen1 Type-C: | 1 |
| USB 2.0: | 2 |
| Internal I/O Connectors | |
| 24-pin ATX Power Connector: | 1 |
| 8-pin 12V Power Connector: | 1 |
| CPU Fan Header: | 1 |
| Chassis/Water Pump Fan Headers: | 2 |
| USB 3.2 Gen1 Header: | 1 |
| USB 2.0 Headers: | 2 |
| Front Panel Type-C Header: | 1 |
| Front Panel Audio Header: | Yes |
| TPM Header: | 1 |
| RGB Header: | 1 |
| Addressable RGB Headers: | 3 |

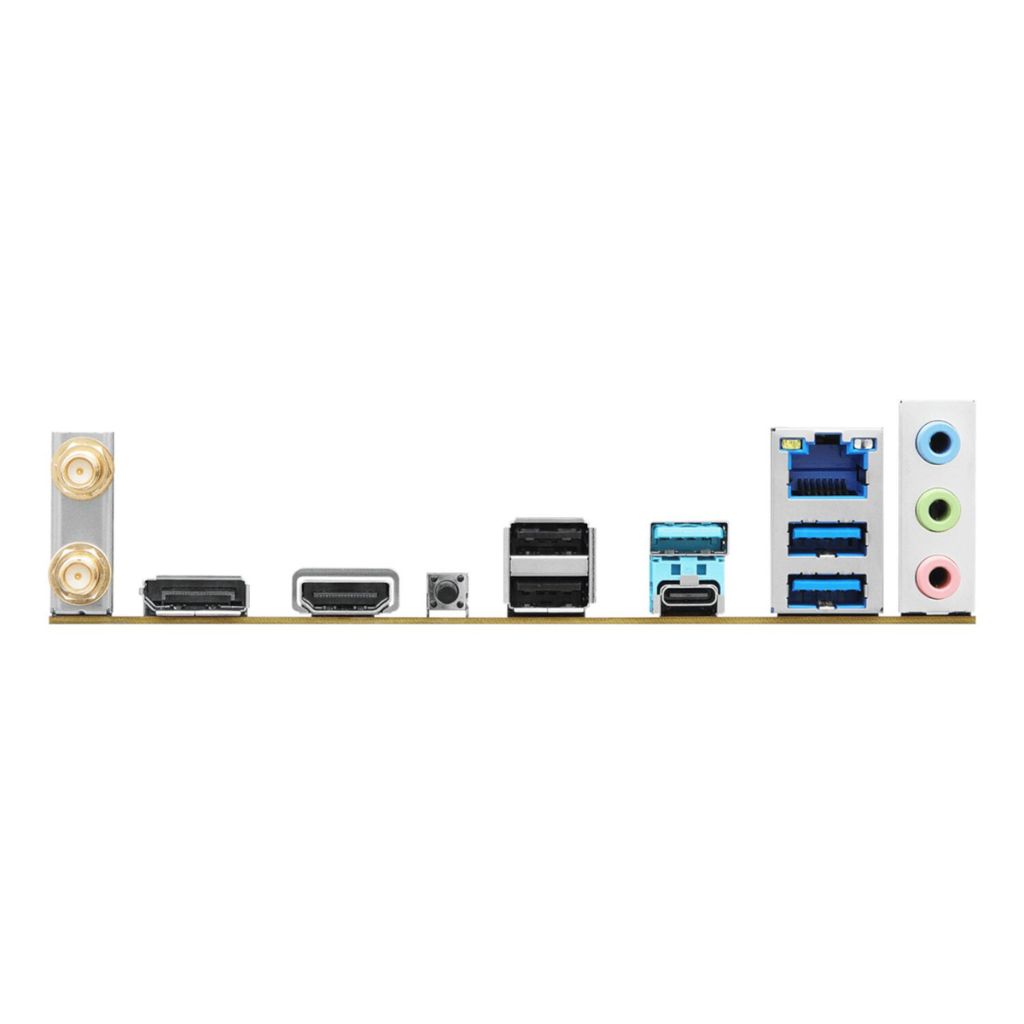

| Back Panel I/O Ports | |
| HDMI Port: | 1 |
| DisplayPort: | 1 |
| USB Type-C: | 1 |
| USB Type-A (USB 3.2 Gen1): | 3 |
| USB 2.0 Ports: | 2 |
| LAN Port: | 1x RJ-45 (2.5GbE) |
| WiFi Antenna Ports: | 2 |
| Audio Jacks: | Line In / Line Out / Mic |
| BIOS Flashback Button: | Yes |
| BIOS | |
| BIOS Type: | 256Mb AMI UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
