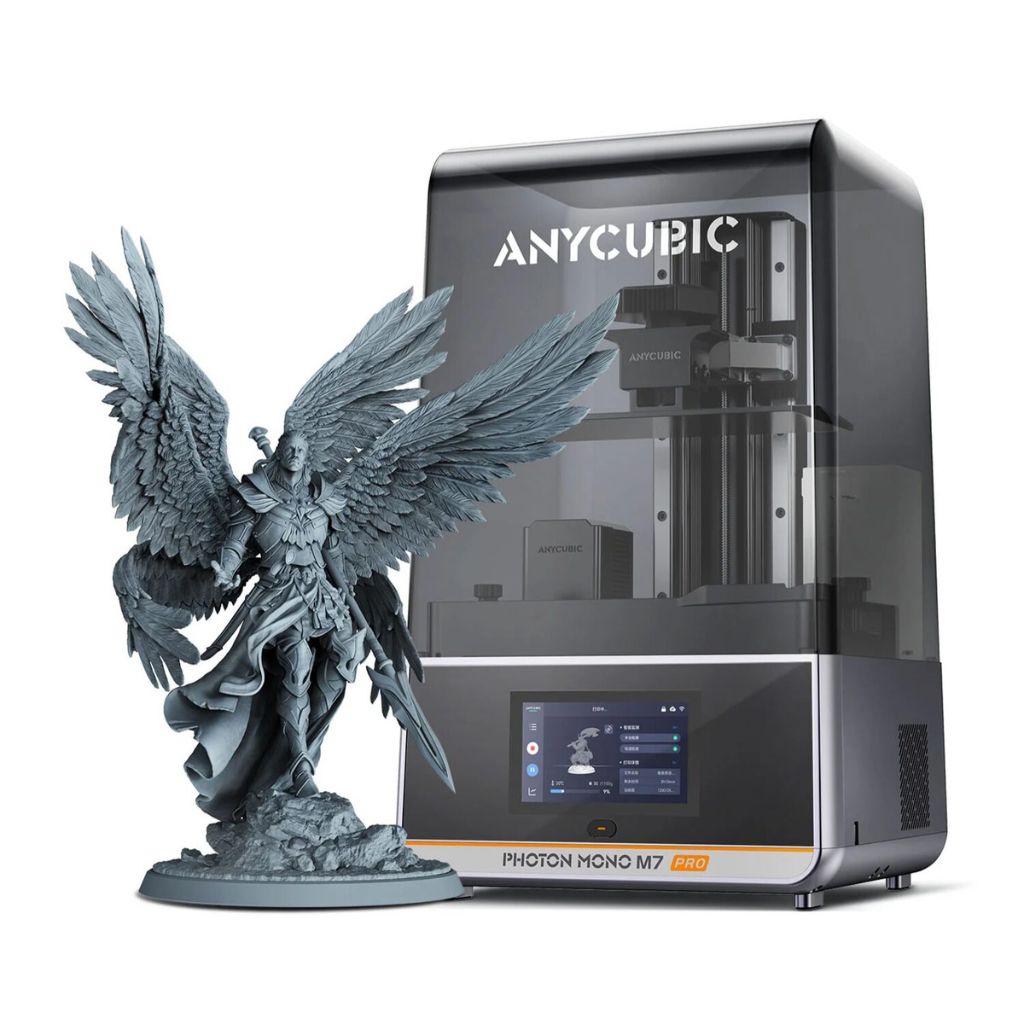

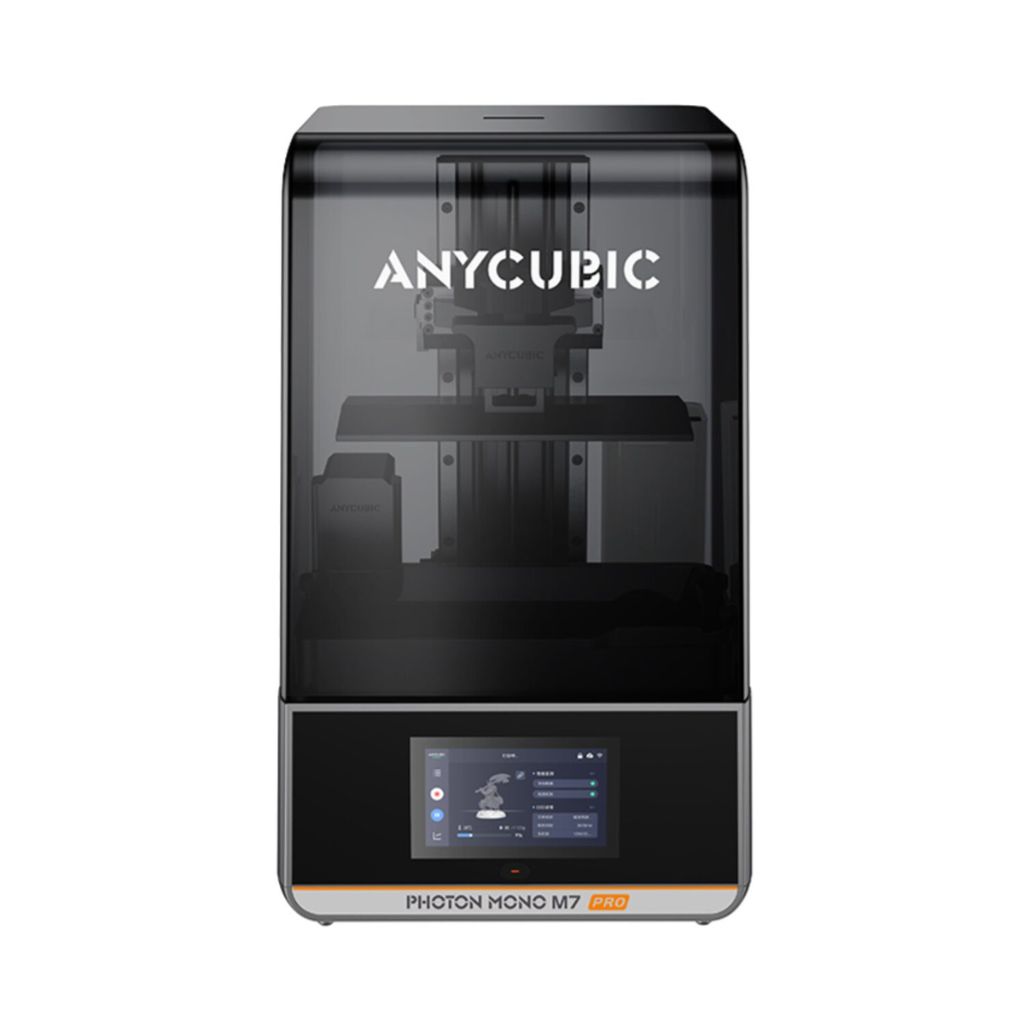

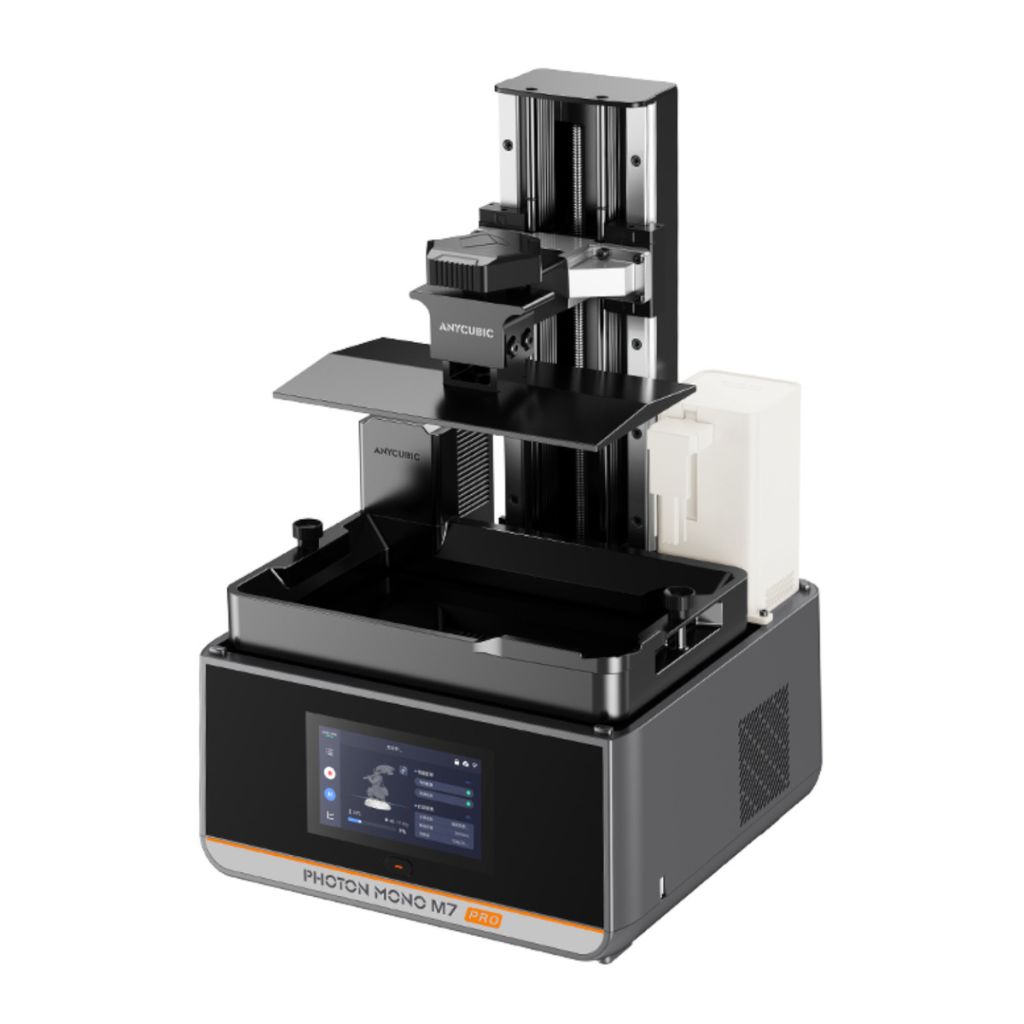

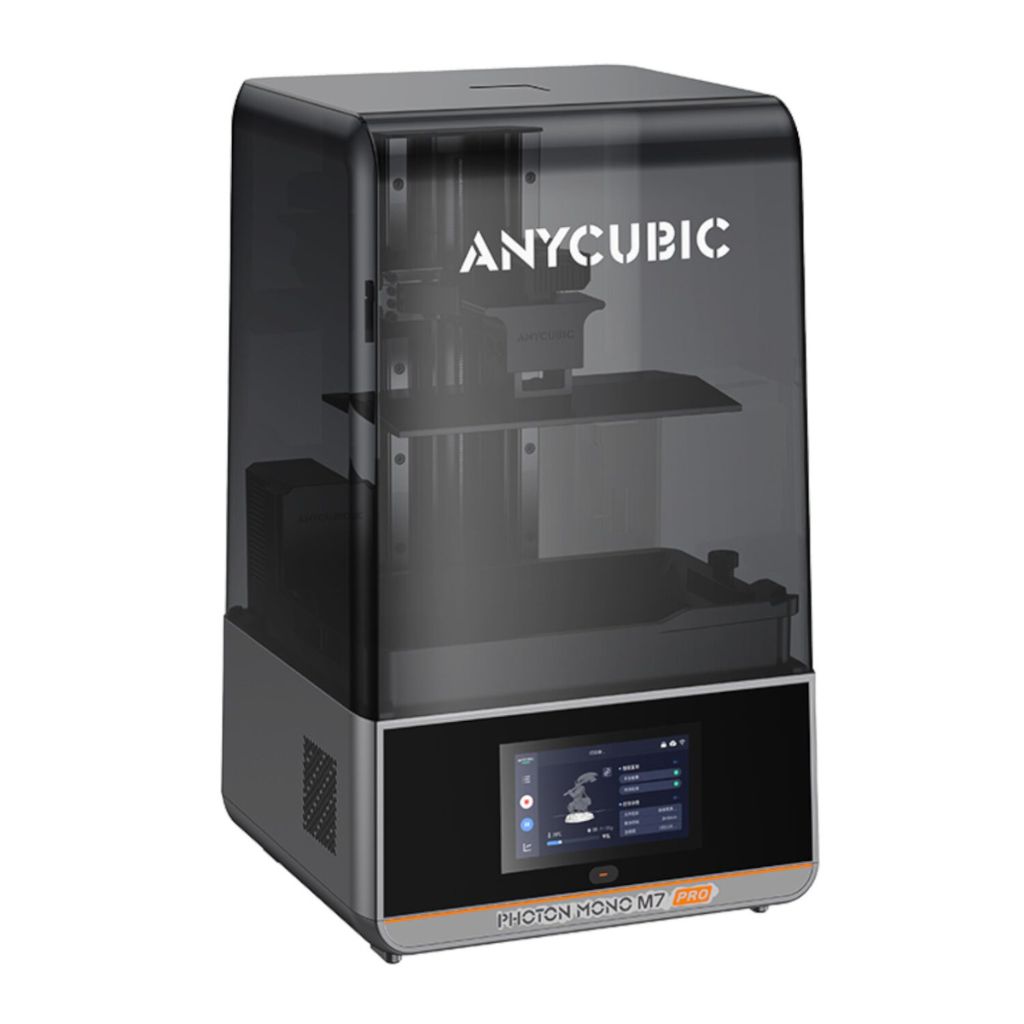

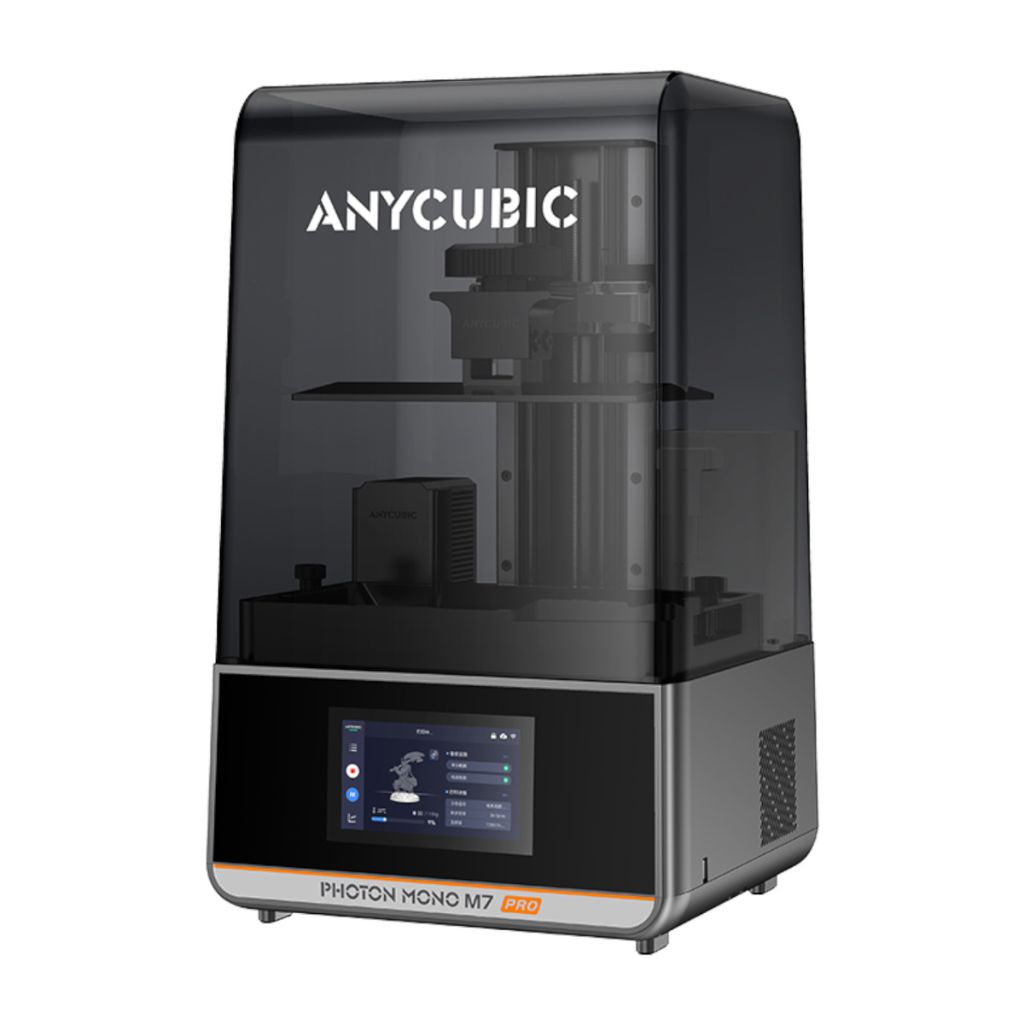

Anycubic Photon Mono M7 Pro 10.1″ 14K Resin 3D Printer – PM7RBK0C-O
Full description Anycubic.
- The Anycubic Photon Mono M7 Pro is a high-resolution resin 3D printer designed for detailed miniatures, prototypes, models, and creative resin printing, offering a larger 223 x 126 x 230mm build volume with 6.5L capacity.
- A 10.1-inch monochrome LCD with 14K resolution and 16.8 x 24.8μm X/Y axis resolution helps deliver sharp details, fine surfaces, and precise results for users who need high-quality resin prints.
- Core printing performance includes 0.01–0.15mm layer height, COB light source with Fresnel lens, light uniformity algorithm, 5500 ±10% μW/cm² light intensity, and compatibility with high-speed, water-washable, standard, ABS-like, and plant-based resins.
- The system features a laser-engraved build plate, dual linear rails with 10μm precision, improved ACF release film, levelling-free operation, resin auto-fill support, and dynamic temperature control resin vat support for smoother resin printing.
- User-friendly features include USB, Wi-Fi, and LAN file transfer, Photon Workshop slicing software, Anycubic App support, 4.3-inch touch-control screen, included setup accessories, and 1 Year Warranty for dependable everyday resin printing.
| Specifications | |
|---|---|
| Brand | Anycubic |
| Series | Photon Mono |
| Model | Photon Mono M7 Pro |
| Product Code | PM7RBK0C-O |
| Product Type | Resin 3D Printer |
| Core Printing Performance | |
| Printing Volume | 223 x 126 x 230mm³ / 6.5L |
| Printing Speed | Max speed under 130mm/hStandard resin 0.1mm: under 130mm/hHigh-speed resin 0.1mm: under 170mm/h |
| Layer Height Range | 0.01–0.15mm |
| X/Y Axis Resolution | 16.8 x 24.8μm |
| Light Source | COB light source + Fresnel lens + light uniformity algorithm |
| Light Intensity | 5500 ±10% μW/cm² |
| Material Compatibility | High-speed resin, water-washable resin, standard resin, ABS-like resin, plant-based resin |
| System & Mechanical Design | |
| Build Platform | Laser-engraved build plate |
| Z-Axis | Dual linear rails with 10μm precision |
| Release Film | Improved ACF film |
| Resin Vat | Under 1L |
| Machine Levelling | Levelling-free |
| Power Supply | 240W |
| Protection Film | Replaceable scratch-resistant film |
| Resin Auto-Fill Unit | Supported |
| Dynamic Temperature Control Resin Vat | Supported |
| File Transfer | USB / Wi-Fi / LAN |
| Software | |
| Slicing Software | Photon Workshop, Chitubox, Lychee Slicer scheduled |
| Anycubic App | Supported |
| User Experience & Features | |
| Operating Screen | 4.3-inch touch-control screen |
| LCD Screen | 10.1-inch monochrome LCD, 14K resolution |
| Air Purifier | Optional accessory |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP |
| Machine Weight | 12.8kg |
| Package Weight | 15.2kg |
| Product Dimensions | 312 x 315 x 520mm |
| Packaging Dimensions | 620 x 395 x 395mm |
| Included in the Box | |
| Included Items | Photon Mono M7 Pro Print platform x1 Resin vat x1 Wi-Fi antenna Hex key set Protective equipment Filter x5 Scrapers x2 Levelling paper Manual x1 USB drive x1 Power cord Screen protector kit Auto-fill unit |
| Warranty Information | |
| Warranty | 1 Year Warranty |
