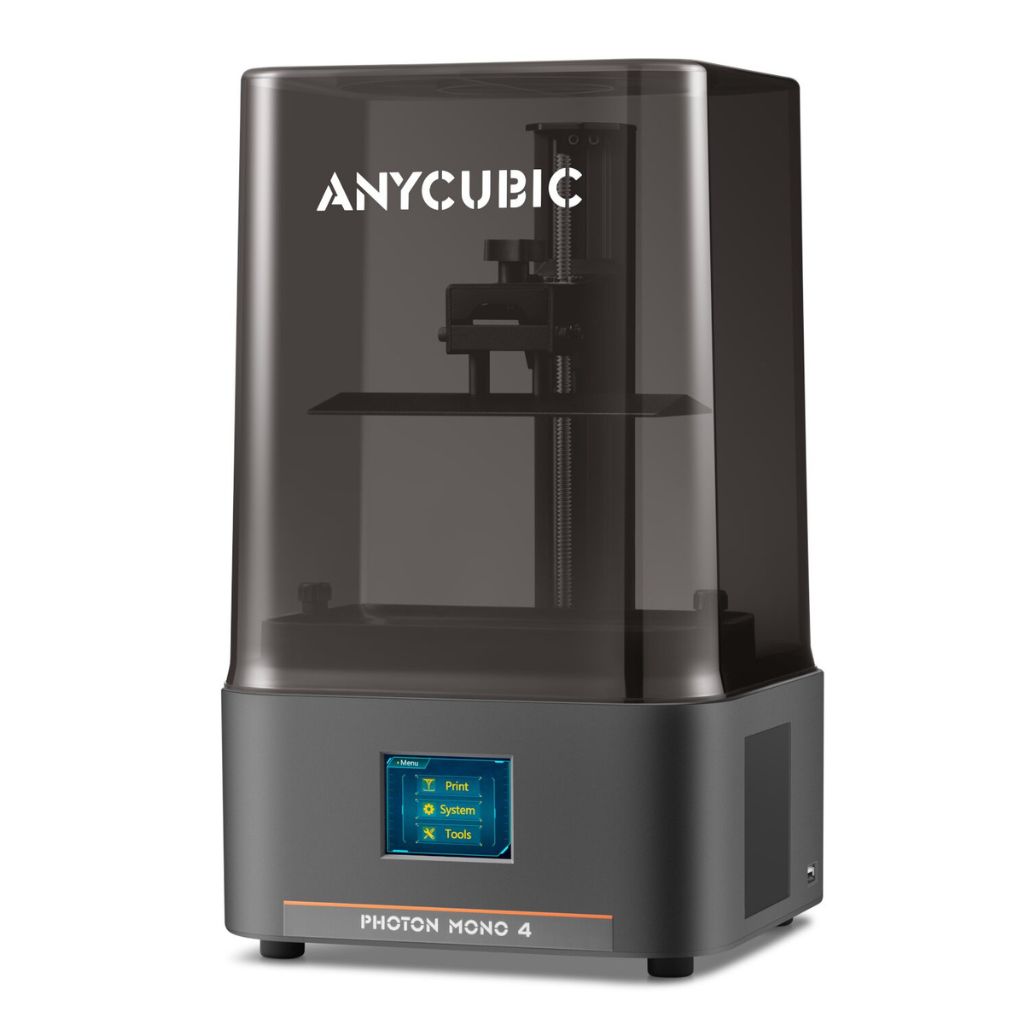

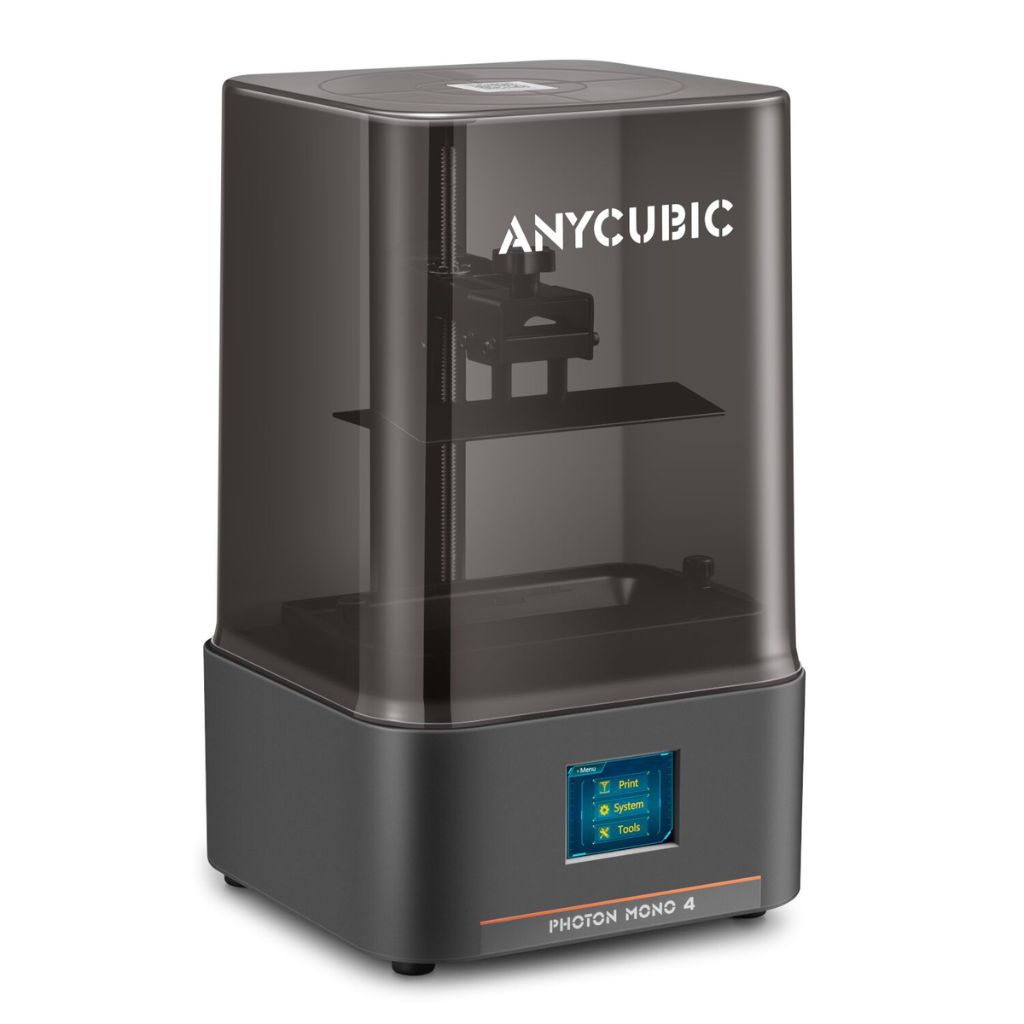

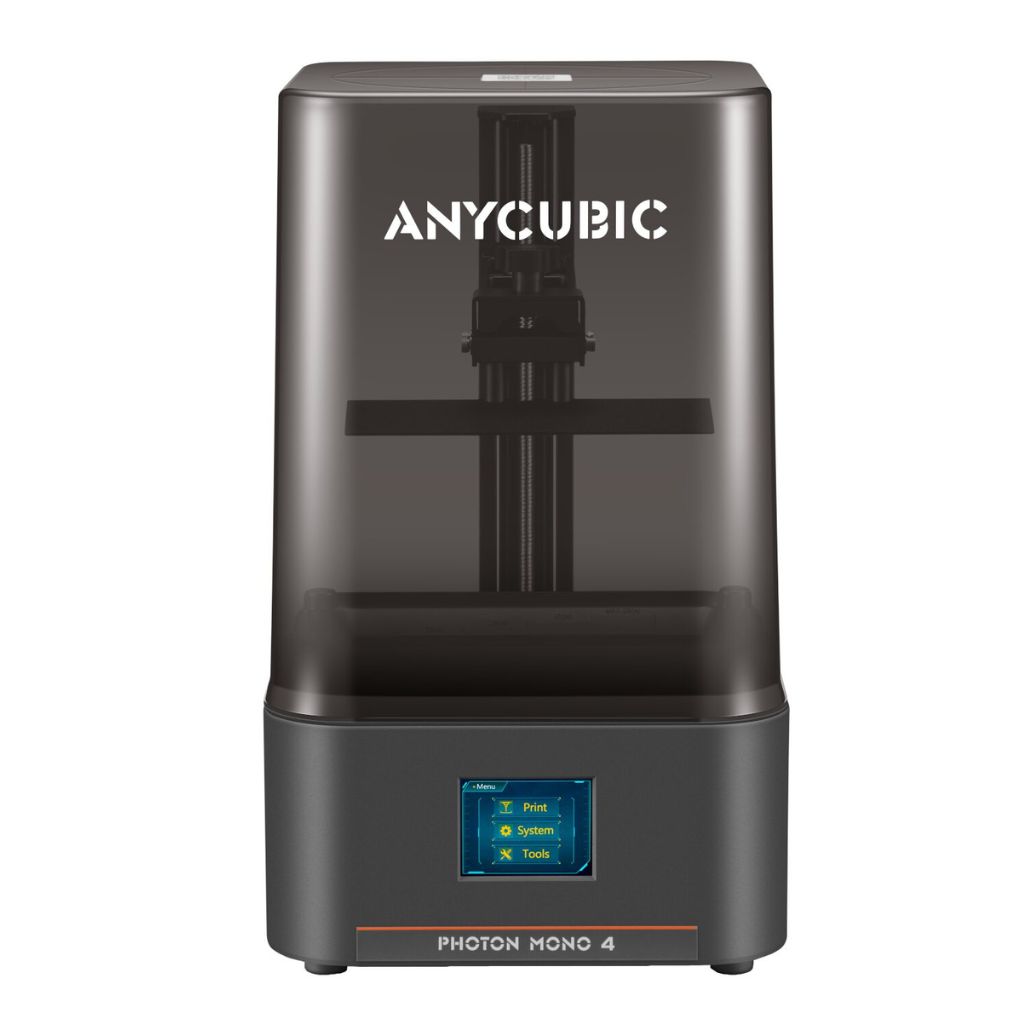

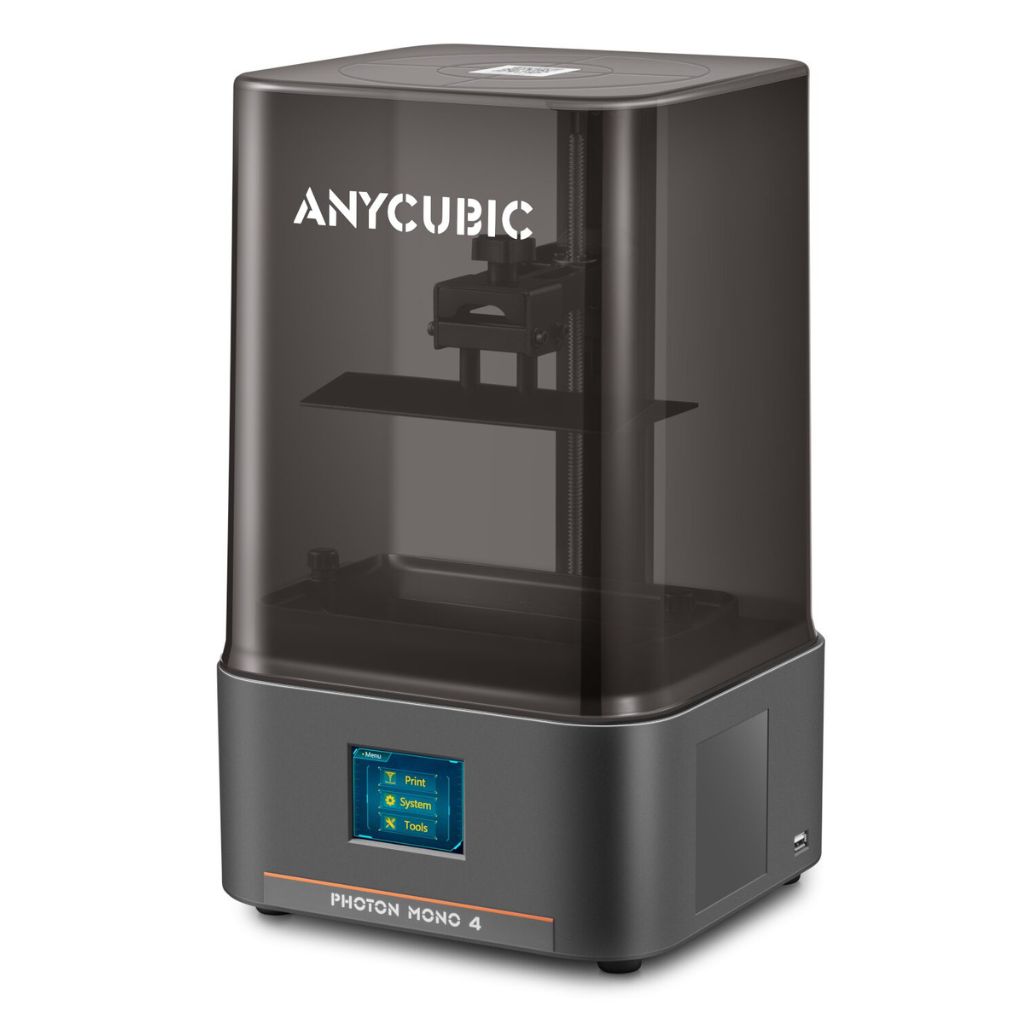

Anycubic PHOTON Mono 4 Resin 3D Printer – PM40BK0A-O
Full description Anycubic.
- The Anycubic Photon Mono 4 is a compact resin 3D printer designed for detailed miniatures, models, prototypes, and creative resin printing, offering a 153.4 x 87 x 165mm build volume in a space-saving desktop design.
- A 7-inch monochrome LCD with 10K resolution and 17 x 17μm X/Y axis resolution helps deliver fine surface detail, making it ideal for users who need sharp results on small models and detailed resin prints.
- The printer supports high-speed, water-washable, standard, ABS-like, and plant-based resins, giving users flexible resin options for hobby printing, display models, tabletop miniatures, prototypes, and detailed creative projects.
- Core printing performance includes a 0.03–0.15mm layer height range, parallel matrix upgrade light source, approximately 3000μW/cm² light intensity, laser-engraved build plate, and FEP release film for reliable resin printing.
- User-friendly features include 4-point manual levelling, power-loss resume, Photon Workshop slicing software, USB file transfer, a 2.8-inch touch-control screen, included setup accessories, and 1 Year Warranty.
| Specifications | |
|---|---|
| Brand | Anycubic |
| Series | Photon Mono |
| Model | Photon Mono 4 |
| Product Code | PM40BK0A-O |
| Product Type | Resin 3D Printer |
| Core Printing Performance | |
| Printing Volume | 153.4 x 87 x 165mm³ / 2.2L |
| Printing Speed | Max speed under 50mm/hStandard resin 0.1mm: under 50mm/hHigh-speed resin 0.1mm: under 70mm/h |
| Layer Height Range | 0.03–0.15mm |
| X/Y Axis Resolution | 17 x 17μm |
| Light Source | Parallel Matrix Upgrade Light Source |
| Light Intensity | Approximately 3000μW/cm² |
| Material Compatibility | High-speed resin, water-washable resin, standard resin, ABS-like resin, plant-based resin |
| System & Mechanical Design | |
| Build Platform | Laser-engraved build plate |
| Z-Axis | Single linear rail with 30μm accuracy |
| Release Film | FEP film |
| Resin Vat | Under 0.39L |
| Machine Levelling | 4-point manual levelling |
| Power Loss Resume | Supported |
| Power Supply | 54W |
| Slicing Software | Photon Workshop |
| File Transfer | USB |
| User Experience & Features | |
| Operating Screen | 2.8-inch touch-control screen |
| LCD Screen | 7-inch monochrome LCD, 10K resolution |
| Multilingual Support | EN / CN / DE / FR / IT / ES / RU / JP |
| Machine Weight | 4kg |
| Package Weight | 5.7kg |
| Product Dimensions | 230 x 235 x 391mm |
| Packaging Dimensions | 480 x 300 x 300mm |
| Included in the Box | |
| Included Items | Photon Mono 4 Print platform x1 Resin vat x1 Manual x1 Screen protector kit Levelling paper Protective equipment Filter x2 Scrapers x2 Hex key set USB drive x1 Power cord |
| Warranty Information | |
| Warranty | 1 Year Warranty |
