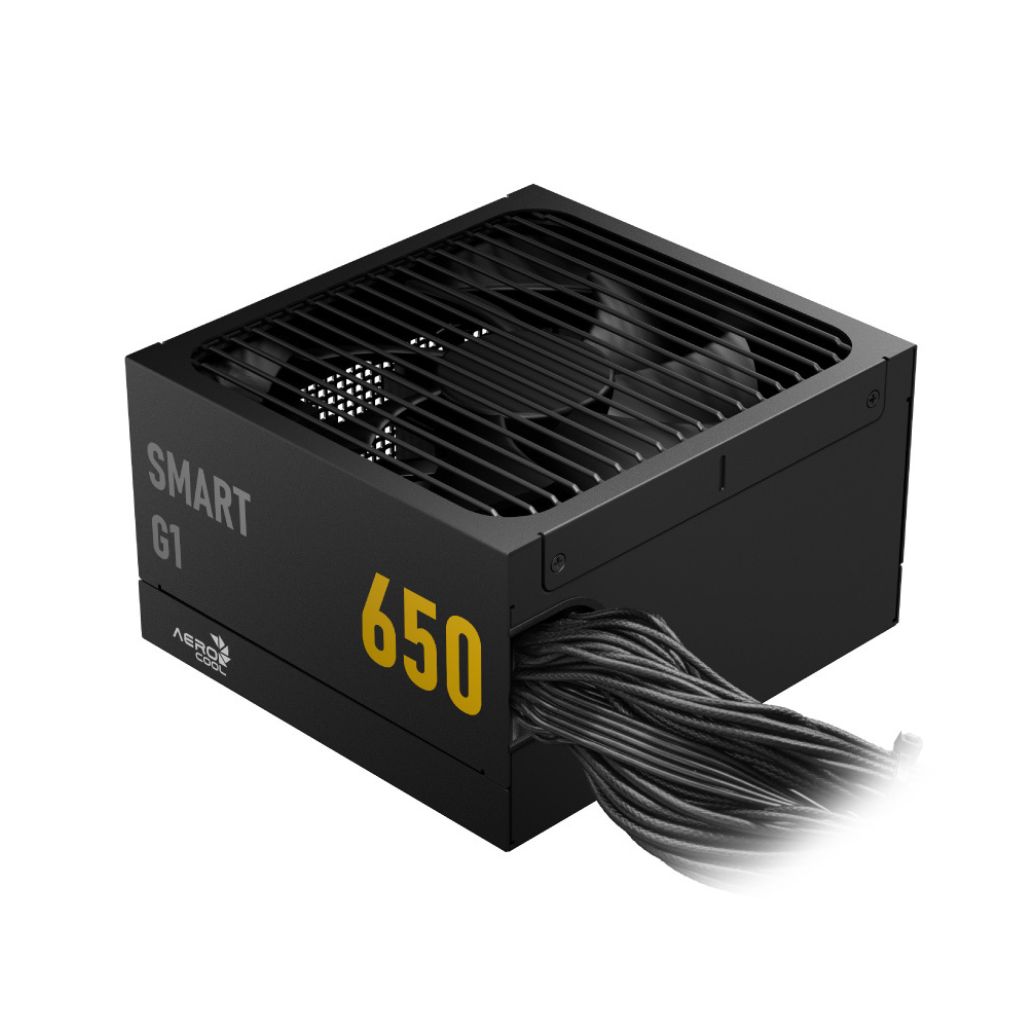

AeroCool SMART G1 650w 80 PLUS Gold ATX 3.1 and PCIe 5.1 Non-Modular Desktop Power Supply – SMRT-G1-650
Full description AeroCool.
- The AeroCool SMART G1 650W power supply is built for modern gaming and mainstream performance PC systems, combining dependable output, 80 PLUS Gold efficiency, and support for the latest ATX 3.1 and PCIe 5.1 standards in a practical non-modular design.
- Designed for current-generation hardware, it features a more secure 12V-2×6 connector and full ATX 3.1 / PCIe 5.1 compliance, making it a strong option for builders upgrading to newer graphics cards and modern desktop platforms.
- Built with 100% high-grade 105°C capacitors, the SMART G1 650W is engineered for long-term durability, stable operation, and consistent power delivery for gaming, productivity, and everyday desktop workloads.
- A 135mm fluid dynamic bearing fan with a low-profile fan curve helps maintain quieter operation under lighter loads, while the compact 140mm chassis length improves case compatibility and makes installation easier in tighter builds.
- With seven protection mechanisms, flat direct cables, and compliance with ErP 2013 Lot 6 and ErP 2014 Lot 3, this PSU offers dependable protection, cleaner cable routing, and efficient integration for modern PC builds.
| Specifications | |
|---|---|
| Brand | AeroCool |
| Series | SMART G1 |
| Model | SMART G1 650 |
| Part Number | SMRT-G1-650 |
| Product Type | Desktop Power Supply |
| Colour | Black |
| Power Output | |
| Wattage | 650W |
| Efficiency Rating | 80 PLUS Gold |
| ATX Standard | ATX 3.1 |
| PCIe Standard | PCIe 5.1 |
| Model Number | ACPS-2506 |
| Input & Rail Information | |
| AC Input Rating | 100V-240V~ 10.0A 47Hz-63Hz |
| +3.3V Output | 20A |
| +5V Output | 20A |
| +12V Output | 54A |
| +5VSB Output | 3.0A |
| Combined Power (+3.3V / +5V) | 100W |
| Combined Power (+12V) | 648W |
| Combined Power (+5VSB) | 15W |
| Total Power | 650W |
| Cooling & Design | |
| Fan Size | 135mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Cable Type | Flat Direct Cable |
| Form Factor Depth | 140mm |
| Modularity | Non-Modular |
| Connectors | |
| 24-pin ATX Power | 1 |
| 4+4-pin CPU Power | 1 |
| 8-pin CPU Power | 1 |
| 6+2-pin PCIe Power | 2 |
| SATA Connectors | 8 |
| Peripheral Connectors | 2 |
| Build & Protection | |
| Capacitors | 100% High-Grade 105°C Capacitors |
| Protection Features | OVP, UVP, OPP, SCP, OCP, OTP, Input Surge & Inrush Protection |
| Compliance | ErP 2013 Lot 6, ErP 2014 Lot 3 |
| Vampire Power | Below 0.25W |
| Warranty Information | |
| Warranty | 3 Year Warranty |
