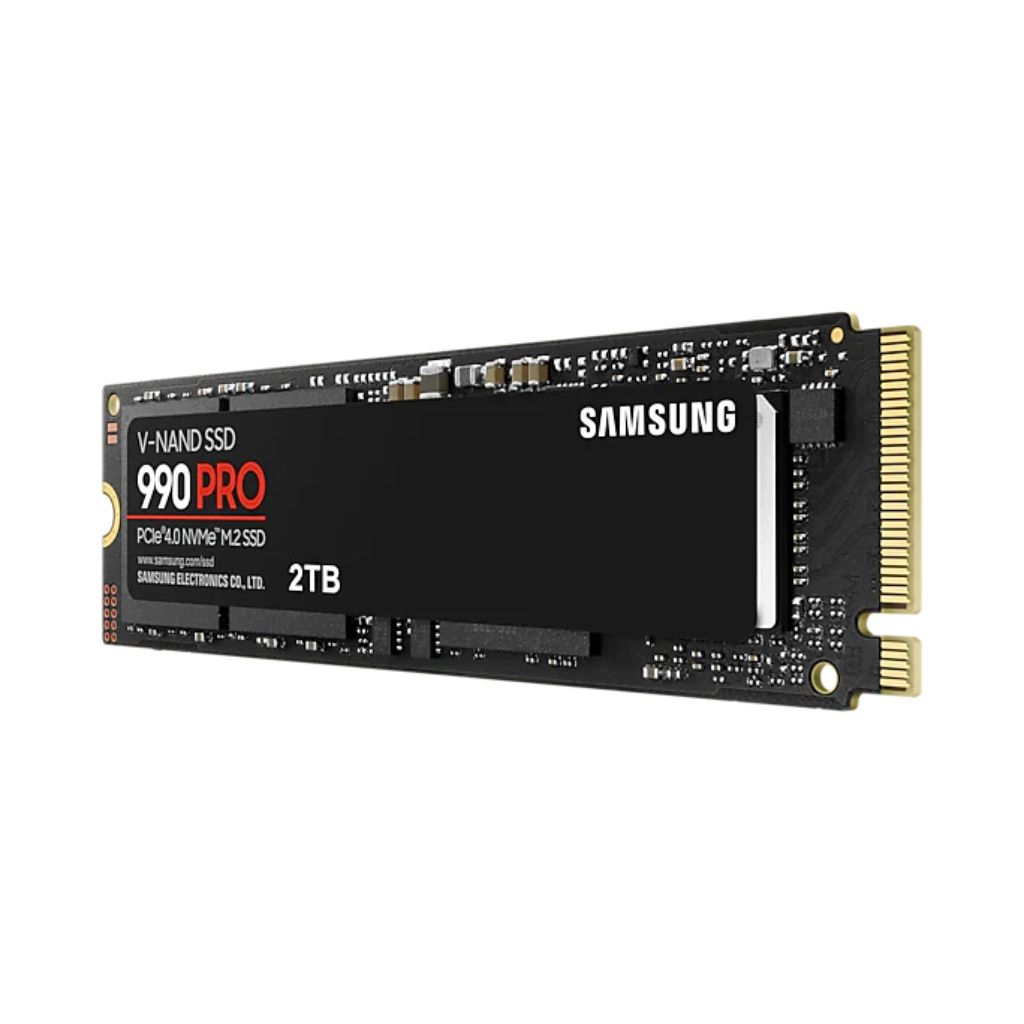

Samsung 990 PRO 2TB NVMe PCIe Gen4 M.2 SSD
Full description Samsung.
- Experience long-lasting fast performance of PCIe® 4.0. The in-house controller’s smart heat control delivers supreme power efficiency while maintaining speed and performance to help keep you on the top of your game¹.
- Huge speed boost. Up to 40% and 55% faster random read/write speeds than 980 PRO – up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.0². Fly high in gaming, video and 3D editing, data analysis, and more.
- More power-efficient performance. Higher performance usually consumes more power. But, 990 PRO uses less power with over 50% improved performance per Watt over 980 PRO³.This low-power design delivers outstanding PCIe® 4.0 performance possible with optimal power efficiency.
- Speed beyond the heat. The nickel-coated controller and cutting-edge thermal control algorithm helps to manage heat for stable performance.The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures stable.
SPECIFICATIONS |
|
| Brand | Samsung |
| Series | 990 PRO |
| Model | MZ-V9P2T0BW |
| General | |
| Capacity | 2TB |
| Form Factor | 2280 M.2 |
| Interface | PCI-Express Gen 4.0 x4 NVMe 2.0 |
| Storage Memory | Samsung V-NAND 3-bit MLC |
| Controller | Samsung Pascal Controller |
| Cache Memory | Samsung 2GB Low Power DDR4 SDRAM |
| Dimensions | 80mm x 22mm x 2.3mm |
| Management Software | Magician Software for SSD Management |
| Key Features | |
| TRIM Support | Yes |
| S.M.A.R.T Support | Yes |
| Garbage Collection | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 |
| Device Sleep Mode Support | Yes |
| Performance | |
| Sequential Read | Up to 7,450 MB/s |
| Sequential Write | Up to 6,900 MB/s |
| Random Read (4KB, QD32) | Up to 1,400,000 IOPS |
| Random Write (4KB, QD32) | Up to 1,550,000 IOPS |
| Random Read (4KB, QD1) | Up to 22,000 IOPS |
| Random Write (4KB, QD1) | Up to 80,000 IOPS |
| Environment | |
| Average Power Consumption | Average: 5.5W W |
| Maximum: 8.5 W (Burst mode) | |
| Power consumption (Idle) | Max. 55 mW |
| Reliability (MTBF) | 1.5 Million Hours |
| Allowable Voltage | 3.3 V ± 5 % |
| Operating Temperature | 0°C – 70°C |
| Shock | 1,500 G & 0.5 ms |
| Warranty Information | |
| Warranty | 5 Year Limited Warranty or 1,200 TBW |
Samsung 990 PRO 2TB NVMe PCIe Gen4 M.2 SSD
Contact us if you would like to enquire about this product.
