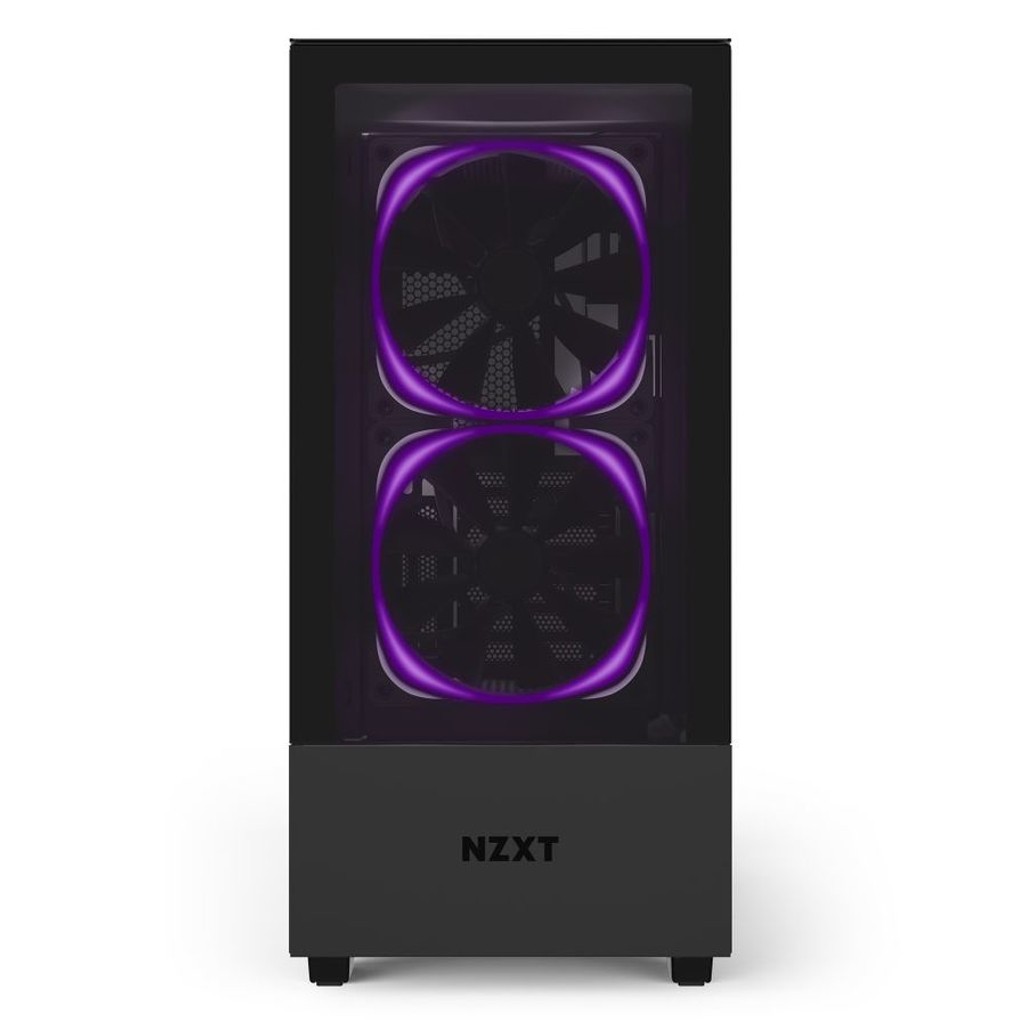

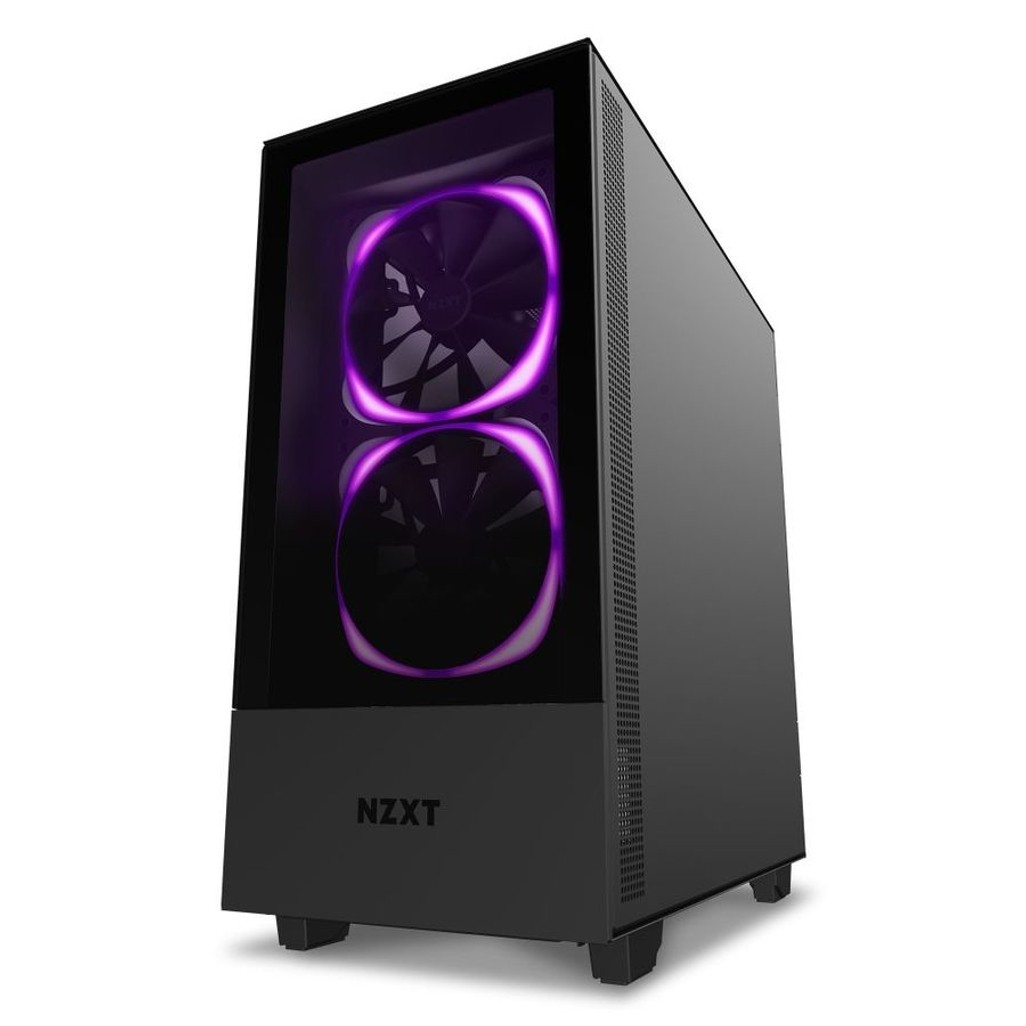

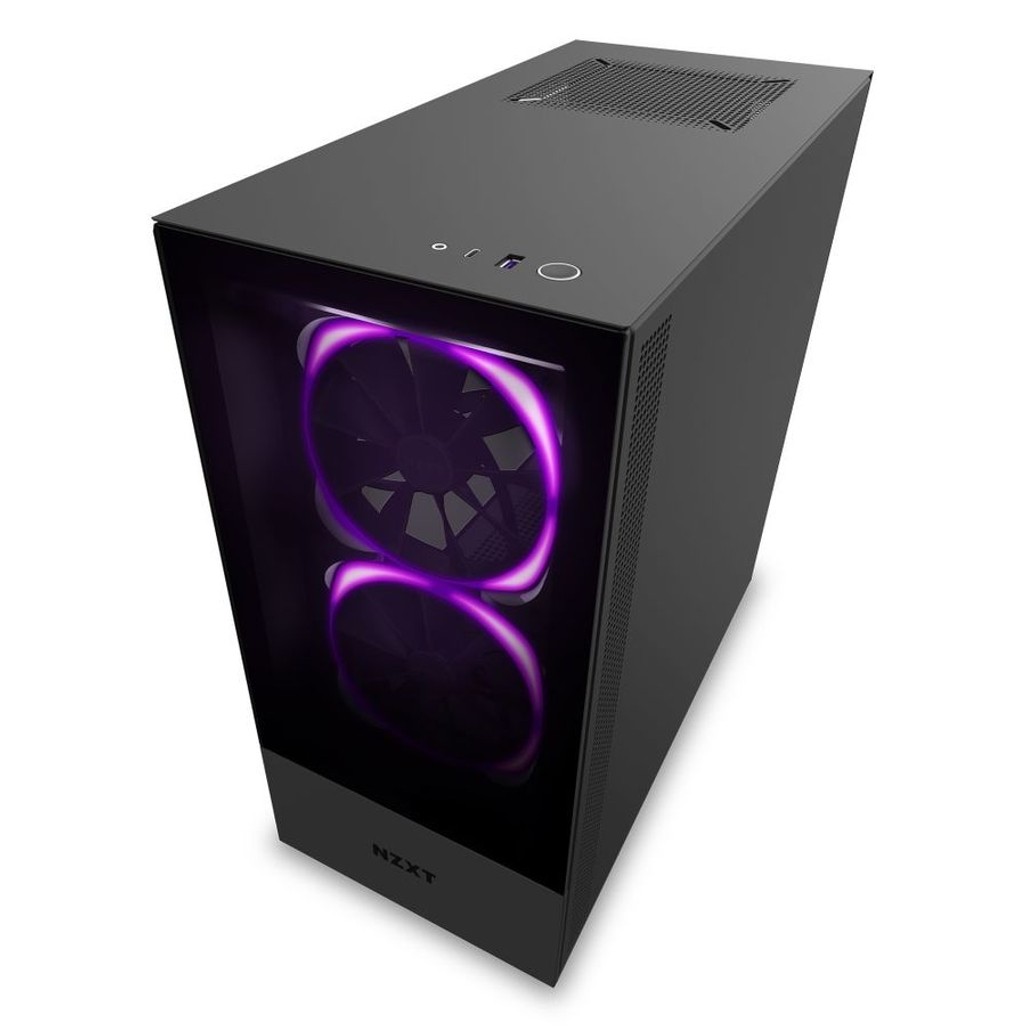

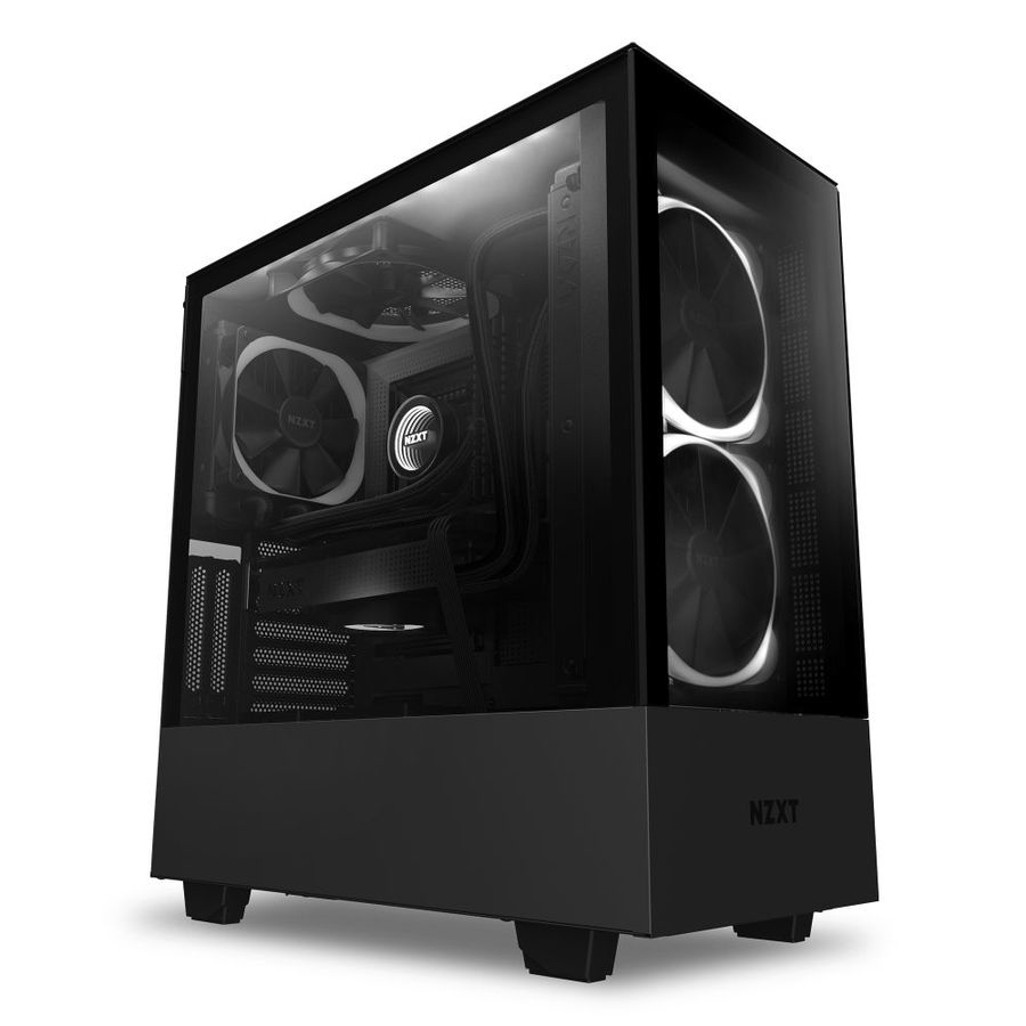

NZXT H510 Elite Black Gaming Case
Full description NZXT.
This compact mid-tower is ideal for highlighting RBG-focused builds with a front tempered glass panel that showcases included Aer 2 RGB fans along with the easy-to-build-in features of the H510.
- Two tempered glass panels for showcasing stunning RGB builds.
- Two Aer RGB 2 fans and one RGB LED are included
- Removable radiator mounting bracket and simple-to-use SSD trays
- Patented cable management system
- Smart Device 2 with two RGB lighting channels and three fan channels that support 0dB modes for voltage-regulated or PWM fans
- USB 3.1 Gen 2-compatible USB-C connector
- Iconic cable management bar
NZXT H510 Elite
- Form factor: Midi Tower
- Type: PC
- Material: SGCC, Steel, Tempered glass
- Front fans diameters supported: 120,140 mm
- Rear fans diameters supported: 120 mm
- Top fans diameters supported: 120,140 mm
- Supported HDD sizes: 2.5,3.5″
- Width: 210 mm, Depth: 428 mm, Height: 435 mm
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio output | Y |
Design
| Product colour | Black |
|---|---|
| Type | PC |
| Supported motherboard form factors | ATX, EATX, Micro ATX, Mini-ATX |
| Number of 3.5″ bays | 3 |
| Side window | Y |
| Number of 2.5″ bays | 3 |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 165 |
| Cable management | Y |
| Illumination | Y |
| Illumination colour | Multi |
| Anti-dust filter | Y |
| Tempered glass panel(s) | Y |
| On/off button | Y |
| Form factor | Midi Tower |
| Material | SGCC, Steel, Tempered glass |
| Maximum graphics card length | 381 |
Weight & dimensions
| Width | 210 |
|---|---|
| Height | 435 |
| Depth | 428 |
| Weight | 7500 |
Storage
| Supported HDD sizes | 2.5,3.5 |
|---|
Cooling
| Number of front fans supported (max) | 2 |
|---|---|
| Front fans diameters supported | 120,140 |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 |
| Number of top fans supported (max) | 1 |
| Top fans diameters supported | 120,140 |
| Front radiator fan sizes supported | 120,140 |
| Rear radiator fan sizes supported | 120 |
