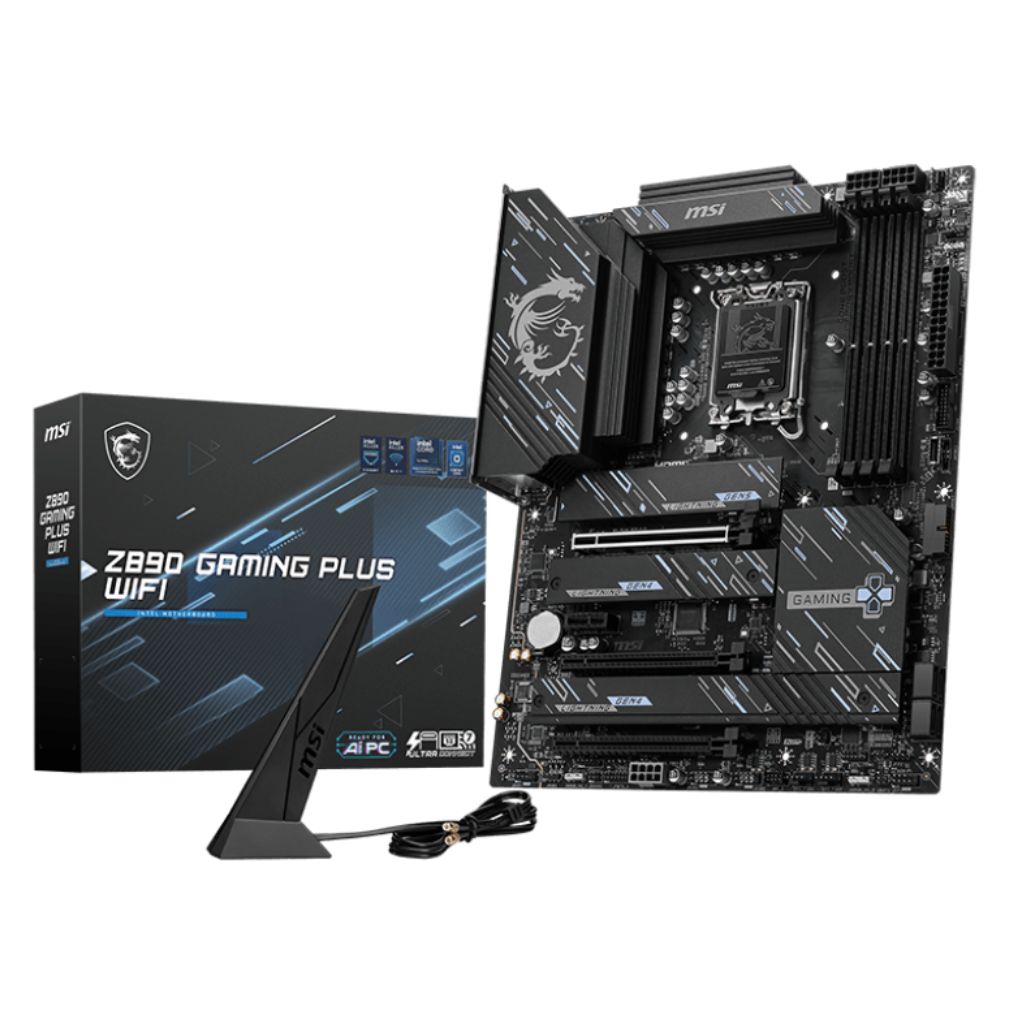

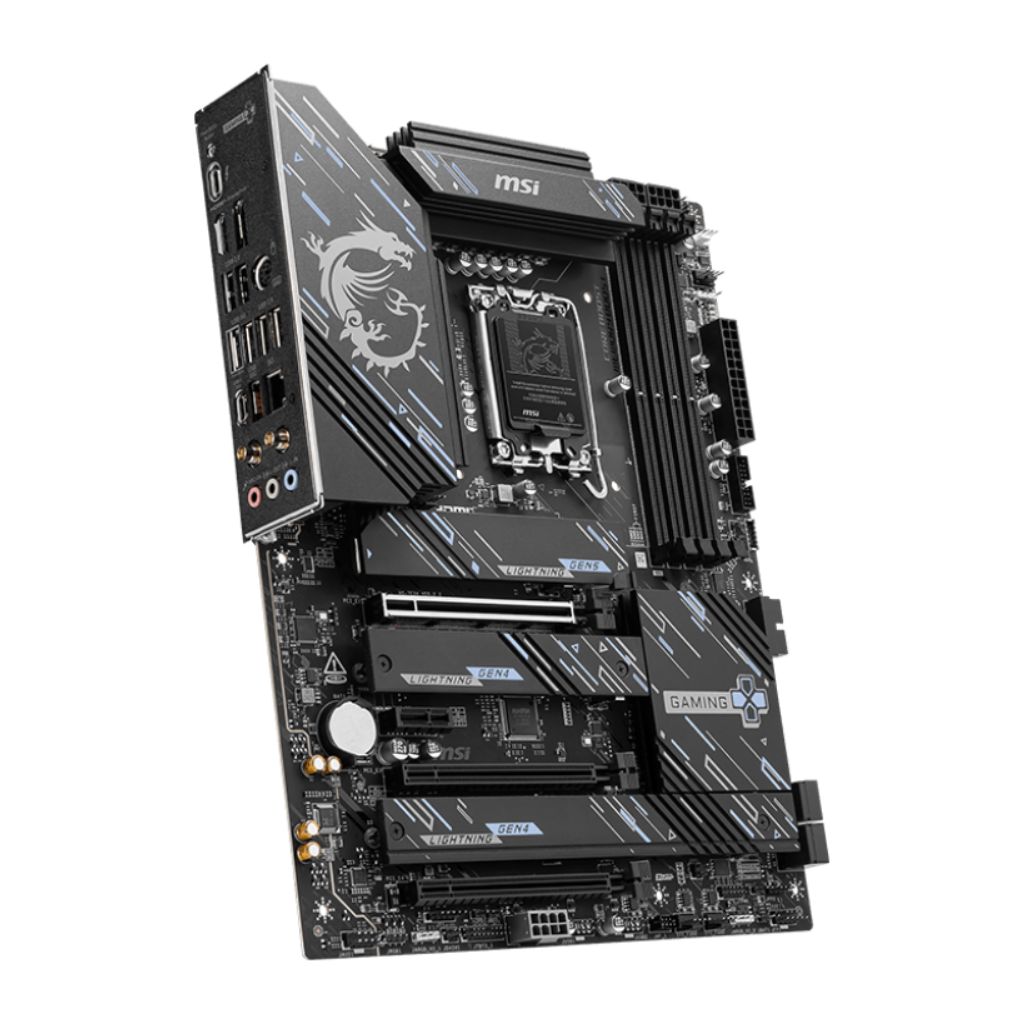

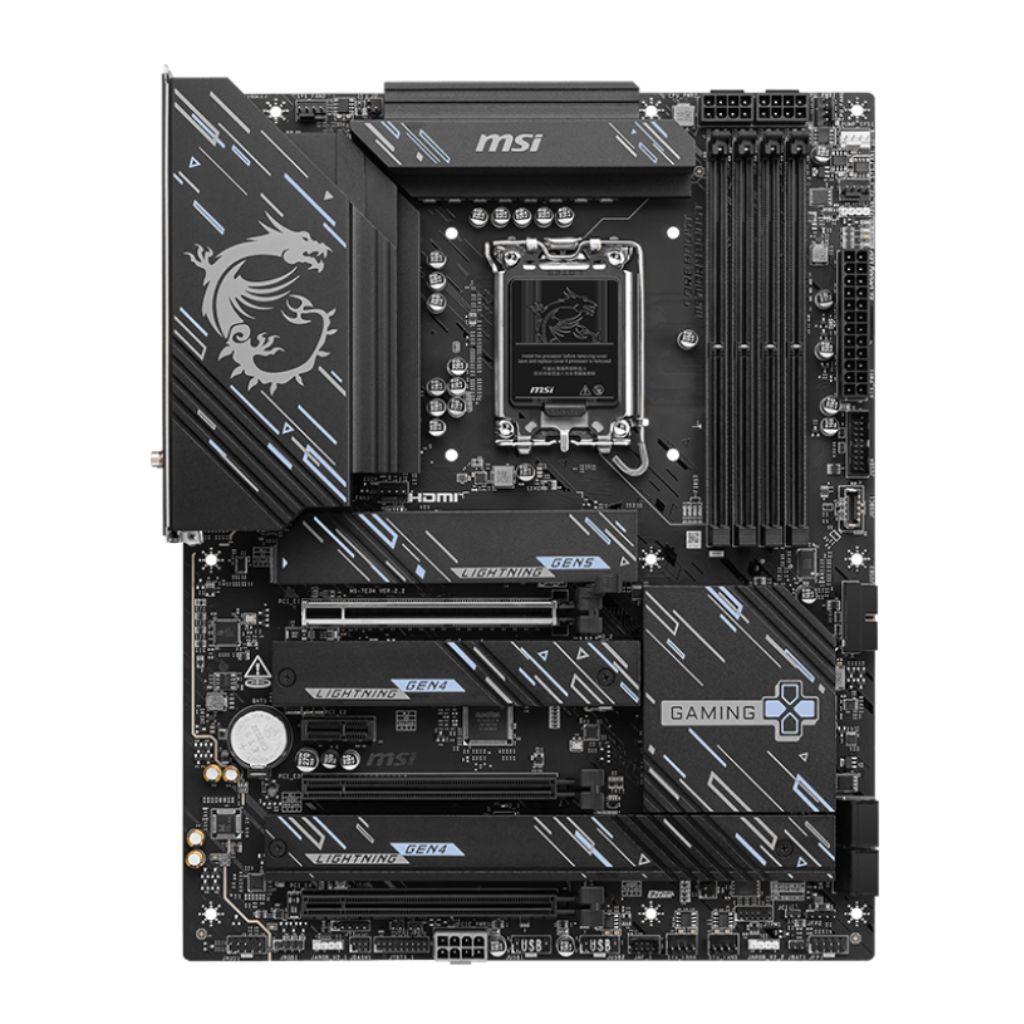

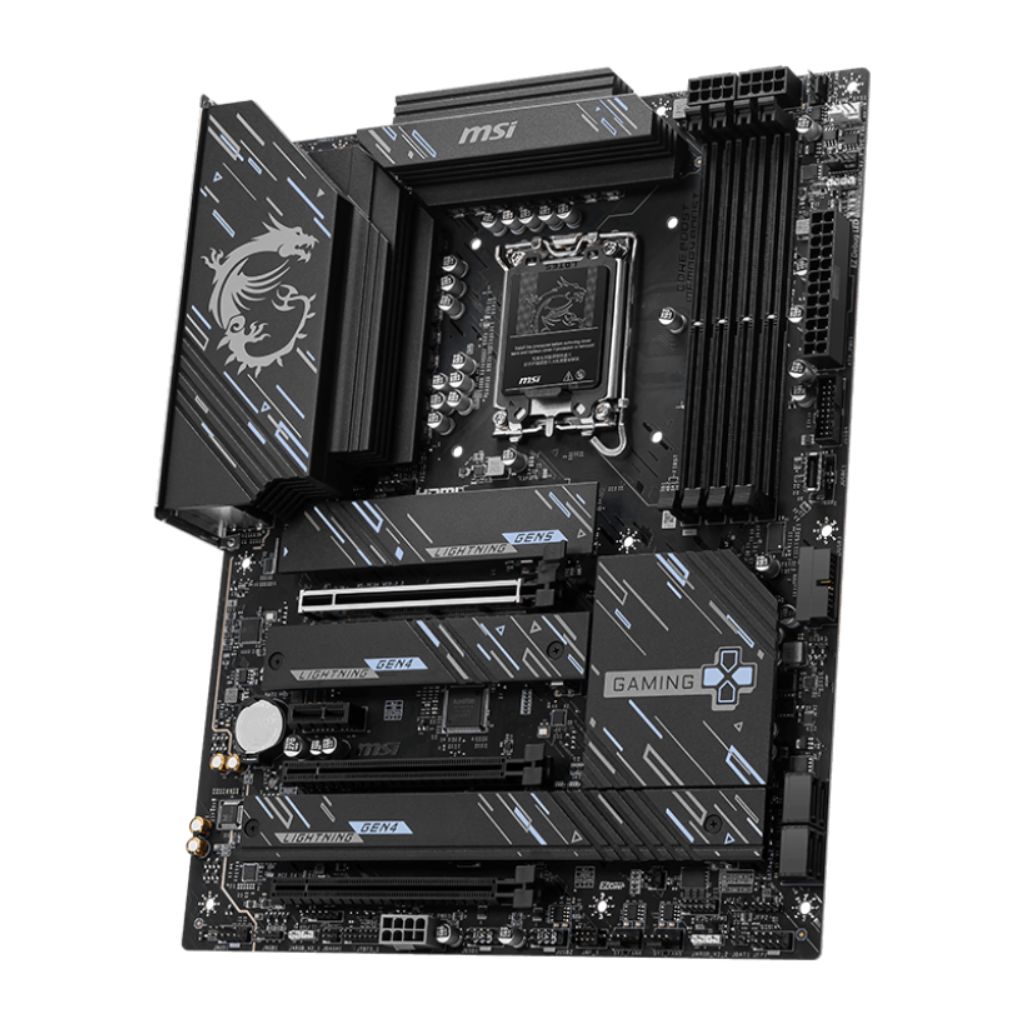

MSI Z890 Gaming PLUS WiFi 7 DDR5 ATX LGA 1851 Intel Motherboard – Z890-GAMING-PLUS-WIFI
Full description MSI.
- Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution
- Audio Boost: Reward your ears with studio grade sound quality.
| Specifications | |
| Brand: | MSI |
| Series: | Z890 Series |
| Model: | Z890-GAMING-PLUS-WIFI |
| Technical Specs | |
| CPU Support: | Supports Intel Core Ultra Processors (Series 2) – LGA 1851 |
| Chipset: | Intel Z890 |
| Memory: | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s – Supports Intel® POR Speed and JEDEC Speed |
| Onboard Graphics: | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Audio: | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Connectivity | |
| LAN: | Intel Killer E5000 5Gbps LAN |
| Wireless: | Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Bluetooth: | Supports Bluetooth 5.4, MLO, 4KQAM |
| Expansion Slots: | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage Interface: | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 – supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 – supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 – supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode – supports 2280/2260/2242 devices 4x SATA 6G |
| On-Board Connectors | |
| USB: | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| Internal I/O Connectors: | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |

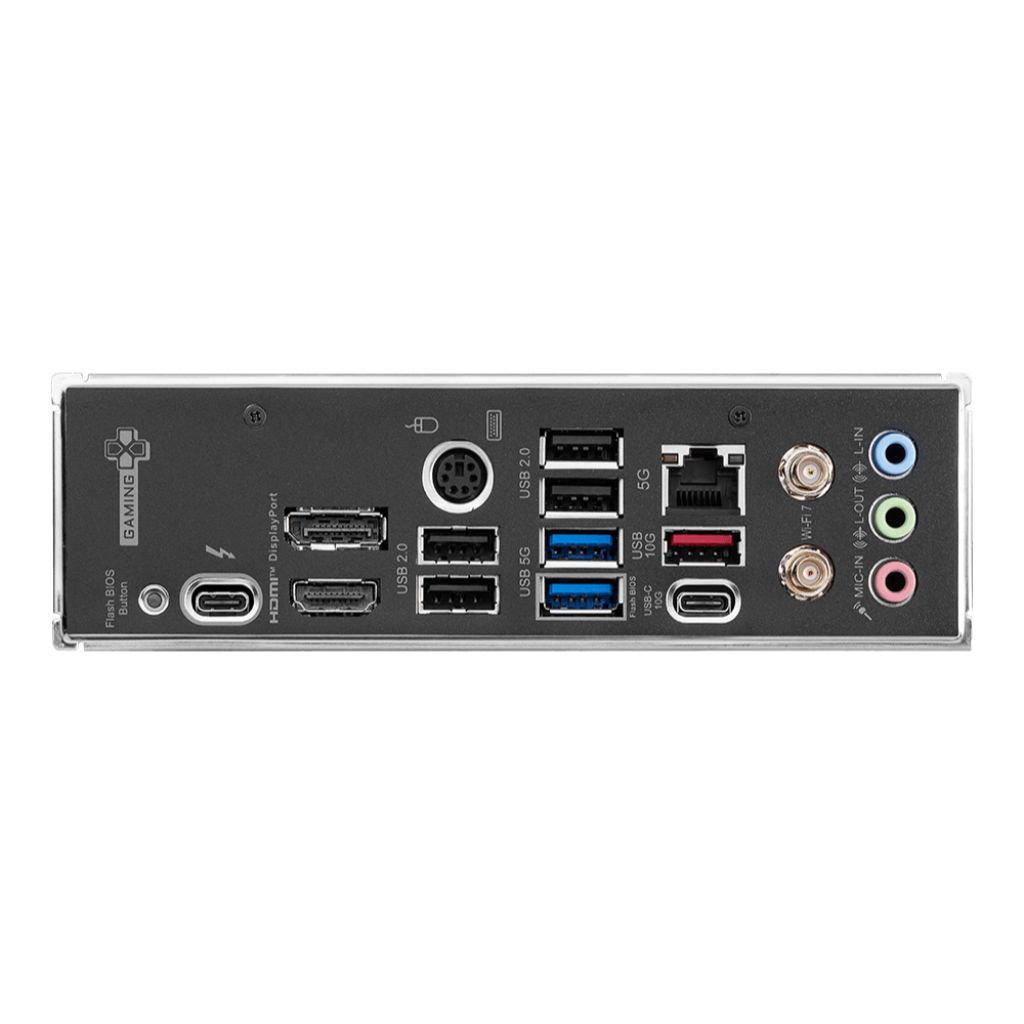

| Back Panel Connectors: |
|
| Software & Features | |
| BIOS: | – |
| Software: | – |
| Features: | Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC) |
| EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna | |
| Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 | |
| Ultra Connect: Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution | |
| Audio Boost: Reward your ears with studio grade sound quality | |
| General | |
| Operating System: | Support for Windows 11 64-bit |
| Form Factor: | ATX, 243.84mmx304.8mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
