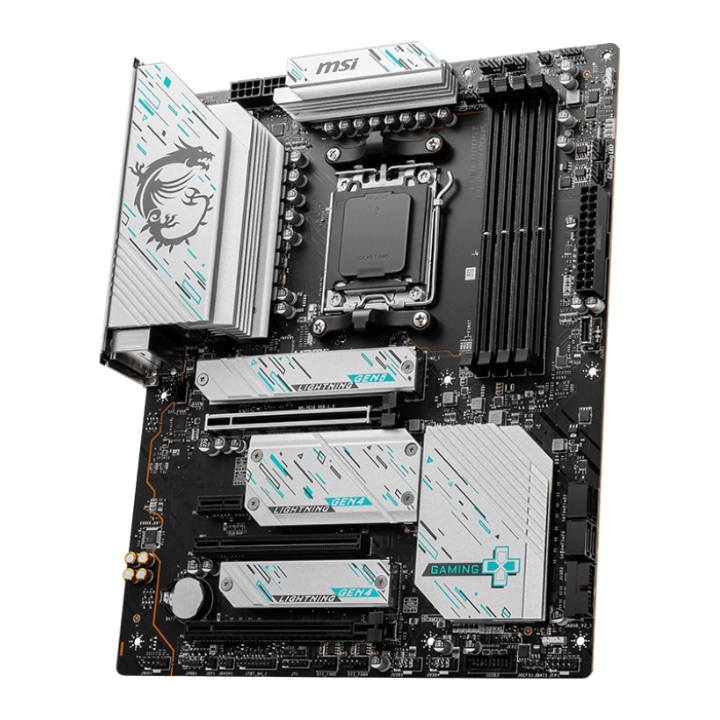

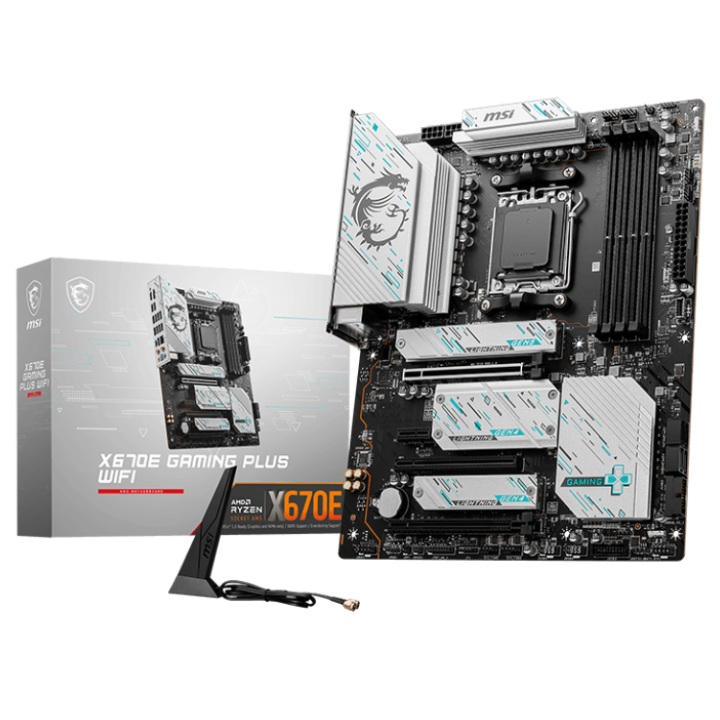

MSI X670E Gaming PLUS WiFi DDR5 AM5 ATX Motherboard – White Edition
Full description MSI.
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works.
Specifications |
|
| Brand: | MSI |
| Series: | X670 Series |
| Model: | X670E-GAMING-PLUS-WIFI |
| Technical Specs | |
| CPU Support: | Supports AMD Ryzen™ 8000/ 7000 Series Processors Socket AM5 |
| Chipset: | AMD X670 |
| Memory: | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode |
| Onboard Graphics: | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
| Audio: | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Connectivity | |
| LAN: | Realtek RTL8125BG 2.5Gbps LAN |
| Wireless: | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth: | Supports Bluetooth 5.3 |
| Expansion Slots: | 3x PCI-E x16 slot Supports x16/x1/x4 • Supports x16/x1/x4 (For Ryzen™ 7000 Series processors) • Supports x8/x1/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x1/x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage Interface: | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| On-Board Connectors | |
| USB: | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| Internal I/O Connectors: | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Back Panel Connectors: |
|
| Software & Features | |
| BIOS: | – |
| Software: | – |
| Features: | AUDIO BOOST: Reward your ears with studio grade sound quality |
| Supports AMD Ryzen™ 8000 / 7000 Series Processors | |
| Supports DDR5 Memory, up to 7800+(OC) MHz | |
| Premium Thermal Solution: Extended Heatsink Design | |
| Enhanced Power Design: 14+2+1 Duet Rail Power System | |
| General | |
| Operating System: | Support for Windows 11 64-bit, Windows 10 64-bit |
| Form Factor: | ATX 243.84mmx304.8mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
