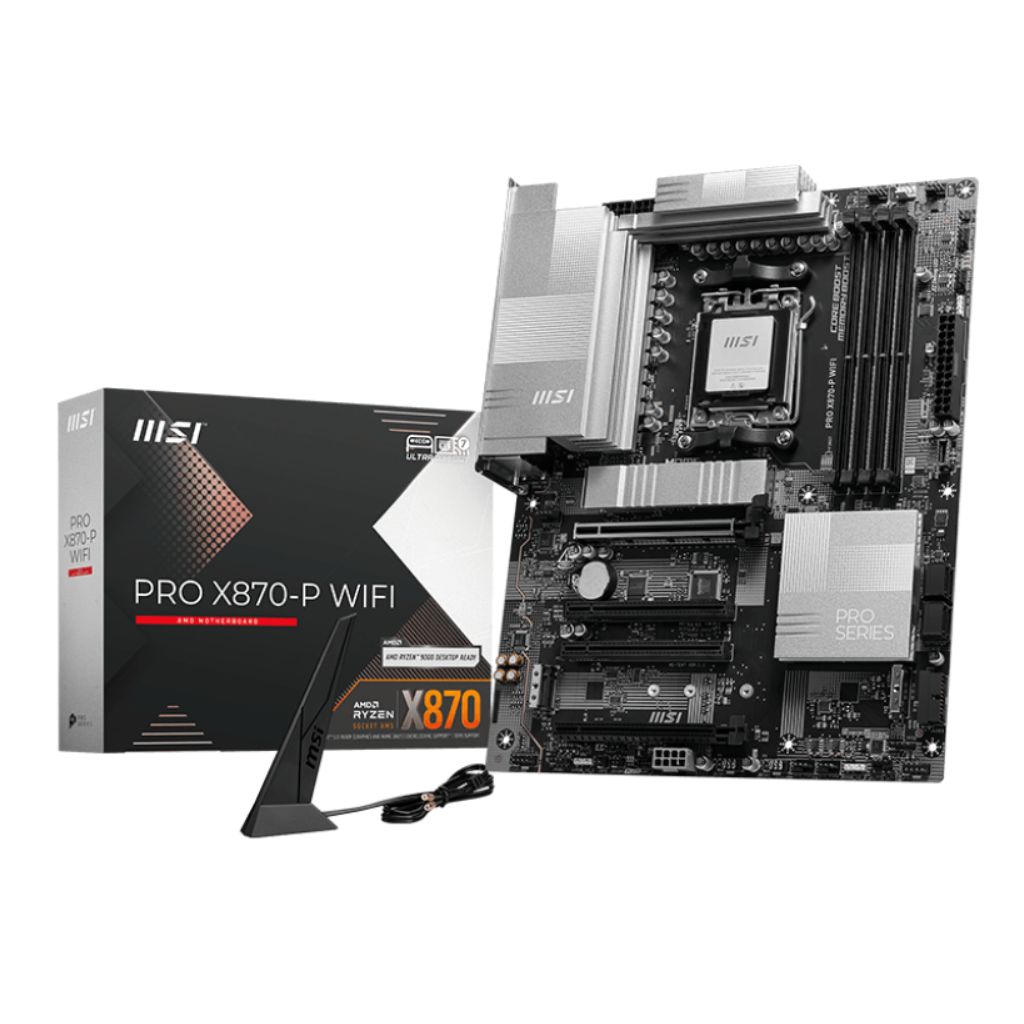

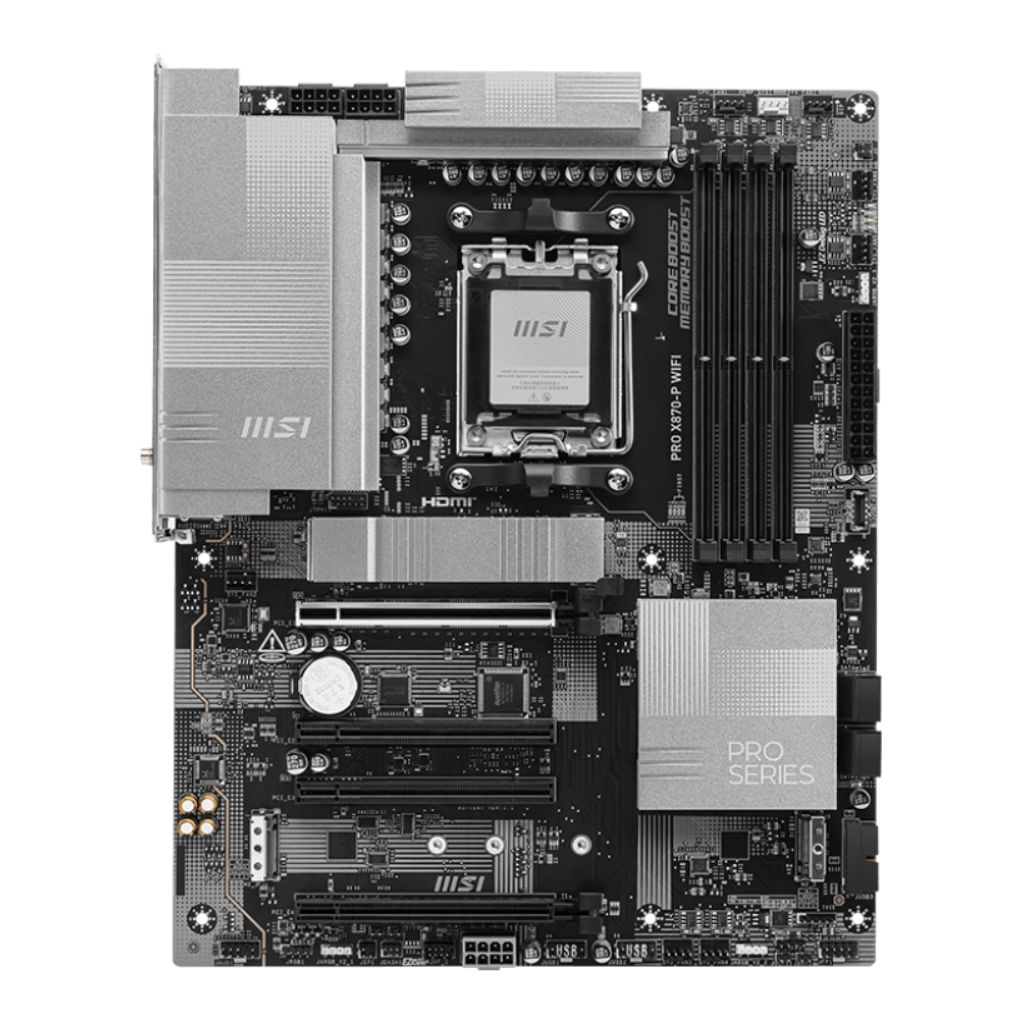

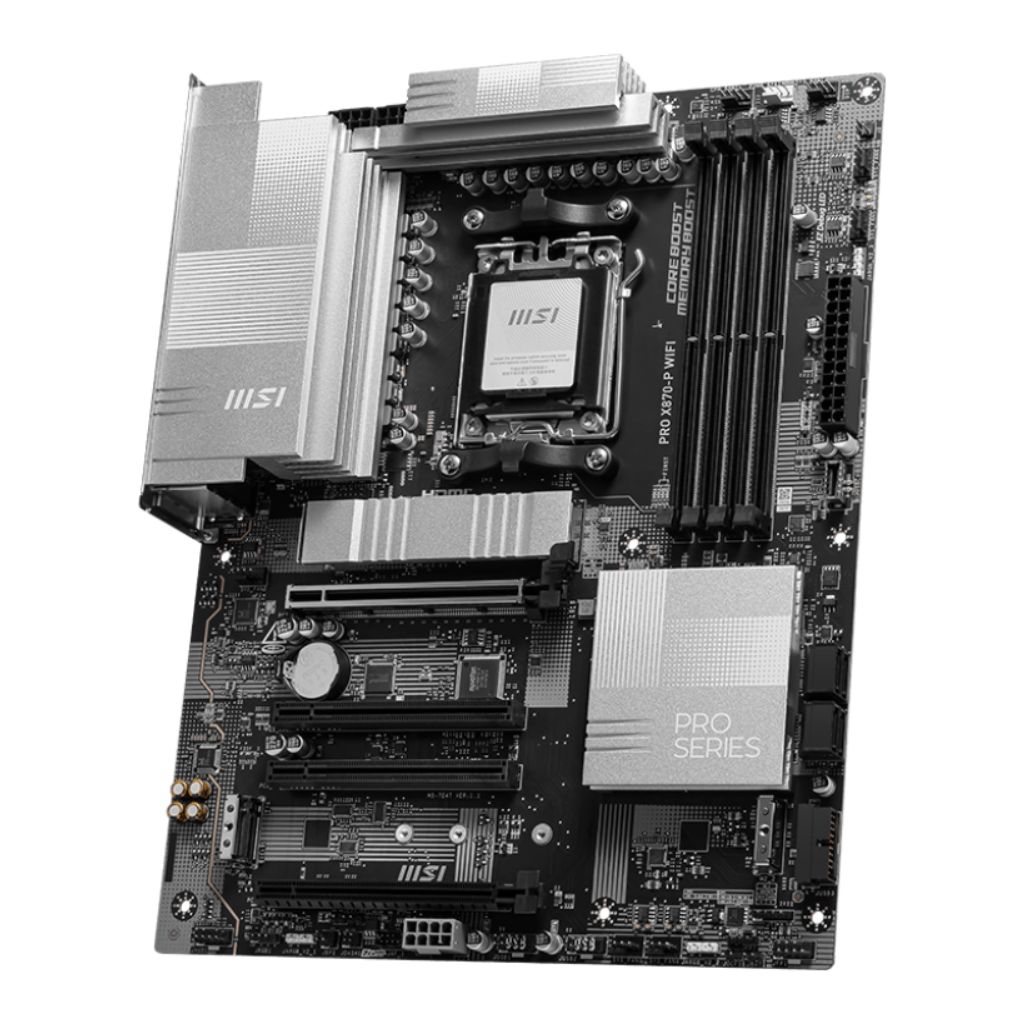

MSI PRO X870-P WiFi DDR5 ATX AM5 AMD Motherboard – PRO-X870-P-WIFI
Full description MSI.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
| Specifications | |
| Brand: | MSI |
| Series: | AMD X870 Series |
| Model: | PRO-X870-P-WIFI |
| Technical Specs | |
| CPU Support: | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset: | X870 Chipset |
| Memory: | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s – Supports AMD POR Speed and JEDEC Speed |
| Onboard Graphics: | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort |
| Audio: | Realtek ALC897 7.1-Channel High Definition Audio |
| Connectivity | |
| LAN: | Realtek 8126VB 5G LAN |
| Wireless: | Wi-Fi 7 – The Wireless module is pre-installed in the M.2 (Key-E) slot – Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps – Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Bluetooth: | Supports Bluetooth 5.4 |
| Expansion Slots: | 4x PCI-E x16 slot – PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) – PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) – PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) – PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot |
| Storage Interface: | 3x M.2 – M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices – M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices – M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G – M2_1 slot |
| On-Board Connectors | |
| USB: | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) |
| Internal I/O Connectors: | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |

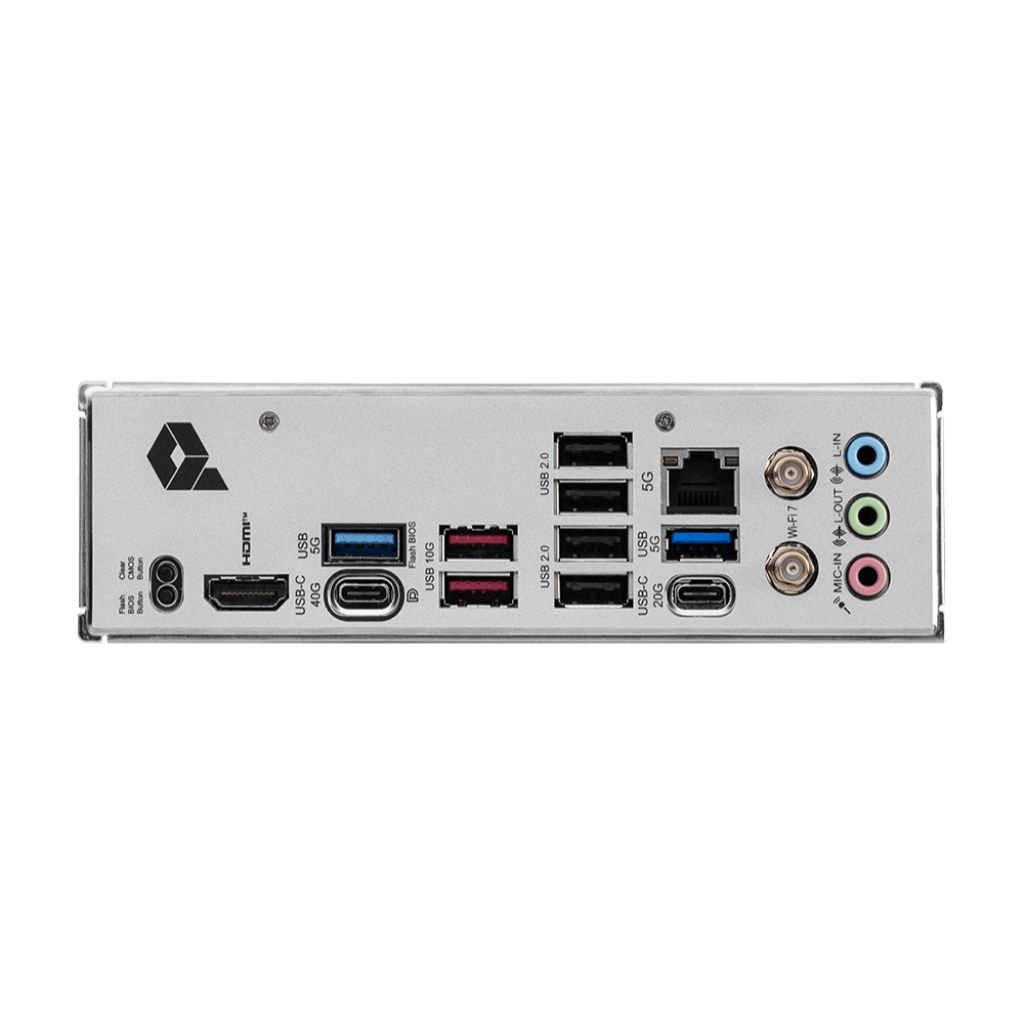

| Back Panel Connectors: |
|
| Software & Features | |
| BIOS: | – |
| Software: | – |
| Features: | Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK |
| EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna | |
| Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 | |
| Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution | |
| Audio Boost: Reward your ears with studio grade sound quality | |
| General | |
| Operating System: | Support for Windows 11 64-bit |
| Form Factor: | ATX – 243.84mmx304.8mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
