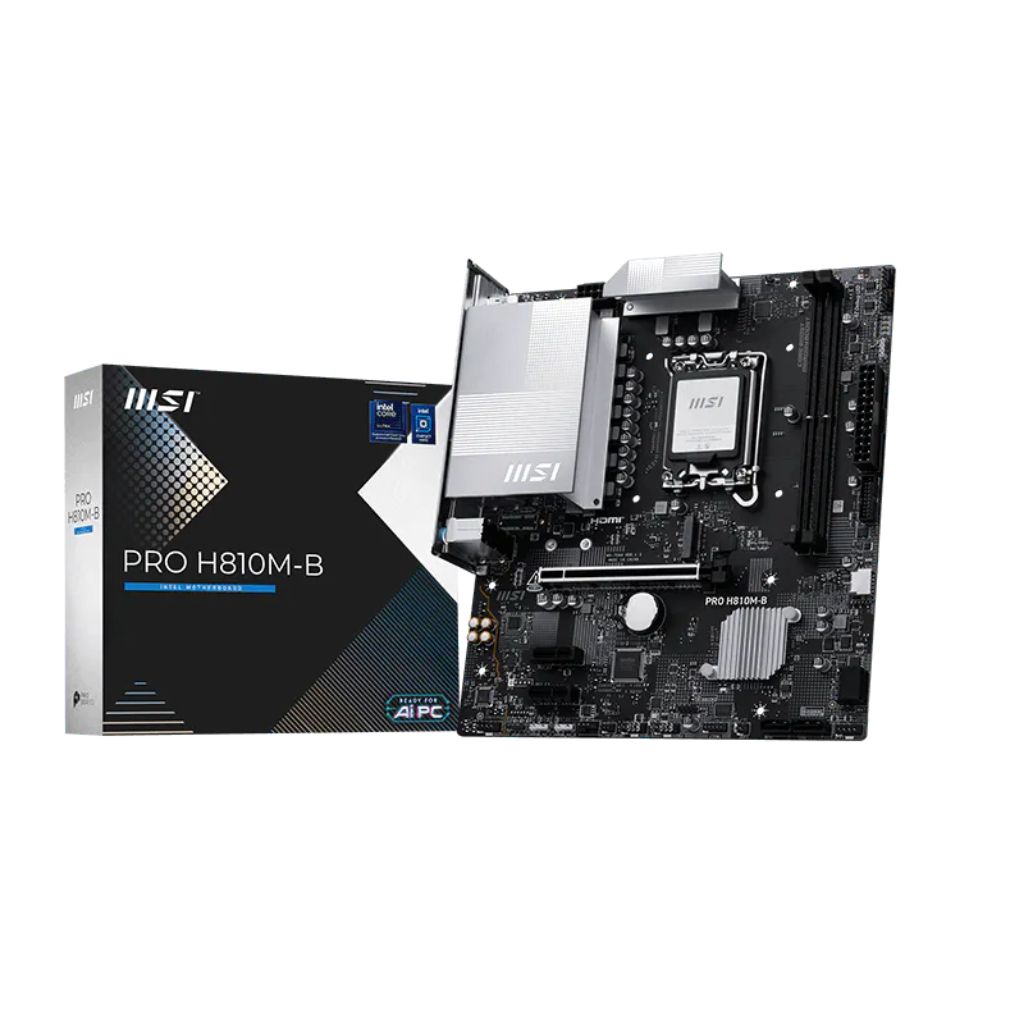

MSI PRO H810M-B DDR5 Micro-ATX LGA1851 Intel Motherboard
Full description MSI.
- Built for Intel® Core™ Ultra (Series 2) – Designed for LGA1851 processors, delivering reliable performance for business systems, home offices, and everyday productivity builds.
- DDR5 Performance up to 6400MT/s – Dual-channel DDR5 memory architecture supporting up to 128GB for faster multitasking and smoother system responsiveness.
- PCIe 5.0 Ready Graphics Slot – PCIe Gen5 x16 slot (from CPU) ensures next-generation GPU compatibility for future upgrade flexibility.
- 2.5G LAN for Faster Networking – Integrated Realtek® 2.5Gb Ethernet provides stable, high-speed wired connectivity for work and streaming.
- MSI PRO Reliability & EZ Debug Design – Durable PCB layout, EZ Debug LED, M.2 support, and business-class stability ideal for professional environments.
| Specifications | |
|---|---|
| Brand: | MSI |
| Model: | PRO H810M-B |
| Chipset: | Intel® H810 |
| Socket: | LGA1851 |
| Form Factor: | Micro-ATX (220mm x 243.84mm) |
| CPU Support | |
| Supported Processors: | Intel® Core™ Ultra Processors (Series 2) |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 2 |
| Maximum Capacity: | 128GB |
| Memory Speed: | DDR5 6400 / 6200 / 6000 / 5600 / 5200 / 4800 MT/s (JEDEC) |
| Memory Support: | Dual Channel, Intel XMP 3.0, Non-ECC Unbuffered |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 5.0 x16 (from CPU) |
| PCIe x1 Slot: | 1x PCIe 4.0 x1 (from Chipset) |
| Storage | |
| M.2 Slots: | 1x M.2 (PCIe 4.0 x4, 2280/2260) |
| SATA Ports: | 4x SATA 6Gb/s |
| Networking | |
| LAN: | Realtek® 8125 2.5GbE LAN |
| Graphics Outputs | |
| HDMI: | 1x HDMI 2.1 (4K 60Hz, CPU dependent) |
| DisplayPort: | 1x DisplayPort 1.4 (4K 60Hz) |
| Audio | |
| Audio Codec: | Realtek® ALC897 |
| Audio Features: | 7.1-Channel High Definition Audio |
| USB (Rear I/O) | |
| USB 10Gbps Type-A: | 2 |
| USB 5Gbps Type-A: | 2 |
| USB 2.0: | 4 |
| Internal I/O Connectors | |
| 24-pin ATX Power: | 1 |
| 8-pin CPU Power: | 1 |
| CPU Fan Header: | 1 |
| System Fan Headers: | 2 |
| M.2 Connector: | 1 |
| SATA Connectors: | 4 |
| USB 10Gbps Header: | 1 |
| USB 5Gbps Headers: | 2 |
| USB 2.0 Headers: | 2 |
| RGB Headers: | 1x RGB, 3x Addressable Gen2 |
| TPM Header: | Yes |
| EZ Debug LED: | Yes |

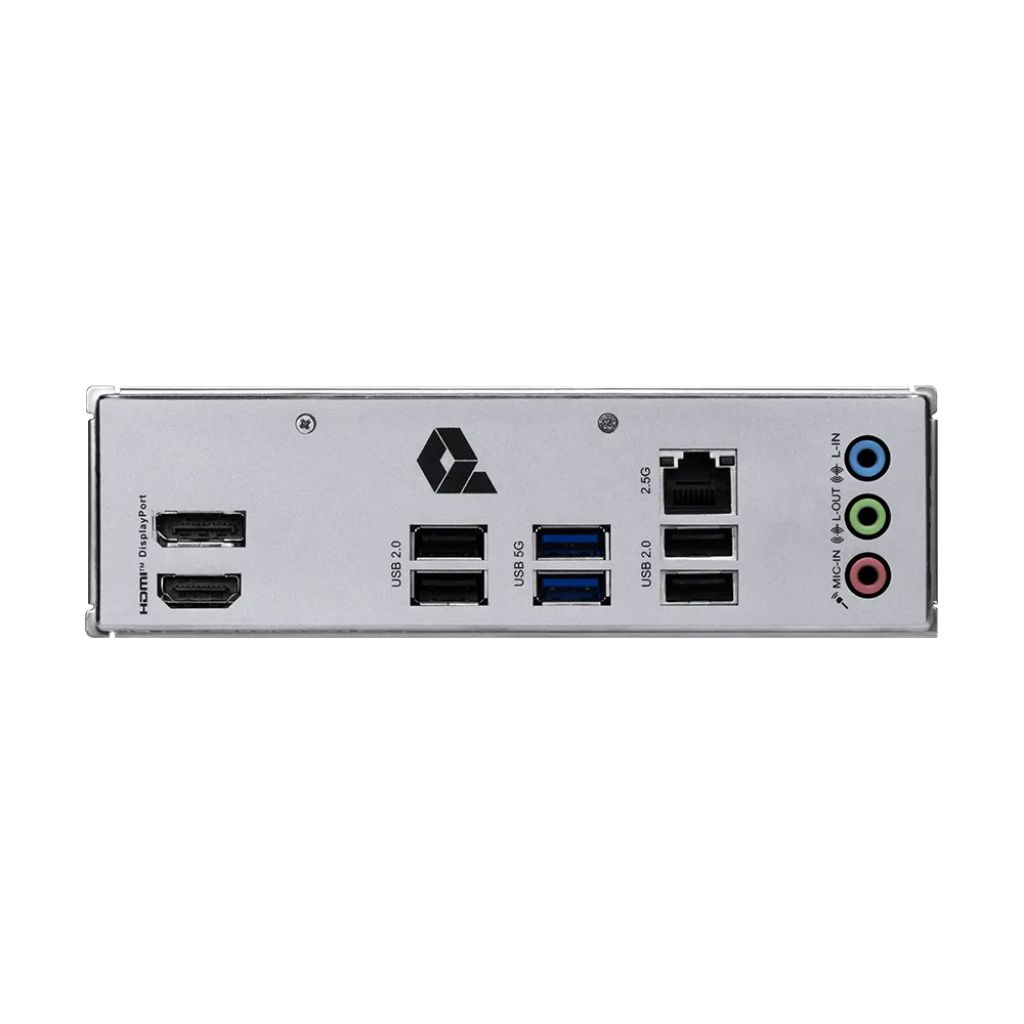

| Back Panel I/O Ports | |
| DisplayPort: | 1 |
| HDMI: | 1 |
| USB 10Gbps Type-A: | 2 |
| USB 5Gbps Type-A: | 2 |
| USB 2.0: | 4 |
| LAN Port: | 1x RJ-45 (2.5GbE) |
| Audio Jacks: | 3 |
| BIOS | |
| BIOS Type: | UEFI AMI BIOS |
| Operating System Support | |
| OS Support: | Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
