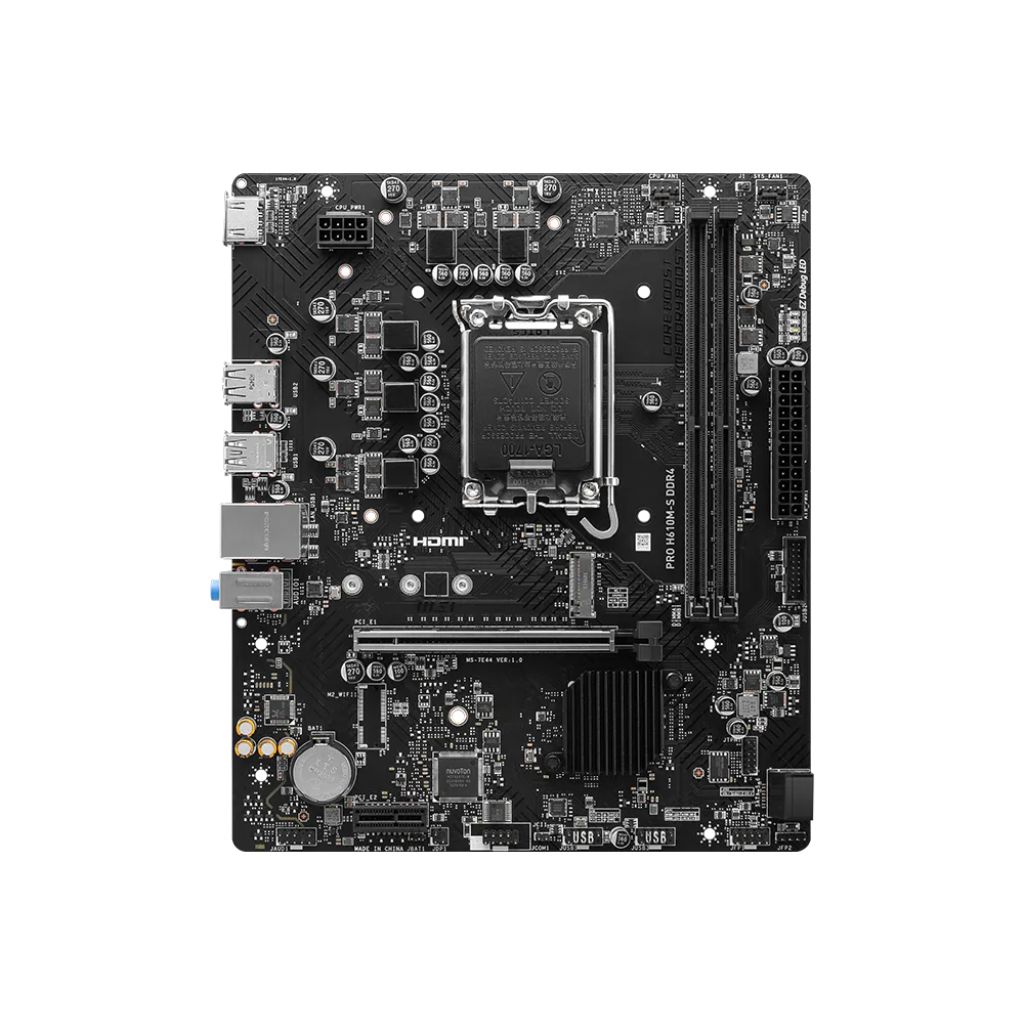

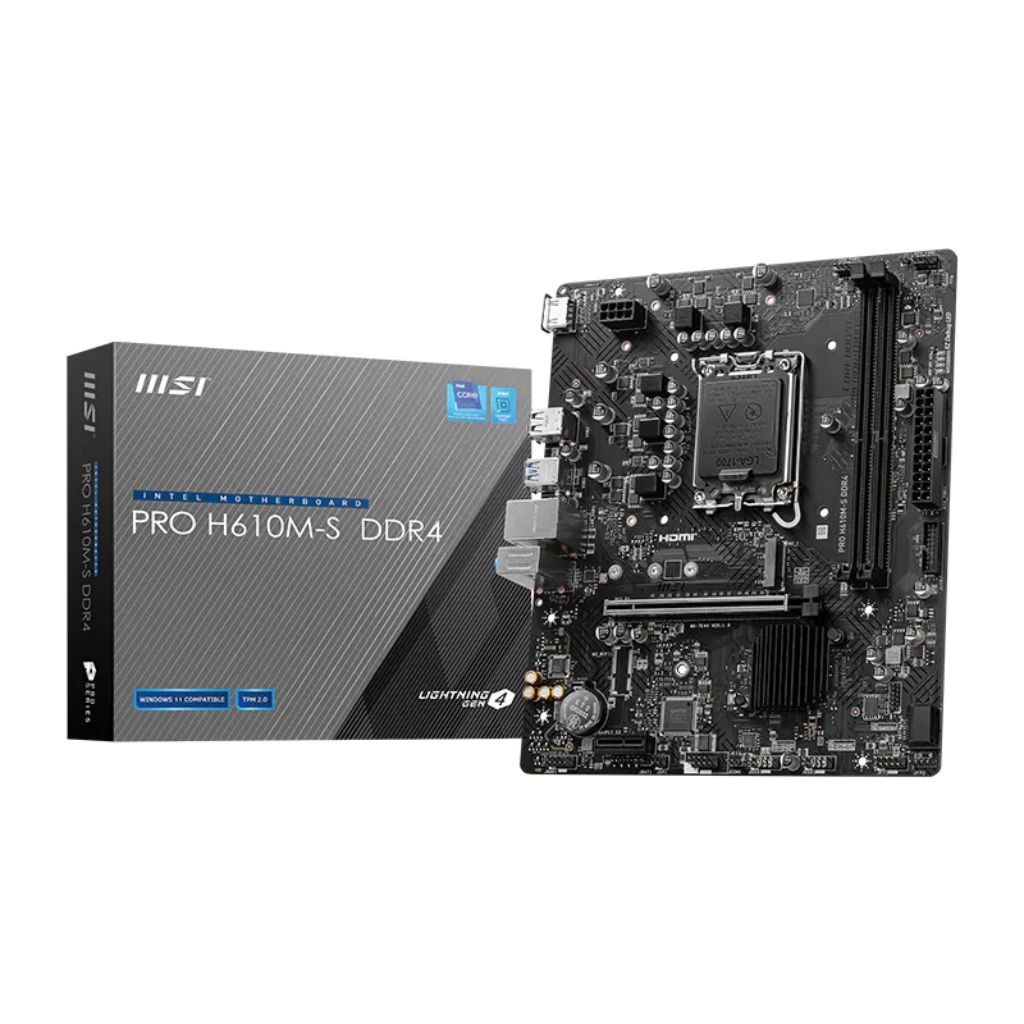

MSI PRO H610M-S DDR4 Micro-ATX LGA1700 Intel Motherboard
Full description MSI.
- Supports Intel 14th / 13th / 12th Gen Processors – Built on the Intel H610 chipset with LGA1700 socket compatibility for reliable everyday computing and office builds.
- Dual-Channel DDR4 up to 3200MHz – Supports up to 64GB DDR4 memory for smooth multitasking, productivity workloads, and stable system performance.
- PCIe 4.0 x16 Graphics Support – Full-length PCIe 4.0 slot delivers modern GPU compatibility for entry-level gaming or workstation use.
- M.2 NVMe Storage + SATA Expansion – High-speed PCIe 3.0 M.2 slot ensures fast boot times and application loading alongside SATA 6Gb/s storage support.
- Gigabit LAN & MSI PRO Stability Design – Reliable wired networking, EZ Debug LED, and business-focused durability for dependable long-term operation.
| Specifications | |
|---|---|
| Brand: | MSI |
| Model: | PRO H610M-S DDR4 |
| Chipset: | Intel® H610 |
| Socket: | LGA1700 |
| Form Factor: | Micro-ATX (200mm x 236.16mm) |
| CPU Support | |
| Supported Processors: | Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold & Celeron® |
| Memory | |
| Memory Type: | DDR4 |
| DIMM Slots: | 2 |
| Maximum Capacity: | 64GB |
| Memory Speed: | 3200 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 MHz |
| Memory Support: | Dual Channel, Non-ECC Unbuffered |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 4.0 x16 (from CPU) |
| PCIe x1 Slot: | 1x PCIe 3.0 x1 |
| Storage | |
| M.2 Slots: | 1x M.2 (PCIe 3.0 x4, 2280/2260/2242) |
| SATA Ports: | 2x SATA 6Gb/s |
| Networking | |
| LAN: | Realtek® RTL8111H Gigabit LAN |
| Graphics Outputs | |
| HDMI: | 1x HDMI 1.4 (4K 30Hz, CPU dependent) |
| Audio | |
| Audio Codec: | Realtek® ALC897 |
| Audio Features: | 7.1-Channel High Definition Audio |
| USB (Rear I/O) | |
| USB 5Gbps Type-A: | 2 |
| USB 2.0: | 4 |
| Internal I/O Connectors | |
| 24-pin ATX Power: | 1 |
| 8-pin CPU Power: | 1 |
| CPU Fan Header: | 1 |
| System Fan Header: | 1 |
| Front Panel Header: | Yes |
| Front Audio Header: | Yes |
| TPM Header: | Yes (TPM 2.0 Support) |
| USB 2.0 Headers: | 2 |
| EZ Debug LED: | Yes |

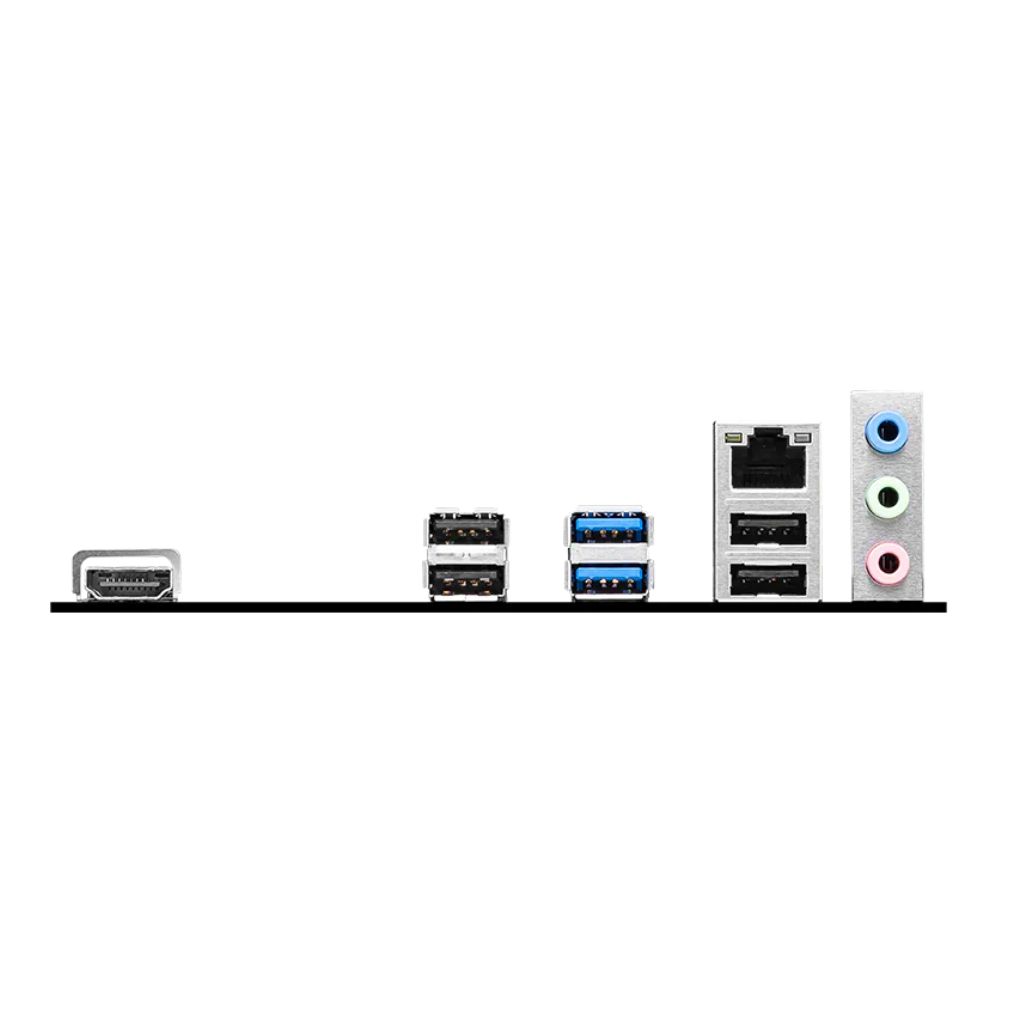

| Back Panel I/O Ports | |
| HDMI: | 1 |
| USB 5Gbps Type-A: | 2 |
| USB 2.0: | 4 |
| LAN Port: | 1x RJ-45 |
| Audio Jacks: | 3 |
| BIOS | |
| BIOS Type: | UEFI AMI BIOS |
| Operating System Support | |
| OS Support: | Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
