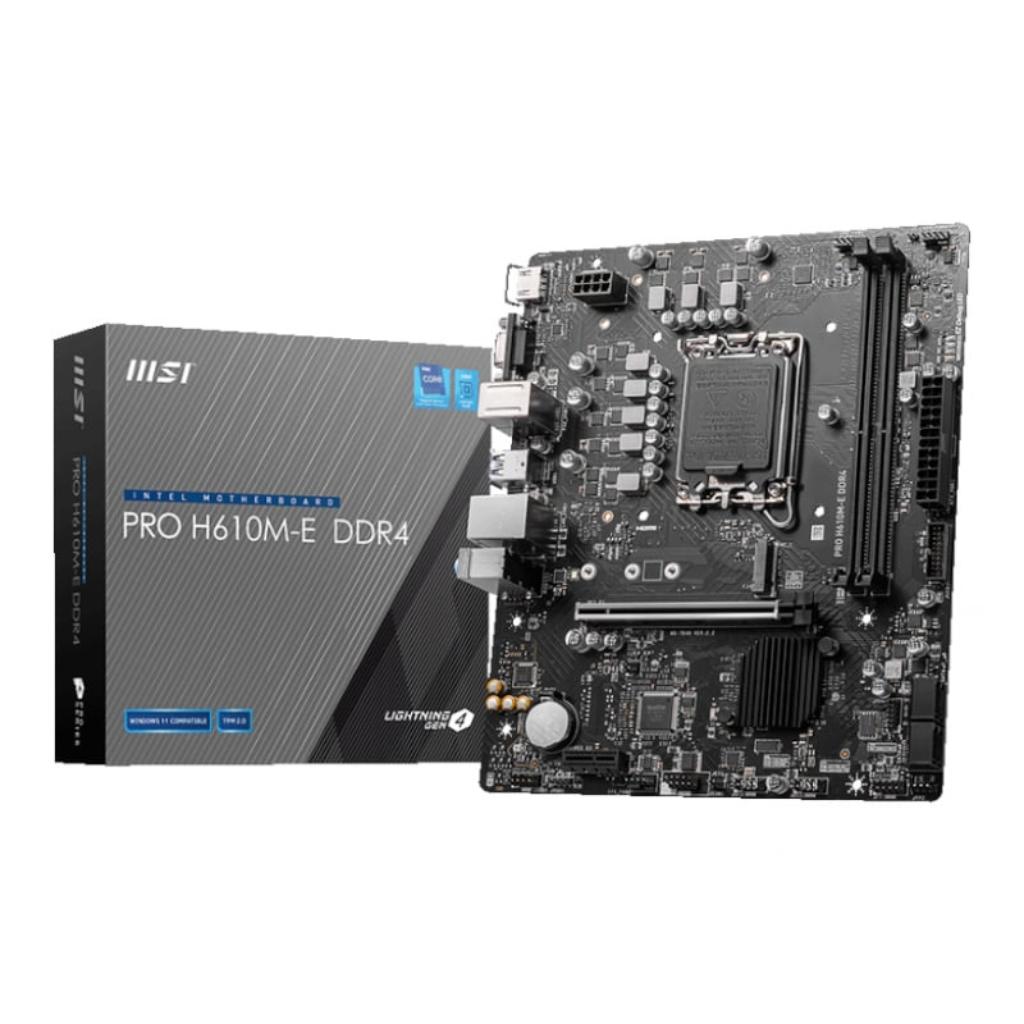

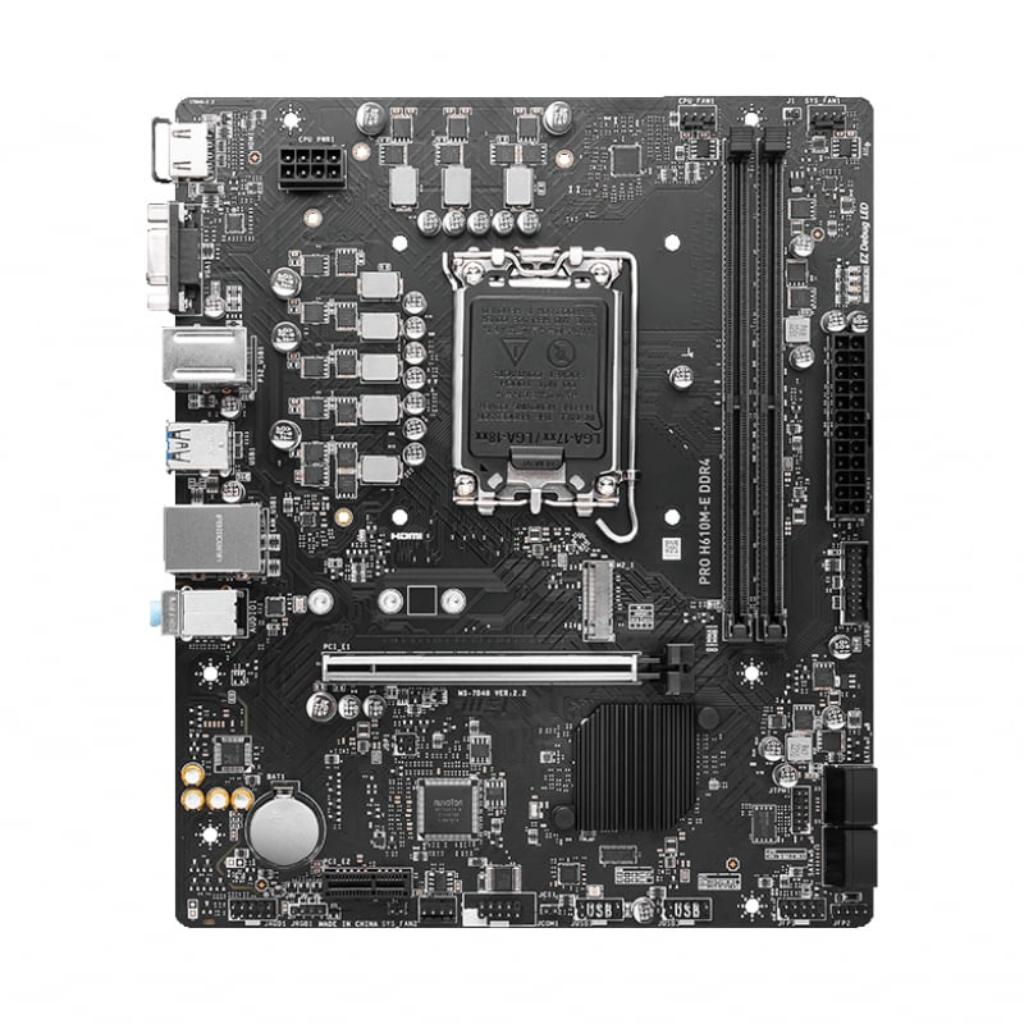

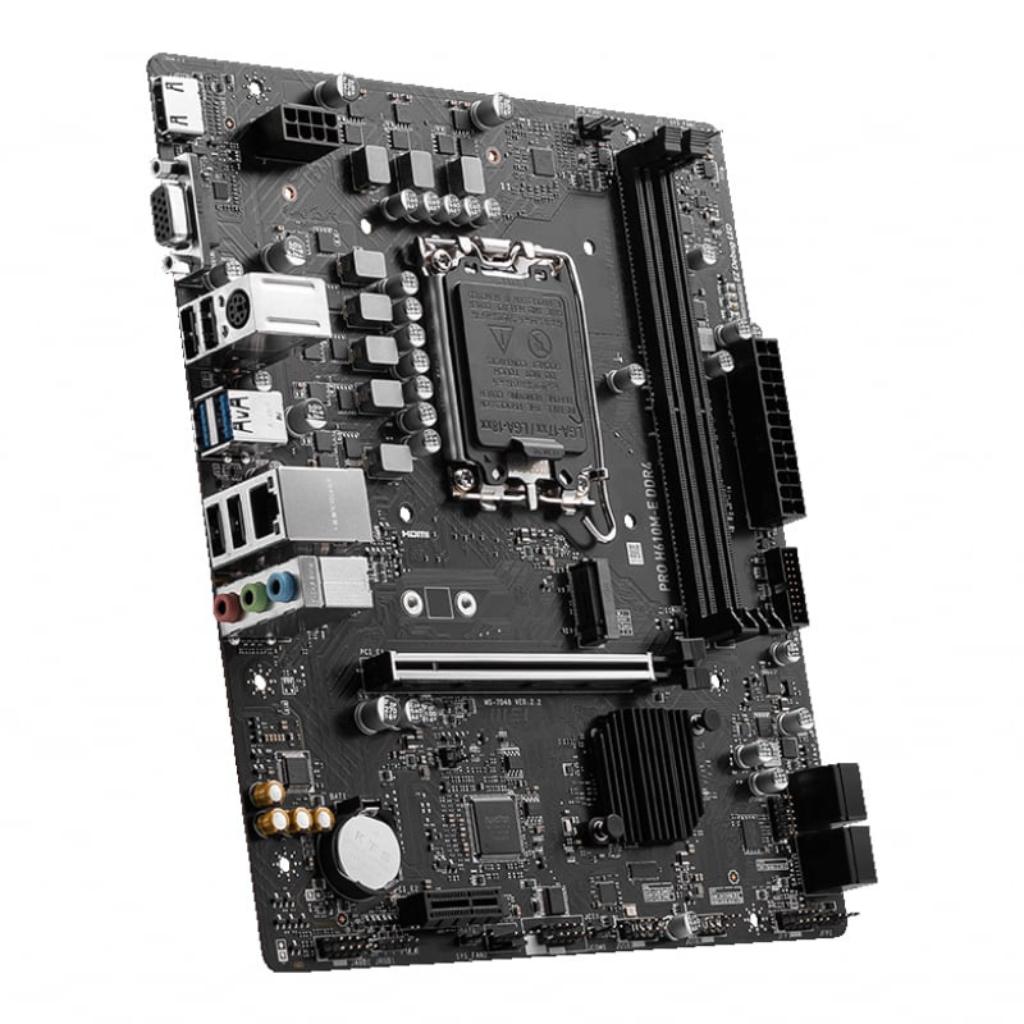

MSI PRO H610M-E M-ATX DDR4 Motherboard
Full description MSI.
- MSI PRO series motherboards help users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- MSI motherboards feature tons of convenient and smart designs for DIY users, and countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. This makes it so easy to install your own motherboard without any issues.
- MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface.
SPECIFICATIONS |
|
| Brand | MSI |
| Series | PRO Series |
| Model | PRO H610M-E DDR4 |
| CPU Support | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| LGA1700 socket: Support for 13th Generation Intel Core, Pentium Gold and Celeron Processors |
|
| Intel 13th Gen Support requires BIOS update for compatibility. | |
| Chipset | Intel H160 Express |
| Memory Support | |
| Intel 12th & 13th Gen Series | 2x DDR4 memory slots, support up to 64GB |
| Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Video | |
| VGA D-Sub | 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz, Support for HDMI 2.1 TDMS and HDCP 2.3 |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| Intel H610 Chipset | 1x PCIe 3.0 x1 Physical, x1 Electrical Slot |
| Storage | |
| CPU Direct | 1x M.2 slot (Key M) supports up to PCIe 3.0 x4, Supports 2242/ 2260/ 2280 storage devices |
| Intel H610 Chipset | 4x SATA 6Gb/s connectors |
| Networking | |
| LAN | Realtek RTL8111H Gigabit LAN 10/100/1000 |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC897 High-Definition Audio Codec |
| Supports 7.1-Channel High Definition Audio | |
| Connectivity | |

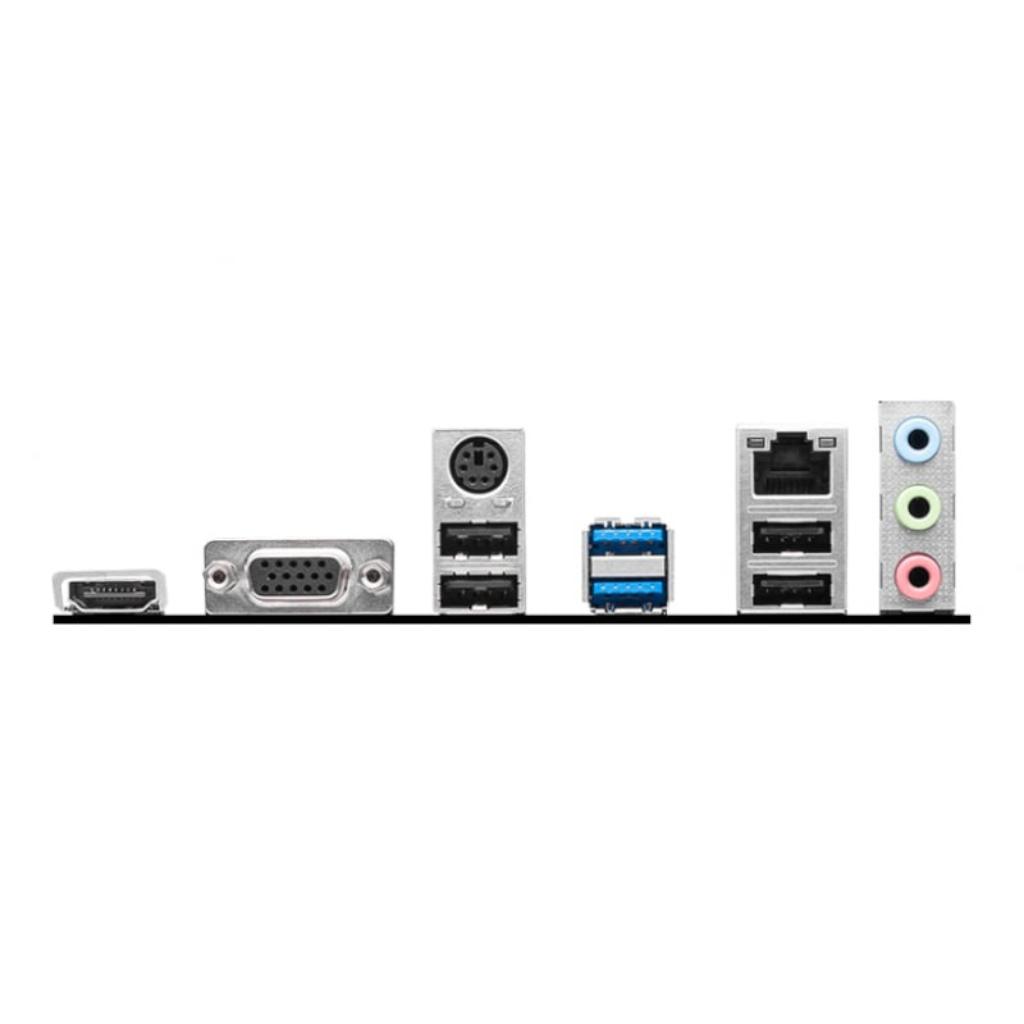

| Ports | 1x PS/2 Combo Port |
| 2x USB 3.2 Gen 1 ports | |
| 4x USB 2.0/1.1 ports | |
| 1x VGA D-Sub | |
| 1x HDMI 2.0 port | |
| 1x RJ-45 port | |
| 3x audio jacks | |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x TPM module connector | |
| 1x Serial port connector | |
| 1x 4-pin CPU fan connector | |
| 2x 4-pin system fan connectors | |
| 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset), Supports additional 2 USB 3.2 Gen 1 5Gbps ports |
|
| 2x USB 2.0 Type-A connectors (From Hub-GL850G), Supports additional 4 USB 2.0 ports |
|
| 1x 4-pin RGB LED connector | |
| 4x EZ Debug LED | |
| 1x Clear CMOS jumper | |
| I/O Controller | NUVOTON NCT6687-D Controller Chip |
| LED Displays | MSI EZ Debug LED Array |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| ACPI 6.4, SMBIOS 3.4 | |
| Form Factor | Micro-ATX Form Factor, 236 x 200 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | 1x M.2 Clip |
| 2x SATA 3.0 Cables | |
| 1x I/O Shield | |
| Quick Installation Guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
