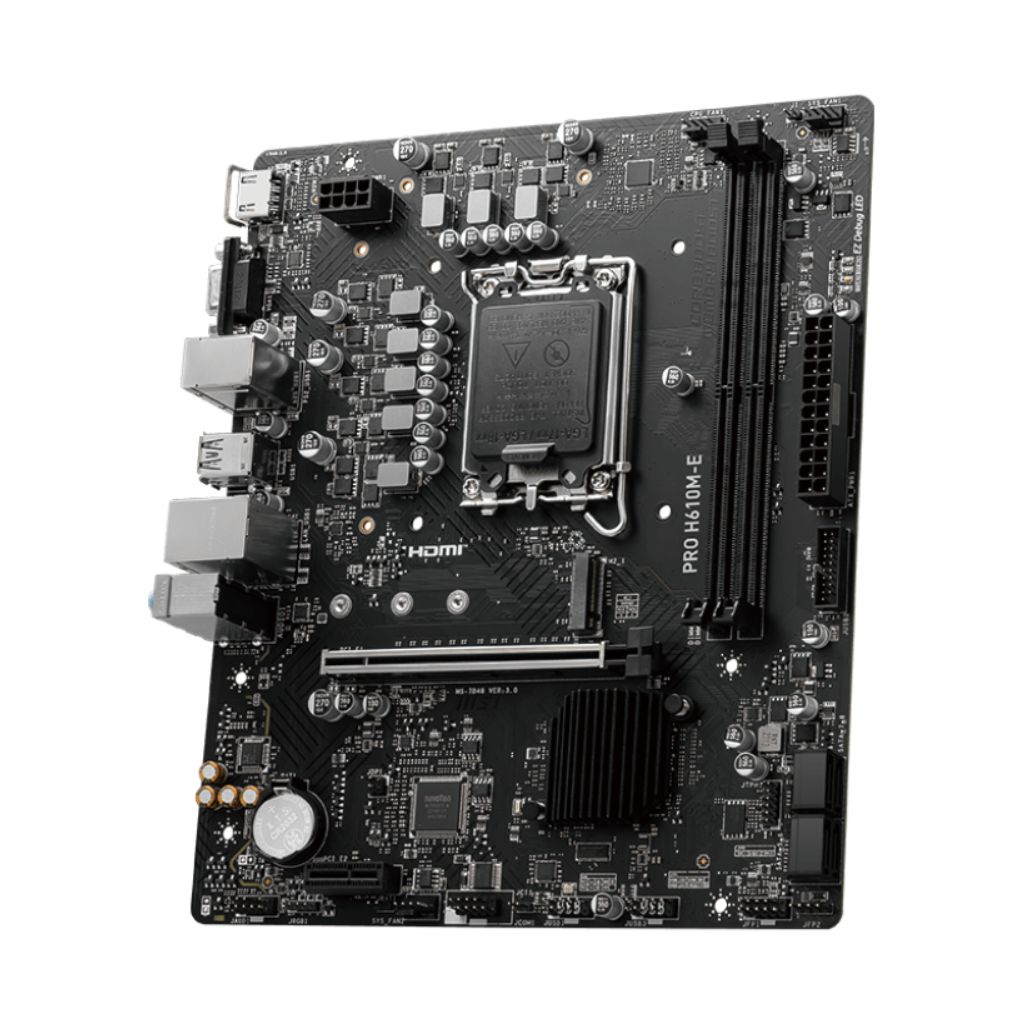

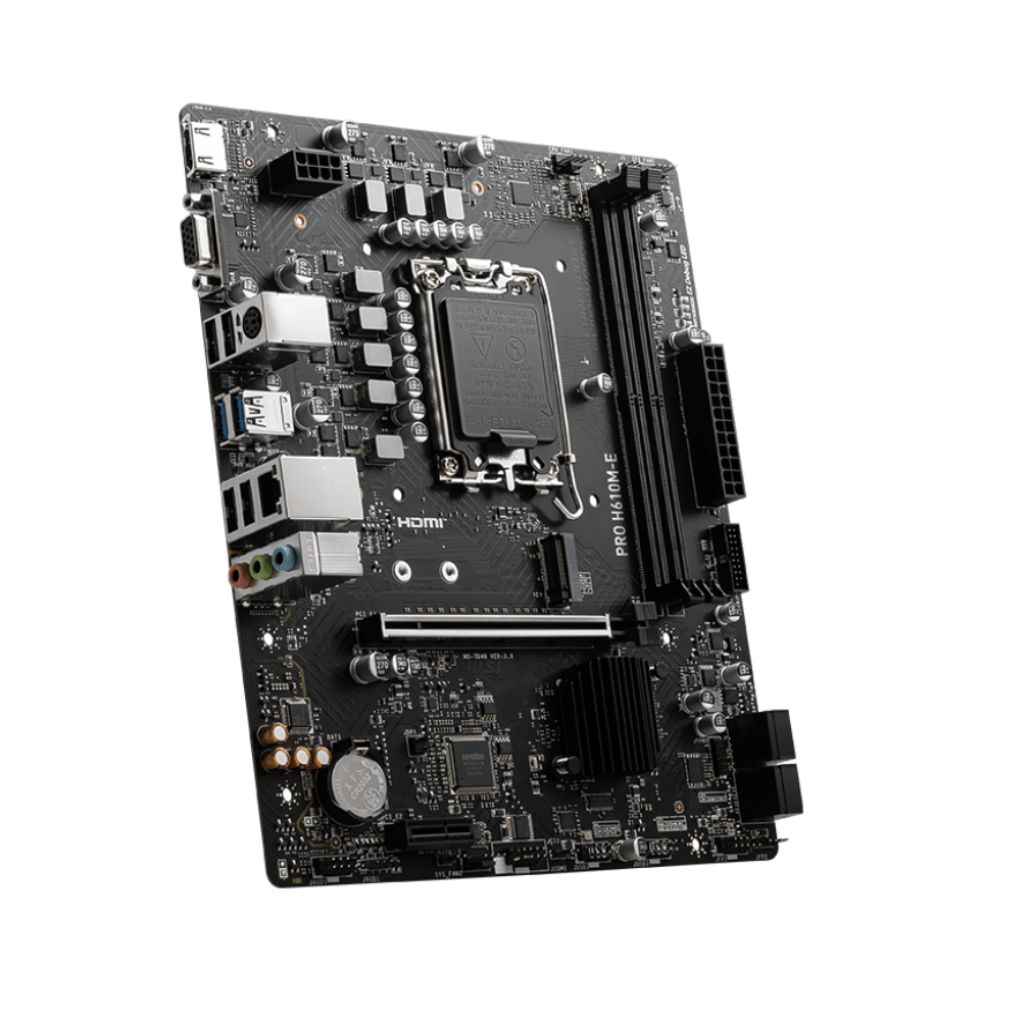

MSI PRO H610M-E DDR5 Micro-ATX LGA 1700 Intel Motherboard – PRO-H610M-E
Full description MSI.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 5600(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
| Specifications | |
| Brand: | MSI |
| Series: | H610 Series |
| Model: | PRO-H610M-E |
| Technical Specs | |
| CPU Support: | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Chipset: | H610 Chipset |
| Memory: | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) – Supports Intel XMP 3.0 OC – Supports Dual-Controller Dual-Channel mode – Supports non-ECC, un-buffered memory |
| Onboard Graphics: | 1x HDMI Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA |
| Audio: | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Connectivity | |
| LAN: | Realtek RTL8111H Gigabit LAN |
| Wireless: | N/A |
| Bluetooth: | N/A |
| Expansion Slots: | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Storage Interface: | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| On-Board Connectors | |
| USB: | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| Internal I/O Connectors: | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |

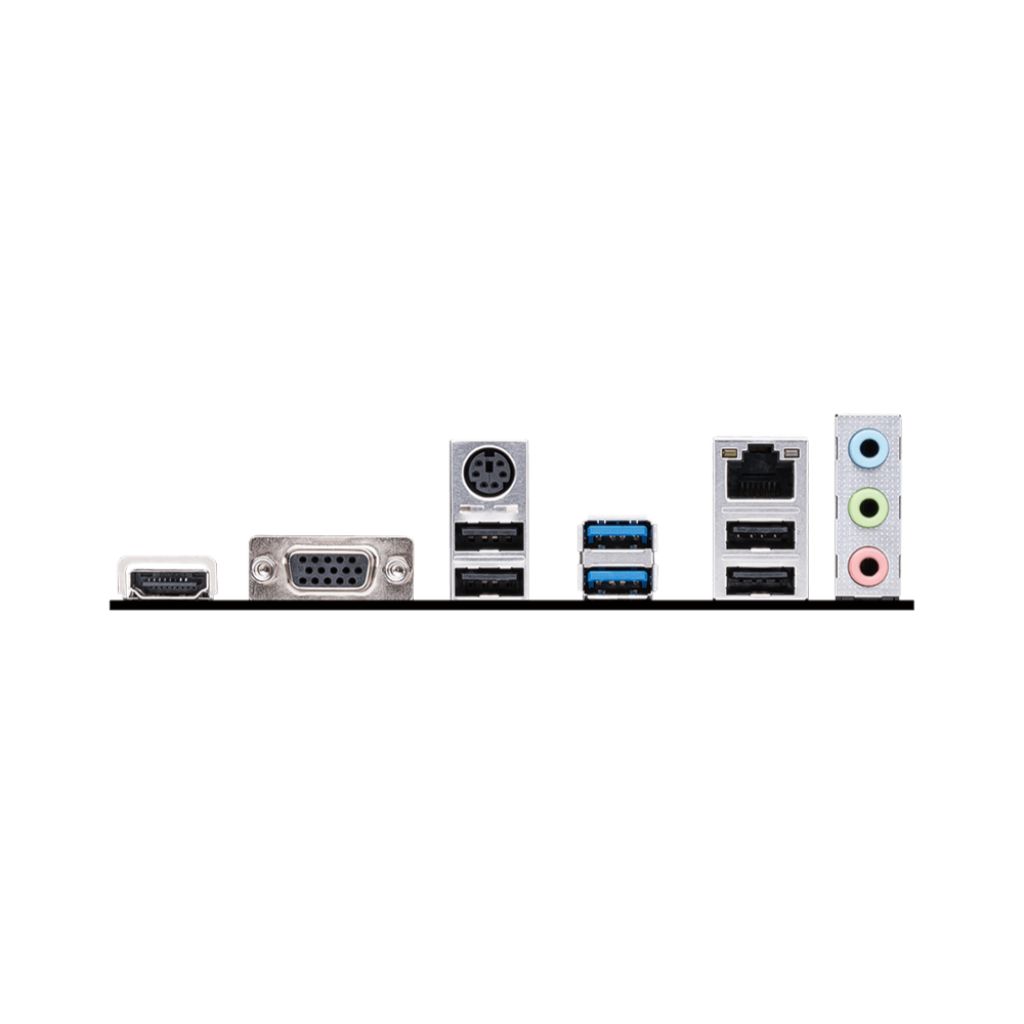

| Back Panel Connectors: |
|
| Software & Features | |
| BIOS: | – |
| Software: | – |
| Features: | Core Boost : With premium layout and digital power design to support more cores and provide better performance |
| Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility | |
| Lightning Fast Experience: PCIe 4.0 | |
| Audio Boost: Reward your ears with studio grade sound quality | |
| Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength. | |
| General | |
| Operating System: | Support for Windows 11 64-bit, Windows 10 64-bit |
| Form Factor: | Micro-ATX – 200mmx236.16mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
MSI PRO H610M-E DDR5 Micro-ATX LGA 1700 Intel Motherboard – PRO-H610M-E
Contact us if you would like to enquire about this product.
Reviews
There are no reviews yet
