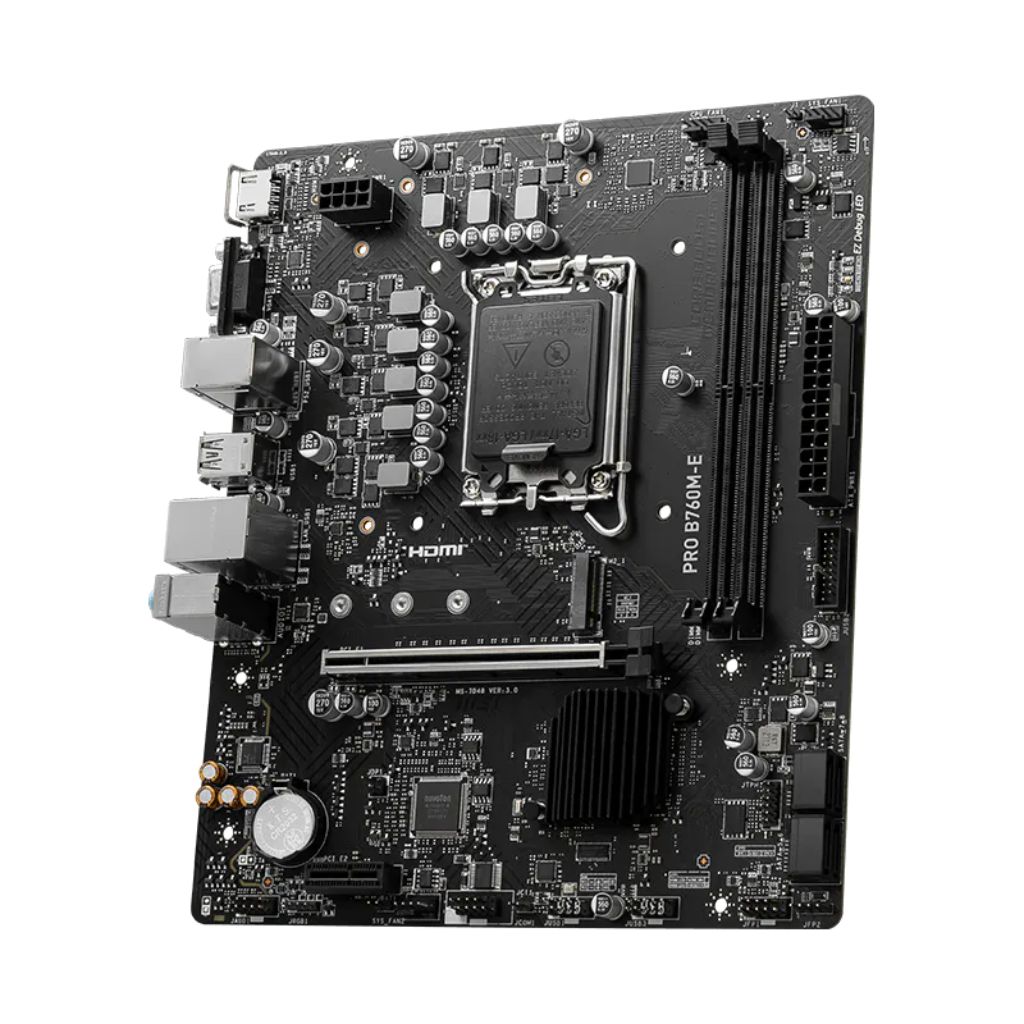

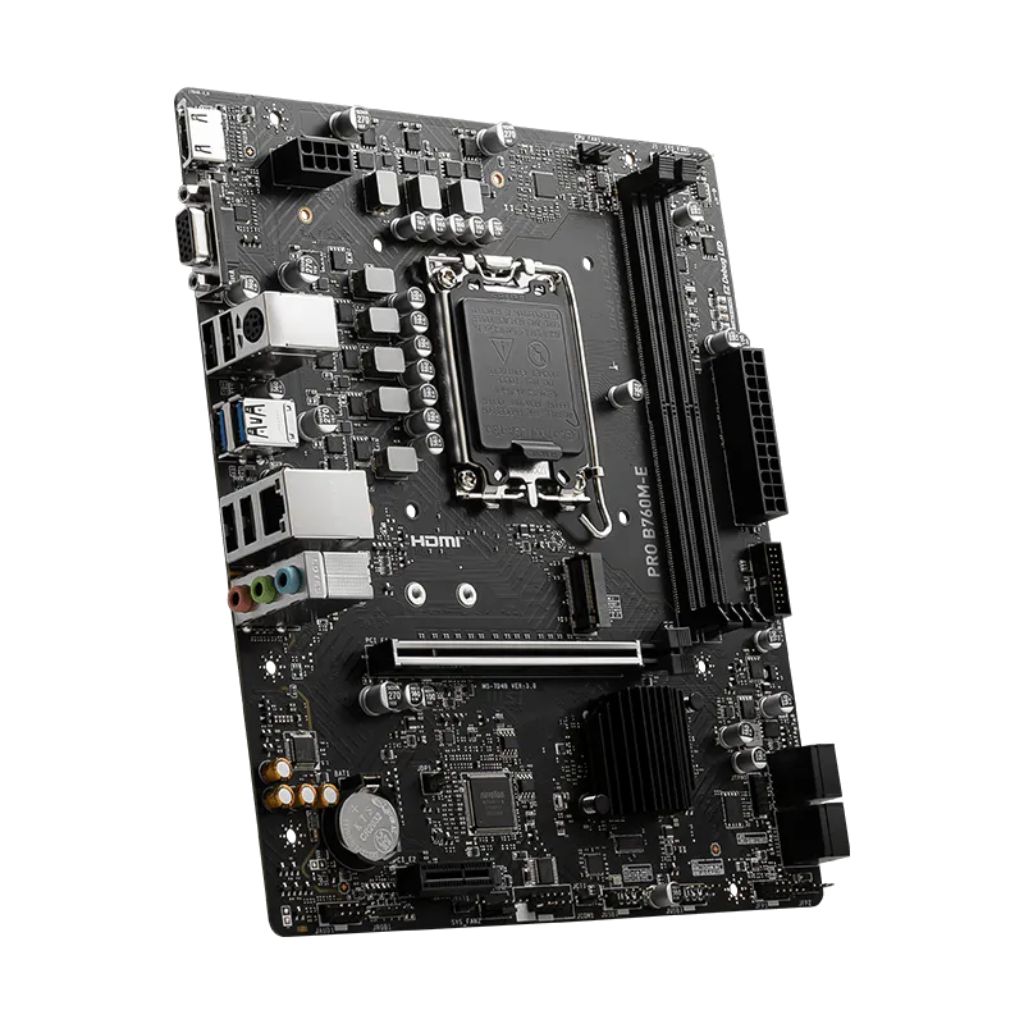

MSI PRO B760M-E DDR5 Micro-ATX LGA1700 Intel Motherboard
Full description MSI.
- Built for 12th / 13th / 14th Gen Intel® Processors (LGA1700)
Designed around the Intel® B760 chipset, this motherboard supports Intel® Core™, Pentium® Gold and Celeron® processors, making it ideal for modern business, home and entry-level gaming systems. - High-Speed DDR5 Memory up to 6400MHz (OC)
Supports up to 128GB DDR5 memory with XMP 3.0 and dual-channel architecture for faster boot times, improved multitasking and smoother application performance. - PCIe 4.0 Graphics & NVMe Storage Support
Features a PCIe 4.0 x16 slot for modern GPUs and an M.2 PCIe 4.0 x4 slot for high-speed NVMe SSDs, delivering reliable performance for workstations and compact gaming builds. - Comprehensive Connectivity with USB 3.2 & Gigabit LAN
Equipped with USB 3.2 Gen 1 (5Gbps) ports, USB 2.0 connectivity and Realtek® Gigabit LAN for stable networking and flexible peripheral support. - Business-Ready Stability with EZ Debug LED
Built with MSI’s PRO series reliability, including EZ Debug LED, TPM 2.0 support and essential expansion options for secure and stable everyday computing.
| Specifications | |
|---|---|
| Brand: | MSI |
| Model: | PRO B760M-E |
| Chipset: | Intel® B760 |
| Socket: | LGA1700 |
| Form Factor: | Micro-ATX (200mm x 236.16mm) |
| CPU Support | |
| Supported Processors: | Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron® |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 2x DDR5 |
| Maximum Capacity: | Up to 128GB |
| Memory Speed: | 6400 / 6200 / 6000 / 5800 (OC) / 5600 / 5400 / 5200 / 5000 / 4800 MHz |
| Memory Support: | Dual Channel, Intel® XMP 3.0, Non-ECC, Un-buffered |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 4.0 x16 (from CPU) |
| PCIe x1 Slot: | 1x PCIe 3.0 x1 (from Chipset) |
| Storage | |
| M.2 Slots: | 1x M.2 (PCIe 4.0 x4 / SATA, 2280/2260/2242) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 5 / 10 (SATA) |
| Networking | |
| LAN: | Realtek® RTL8111H Gigabit LAN |
| Graphics Outputs | |
| HDMI: | 1x HDMI™ |
| VGA: | 1x VGA |
| Audio | |
| Audio Codec: | Realtek® ALC897 |
| Audio Channels: | 7.1-Channel High Definition Audio |
| USB (Rear) | |
| USB 2.0: | 4x USB 2.0 |
| USB 5Gbps Type-A: | 2x USB 3.2 Gen 1 (5Gbps) |
| Internal I/O Connectors | |
| Power Connectors: | 1x 24-pin ATX, 1x 8-pin CPU |
| Fan Headers: | 1x CPU Fan, 2x System Fan |
| Front Panel Headers: | Yes |
| USB Headers: | USB 2.0 & USB 3.2 Gen 1 headers |
| RGB Header: | 1x RGB LED |
| TPM Header: | Yes (TPM 2.0 Support) |

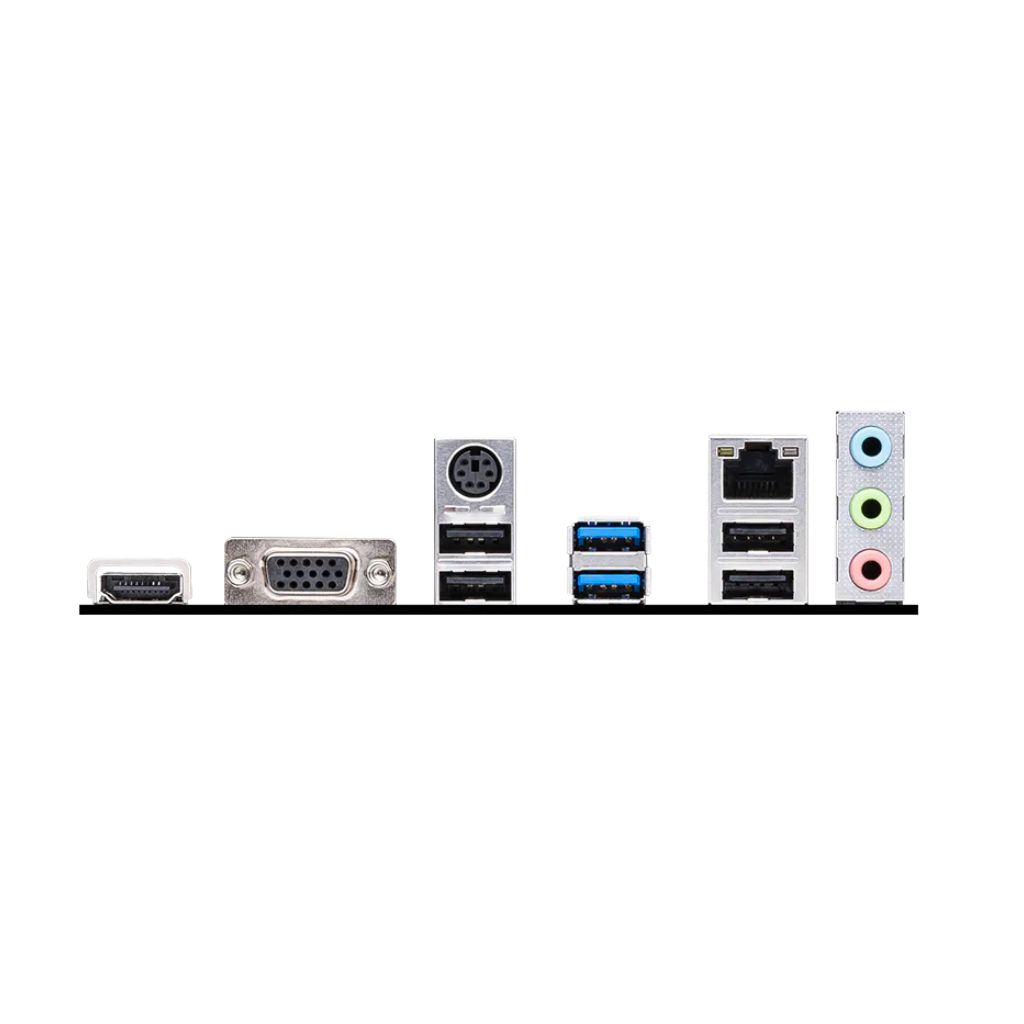

| Back Panel I/O Ports | |
| LAN Port: | 1x RJ-45 (Gigabit) |
| USB Ports: | USB 2.0 & USB 3.2 Gen 1 |
| Video Outputs: | HDMI™, VGA |
| Audio Jacks: | HD Audio Connectors |
| BIOS | |
| BIOS Type: | 256Mb Flash, UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
