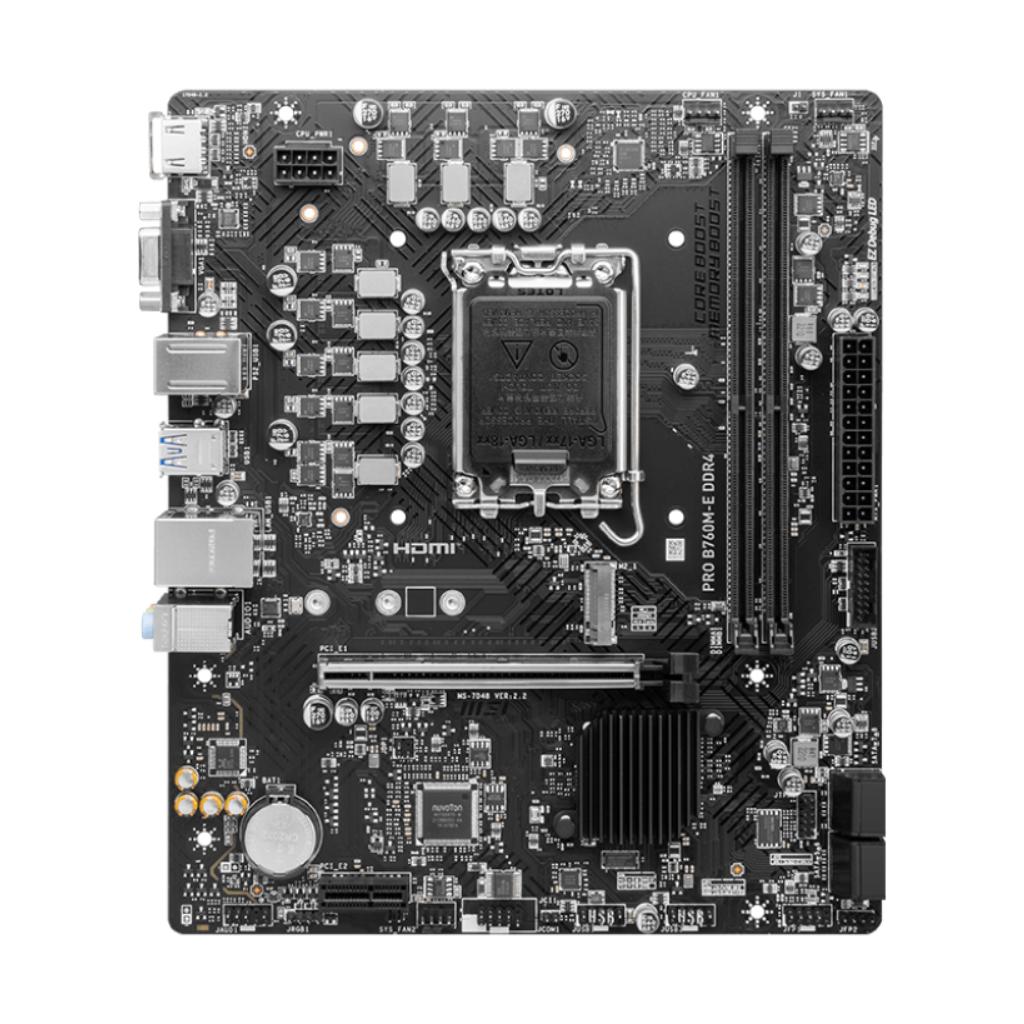

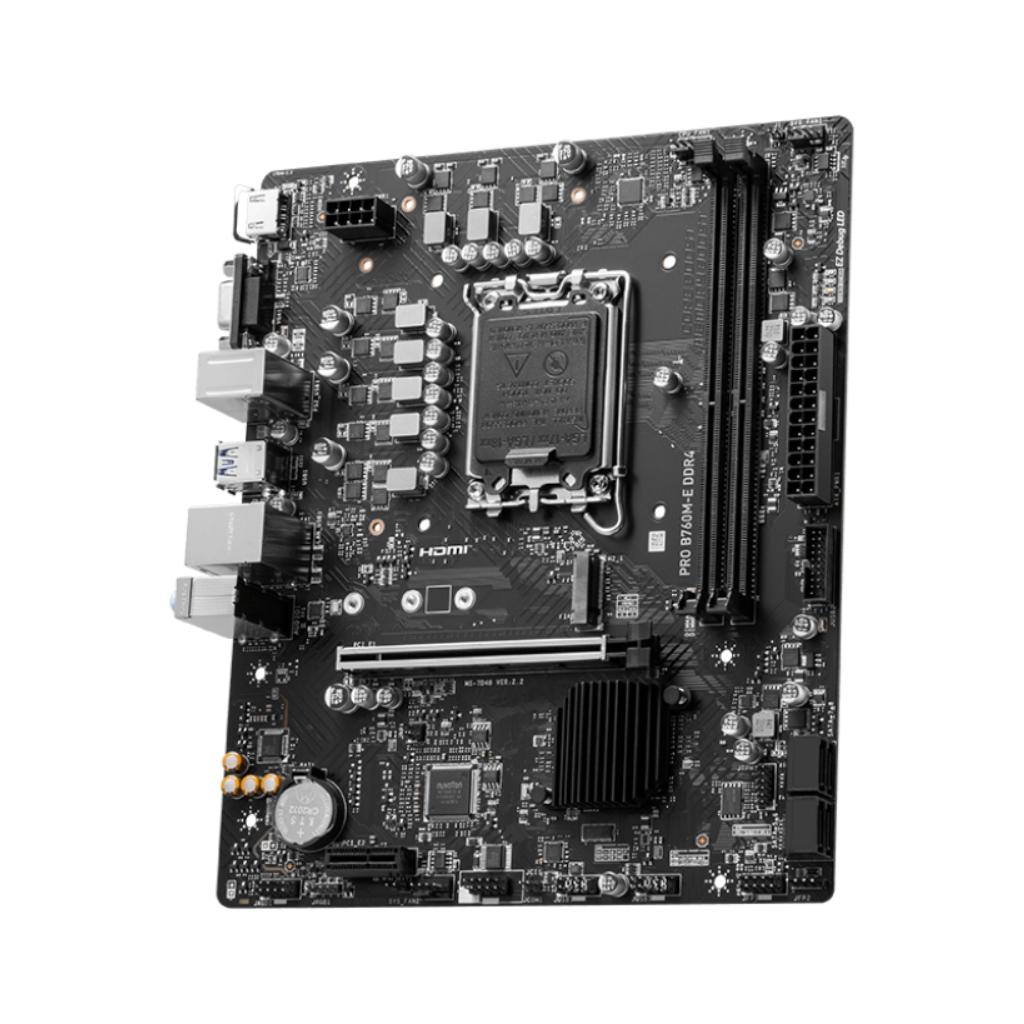

MSI PRO B760M-E DDR4 LGA1700 Micro-ATX Motherboard
Full description MSI.
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications |
|
| Brand: | MSI |
| Series: | Intel B760 Series |
| Model: | PRO-B760M-E-DDR4 |
| Technical Specs | |
| CPU Support: | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Chipset: | INTEL B760 |
| Memory: | 2x DDR4, Maximum Memory Capacity 64GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode |
| Onboard Graphics: | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| Audio: | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Connectivity | |
| LAN: | Realtek® RTL8111H Gigabit LAN |
| Wireless: | N/A |
| Bluetooth: | N/A |
| Expansion Slots: | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Storage Interface: | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| On-Board Connectors | |
| USB: | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| Internal I/O Connectors: | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 1x USB 3.2 Gen1 Type A ports |
| Back Panel Connectors: |
|
| Software & Features | |
| BIOS: | – |
| Software: | – |
| Features: | Dual Channel DDR4 4800+MHz (OC) |
| Core Boost | |
| PCIe 4.0, Lightning Gen4 x4 M.2 | |
| Studio grade sound quality | |
| – | |
| General | |
| Operating System: | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor: | m-ATX – 200mmx236.16mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
