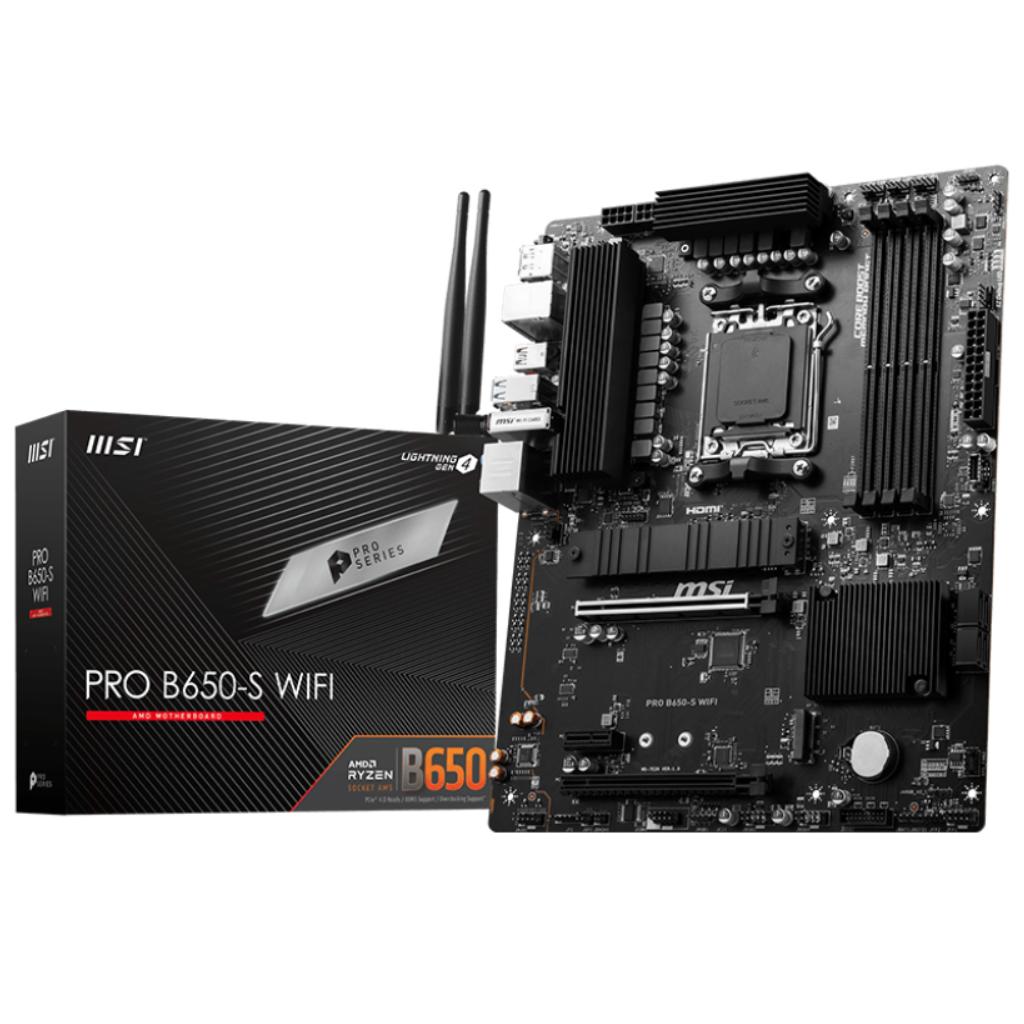

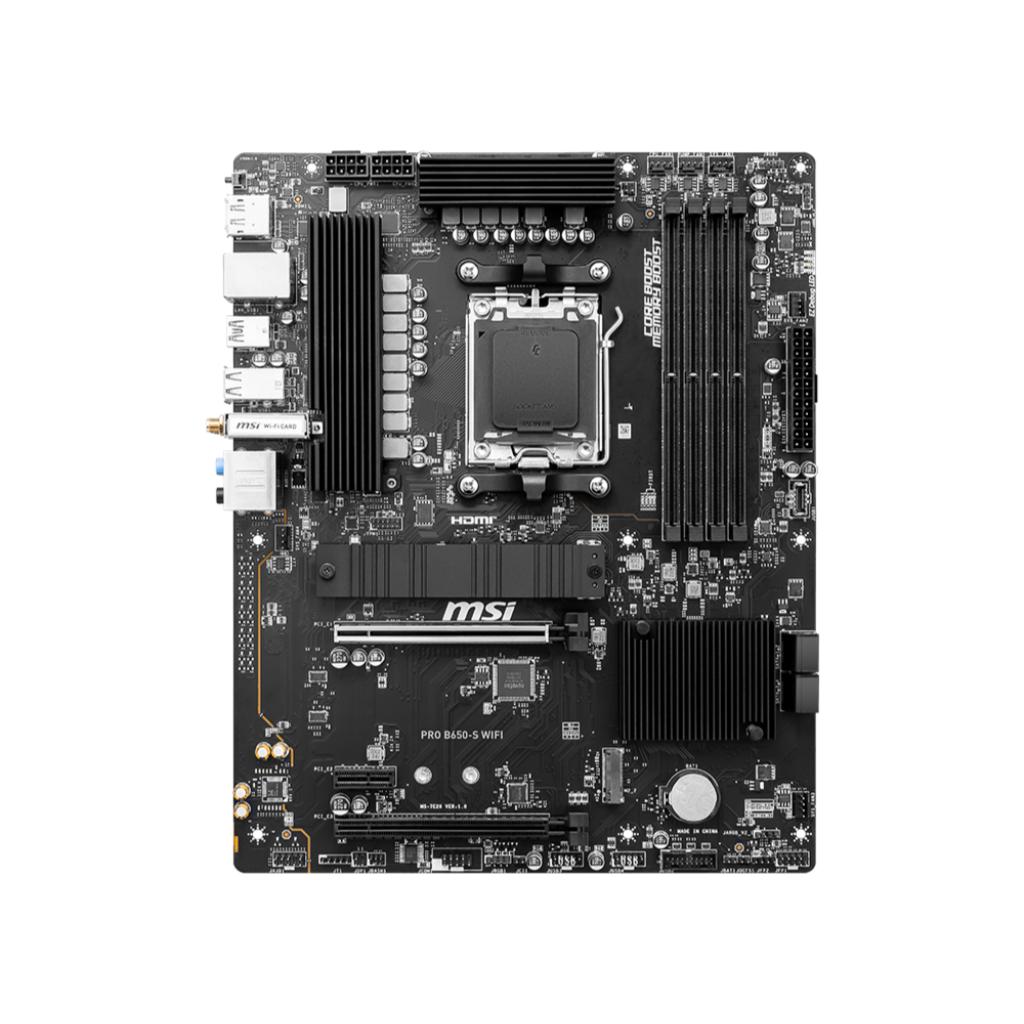

MSI PRO B650-S WiFi DDR5 AM5 ATX Motherboard
Full description MSI.
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
- Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high performance system and non-stop work
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2
Specifications |
|
| Brand: | MSI |
| Series: | MSI B650 Series |
| Model: | PRO-B650-S-WIFI |
| Technical Specs | |
| CPU Support: | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| Chipset: | B650 Chip |
| Memory: | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode |
| Onboard Graphics: | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz* |
| Audio: | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Connectivity | |
| LAN: | Realtek® 8125BG 2.5G LAN |
| Wireless: | AMD Wi-Fi 6E |
| Bluetooth: | Supports Bluetooth® 5.3 |
| Expansion Slots: | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset |
| Storage Interface: | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| On-Board Connectors | |
| USB: | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Internal I/O Connectors: | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| Back Panel Connectors: | DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C) |
| Software & Features | |
| BIOS: | Not Specified |
| Software: | MSI Centre |
| Features: | DDR5 Memory, Dual Channel DDR5 |
| Premium Thermal Solution | |
| Lightning Gen 4 x4 M.2 | |
| Enhanced Power Design | |
| – | |
| General | |
| Operating System: | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor: | ATX 243.84mmx304.8mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
