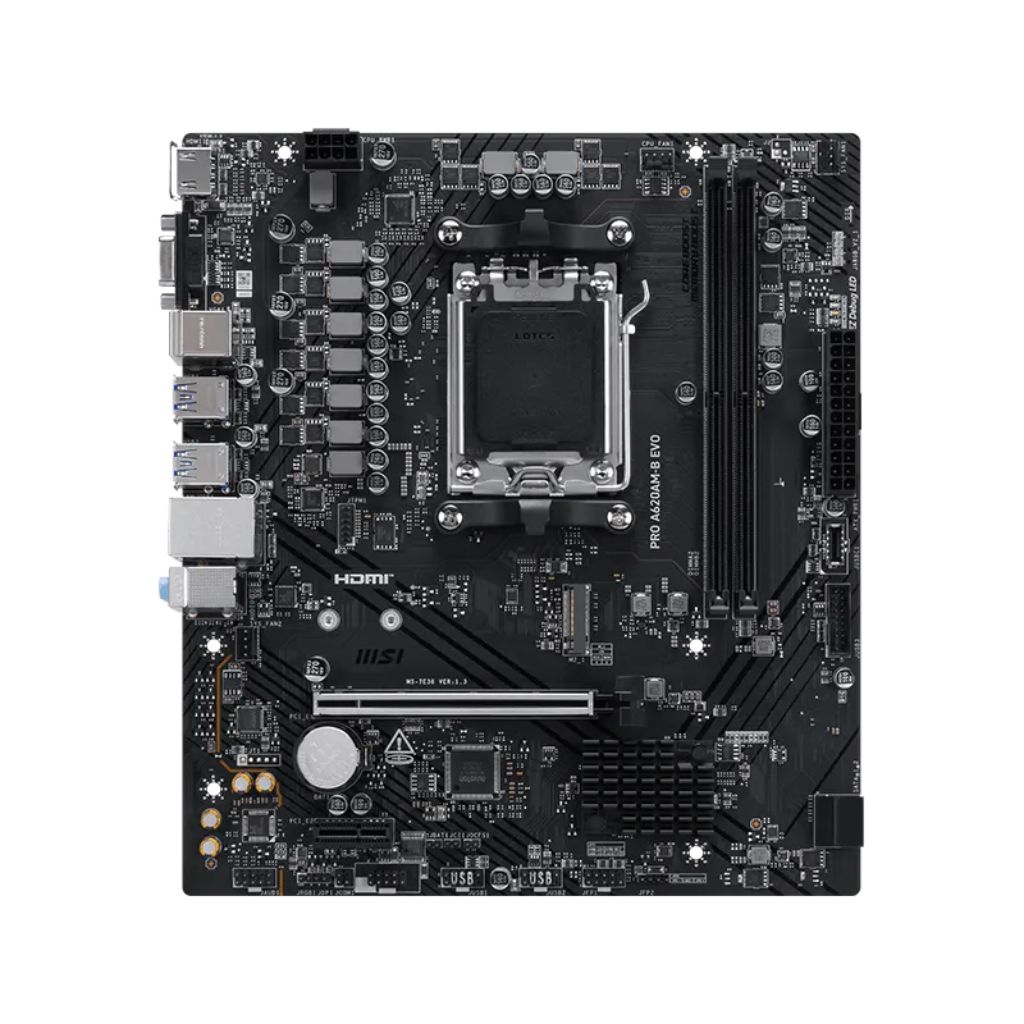

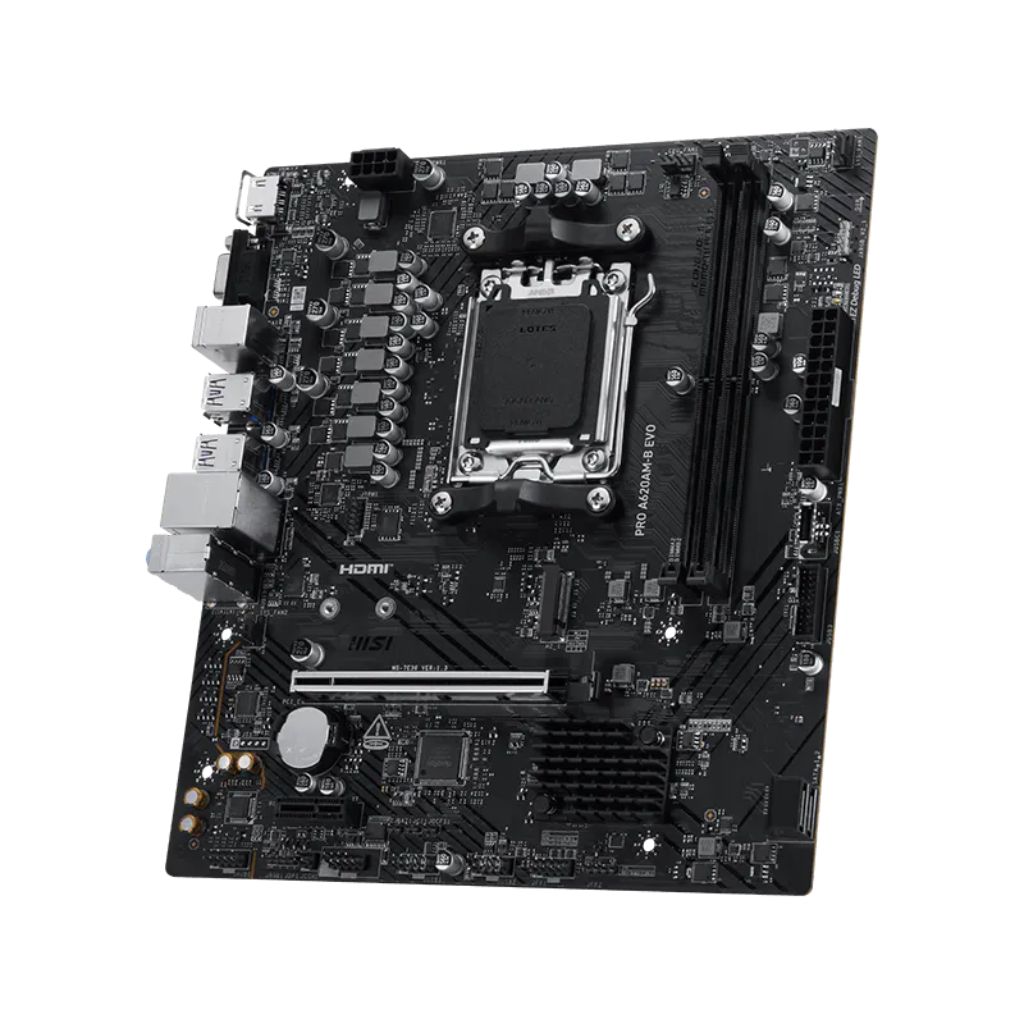

MSI PRO A620AM-B EVO DDR5 Micro-ATX AM5 AMD Motherboard
Full description MSI.
- AM5-ready upgrade platform for Ryzen™ 7000 / 8000 / 9000 CPUs – a smart, cost-effective DDR5 motherboard choice for new builds or AM4-to-AM5 upgrades.
- DDR5 performance tuning with AMD EXPO support (up to 6800MT/s OC) – better bandwidth and smoother responsiveness for gaming, multitasking, and content creation workloads.
- PCIe 4.0 x16 slot for modern GPUs – built to pair cleanly with today’s graphics cards for high-FPS 1080p/1440p gaming and creator acceleration.
- Fast storage foundation: PCIe 4.0 M.2 + SATA 6Gb/s with RAID support – load games and apps quicker, expand easily, and build a reliable system drive + storage setup.
- Built-in 2.5GbE LAN + practical display outputs (HDMI 4K60 + VGA) – faster wired networking for downloads/streaming, plus flexible display compatibility for office, workshop, or home PC builds.
| Specifications | |
|---|---|
| Brand: | MSI |
| Model: | PRO A620AM-B EVO |
| Chipset: | AMD A620A |
| Socket: | AM5 |
| Form Factor: | Micro-ATX (218mm x 243.84mm) |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 7000 / 8000 / 9000 Series Desktop Processors |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 2 |
| Maximum Capacity: | 128GB |
| Memory Speed: | DDR5 6800 / 6000 / 5600 / 5200 / 4800 MT/s (OC & JEDEC, CPU dependent) |
| Memory Support: | Dual Channel, AMD EXPO, Non-ECC Unbuffered |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 4.0 x16 (from CPU) |
| PCIe x1 Slot: | 1x PCIe 3.0 x1 (from Chipset) |
| Storage | |
| M.2 Slots: | 1x M.2 (PCIe 4.0 x4, 2280/2260) |
| SATA Ports: | 2x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 (SATA) |
| Networking | |
| LAN: | Realtek RTL8125 2.5Gb Ethernet |
| Graphics Outputs | |
| HDMI: | 1x HDMI (Supports 4K @ 60Hz) |
| VGA: | 1x VGA |
| Audio | |
| Audio Codec: | Realtek ALC897 |
| Audio Support: | 7.1-Channel High Definition Audio |
| USB Ports | |
| Rear USB 2.0: | 2 |
| Rear USB 5Gbps Type-A: | 4 |
| Front USB 5Gbps Type-A: | 2 (via internal header) |
| Front USB 5Gbps Type-C: | 1 (via internal header) |
| Back Panel I/O Ports | |
| HDMI: | 1 |
| VGA: | 1 |
| USB 5Gbps Type-A: | 4 |
| USB 2.0: | 2 |
| LAN Port: | 1x RJ-45 (2.5GbE) |
| Audio Jacks: | 3 |
| Internal I/O Connectors | |
| 24-pin ATX Power: | 1 |
| 8-pin CPU Power: | 1 |
| CPU Fan Header: | 1 |
| System Fan Headers: | 2 |
| M.2 Slot: | 1 |
| SATA Connectors: | 2 |
| USB 2.0 Headers: | 2 |
| USB 5Gbps Header: | 1x Type-A, 1x Type-C |
| RGB Header: | 1 |
| Addressable RGB Header: | 1x JARGB V2 |
| TPM Header: | Yes |
| Front Panel Header: | Yes |
| BIOS | |
| BIOS Type: | 256Mb Flash ROM, UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows 11 64-bit / Windows 10 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
