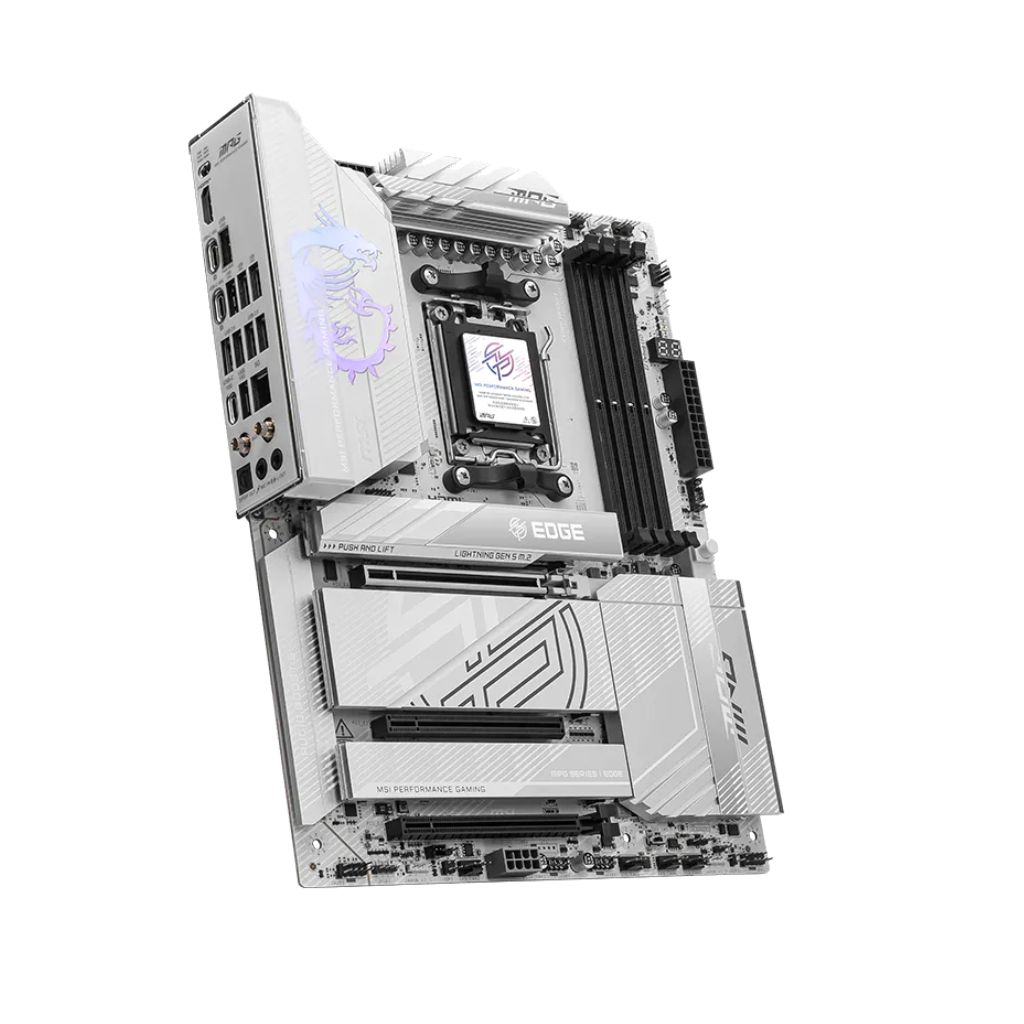

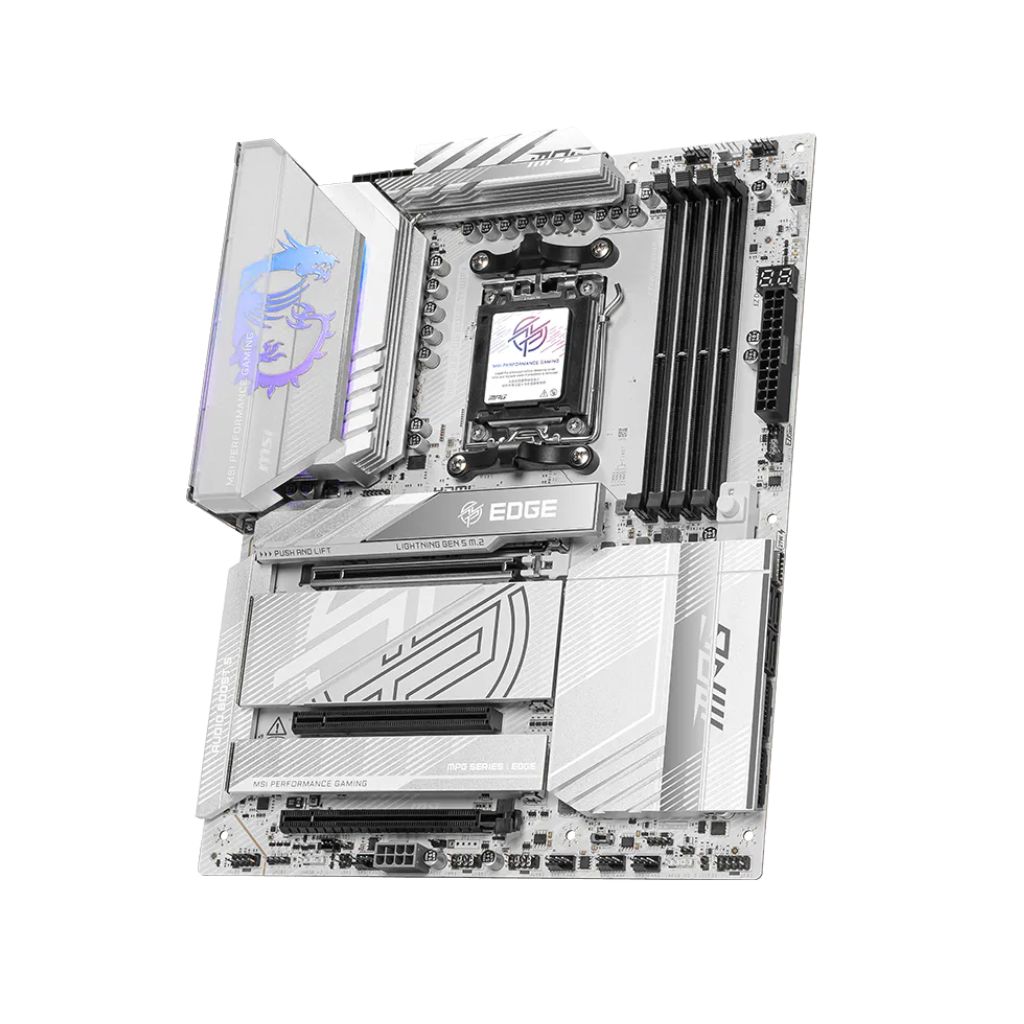

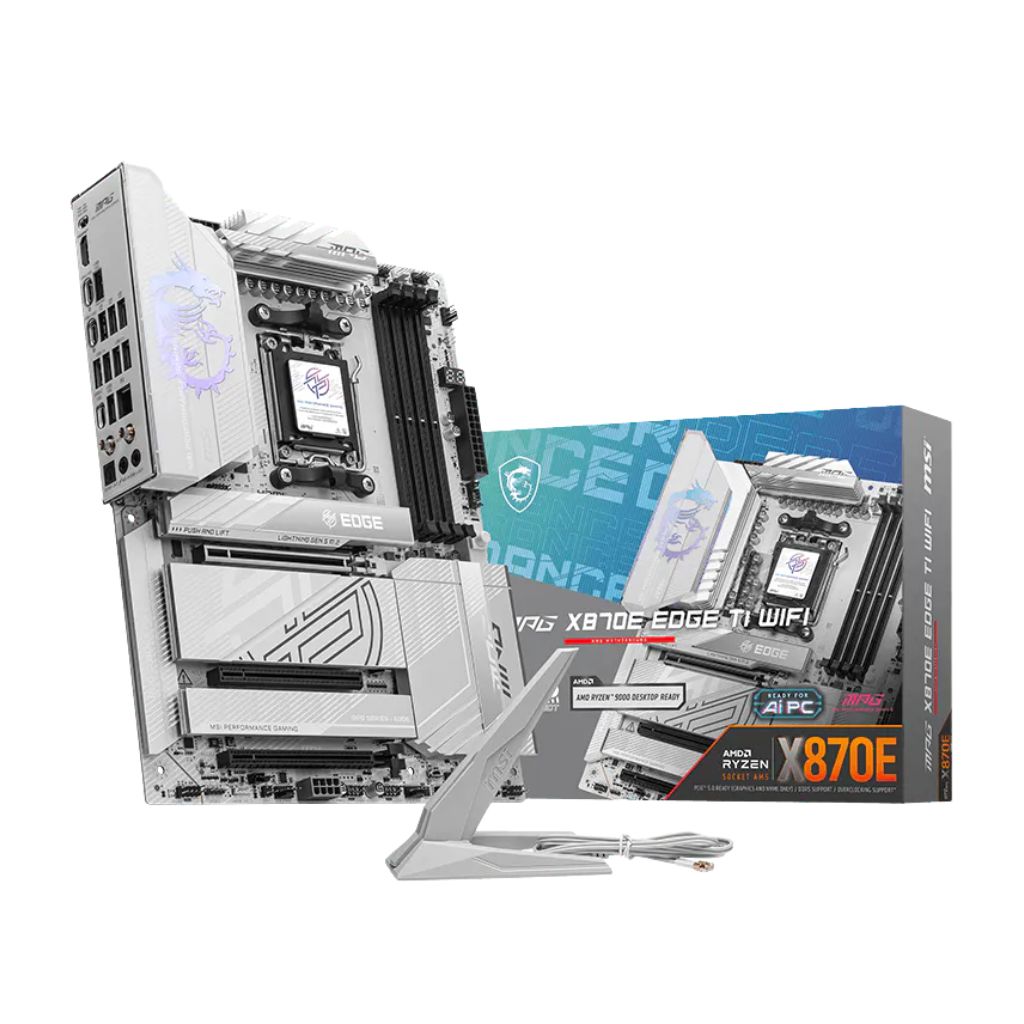

MSI MPG X870E EDGE Ti WiFi DDR5 ATX AM5 AMD Motherboard
Full description MSI.
- Flagship AMD X870E Platform with PCIe 5.0 Support – Built for Ryzen™ 9000, 8000 and 7000 Series processors with full Gen5 GPU and NVMe readiness for ultimate future-proof performance.
- Extreme DDR5 Performance up to 8400+ MT/s (OC) – Advanced memory tuning with AMD EXPO delivers ultra-fast bandwidth for competitive gaming and heavy multitasking workloads.
- Quad M.2 Design Including PCIe 5.0 – Lightning-fast storage expansion for next-gen SSD speeds, faster load times, and seamless 4K/8K content workflows.
- WiFi 7 + 5GbE LAN High-Speed Networking – Next-generation wireless and ultra-fast wired connectivity for low-latency gaming, streaming and large file transfers.
- Premium 16+ Phase Power Design & Advanced Cooling – Robust VRM architecture with extended heatsinks ensures stable overclocking and sustained high-performance computing.
| Specifications | |
|---|---|
| Brand: | MSI |
| Model: | MPG X870E EDGE Ti WiFi |
| Chipset: | AMD X870E |
| Socket: | AM5 |
| Form Factor: | ATX (30.5cm x 24.4cm) |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 4 |
| Maximum Capacity: | 256GB |
| Memory Speed: | Up to 8400+ MT/s (OC) |
| Memory Support: | Dual Channel, AMD EXPO™, Non-ECC Unbuffered |
| Expansion Slots | |
| PCIe x16 (CPU): | 1x PCIe 5.0 x16 |
| PCIe x16 (Chipset): | 1x PCIe 4.0 x4 |
| PCIe x1: | 1x PCIe 4.0 x1 |
| Storage | |
| M.2 Slots: | 4x M.2 (1x PCIe 5.0 x4, 3x PCIe 4.0 x4 – CPU dependent) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 5 / 10 (NVMe & SATA, CPU dependent) |
| Networking | |
| LAN: | Realtek 5GbE LAN |
| Wireless: | WiFi 7 (802.11be) |
| Bluetooth: | Bluetooth® 5.4 |
| Graphics Outputs | |
| HDMI: | 1x HDMI |
| DisplayPort: | 1x DisplayPort |
| Audio | |
| Audio Codec: | Realtek ALC4080 7.1-Channel High Definition Audio |

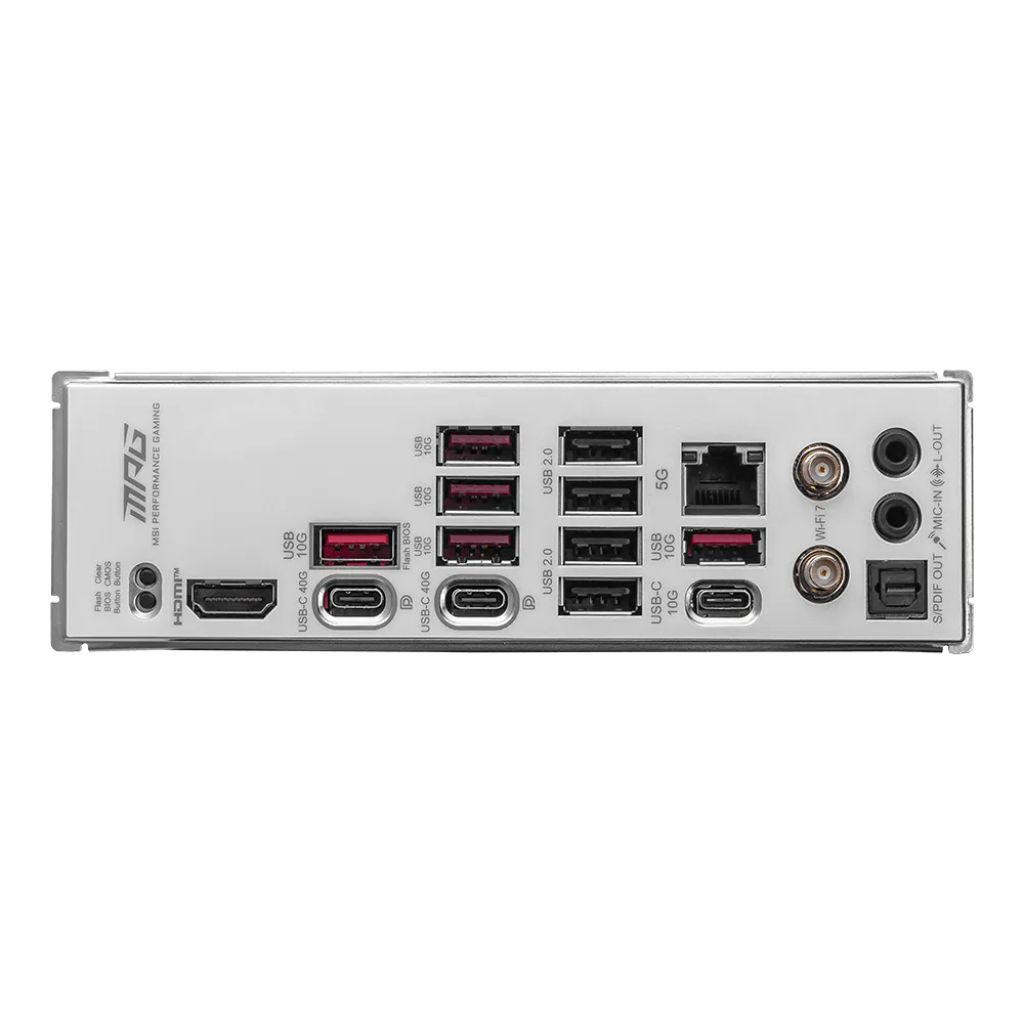

| Back Panel I/O Ports | |
| USB 40Gbps Type-C: | 1 |
| USB 10Gbps Type-C: | 2 |
| USB 10Gbps Type-A: | 4 |
| USB 2.0: | 2 |
| LAN Port: | 1x 5GbE RJ-45 |
| Audio Jacks: | HD Audio Jacks |
| Clear CMOS: | Yes |
| Flash BIOS: | Yes |
| Internal I/O Connectors | |
| 24-pin ATX Power: | 1 |
| 8-pin CPU Power: | 2 |
| CPU Fan Header: | 1 |
| Pump Fan Header: | 1 |
| System Fan Headers: | Multiple |
| USB 20Gbps Type-C Header: | 1 |
| USB 5Gbps Headers: | 2 |
| USB 2.0 Headers: | 2 |
| SATA Connectors: | 4 |
| RGB Headers: | Yes |
| Addressable RGB: | Gen 2 Headers |
| BIOS | |
| BIOS Type: | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System Support | |
| OS Support: | Windows 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
