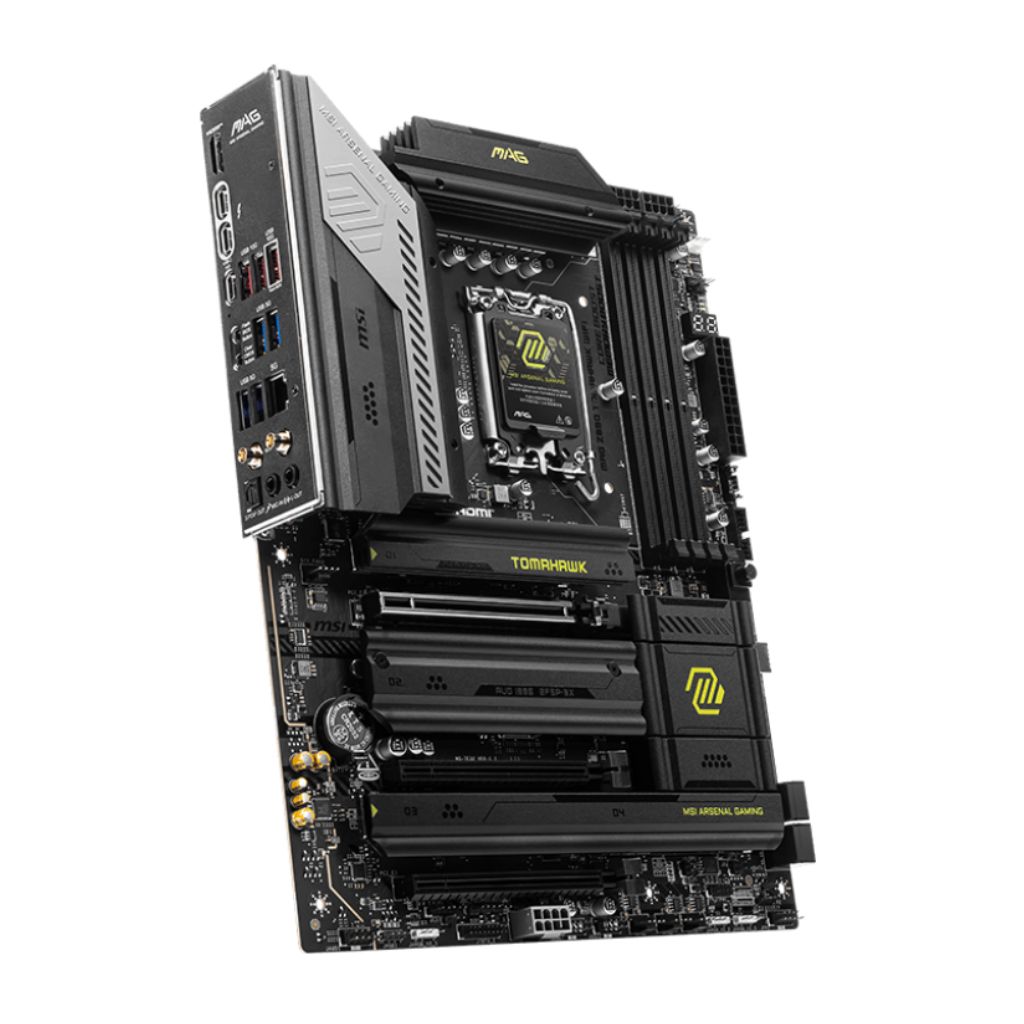

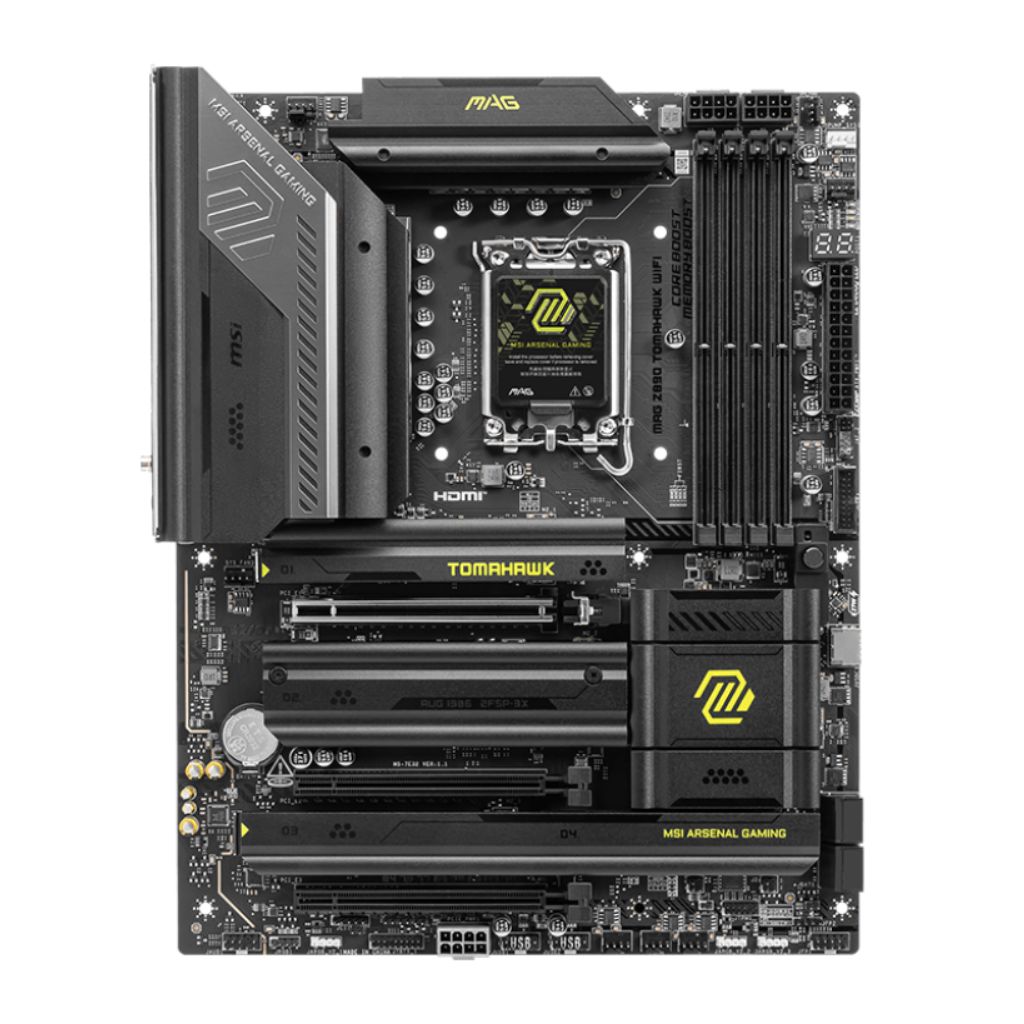

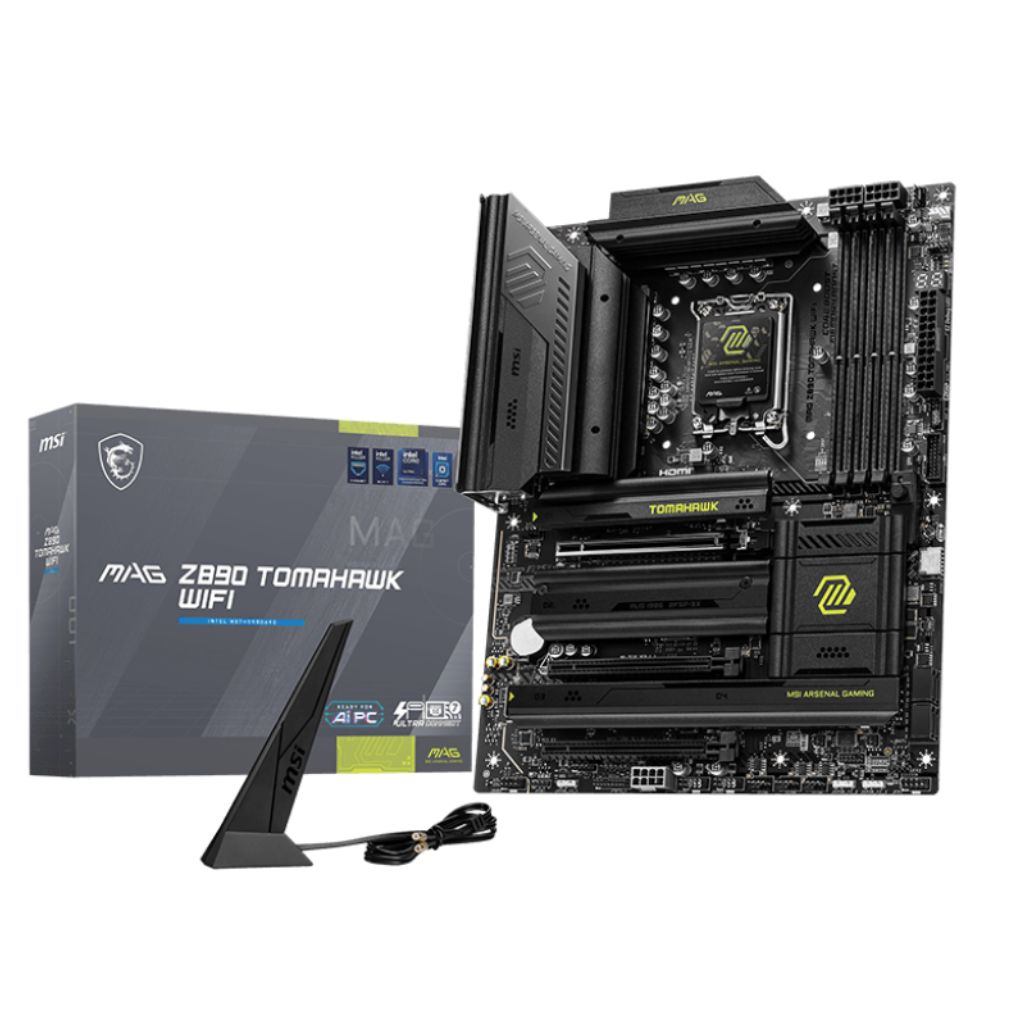

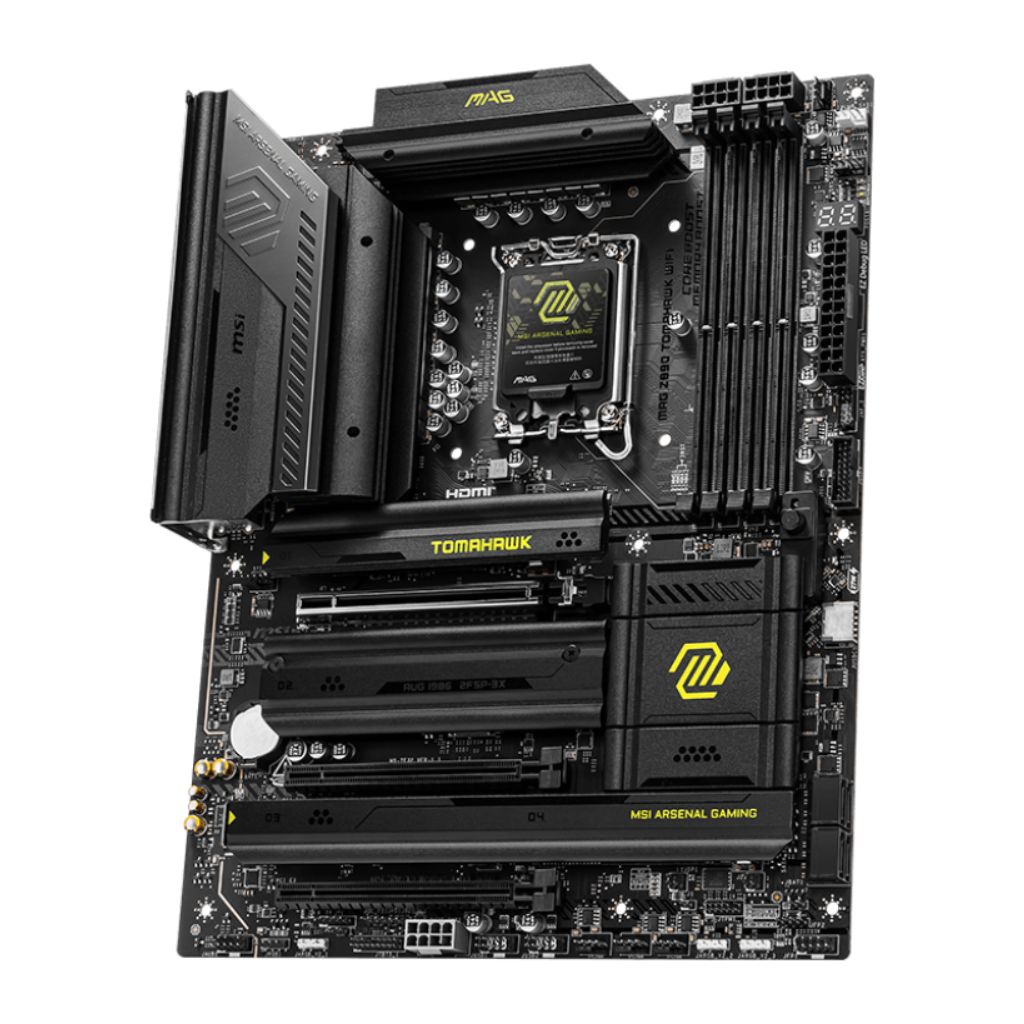

MSI MAG Z890 TomaHawk WiFi 7 DDR5 ATX LGA 1851 Intel Motherboard – MAG-Z890-TOMAHAWK-WIFI
Full description MSI.
- Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution.
- Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience.
| Specifications | |
| Brand: | MSI |
| Series: | Z890 Series |
| Model: | MAG-Z890-TOMAHAWK-WIFI |
| Technical Specs | |
| CPU Support: | Supports Intel Core Ultra Processors (Series 2) LGA 1851 |
| Chipset: | INTEL Z890 |
| Memory: | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s – Supports Intel® POR Speed and JEDEC Speed |
| Onboard Graphics: | 1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 4K 120Hz 2x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz |
| Audio: | Realtek ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Connectivity | |
| LAN: | Intel Killer E5000 5Gbps LAN |
| Wireless: | Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Bluetooth: | Supports Bluetooth 5.4, MLO, 4KQAM |
| Expansion Slots: | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage Interface: | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 – supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 – supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 – supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode – supports 2280/2260/2242 devices 4x SATA 6G |
| On-Board Connectors | |
| USB: | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| Internal I/O Connectors: | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |

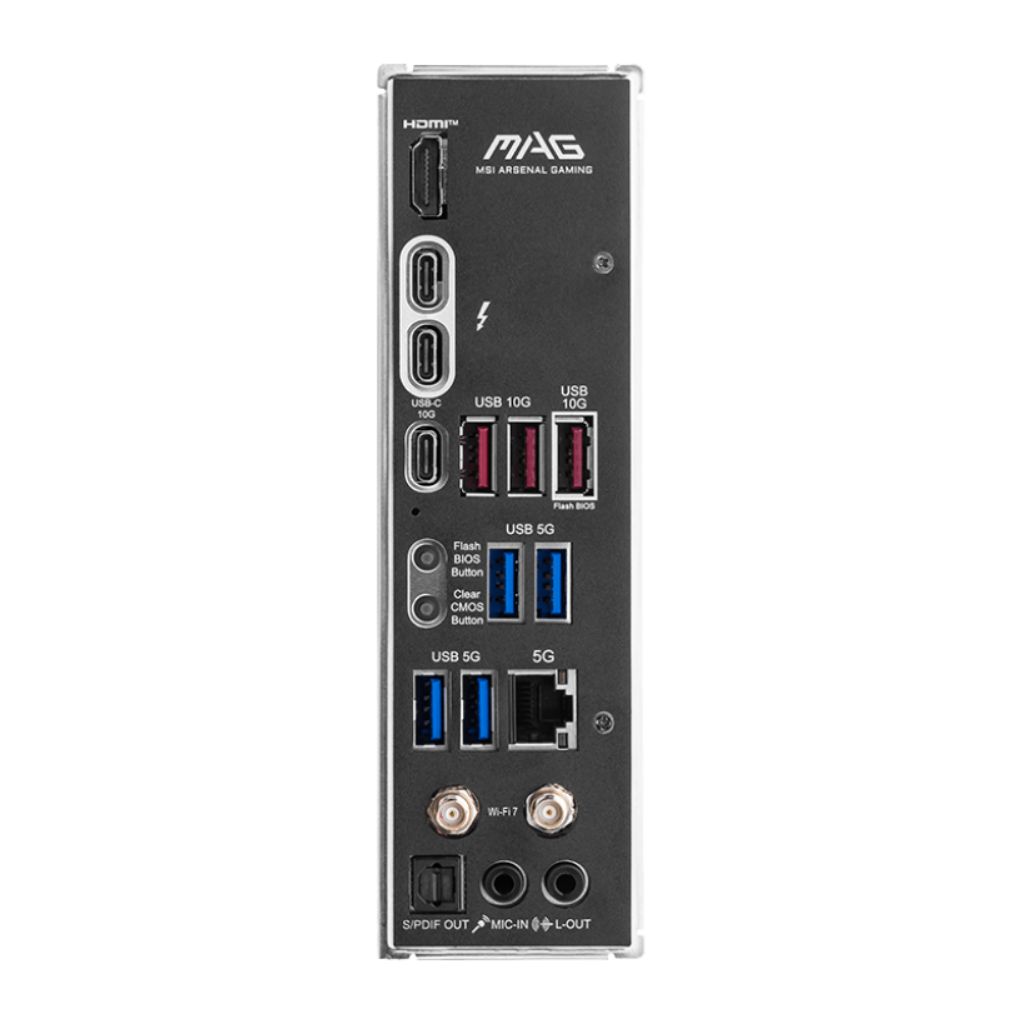

| Back Panel Connectors: |
|
| Software & Features | |
| BIOS: | – |
| Software: | – |
| Features: | Audio Boost 4: Reward your ears with studio grade sound quality |
| Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution | |
| Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 | |
| Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC) | |
| Support Intel Core Ultra Processors (Series 2) | |
| General | |
| Operating System: | Support for Windows 11 64-bit |
| Form Factor: | ATX, 243.84mmx304.8mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
