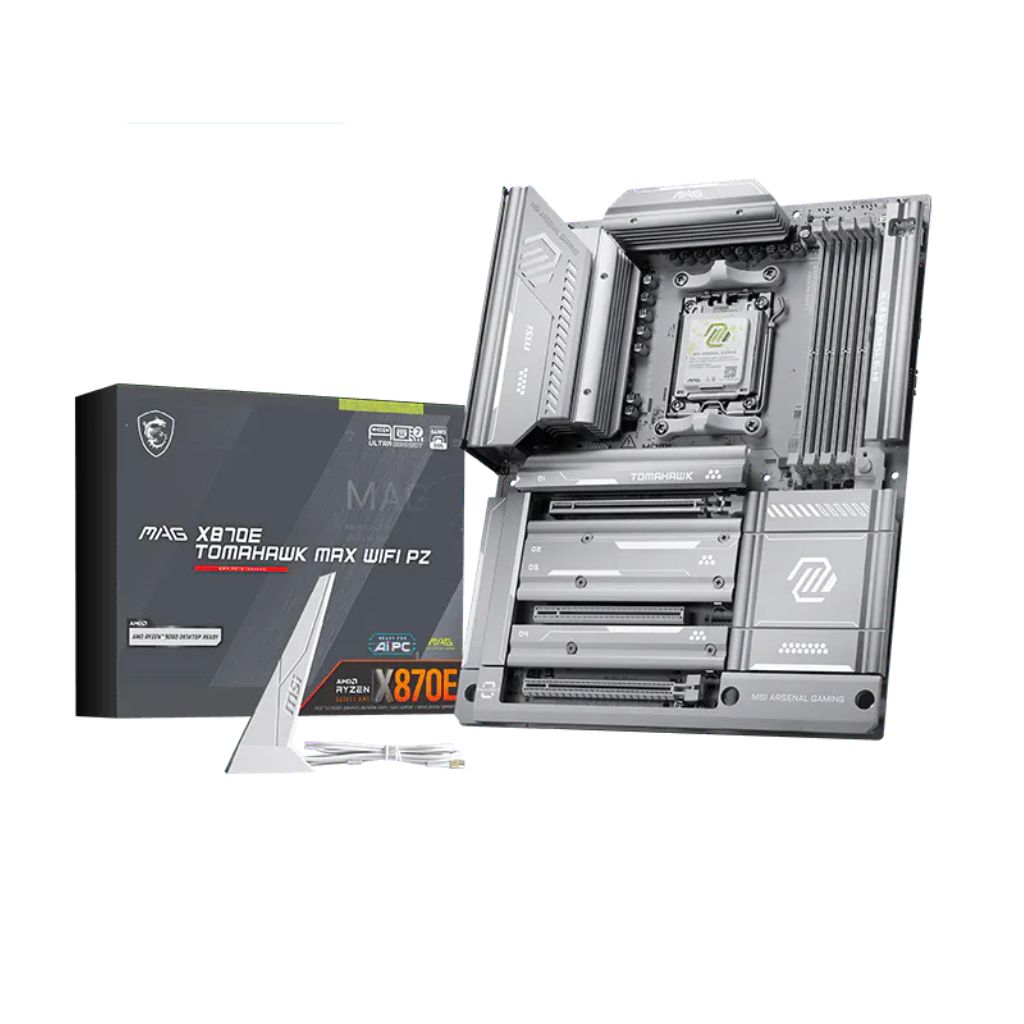

MSI MAG X870E TOMAHAWK Max WiFi PZ DDR5 ATX AM5 AMD Motherboard
Full description MSI.
- Next-Gen AMD X870E Powerhouse – Built for AMD Ryzen™ 9000 / 8000 / 7000 Series processors with PCIe 5.0 support, extreme bandwidth, and future-ready performance for high-end gaming and creator builds.
- Dual PCIe 5.0 + Gen5 M.2 Performance – Lightning-fast PCIe 5.0 x16 GPU slot and Gen5 M.2 storage deliver ultra-high speeds for next-generation graphics cards and NVMe SSDs.
- WiFi 7 + 5G LAN Connectivity – Ultra-low latency networking with WiFi 7 and Realtek 5GbE LAN for competitive gaming, streaming, and heavy data workloads.
- Premium Thermal & Power Design – Robust VRM cooling, extended heatsinks, and optimized PCB layout ensure stable overclocking and sustained peak performance.
- Tomahawk Durability & EZ DIY Design – Military-inspired design with reinforced PCIe slots, EZ M.2 installation, Debug LEDs, and MSI’s user-friendly BIOS for effortless builds.
| Specifications | |
|---|---|
| Brand: | MSI |
| Model: | MAG X870E TOMAHAWK MAX WiFi PZ |
| Chipset: | AMD X870E |
| Socket: | AM5 |
| Form Factor: | ATX (243.84mm x 304.8mm) |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 4 |
| Maximum Capacity: | 256GB |
| Memory Speed: | DDR5 8800+(OC) / 8600 / 8400 / 8200 / 8000 / 7800 / 7600 / 7400 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5600 / 5200 / 4800 MT/s |
| Memory Support: | Dual Channel, AMD EXPO™, XMP, Non-ECC Unbuffered |
| Expansion Slots | |
| PCIe x16 Slots: | 1x PCIe 5.0 x16 (from CPU), 1x PCIe 4.0 x16 (x4 mode) |
| PCIe x1 Slots: | 1x PCIe 4.0 x1 |
| Storage | |
| M.2 Slots: | 4x M.2 (PCIe 5.0 / PCIe 4.0 depending on slot & CPU) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0/1/5/10 (NVMe & SATA, CPU dependent) |
| Networking | |
| LAN: | Realtek 8126 5G LAN |
| Wireless: | WiFi 7 (802.11be) |
| Bluetooth: | Bluetooth® 5.4 |
| Graphics Outputs | |
| HDMI: | 1x HDMI (8K capable, CPU dependent) |
| DisplayPort: | 1x DisplayPort |
| Audio | |
| Audio Codec: | Realtek ALC4080 |
| Audio Features: | 7.1-Channel USB High Performance Audio, Optical S/PDIF Out |
| Back Panel I/O Ports | |
| USB 40Gbps Type-C: | 2 |
| USB 10Gbps Type-A: | 4 |
| USB 5Gbps Type-A: | 4 |
| USB 2.0: | 2 |
| HDMI: | 1 |
| DisplayPort: | 1 |
| LAN Port: | 1x RJ-45 (5G) |
| WiFi Antenna Connectors: | 2 |
| Optical S/PDIF: | 1 |
| Audio Jacks: | 5 |
| Clear CMOS Button: | Yes |
| Flash BIOS Button: | Yes |
| Internal I/O Connectors | |
| 24-pin ATX Power: | 1 |
| 8-pin CPU Power: | 2 |
| CPU Fan Headers: | 1 |
| Pump/Fan Headers: | Multiple (CPU / Pump / System Fan) |
| M.2 Connectors: | 4 |
| SATA Connectors: | 4 |
| USB 10Gbps Header: | 1 |
| USB 5Gbps Headers: | 2 |
| USB 2.0 Headers: | 2 |
| Addressable RGB: | 3x Gen 2 |
| RGB Header: | 1 |
| Front Panel Header: | Yes |
| TPM Header: | Yes |
| Debug LEDs: | EZ Debug LED |
| BIOS | |
| BIOS Type: | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System Support | |
| OS Support: | Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
