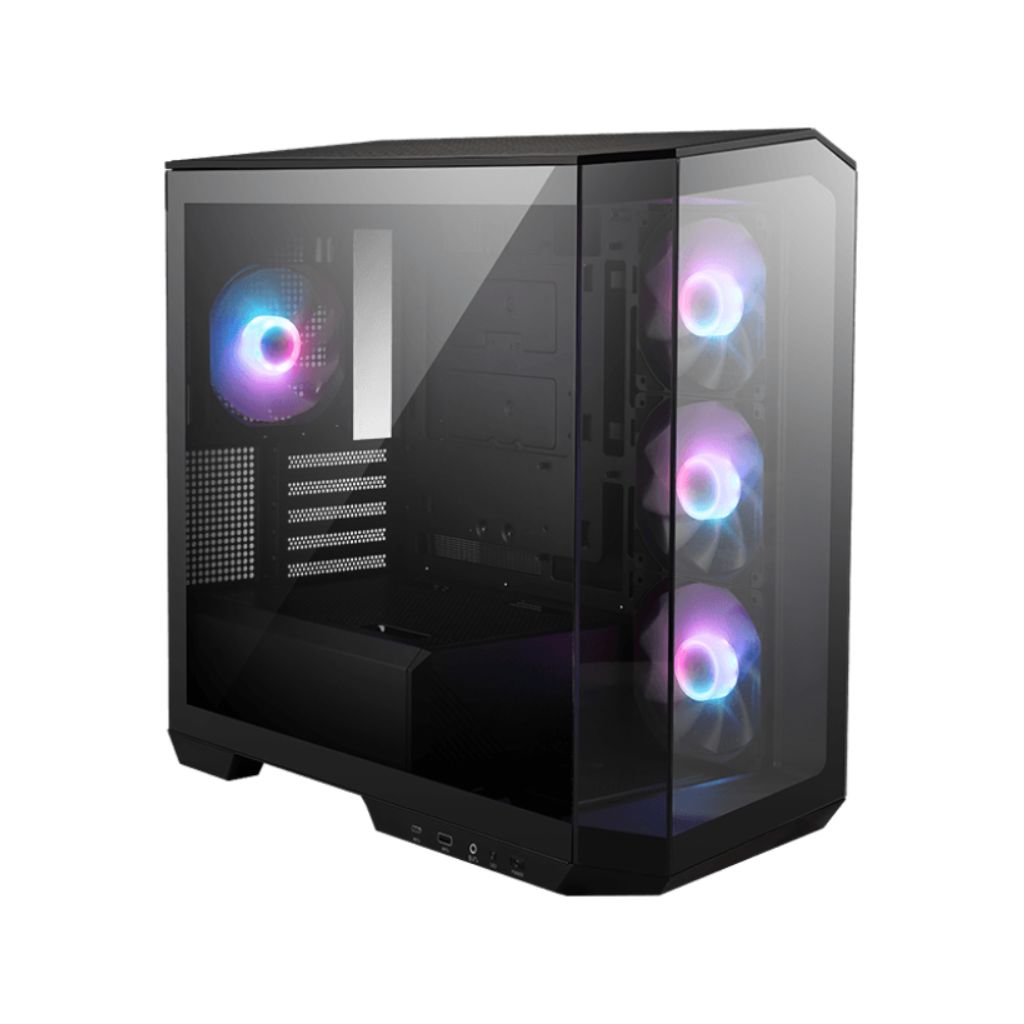

MSI MAG PANO M100R PZ Tempered Glass Micro-ATX Tower Desktop PC Gaming Chassis – black
Full description MSI.
- Micro-ATX Back-connect PROJECT ZERO motherboard supported.
- Supports up to 360 mm AIO liquid cooler on the top.
- 270-degree panoramic tempered glass.
- Supports up to 10 x 120 mm system fans.
- Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
| Specifications | |
| Brand: | MSI |
| Series: | M100R Series |
| Model: | MAG-PANO-M100R-PZ |
| Technical Specs | |
| Motherboard Support: | M-ATX(Back-connect supported) / ITX |
| Drive Bays: | 1 x 2.5” |
| 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) |
|
| Expansion Slots: | 5 |
| Dust Filters: | Yes |
| Front I/O: | 1 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2×2 Type-C 1 x Audio-Out / Mic-in 1 x LED Switch Button 1 x Power Button |
| Side Panel: | Tempered Glass |
| Fan Specs | |
| Pre-Installed Fans: | Side: 3 x 120 mm ARGB Fan (Reverse-blade) Rear: 1 x 120 mm ARGB Fan |
| Fan Support: | Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm / 1 x 140 mm Side: 3 x 120 mm Bottom: 1 x 120 mm PSU Shroud: 2 x 120 mm |
| Radiator Support | |
| Front: | – |
| Top: | 120 / 240 / 360 mm |
| Rear: | 120 / 140 mm |
| Side: | – |
| Chassis Clearance Specs | |
| Cooler Height Clearance: | 175 mm |
| GPU Length Clearance: | 390 mm |
| PSU Length Limit: | 200 mm |
| Software & Features | |
| Software Support: | – |
| Features: | DIY Friendly cables make your DIY process easier |
| Magnetic Dust Filter at the bottom | |
| Built-in 1-to-4 ARGB-PWM fans | |
| Supports up to 10 x 120 mm system fans | |
| 270-degree panoramic tempered glass | |
| General | |
| Chassis Lighting: | Yes, ARGB |
| PSU Support: | ATX |
| Dimensions: | 440 x 235 x 405 mm |
| Weight: | Net 8.66 kg |
| Colour: | White |
| Warranty Information | |
| Warranty: | 2 Year Warranty |
