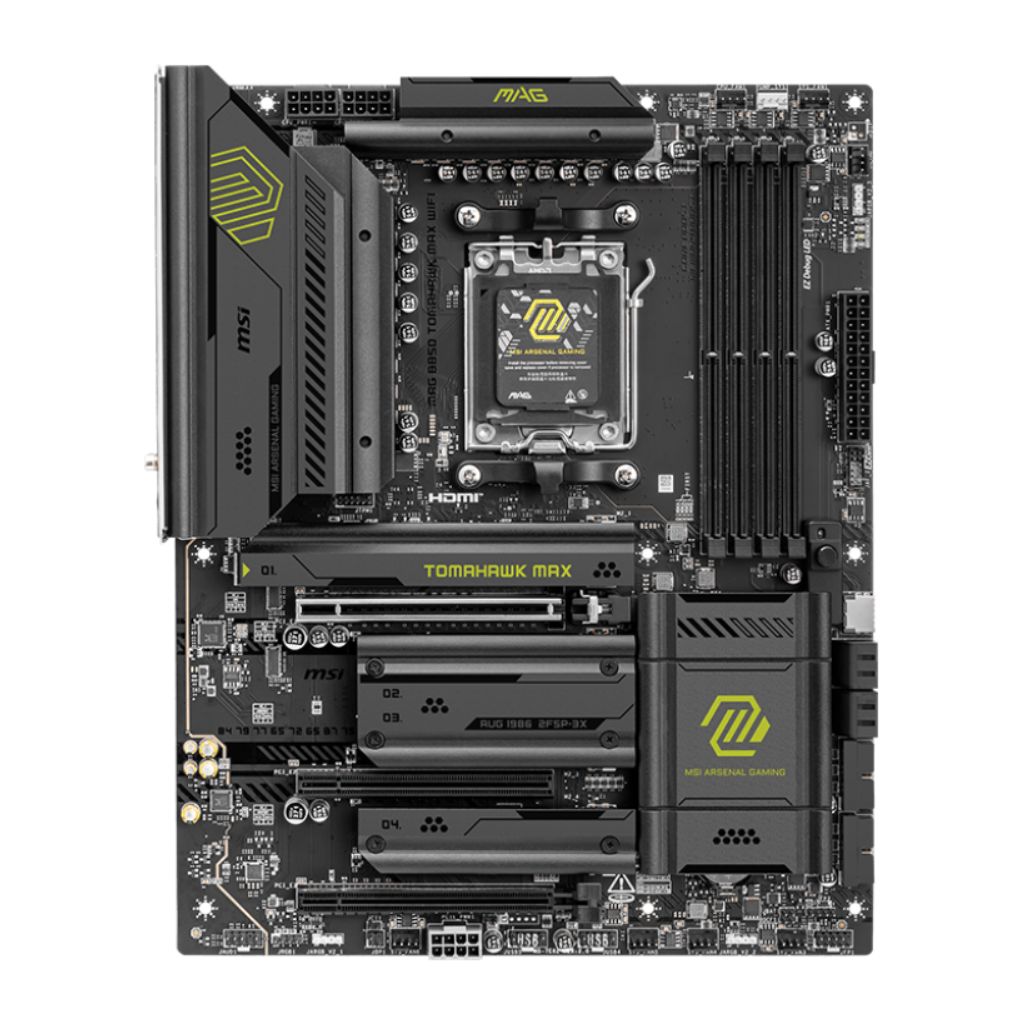

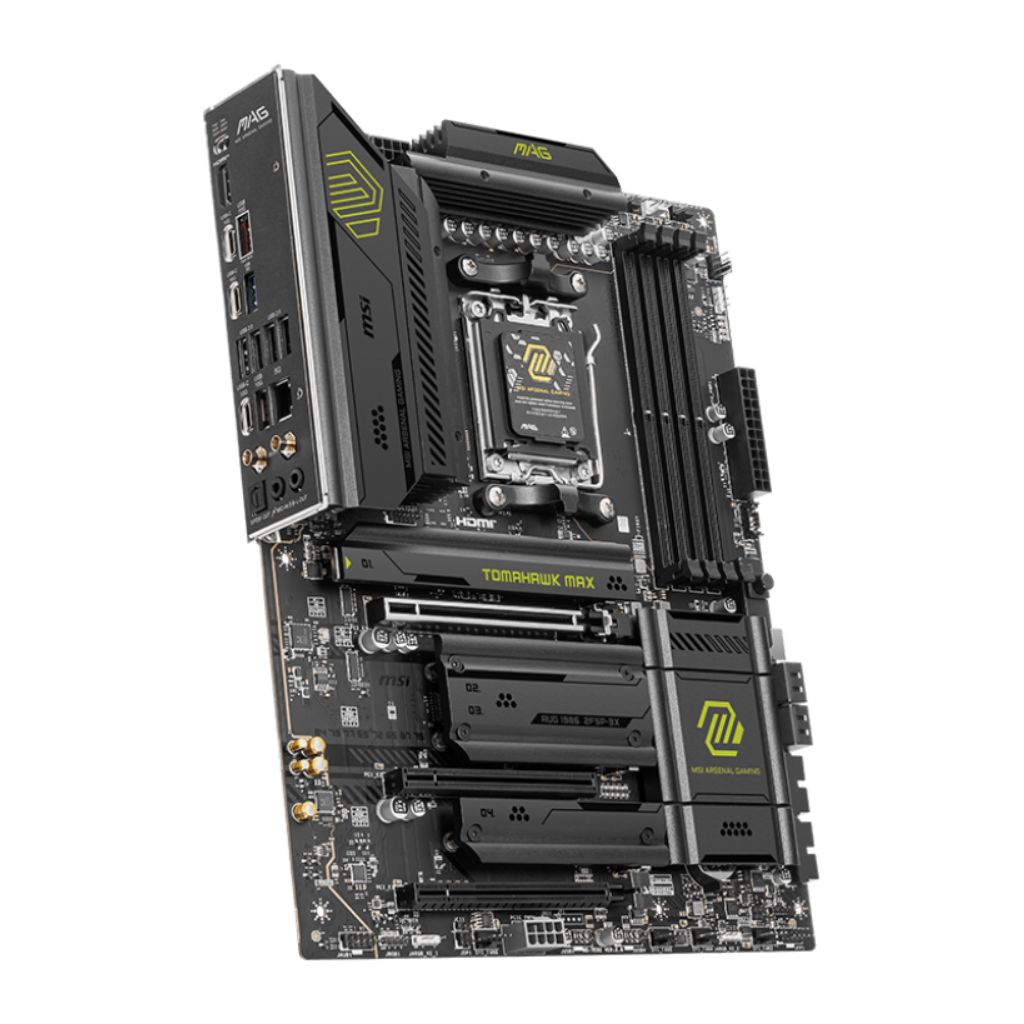

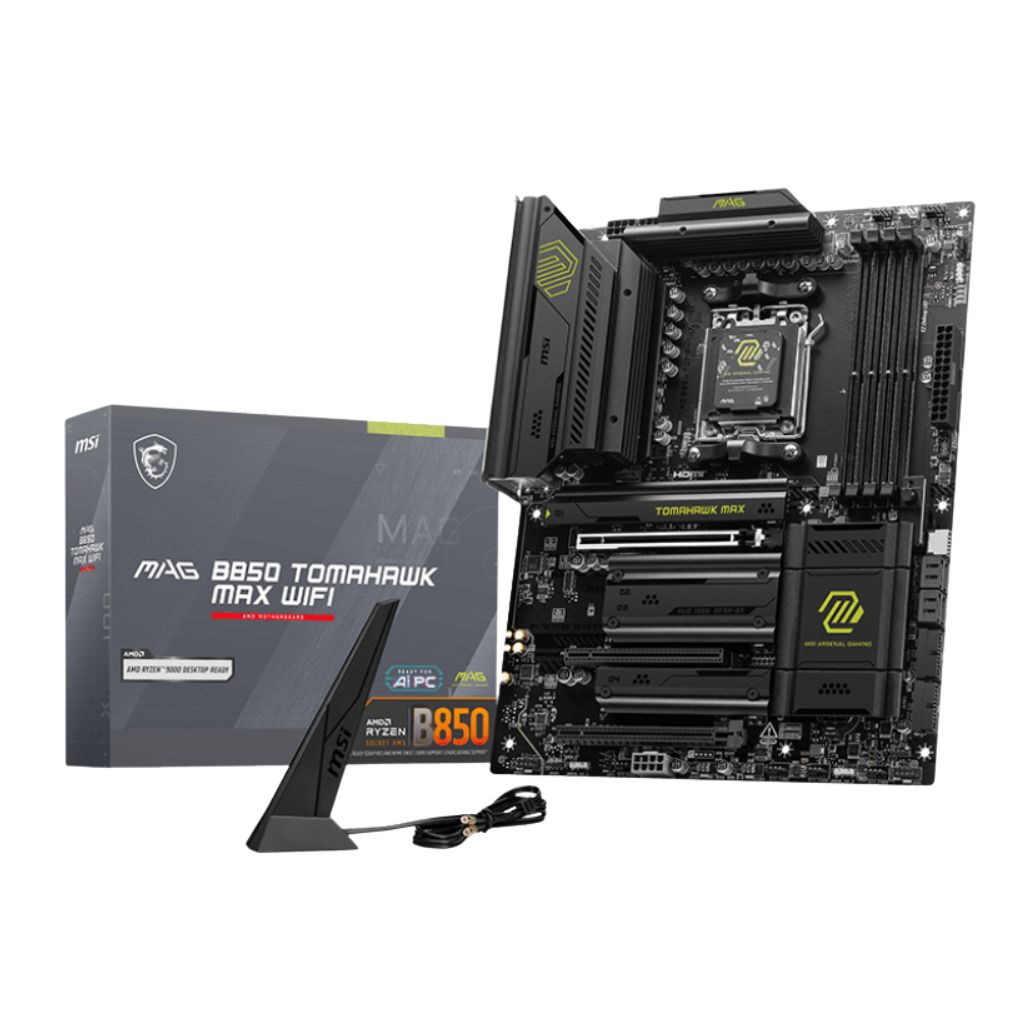

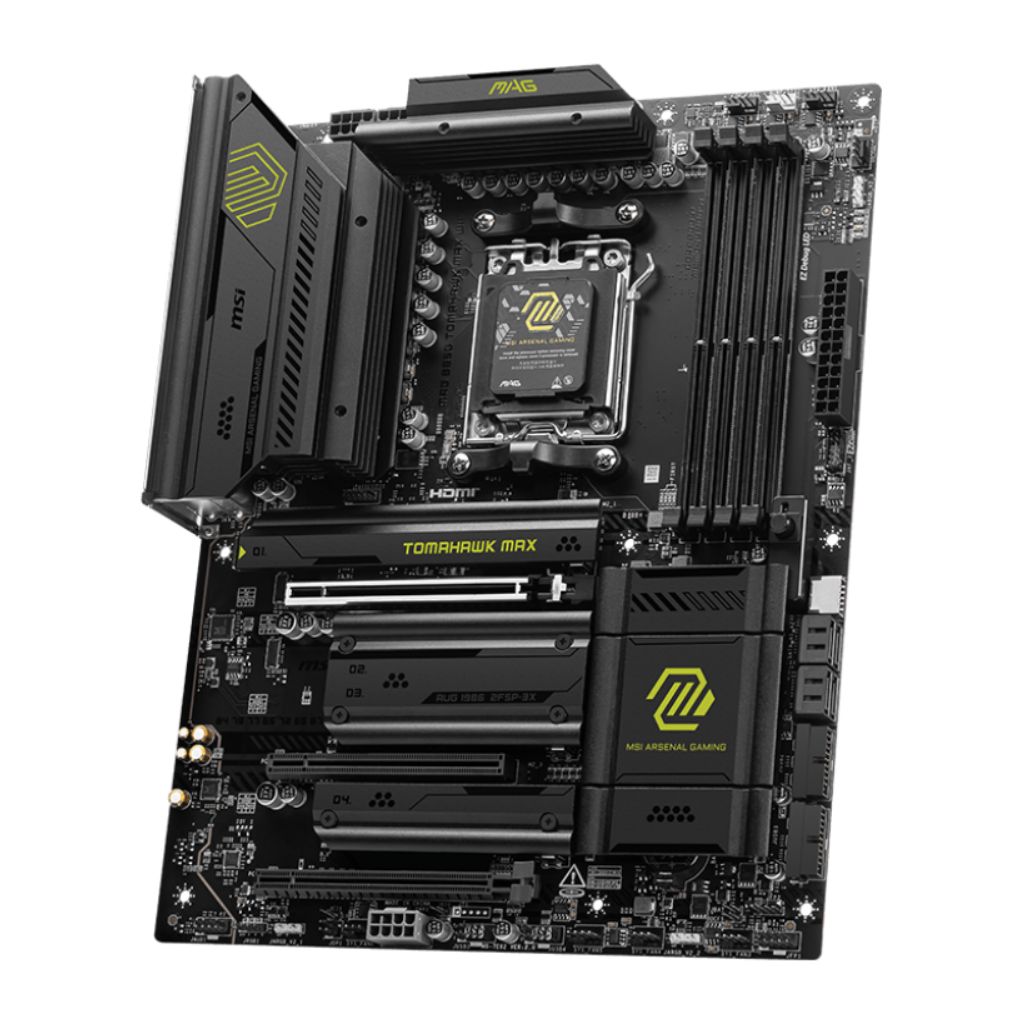

MSI MAG B850 Tomahawk MAX WiFi DDR5 ATX AM5 AMD Motherboard
Full description MSI.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
| Specifications | |
| Brand: | MSI |
| Series: | B850 Series |
| Model: | MAG-B850-TOMAHAWK-MAX-WIFI |
| Technical Specs | |
| CPU Support: | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset: | AMD B850 |
| Memory: | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s |
| Onboard Graphics: | 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* |
| Audio: | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
| Connectivity | |
| LAN: | Realtek® 8126VB 5G LAN |
| Wireless: | Wi-Fi 7 Solution |
| Bluetooth: | Supports Bluetooth 5.4 |
| Expansion Slots: |
3x PCI-E x16 slot PCI_E1 slot |
| Storage Interface: |
4x M.2 M2_1 slot M2_2 slot |
| On-Board Connectors | |
| USB: | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 3x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| Internal I/O Connectors: | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |

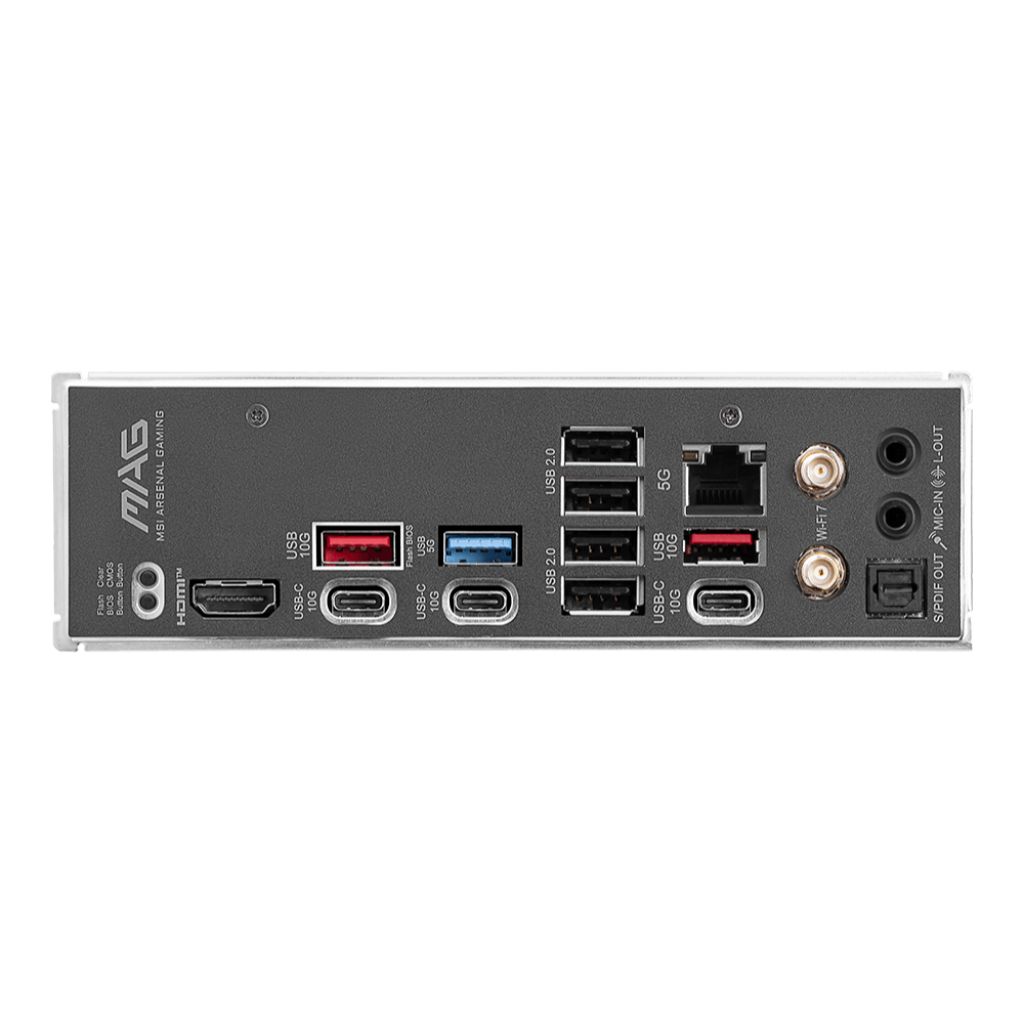

| Back Panel Connectors: | Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A |
| Software & Features | |
| BIOS: | – |
| Software: | – |
| Features: | Ryzen™ 9000 Series Support: Compatible with latest AMD desktop CPUs. |
| DDR5 8400+ (OC): Ultra-fast dual-channel memory performance. | |
| 14+2+1 Power Design: Stable power with premium 8-layer PCB. | |
| Frozr Guard Cooling: Advanced heatsinks and thermal pads for peak efficiency. | |
| EZ DIY Features: Tool-less M.2, PCIe release, and antenna setup. | |
| General | |
| Operating System: | Support for Windows 11 64-bit |
| Form Factor: | ATX, 243.84mmx304.8mm |
| Warranty Information | |
| Warranty: | 3 year warranty |
