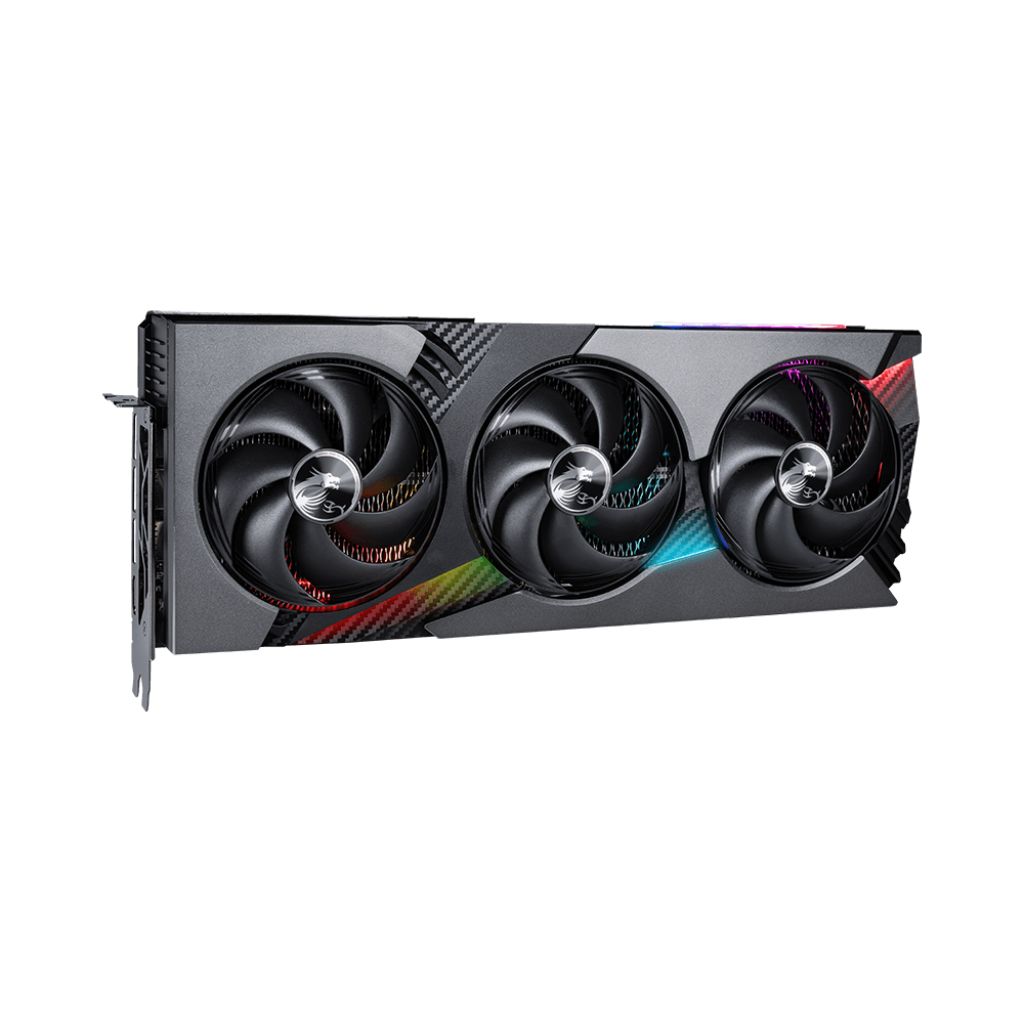

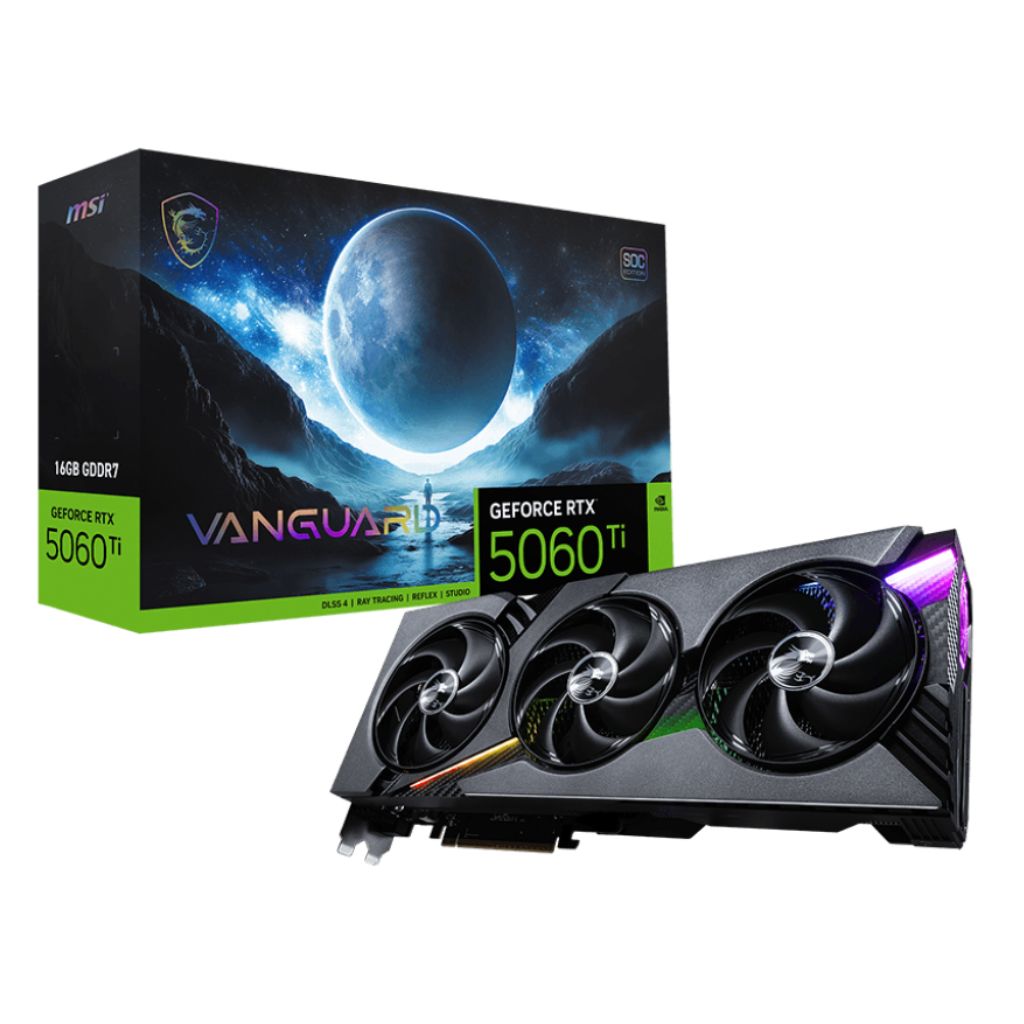

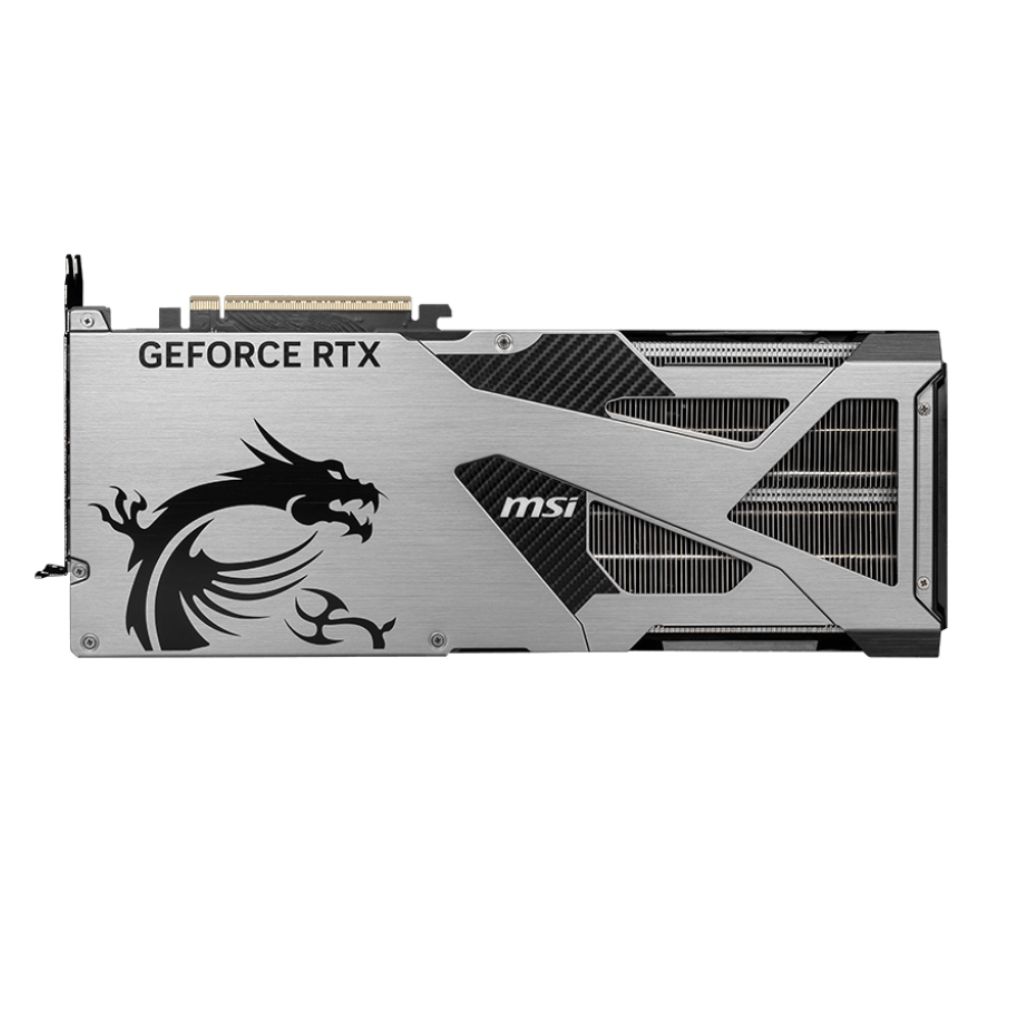

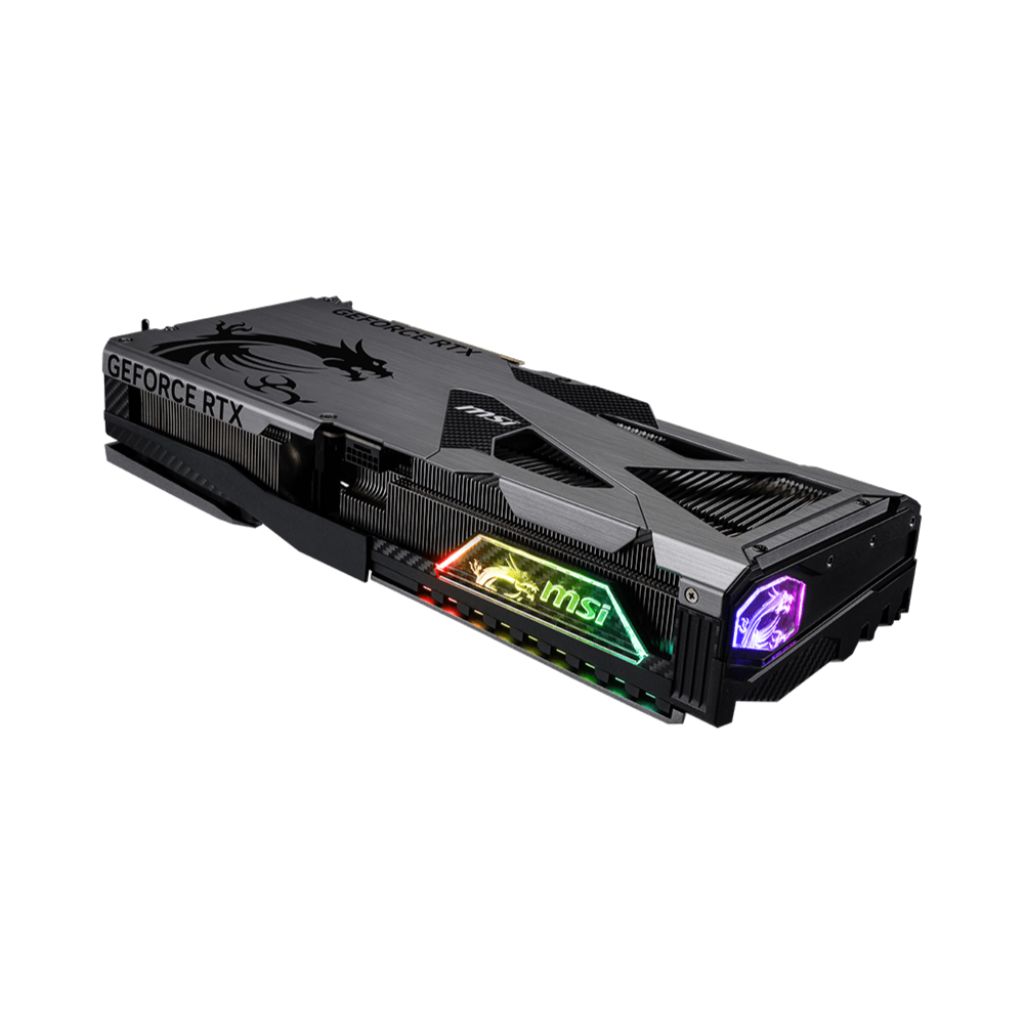

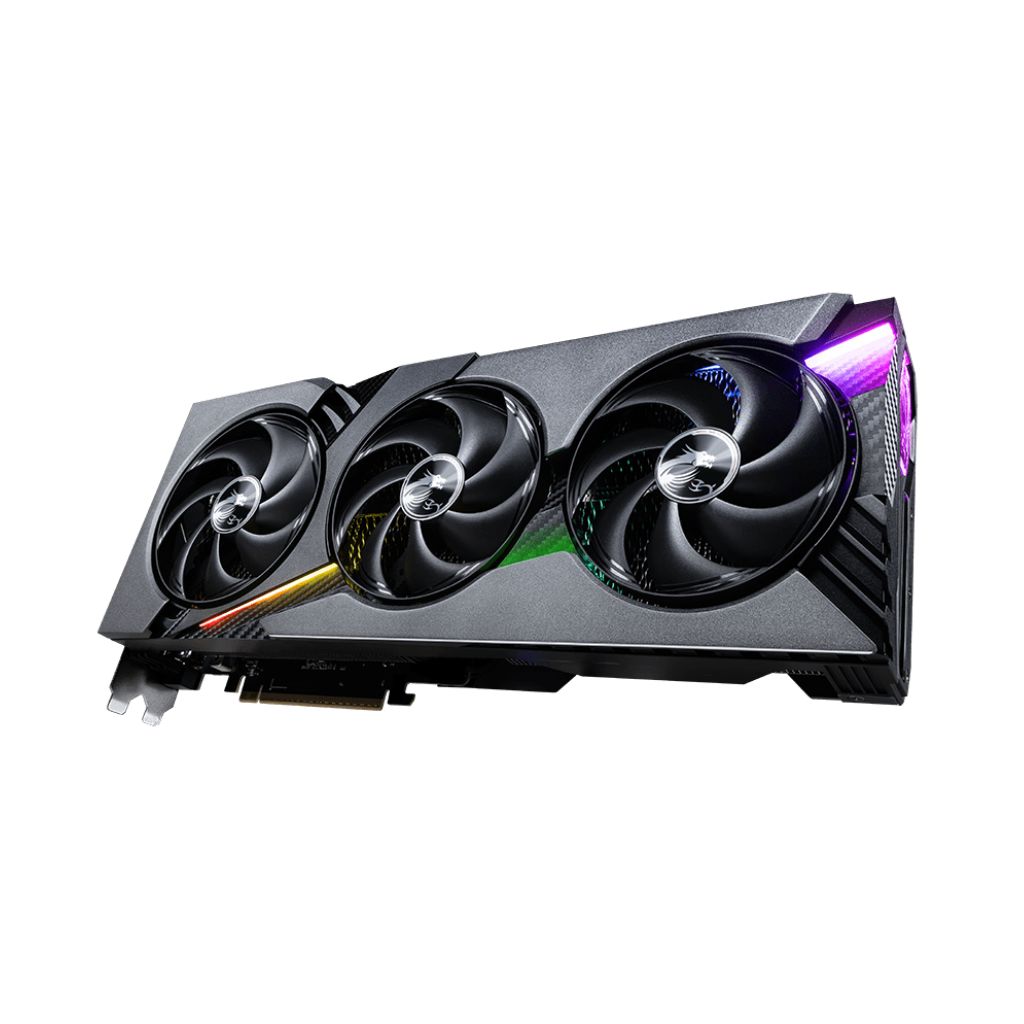

MSI GeForce RTX 5060 Ti 16G VANGUARD SOC GDDR7 Graphics Card – G506T-16VGS
Full description MSI.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clock:
Extreme Performance: 2707 MHz (MSI Center)
Boost: 2692 MHz - TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
| Specifications | |
| Brand: | MSI |
| Series: | GeForce RTX 50 Series |
| Model: | G506T-16VGS |
| Technical Specs | |
| Chipset Manufacturer: | Nvidia |
| Interface: | PCI Express Gen 5 x16 (uses x8) |
| Clock Speeds: | Extreme Performance: 2707 MHz (MSI Center) Boost: 2692 MHz |
| CUDA Cores: | 4608 Units |
| GPU Architecture: | NVIDIA Blackwell Architecture |
| Memory | |
| Memory Type: | GDDR7 |
| Memory Size: | 16 GB |
| Memory Interface: | 128 bit |
| Memory Clock: | 28 Gbps |
| Software & Features | |
| DirectX: | 12.1 Ultimate |
| OpenGL: | 4.6 |
| Features: | Integrated with 16GB GDDR7 128bit memory interface |
| Powered by the NVIDIA Blackwell architecture and DLSS 4 | |
| Fifth-Gen Tensor Cores | |
| New Streaming Multiprocessors | |
| Fourth-Gen Ray Tracing Cores | |
| General | |

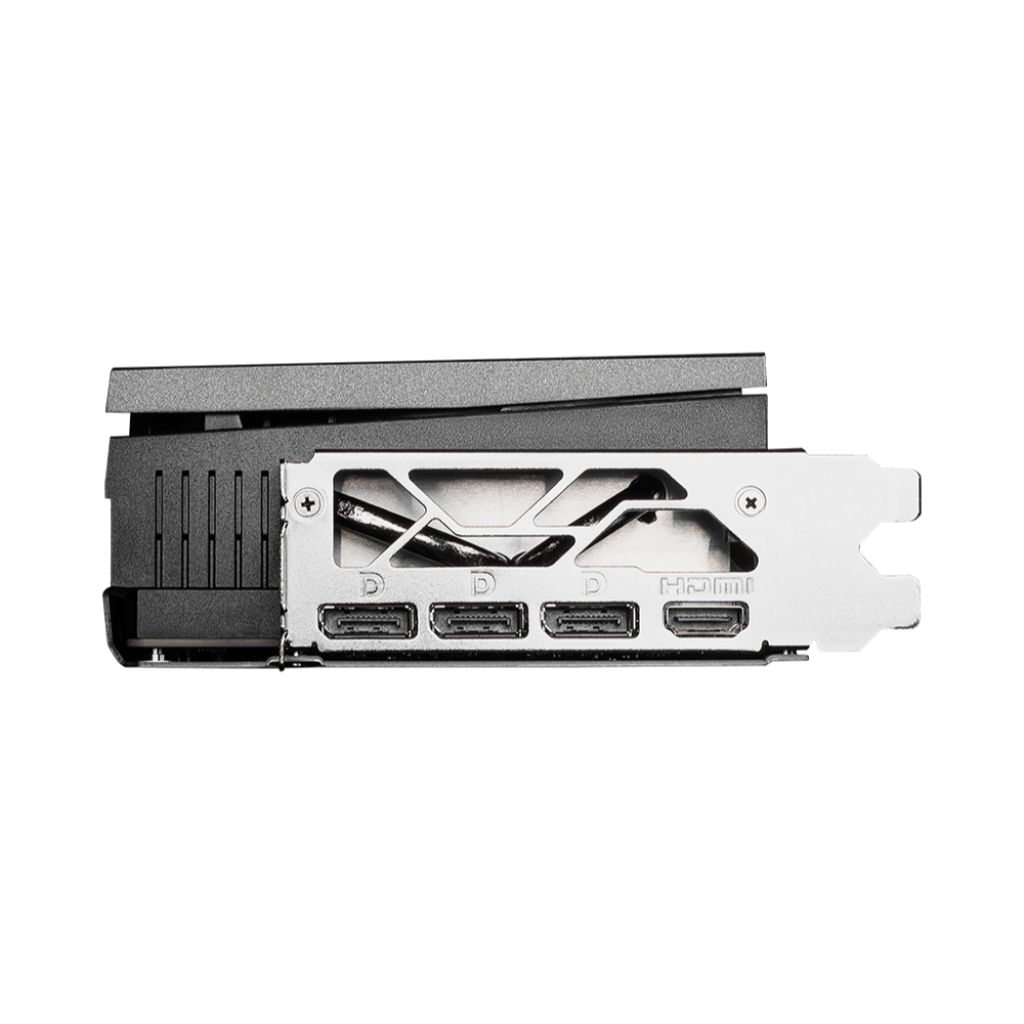

| Connectivity Ports: | DisplayPort x 3 (v2.1b) |
| HDMI™ x 1 | |
| Multi-Monitor Support: | Yes |
| Maximum Digital Resolution: | 7680×4320 |
| Recommended Power Supply: | 600 W |
| Power Connectors: | 16-pin x 1 |
| Form Factor: | ATX |
| Dimensions: | 337 x 140 x 61 mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
MSI GeForce RTX 5060 Ti 16G VANGUARD SOC GDDR7 Graphics Card – G506T-16VGS
Contact us if you would like to enquire about this product.
