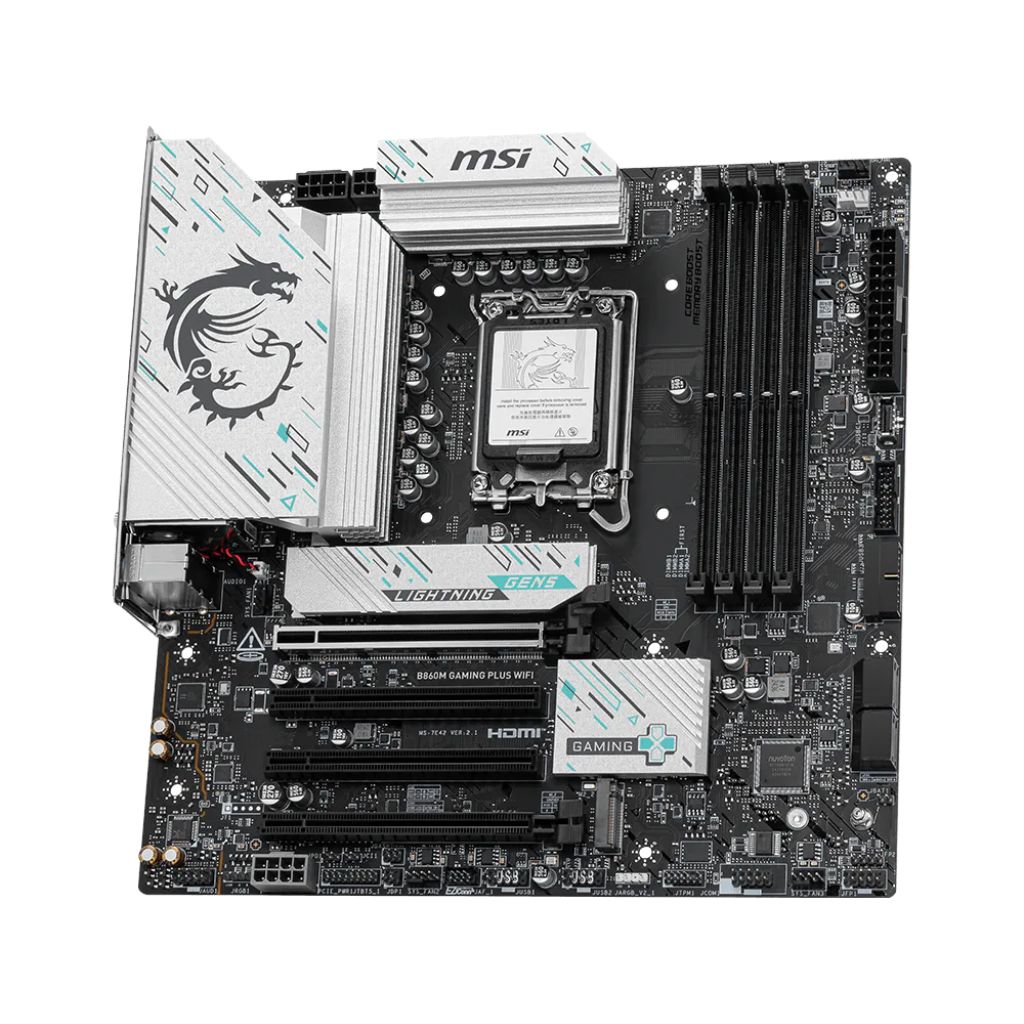

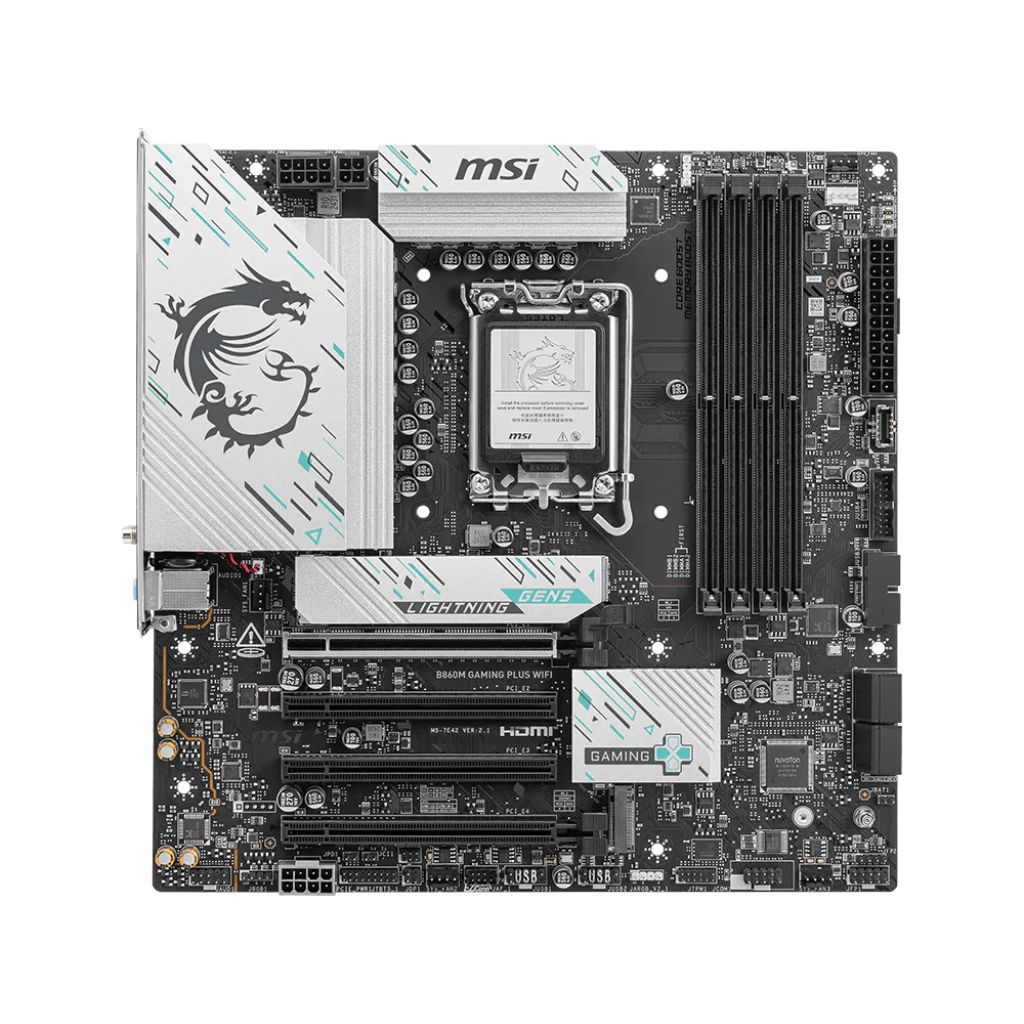

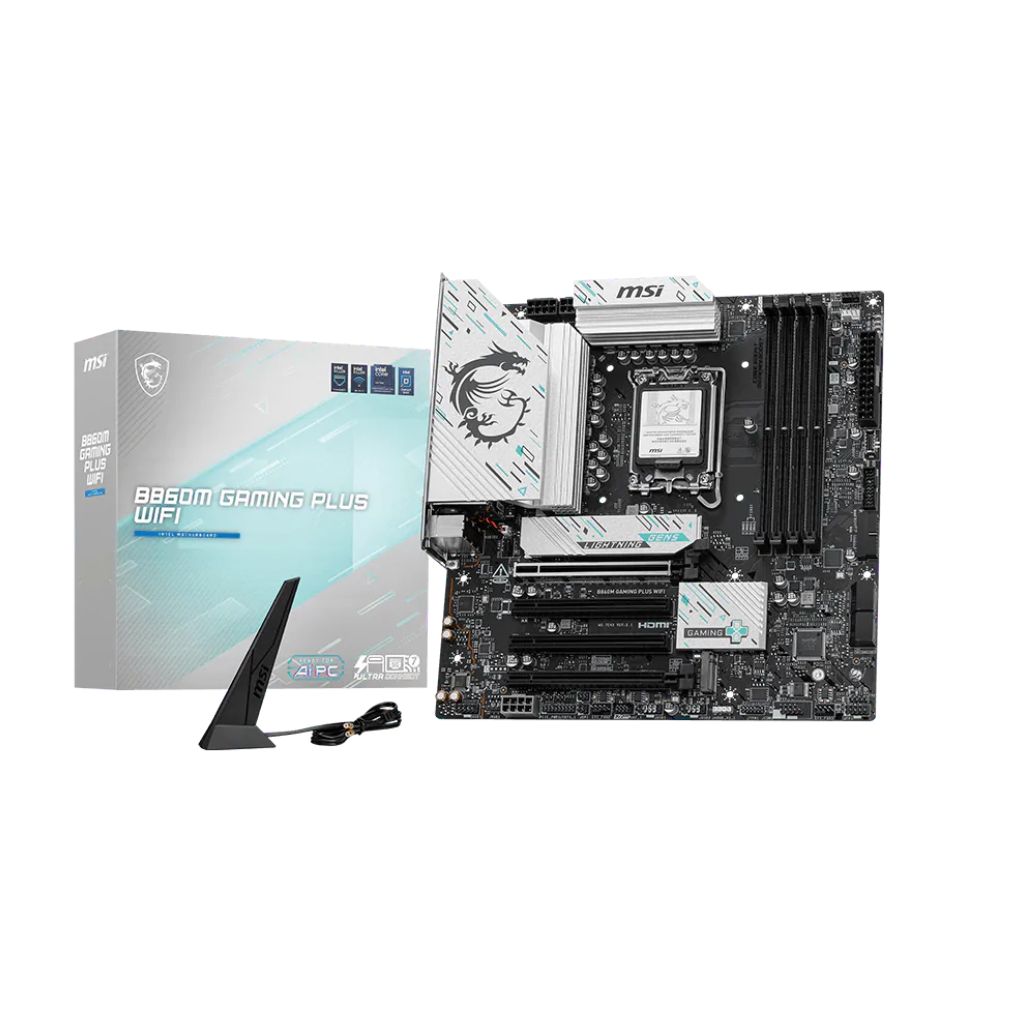

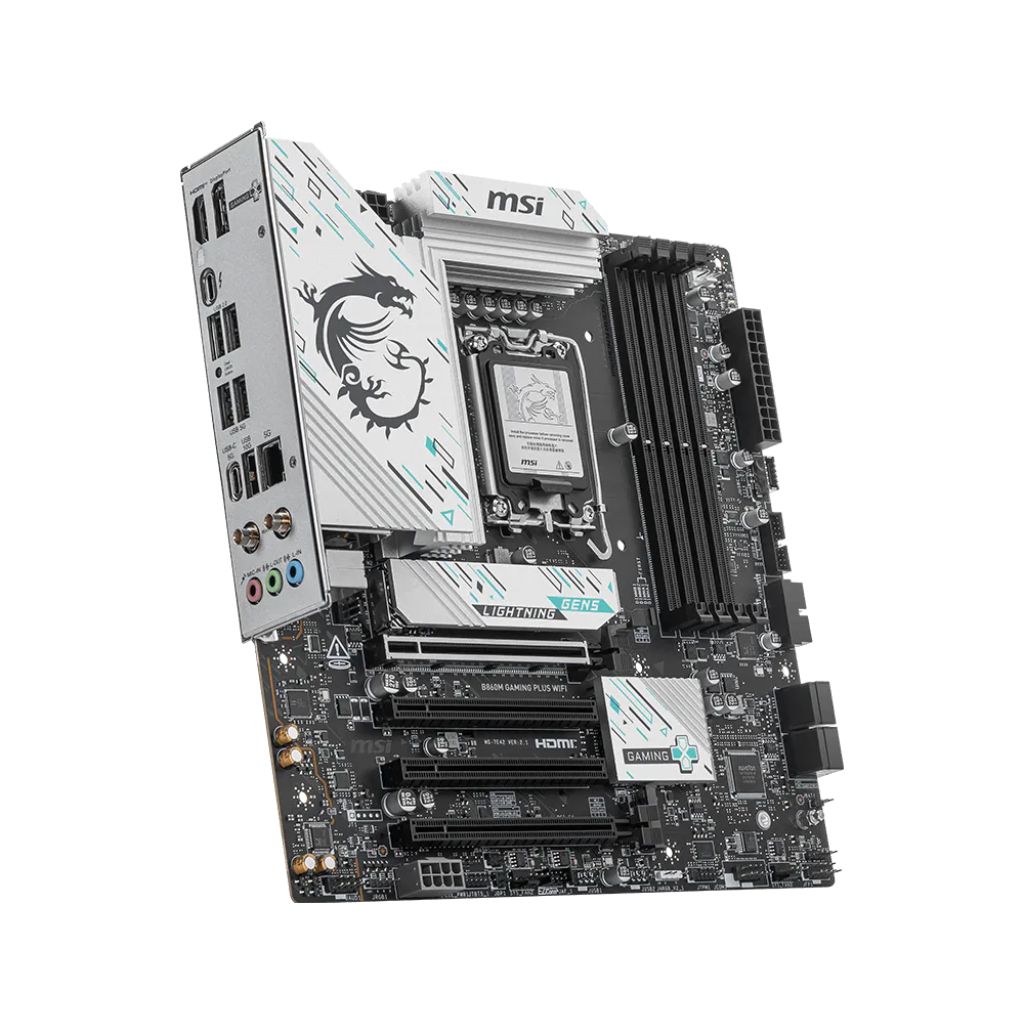

MSI B860M Gaming PLUS WiFi DDR5 Micro-ATX LGA1851 Intel Motherboard
Full description MSI.
- Built for Intel® Core™ Ultra (Series 2) Processors – Powered by the Intel B860 chipset with LGA1851 socket support for next-generation performance, AI-enhanced workloads, and modern gaming builds.
- DDR5 Performance up to 8800MT/s (OC) – 4x DDR5 DIMM slots supporting up to 256GB of high-speed memory with XMP 3.0 for extreme multitasking, content creation, and competitive gaming.
- PCIe 5.0 Graphics & Triple M.2 Storage – PCIe 5.0 x16 slot for next-gen GPUs plus 3x M.2 slots (including PCIe 5.0) for ultra-fast NVMe SSD performance.
- Integrated WiFi 7 & 5Gbps LAN – Intel Killer™ networking with WiFi 7 and 5G LAN delivers ultra-low latency, high-bandwidth connectivity for gaming and streaming.
- Thunderbolt™ 4 + USB 20Gbps Connectivity – Advanced high-speed connectivity including rear Thunderbolt™ 4, multiple USB 10Gbps ports, and modern I/O for creators and power users.
| Specifications | |
|---|---|
| Brand: | MSI |
| Model: | B860M Gaming PLUS WiFi |
| Chipset: | Intel® B860 |
| Socket: | LGA1851 |
| Form Factor: | Micro-ATX (243.84mm x 243.84mm) |
| CPU Support | |
| Supported Processors: | Intel® Core™ Ultra Processors (Series 2) |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 4x DDR5 UDIMM |
| Maximum Capacity: | Up to 256GB |
| Memory Speed: | 8800 – 6400 (OC) / 6400 – 4800 (JEDEC) MT/s |
| Memory Support: | Dual Channel, Intel® XMP 3.0, Non-ECC, Un-buffered |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 5.0 x16 (from CPU) |
| PCIe x1 Slots: | 2x PCIe 4.0 x1 (from Chipset) |
| Storage | |
| M.2 Slots: | 3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 5 / 10 (SATA) |
| Networking | |
| LAN: | Intel® Killer™ E5000 5Gbps LAN |
| Wireless: | Intel® WiFi 7 (802.11be) |
| Bluetooth: | Bluetooth® 5.4 |
| Graphics Outputs | |
| HDMI: | 1x HDMI™ |
| DisplayPort: | 1x DisplayPort |
| Thunderbolt: | 1x Thunderbolt™ 4 (40Gbps, USB Type-C) |
| Audio | |
| Audio Codec: | Realtek® ALC897 |
| Audio Channels: | 7.1-Channel High Definition Audio |
| USB (Rear) | |
| USB 2.0: | 2x USB 2.0 |
| USB 5Gbps Type-A: | 2x USB 5Gbps |
| USB 10Gbps Type-A: | 1x USB 10Gbps |
| USB 10Gbps Type-C: | 1x USB 10Gbps Type-C |
| Internal I/O Connectors | |
| Power Connectors: | 1x 24-pin ATX, 1x 8-pin CPU |
| Fan Headers: | CPU Fan, Pump Fan, System Fan headers |
| USB Headers: | USB 2.0 & USB 5Gbps headers |
| RGB Headers: | ARGB Gen2 & RGB LED headers |
| Front Panel: | Yes |
| TPM Header: | Yes (TPM 2.0 Support) |
| Back Panel I/O Ports | |
| LAN Port: | 1x 5Gbps RJ-45 |
| WiFi Antenna Ports: | 2 |
| Audio Jacks: | HD Audio Connectors |
| Clear CMOS: | Yes |
| BIOS | |
| BIOS Type: | 256Mb Flash, UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
