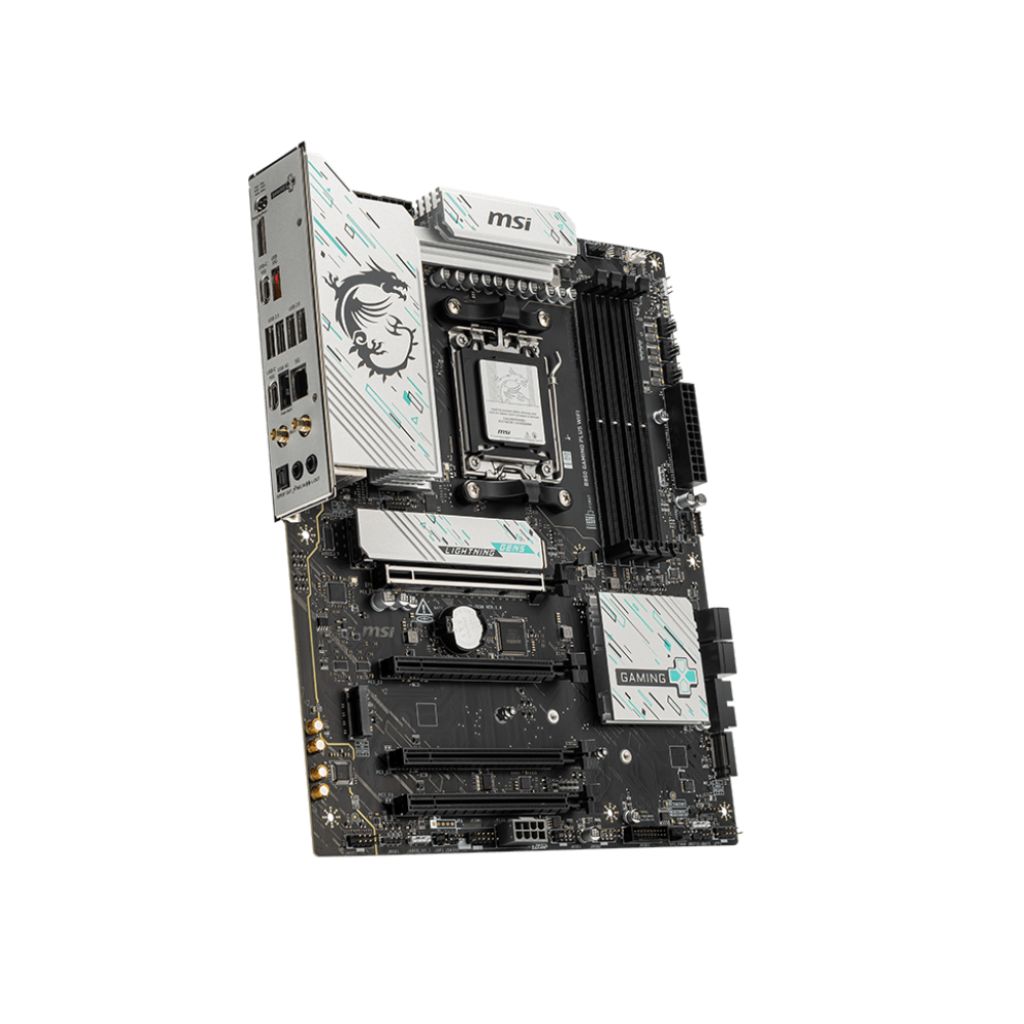

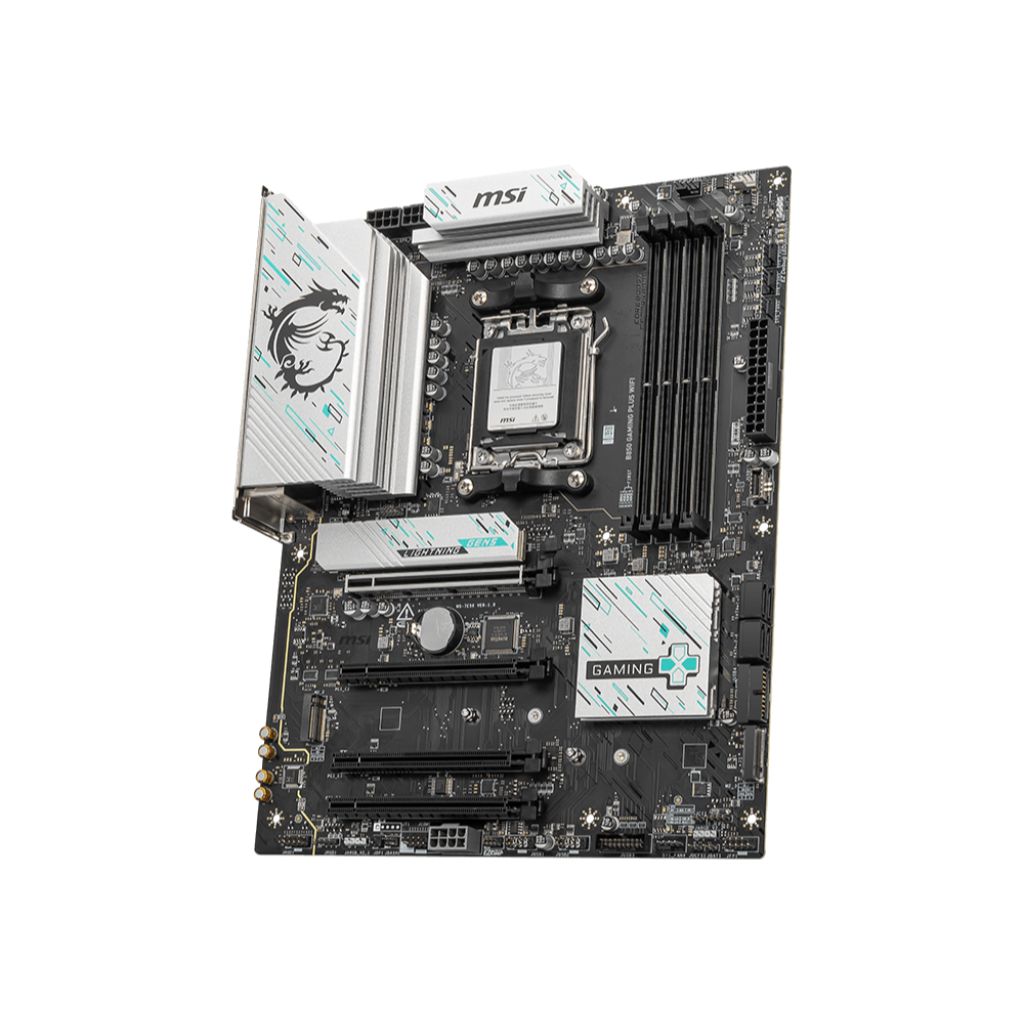

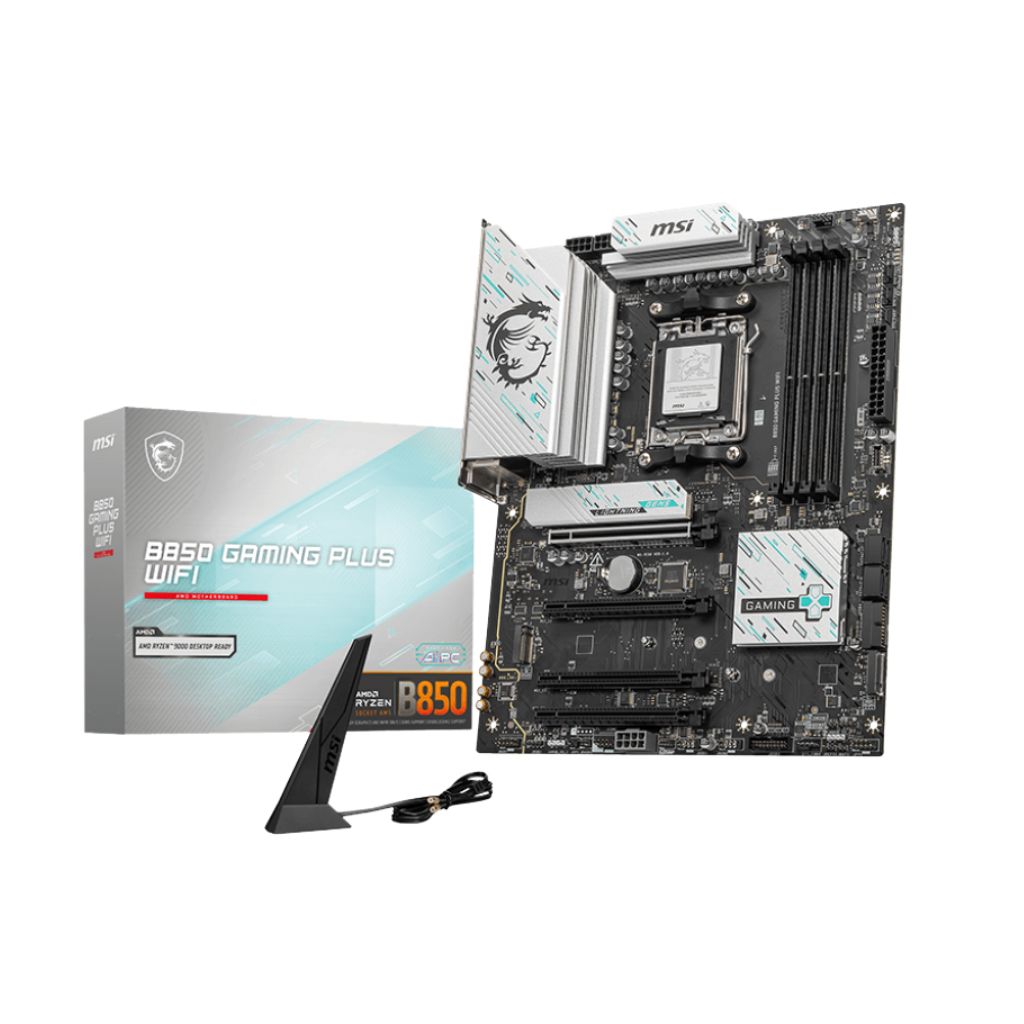

MSI B850 Gaming PLUS WiFi DDR5 ATX AM5 AMD Motherboard
Full description MSI.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 5G LAN with Full-speed Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
| Specifications | |
| Brand: | MSI |
| Series: | B850 Series |
| Model: | B850-GAMING-PLUS-WIFI |
| Technical Specs | |
| CPU Support: | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset: | AMD B850 |
| Memory: | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s |
| Onboard Graphics: | 1x DisplayPort |
| Audio: | Realtek® ALC897 7.1-Channel High Definition Audio |
| Connectivity | |
| LAN: | Realtek® 8126VB 5G LAN |
| Wireless: | Wi-Fi 7 Solution |
| Bluetooth: | Supports Bluetooth 5.4 |
| Expansion Slots: |
4x PCI-E x16 slot PCI_E1 slot |
| Storage Interface: |
3x M.2 M2_1 slot |
| On-Board Connectors | |
| USB: | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) |
| Internal I/O Connectors: | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Back Panel Connectors: | Clear CMOS Button USB 10Gbps (Type-A) USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button DisplayPort USB 10Gbps (Type-C) USB 10Gbps (Type-C) USB 5Gbps (Type-A) S/PDIF-OUT |
| Software & Features | |
| BIOS: | – |
| Software: | MSI |
| Features: | Ryzen™ 9000 Ready: Supports latest AMD desktop processors. |
| DDR5 8200+ (OC): High-speed dual-channel memory support. | |
| 12+2+1 Power Design: Efficient, stable power delivery with premium PCB. | |
| Frozr Guard Cooling: Advanced thermal solution for nonstop performance. | |
| Wi-Fi 7 & 5G LAN: Ultra-fast, reliable networking for pro users. | |
| General | |
| Operating System: | Support for Windows 11 64-bit |
| Form Factor: | ATX |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
MSI B850 Gaming PLUS WiFi DDR5 ATX AM5 AMD Motherboard
Contact us if you would like to enquire about this product.
Reviews
There are no reviews yet
