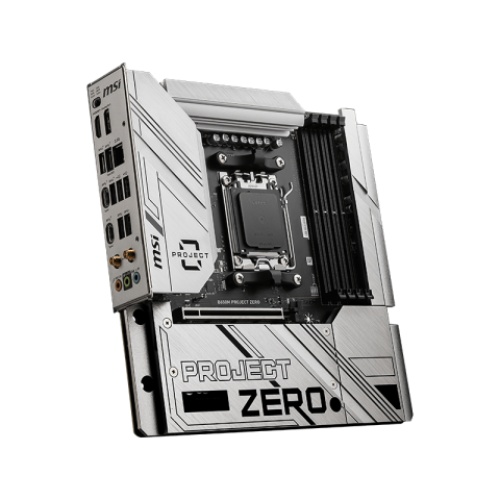

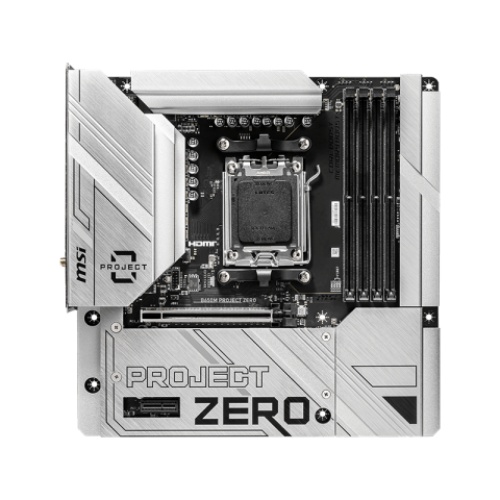

MSI B650M Project ZERO WiFi 7 DDR5 LGA1700 m-ATX Motherboard
Full description MSI.
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7600+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs.
Specifications |
|
| Brand: | MSI |
| Series: | Z790 Project Zero Series |
| Model: | B650M-PROJECT-ZERO |
| Technical Specs | |
| CPU Support: | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
| Chipset: | B650 Chipset |
| Memory: | 4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz |
| Onboard Graphics: | 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
| Audio: | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Connectivity | |
| LAN: | Realtek® RTL8125BG 2.5Gbps LAN |
| Wireless: | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Bluetooth: | Supports Bluetooth 5.3 |
| Expansion Slots: | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage Interface: | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 4x SATA 6G |
| On-Board Connectors | |
| USB: | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Internal I/O Connectors: | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| Back Panel Connectors: |
|
| Software & Features | |
| BIOS: | – |
| Software: | MSI Center |
| Features: | Supports AMD Ryzen™ 8000 / 7000 Series |
| Lightning M.2 | |
| 2.5G LAN and AMD Wi-Fi 6E Solution | |
| Lightning USB 20G | |
| Audio Boost | |
| General | |
| Operating System: | Support for Windows 11 64-bit, Windows 10 64-bit |
| Form Factor: | mATX 243.84mmx243.84mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
