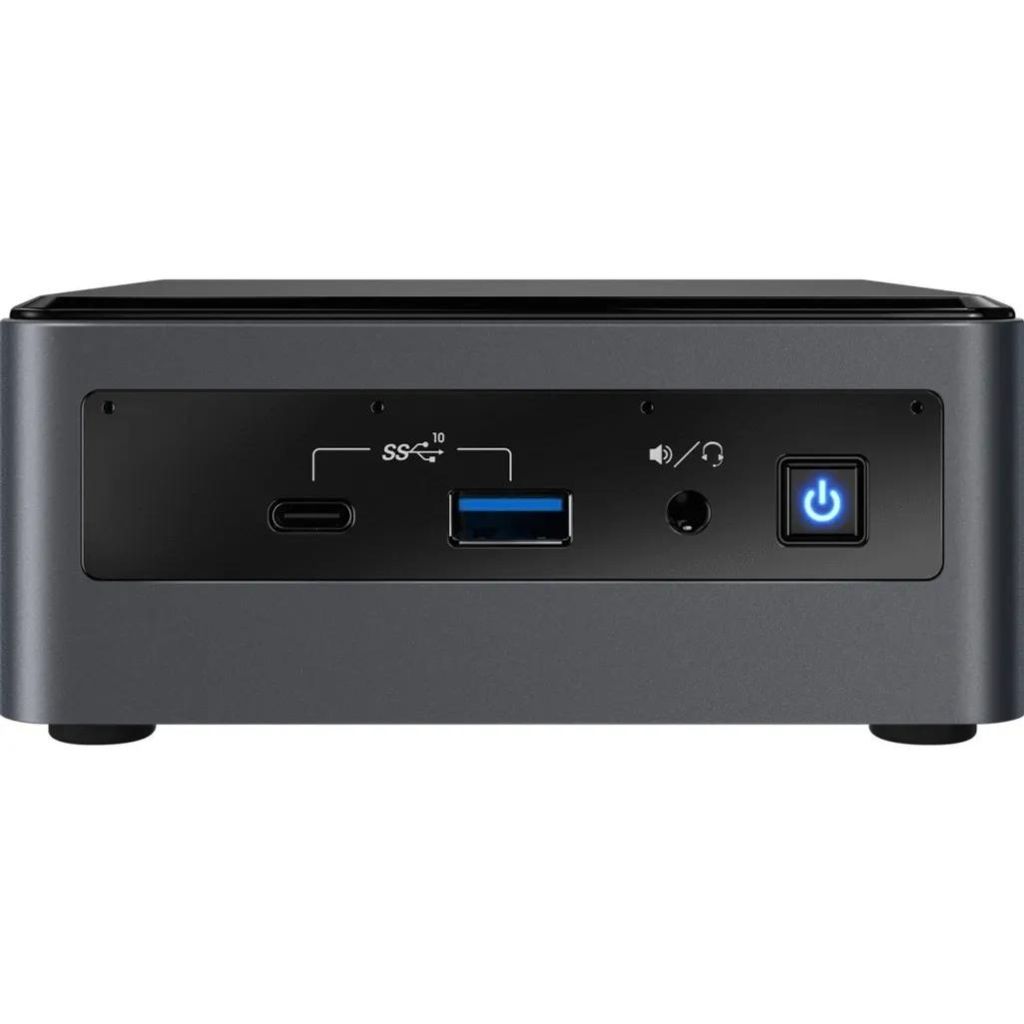

Intel NUC 10 Performance kit I3-10110U
Full description Intel.
Specifications |
|
| Product Collection: | Intel® NUC Kit with 10th Generation Intel® Core™ Processors |
| Code Name: | Products formerly Chaco Canyon |
| Supported Operating Systems: | Windows 11, 64-bit*, Windows 10, 64-bit* |
| Board Form Factor: | UCFF (4″ x 4″) |
| Internal Drive Form Factor: | M.2 and 2.5″ Drive |
| DC Input Voltage Supported: | N/A |
| Processor Included: | Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz) |
| Total Cores: | 2 |
| Total Threads: | 4 |
| Processor Base Frequency: | 2.10 GHz (MAX turbo: 4.10 GHz) |
| Lithography: | 14 nm |
| Memory & Storage | |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types: | DDR4-2666 1.2V SO-DIMM |
| Max # of Memory Channels: | 2 |
Processor Graphics |
|
| Graphics Output: | HDMI 2.0b; USB-C (DP1.2) |
| Displays Supported: | 3 |
Expansion Options |
|
| PCI Express Revision: | Gen 3 |
| PCI Express Configurations: | M.2 slot with PCIe X4 lanes |
| M.2 Card Slot (storage): | 22×42/80 |
I/O Specifications |
|
| USB Ports: | # of 7 |
| USB Configuration: | 2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers |
| Serial Port via Internal Header: | N/A |
| Integrated LAN: | Intel® Ethernet Connection i219-V |
| Integrated Wireless: | Intel® Wi-Fi 6 AX201 |
| Integrated Bluetooth: | Yes |
| Additional Headers: | CEC, 2x USB2.0, FRONT_PANEL, RGB |
Package Specifications |
|
| Chassis Dimensions: | 117 x 112 x 51mm |
Advanced Technologies |
|
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| TPM | No |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
Warranty |
|
| Warranty: | 3 Years |
