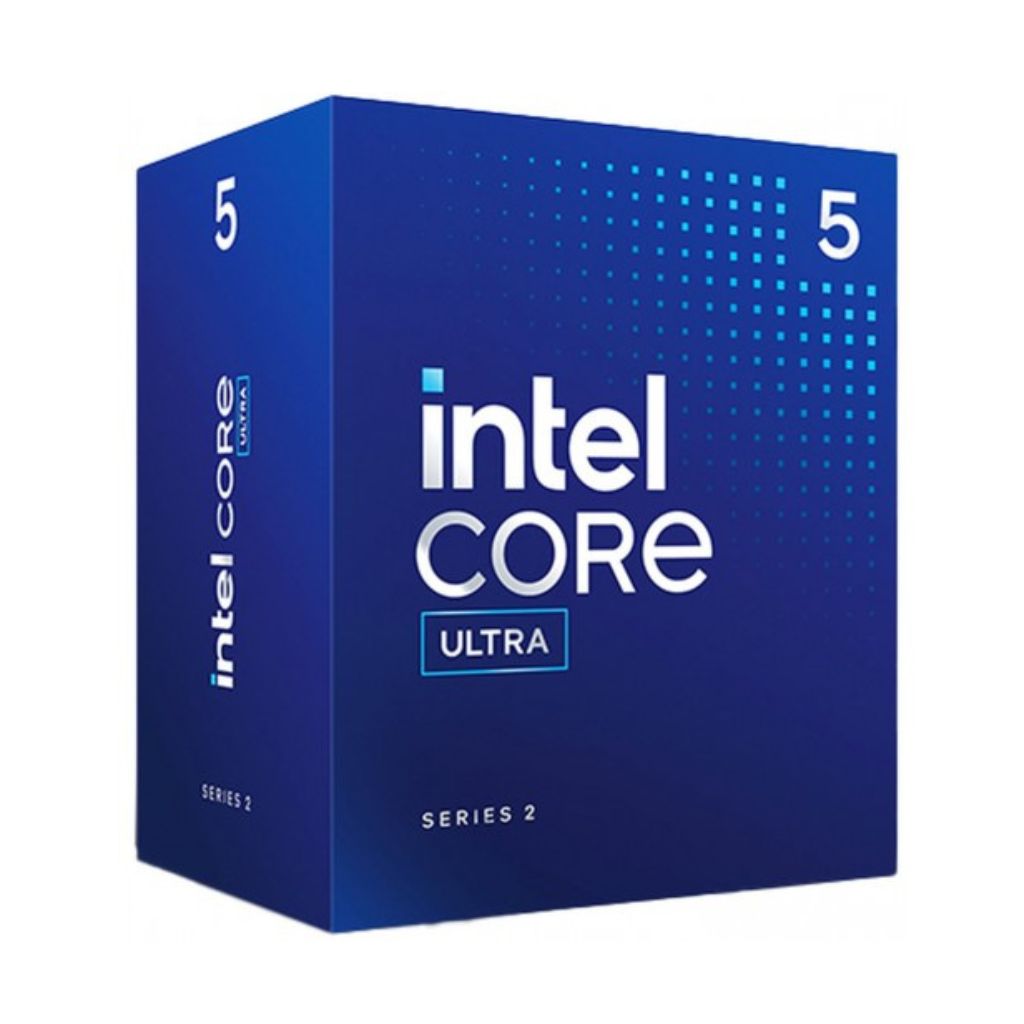

Intel Core Ultra 5 225 10-Core 4.9 GHz Arrow Lake LGA 1851 Desktop CPU Processor – BX80768225
Full description Intel.
- The Intel Core Ultra 5 225 is a desktop processor with 10 cores, It is part of the Ultra 5 lineup, using the Arrow Lake architecture with Socket 1851.
- Core Ultra 5 225 has 20 MB of L3 cache and operates at 3.3 GHz by default, but can boost up to 4.9 GHz, depending on the workload.
- The multiplier is locked on Core Ultra 5 225, which limits its overclocking capabilities.
- The highest officially supported memory speed is 6400 MT/s, but with overclocking (and the right memory modules) you can go even higher.
| Specifications | |
| Brand: | Intel |
| Series: | Ultra Series |
| Model: | BX80768225 |
| Technical Specs | |
| Sockets Supported: | LGA 1851 |
| Cores: | 10 |
| Threads: | 10 |
| Max Turbo Frequency: | 4.9 GHz |
| Efficient-core Max Turbo Frequency: | 4.4 GHz |
| Cache: | 20 MB Intel Smart Cache |
| Base Power: | 65w |
| Turbo Power: | 121w |
| Architecture: | TSMC N3B |
| Graphics Specs | |
| Processor Graphics: | Intel Graphics |
| Base Frequency: | 300Mhz |
| Max Dynamic Frequency: | 1.8 GHz |
| Graphics Output: | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
| Execution Units: | – |
| Max Resolution (HDMI): | 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
| Max Resolution (DP): | 8K @ 60Hz |
| API Support: | – |
| PCI Express Configurations: | – |
| Memory Specs | |
| Max Memory Supported: | 192GB |
| Memory Types: | DDR5 |
| – | |
| Max Memory: | Up to DDR5 6400 MT/s |
| Software & Features | |
| Software: | – |
| Features: | Intel Speed Shift Technology |
| Intel Turbo Boost Technology | |
| Enhanced Intel SpeedStep Technology | |
| Thermal Monitoring Technologies | |
| Intel Thread Director | |
| General | |
| Package Size: | – |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
