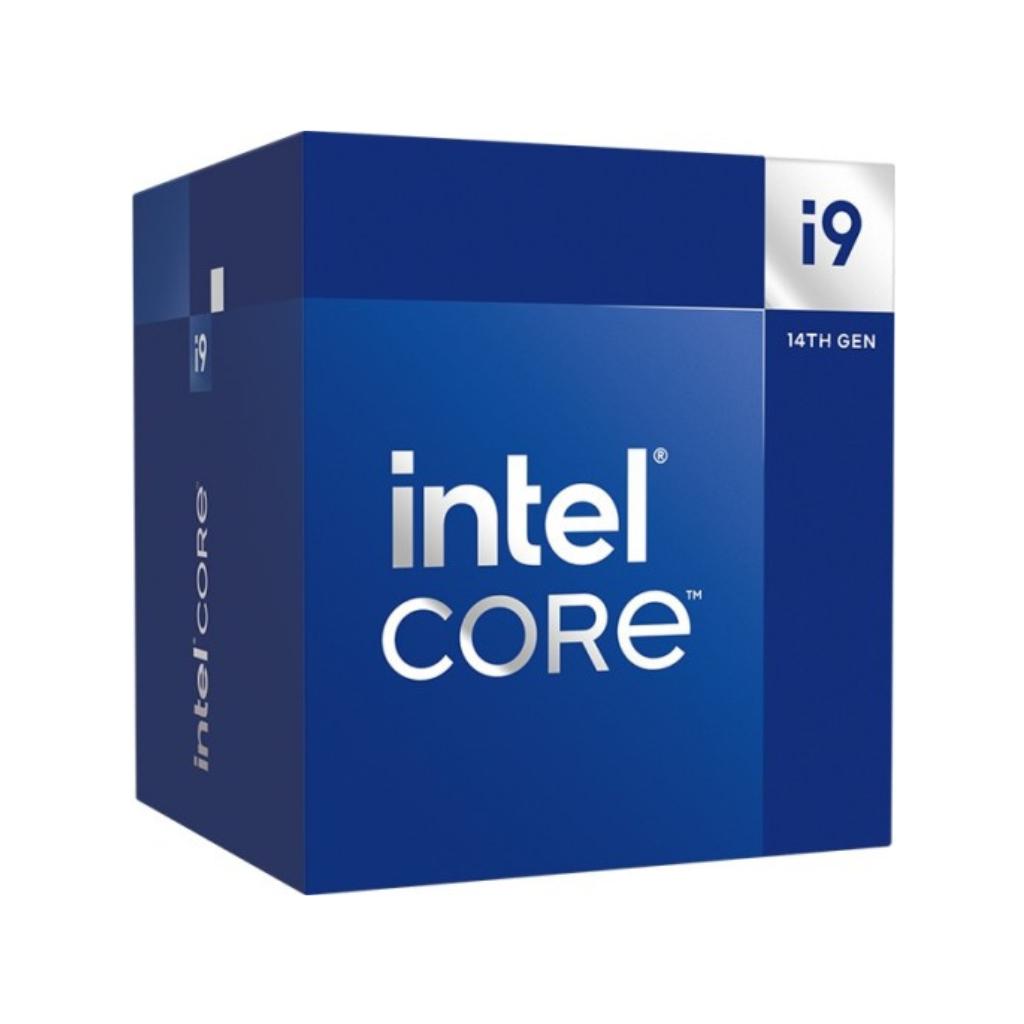

Intel Core i9-14900 24-Core 5.80GHz LGA1700 Processor
Full description Intel.
- The Intel Core i9-14900 is a desktop processor with 24 cores.
- It is part of the Core i9 lineup, using the Raptor Lake Refresh architecture with Socket 1700.
- Intel Hyper-Threading technology is available and effectively doubles the core-count of the P-Cores, to a total of 32 threads.
- Core i9-14900 has 36 MB of L3 cache and operates at 2000 MHz by default, but can boost up to 5.8 GHz, depending on the workload.
- Intel’s processor supports DDR4 and DDR5 memory with a dual-channel interface. ECC memory is supported, too, which is an important capability for mission-critical systems, to avoid data corruption.
Specifications |
|
| Brand: | Intel |
| Series: | Intel Core Raptor Lake 14th Gen Series |
| Model: | BX8071514900 |
| Technical Specs | |
| Sockets Supported: | LGA 1700 |
| Cores: | 24 |
| Threads: | 32 |
| Max Turbo Frequency: | 5.8 GHz |
| Efficient-core Max Turbo Frequency: | 4.3 GHz |
| Cache: | 36 MB Intel® Smart Cache |
| Base Power: | 65w |
| Turbo Power: | 219w |
| Architecture: | Intel 7 |
| Graphics Specs | |
| Processor Graphics: | Intel® UHD Graphics 770 |
| Base Frequency: | 300 MHz |
| Max Dynamic Frequency: | 1.65 GHz |
| Graphics Output: | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units: | 32 |
| Max Resolution (HDMI): | 4096 x 2160 @ 60Hz |
| Max Resolution (DP): | 7680 x 4320 @ 60Hz |
| API Support: | – |
| PCI Express Configurations: | Up to 1×16+4, 2×8+4 |
| Memory Specs | |
| Max Memory Supported: | 192 GB |
| Memory Types: | Up to DDR5 5600 MT/s |
| Up to DDR4 3200 MT/s | |
| Max Memory Bandwidth: | 89.6 GB/s |
| Software & Features | |
| Software: | – |
| Features: | Deep Learning Boost |
| Intel Thread Director | |
| Intel Speed Shift Technology | |
| Adaptive Boost Technology | |
| Intel Turbo Boost Max Technology | |
| General | |
| Package Size: | 45.0 mm x 37.5 mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
