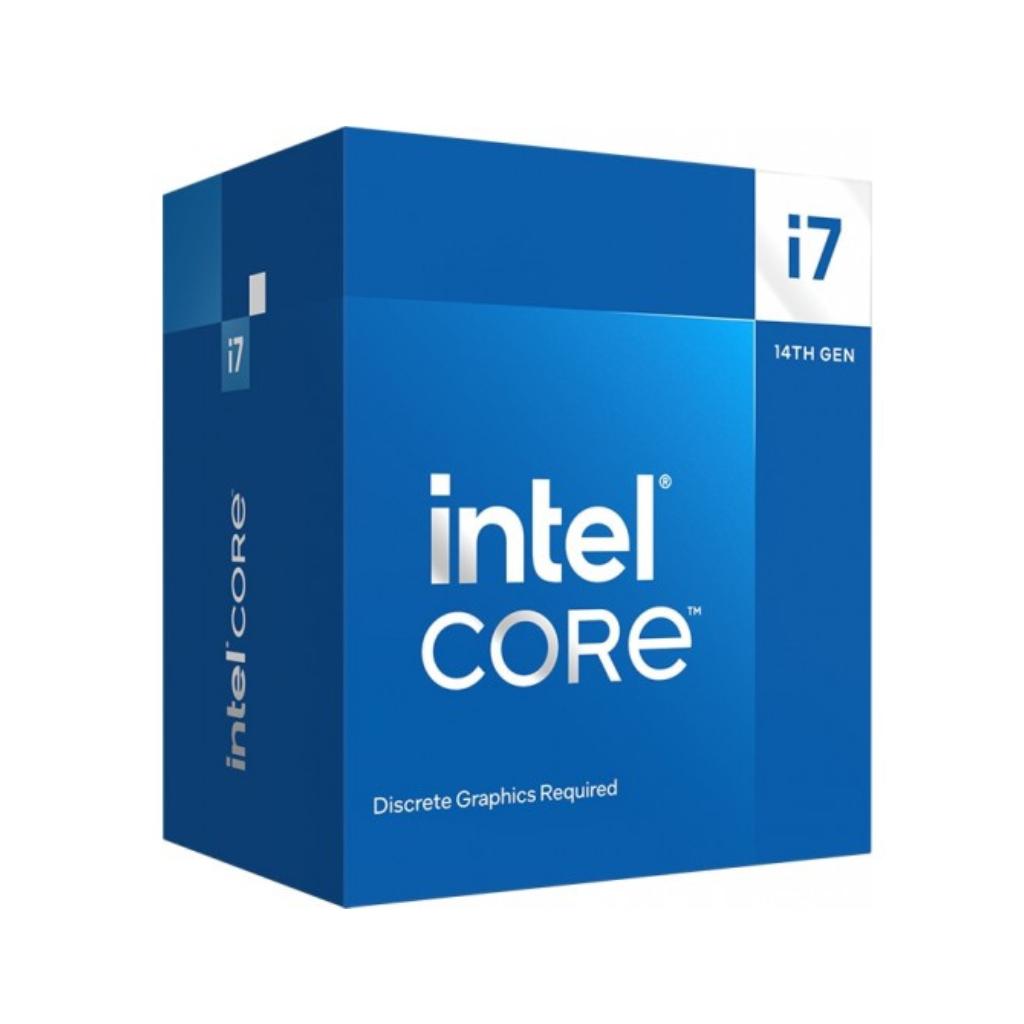

Intel Core i7-14700F 20-Core 5.40GHz LGA1700 Processor
Full description Intel.
- The Intel Core i7-14700F is a desktop processor with 20 cores.
- It is part of the Core i7 lineup, using the Raptor Lake Refresh architecture with Socket 1700.
- Intel Hyper-Threading technology is available and effectly doubles the core-count of the P-Cores, to a total of 28 threads.
- Core i7-14700F has 33 MB of L3 cache and operates at 2.1 GHz by default, but can boost up to 5.4 GHz, depending on the workload.
- Intel’s processor supports DDR4 and DDR5 memory with a dual-channel interface. ECC memory is supported, too, which is an important capability for mission-critical systems, to avoid data corruption.
Specifications |
|
| Brand: | Intel |
| Series: | Intel 14th Gen Raptor Lake Series |
| Model: | BX8071514700F |
| Technical Specs | |
| Sockets Supported: | LGA 1700 |
| Cores: | 20 |
| Threads: | 28 |
| Max Turbo Frequency: | 5.4 GHz |
| Efficient-core Max Turbo Frequency: | 4.2 GHz |
| Cache: | 33 MB Intel® Smart Cache |
| Performance-core Max Turbo Frequency: | 5.3 GHz |
| Base Power: | 65w |
| Turbo Power: | 219w |
| Graphics Specs | |
| Processor Graphics: | Discrete Graphics Required |
| Base Frequency: | – |
| Max Dynamic Frequency: | – |
| Graphics Output: | – |
| Execution Units: | – |
| Max Resolution (HDMI): | – |
| Max Resolution (DP): | – |
| API Support: | – |
| PCI Express Configurations: | – |
| Memory Specs | |
| Max Memory Supported: | 192GB |
| Memory Types: | Up to DDR5 5600 MT/s |
| Up to DDR4 3200 MT/s | |
| Max Memory Bandwidth: | 89.6 GB/s |
| Software & Features | |
| Software: | – |
| Features: | Intel Gaussian & Neural Accelerator |
| Intel Deep Learning Boost | |
| Speed Shift Technology | |
| Turbo Boost Max Technology | |
| Intel Hyper-Threading Technology | |
| General | |
| Package Size: | 45.0 mm x 37.5 mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
Intel Core i7-14700F 20-Core 5.40GHz LGA1700 Processor
Contact us if you would like to enquire about this product.
