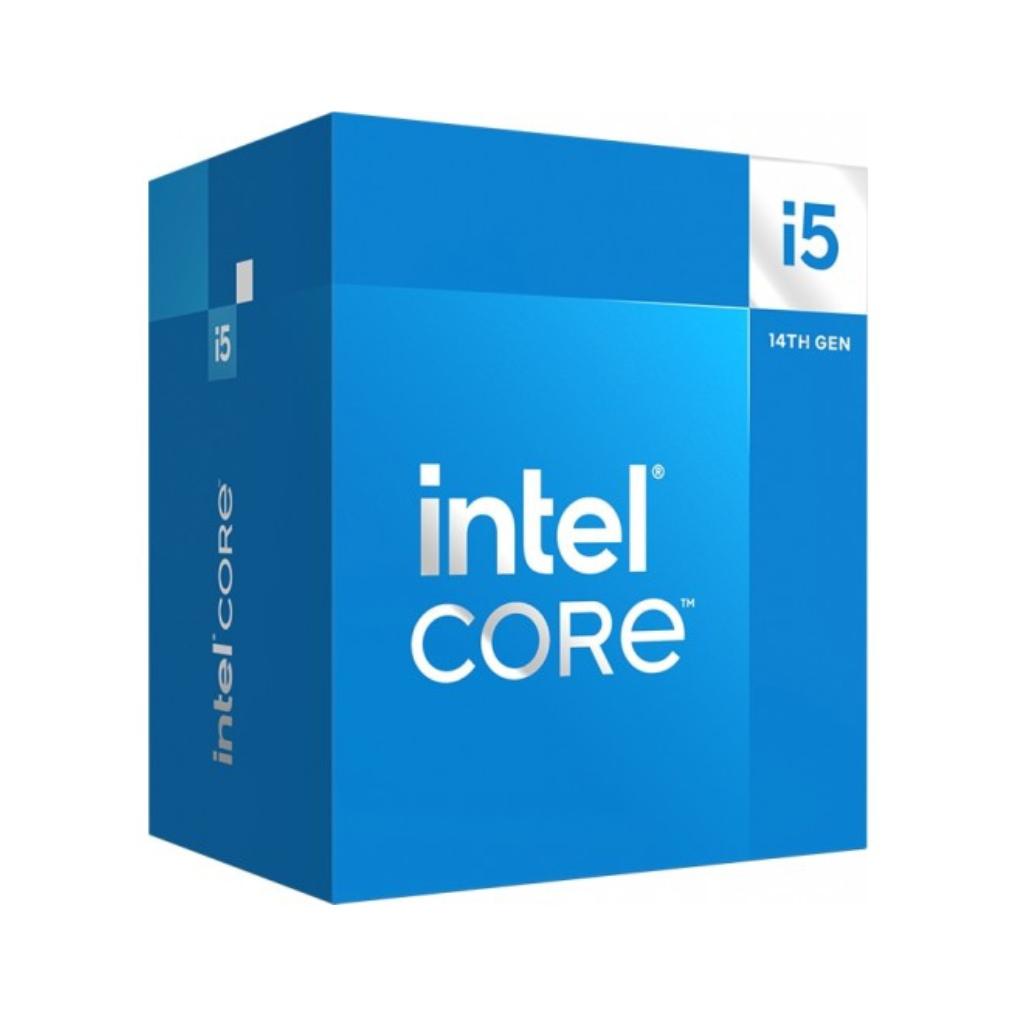

Intel Core i5-14400 10-Core 4.70GHz LGA1700 Processor
Full description Intel.
- The Intel Core i5-14400 is a desktop processor with 10 cores.
- It is part of the Core i5 lineup, using the Raptor Lake Refresh architecture with Socket 1700.
- Intel Hyper-Threading technology is available and effectively doubles the core-count of the P-Cores, to a total of 16 threads.
- Core i5-14400 has 20 MB of L3 cache and operates at 2.5 GHz by default, but can boost up to 4.7 GHz, depending on the workload.
- Intel’s processor supports DDR4 and DDR5 memory with a dual-channel interface. ECC memory is supported, too, which is an important capability for mission-critical systems, to avoid data corruption.
Specifications |
|
| Brand: | Intel |
| Series: | Intel 14th Gen Raptor LakeSeries |
| Model: | BX8071514400 |
| Technical Specs | |
| Sockets Supported: | LGA 1700 |
| Cores: | 10 |
| Threads: | 16 |
| Max Turbo Frequency: | 4.7 GHz |
| Efficient-core Max Turbo Frequency: | 3.5 GHz |
| Cache: | 20 MB Intel® Smart Cache |
| Performance-core Max Turbo Frequency: | 4.7 GHz |
| Base Power: | 65w |
| Turbo Power: | 148w |
| Graphics Specs | |
| Processor Graphics: | Intel® UHD Graphics 730 |
| Base Frequency: | – |
| Max Dynamic Frequency: | 1.55 GHz |
| Graphics Output: | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units: | 24 |
| Max Resolution (HDMI): | 4096 x 2160 @ 60Hz |
| Max Resolution (DP): | 7680 x 4320 @ 60Hz |
| API Support: | – |
| PCI Express Configurations: | Up to 1×16+4, 2×8+4 |
| Memory Specs | |
| Max Memory Supported: | 192GB |
| Memory Types: |
Up to DDR5 4800 MT/s
|
| Up to DDR4 3200 MT/s | |
| Max Memory Bandwidth: | 76.8 GB/s |
| Software & Features | |
| Software: | – |
| Features: | Gaussian & Neural Accelerator |
| Intel Deep Learning Boost | |
| Intel Speed Shift Technology | |
| Turbo Boost Technology | |
| Hyper-Threading Technology | |
| General | |
| Package Size: | 45.0 mm x 37.5 mm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
