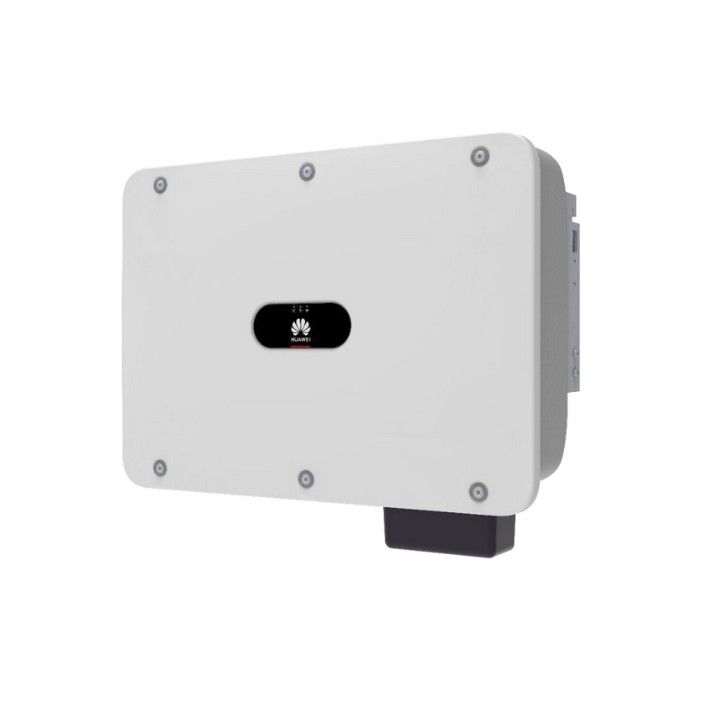

HUAWEI PV SUN2000-30KTL-M3 30kW 3-Phase Grid-Tied Solar inverter
Full description Huawei.
| Specifications | |
| Brand: | Huawei |
| Series: | PV Series |
| Model: | SUN2000-30KTL-M3 |
| Tech Specs | |
| Max. Efficiency: | 98.7% |
| Input | |
| Max. Input Voltage: | 1,100 V |
| Max. Current per MPPT: | 27 A (per MPPT) |
| Start Voltage: | 40 A |
| Rated Input Voltage: | 600 V |
| Number of Inputs: | 8 |
| Output | |
| Rated AC Active Power: | 30,000 W |
| Rated Output Voltage: | 230 Vac |
| Rated AC Grid Frequency: | 50 Hz/ 60 Hz |
| Max. Output Current: | 47.9 A |
| Protections: | Input-side Disconnection Device |
| Anti-islanding Protection | |
| AC Overcurrent Protection | |
| DC Reverse-polarity Protection | |
| PV-array String Fault Monitoring | |
| DC Surge Arrester | |
| AC Surge Arrester | |
| General | |
| Display: | LED Indicators, Integrated WLAN + FusionSolar APP |
| Dimensions (W x H x D): | 640 x 530 x 270 mm |
| Weight: | 43 kg |
| Warranty Information | |
| Warranty: | 1 Year Warranty |
HUAWEI PV SUN2000-30KTL-M3 30kW 3-Phase Grid-Tied Solar inverter
Contact us if you would like to enquire about this product.
