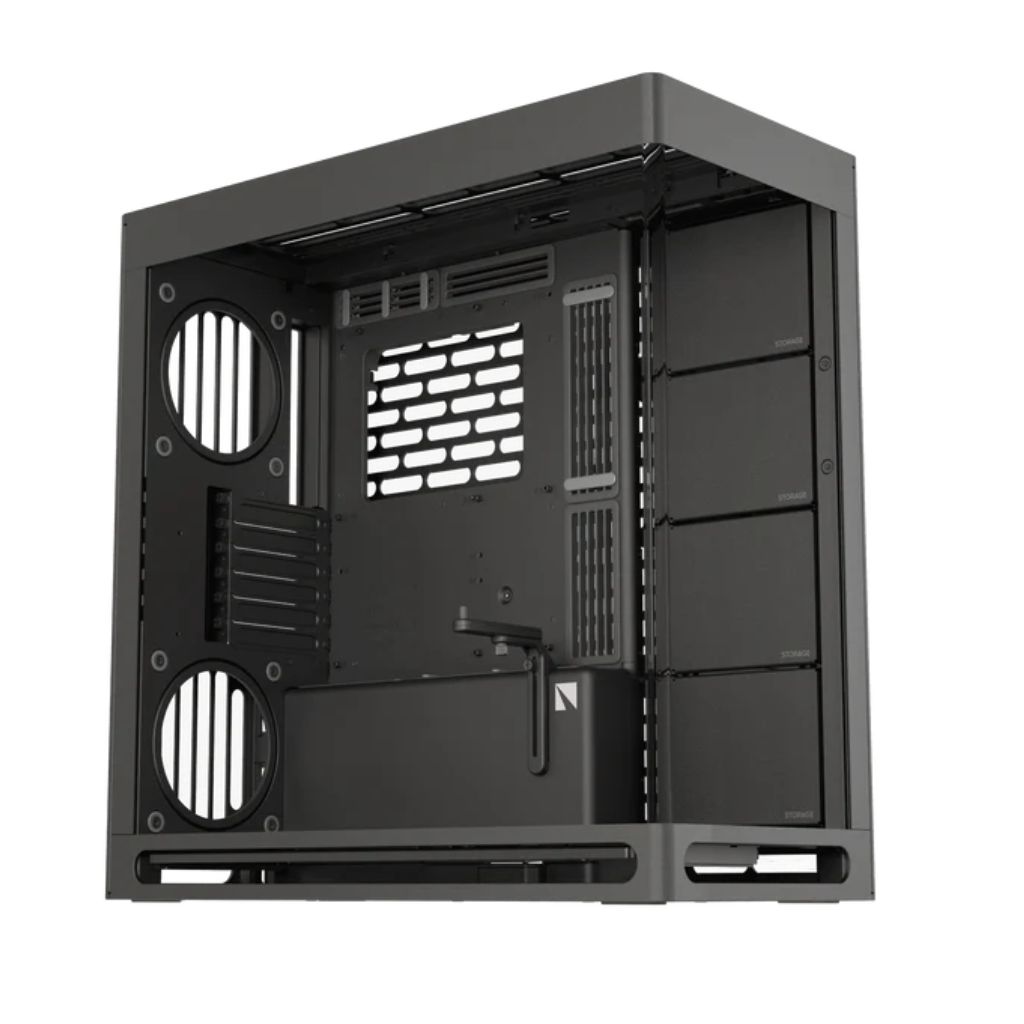

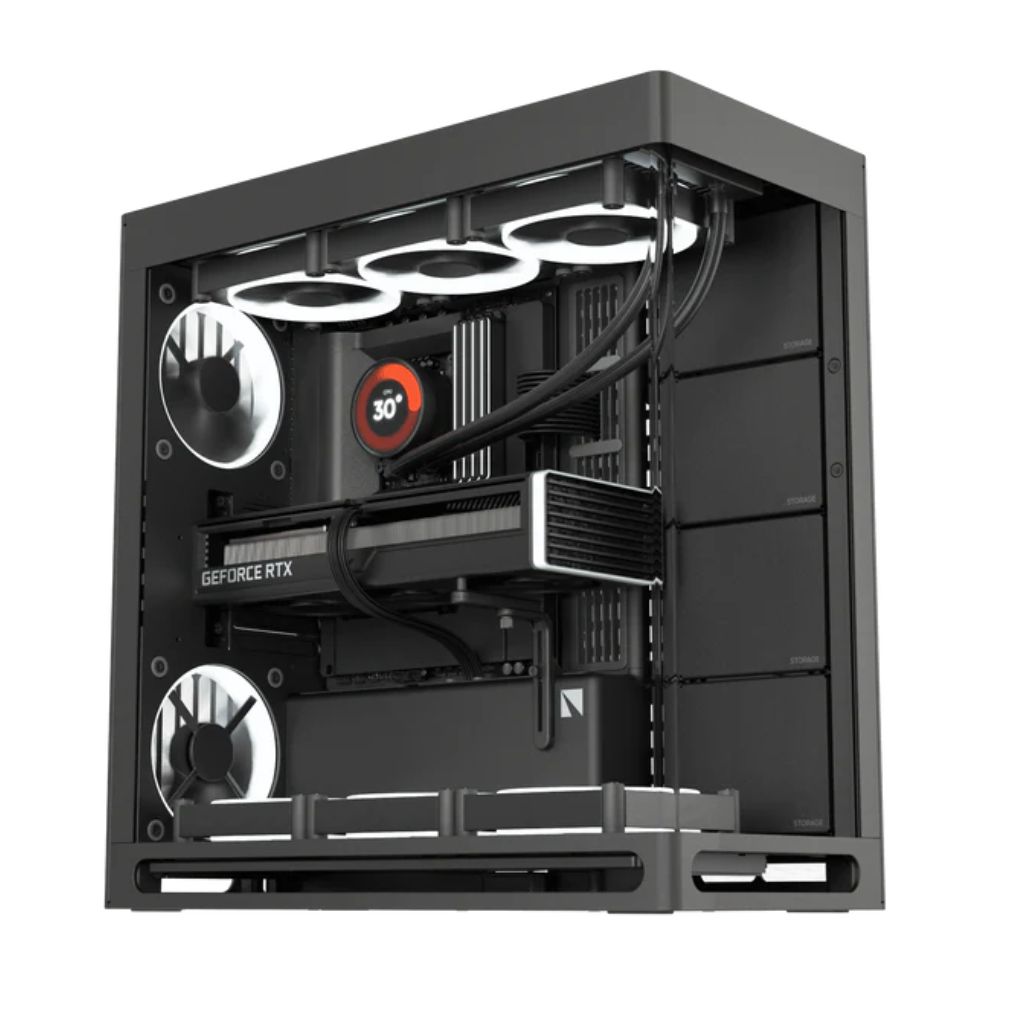

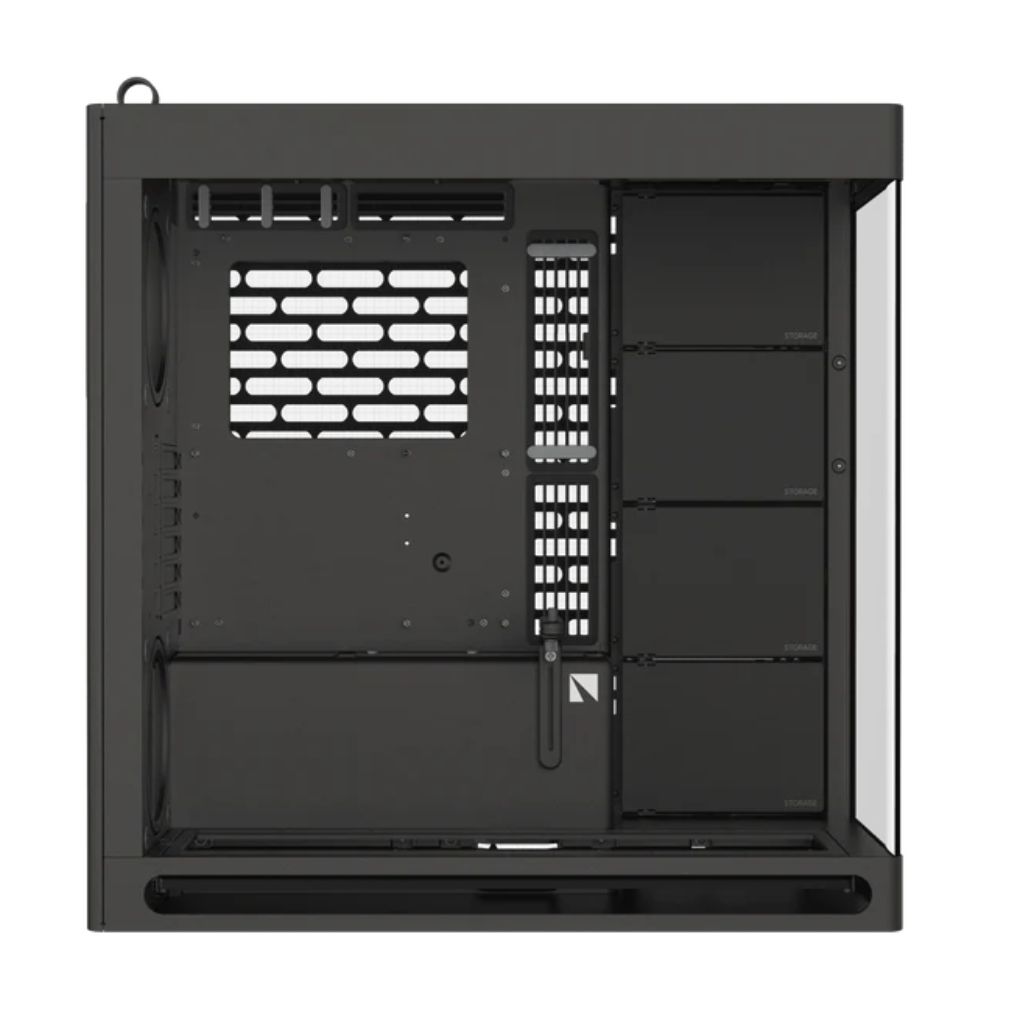

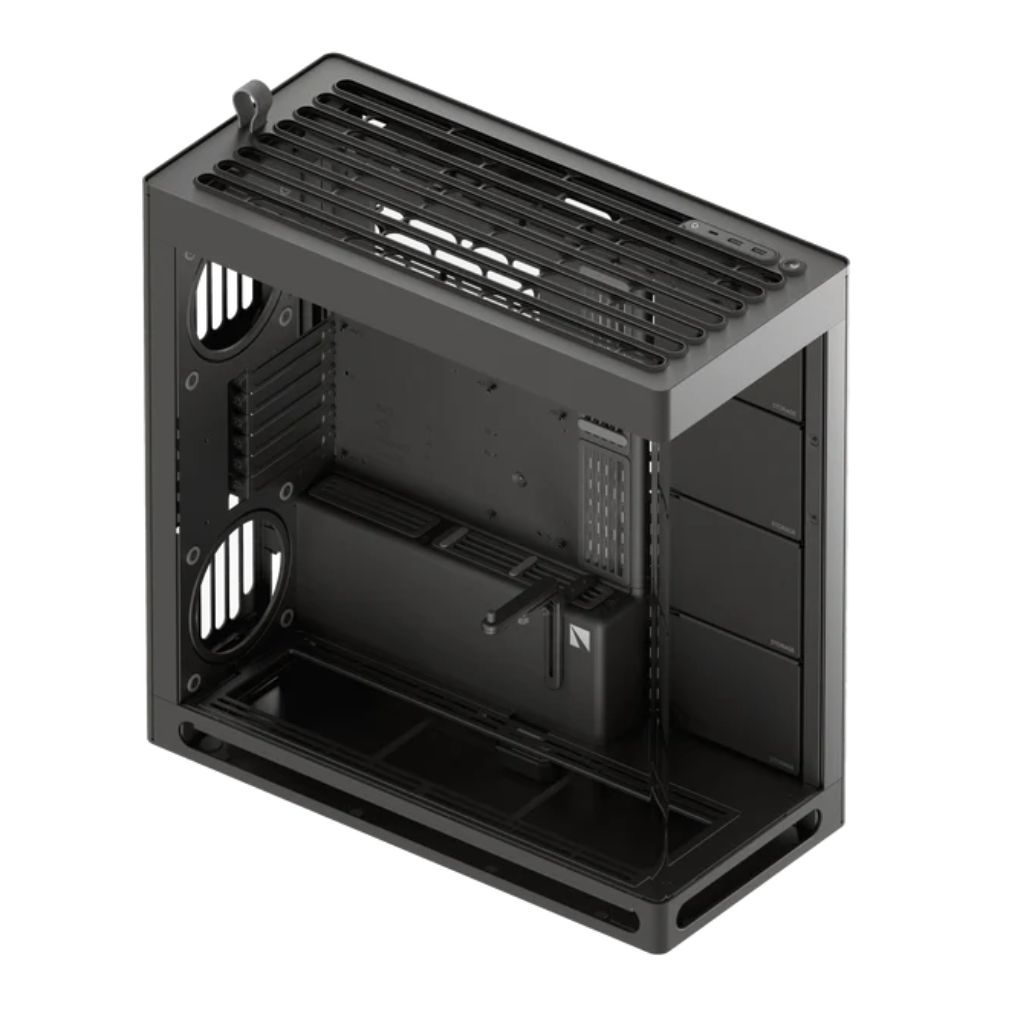

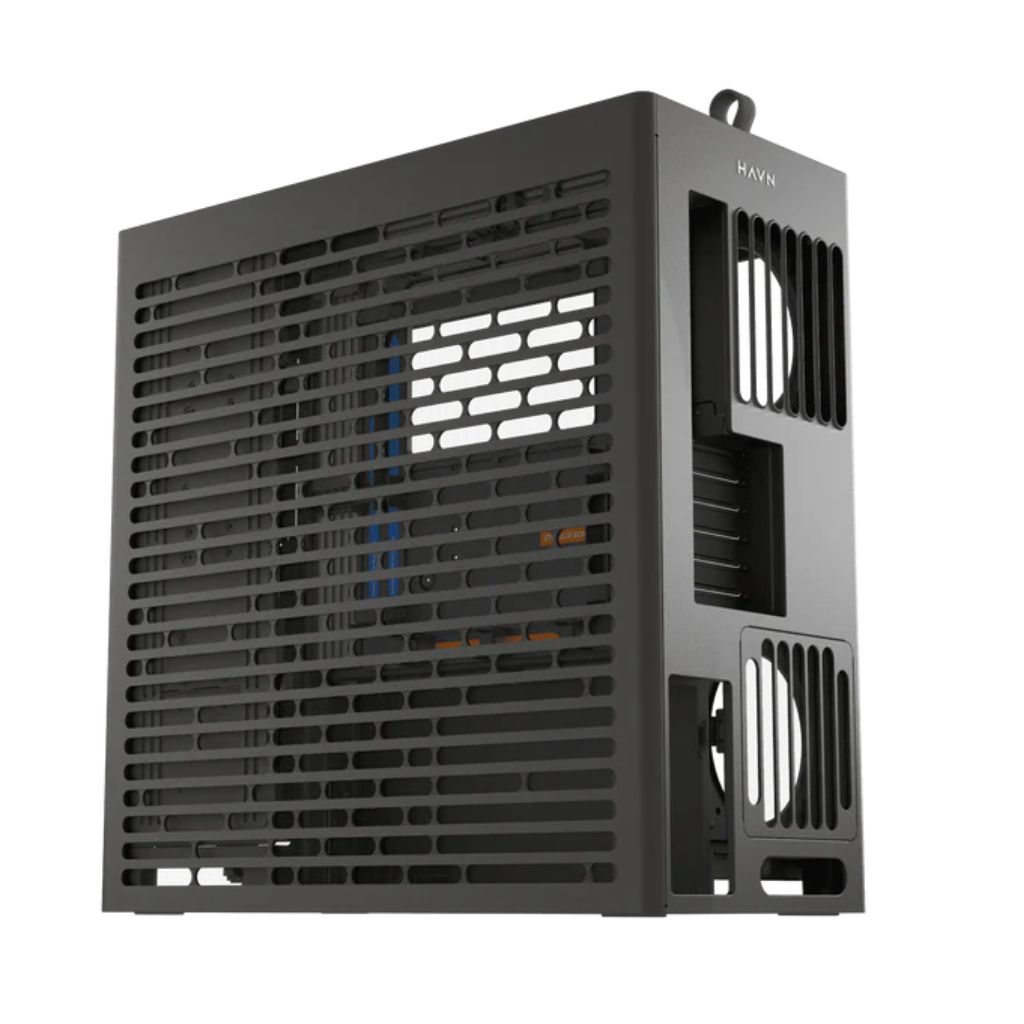

HAVN HS 420 Panoramic Tempered Glass Mid-Tower E-ATX Gaming Chassis Black – HVN-CA-HS420-06
Full description HAVN.
- Refined Hybrid Design: Engineered through rigorous testing by HAVN and Pro Gamers Group, the HS 420 delivers superior central GPU airflow in a compact dual-chamber mid-tower form.
- Seamless UniSheet Glass: Heat-formed panoramic front and side glass panels reduce visual distortion for a clean, uninterrupted view.
- Extreme Cooling Capacity: Supports up to 11 fans and 420mm radiators on the top, side, and bottom—built for high-performance cooling setups.
- Optimized Airflow: Custom ventilation tailored for 140mm fans ensures top-tier thermal performance under load.
- Effortless Cable Management: The SimpliCable system and integrated fan hub keep cables neat and out of sight.
| Specifications | |
| Brand: | HAVN |
| Series: | HS Series |
| Model: | HVN-CA-HS420-06 |
| Technical Specs | |
| Motherboard Support: | E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Drive Bays: | – Right Fan Mount: 4 Storage Bays: 4 x 3.5” / 8 x 2.5”
– Cable Management Tray: 1 Storage Bay: 1 x 3.5” / 2 x 2.5” |
| Storage Bay Included: 4x | |
| Expansion Slots: | 6 |
| Dust Filters: | Yes |
| Front I/O: | – USB 3.2 Gen 2 Type-C x1 – USB 3.2 Gen 1 Type-A x2 – Audio Jack x1 – Power & Reset Button x1 |
| Side Panel: | Panoramic Tempered Glass |
| Fan Specs | |
| Pre-Installed Fans: | n/A |
| Fan Support: | – Top: 3 x 120 / 3 x 140 mm – Right: 3 x 120 / 3 x 140 mm – Bottom: 3 x 120 / 3 x 140 mm – Rear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm) |
| Radiator Support | |
| Front: | – |
| Top: | 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM) |
| Bottom: | 280 / 360 / 420 mm (Thickness: 120 mm) |
| Side: | 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO) |
| Chassis Clearance Specs | |
| Cooler Height Clearance: | Height: Up to 185 mm |
| GPU Length Clearance: | Length: Up to 480 mm |
| PSU Length Limit: | Length: Up to 220mm |
| Software & Features | |
| Software Support: | – |
| Features: | Panoramic UniSheet Glass – Seamless front and side panels for a clear, distortion-free view. |
| Optimized Airflow – Supports 11 x 140mm fans and up to 420mm radiators for top-tier cooling. | |
| Hybrid Dual-Chamber Design – Maximizes airflow while maintaining clean internal layout. | |
| SimpliCable Management – Built-in routing system and fan hub for a clutter-free build. | |
| High-End Hardware Support – Compatible with E-ATX motherboards and large GPUs. | |
| General | |
| Chassis Lighting: | N/A |
| PSU Support: | ATX |
| Dimensions: | 541 x 259.5 x 547 mm |
| Weight: | Net Weight – 17.84kg |
| Colour: | Black |
| Warranty Information | |
| Warranty: | 2 Year Warranty |
