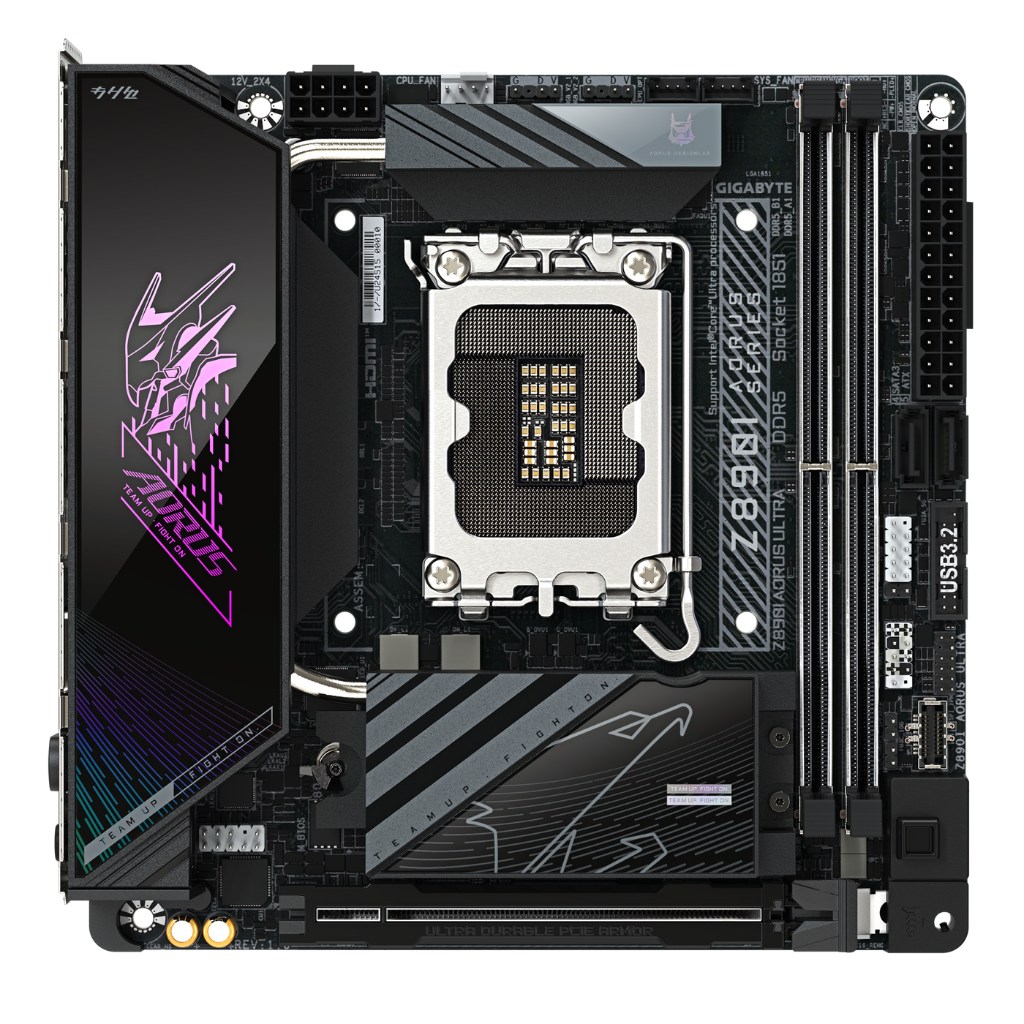

Gigabyte Z890i AORUS Ultra WiFi 7 Mini-ITX LGA 1851 Intel Motherboard – GA-Z890I-AORUS-ULTRA
Full description Gigabyte.
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH : Auto-Overclocking Software by AI models
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 2*DDR5 with XMP Memory Module Support
| Specifications | |
| Brand: | Gigabyte |
| Series: | Z890 Series |
| Model: | GA-Z890I-AORUS-ULTRA |
| Technical Specs | |
| CPU Support: | LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU |
| Chipset: | Intel Z890 Express Chipset |
| Memory: | Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory – Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode) – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics: | Integrated Graphics Processor-Intel HD Graphics support: – 1 x Intel Thunderbolt™ 4 connector (USB4® USB Type-C port), supporting DisplayPort and Thunderbolt™ video output- 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| Audio: | – Realtek® Audio CODEC – High Definition Audio – 2/4/5.1/7.1-channel – Support for S/PDIF Out |
| Connectivity | |
| LAN: | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless: | Intel Wi-Fi 7 BE202 (BE200NGW M) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – Support for 11be 160MHz wireless standard |
| Bluetooth: | Bluetooth 5.4 |
| Expansion Slots: | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 |
| Storage Interface: | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) – 2 x SATA 6Gb/s connectors |
| On-Board Connectors | |
| USB: | CPU: – 1 x USB4® USB Type-C® port on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header – 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 2 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors: | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper |

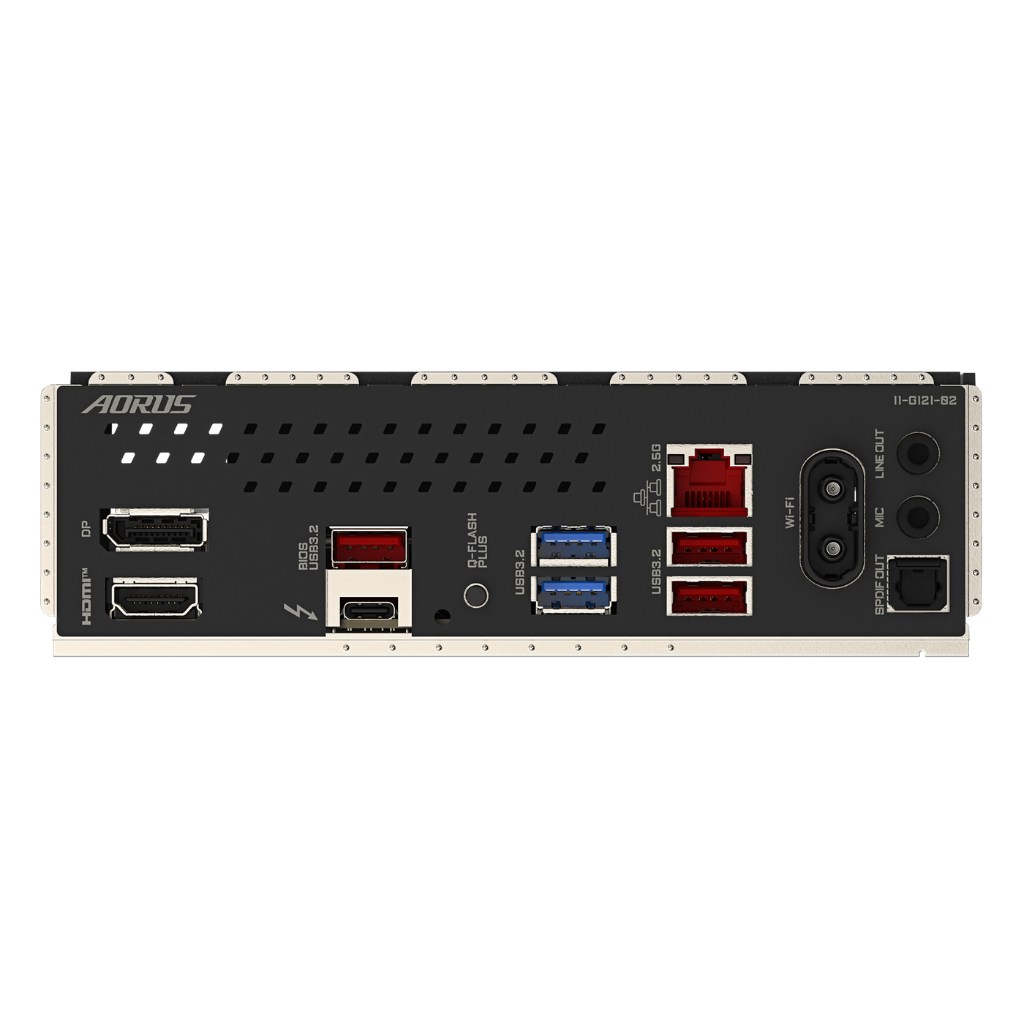

| Back Panel Connectors: | 1 x DisplayPort (Note) 1 x HDMI port (Note) 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port) 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Software & Features | |
| BIOS: | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software: | Norton Internet Security (OEM version) LAN bandwidth management software |
| Features: | Ultra-Fast Storage |
| New Power Monitor in HWinfo for real-time monitoring | |
| Premium Compatibility: 2*DDR5 with XMP Memory | |
| AORUS AI SNATCH: Auto-Overclocking Software | |
| AI Perfdrive : Provides optimal and customized BIOS preset | |
| General | |
| Operating System: | Support for Windows 11 64-bit |
| Form Factor: | Mini-ITX Form Factor; 17.0cm x 17.0cm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
