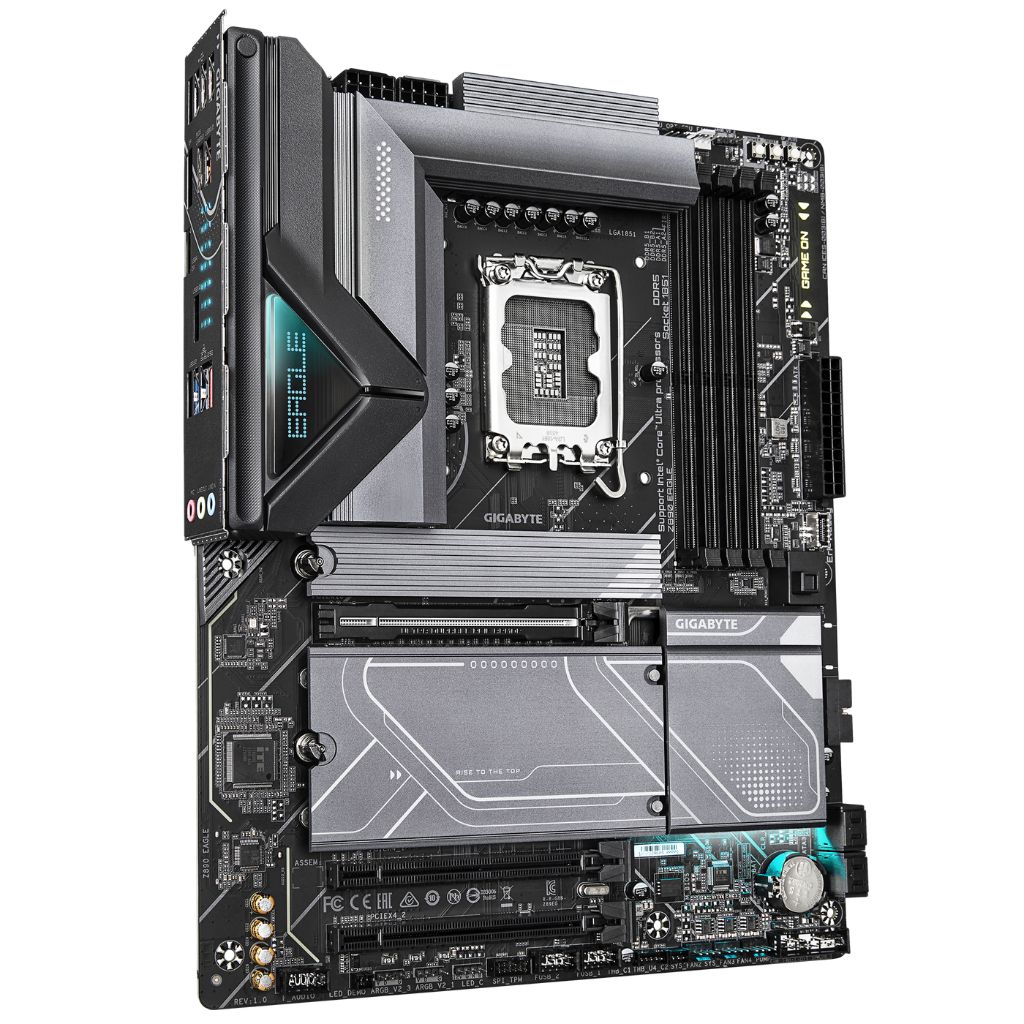

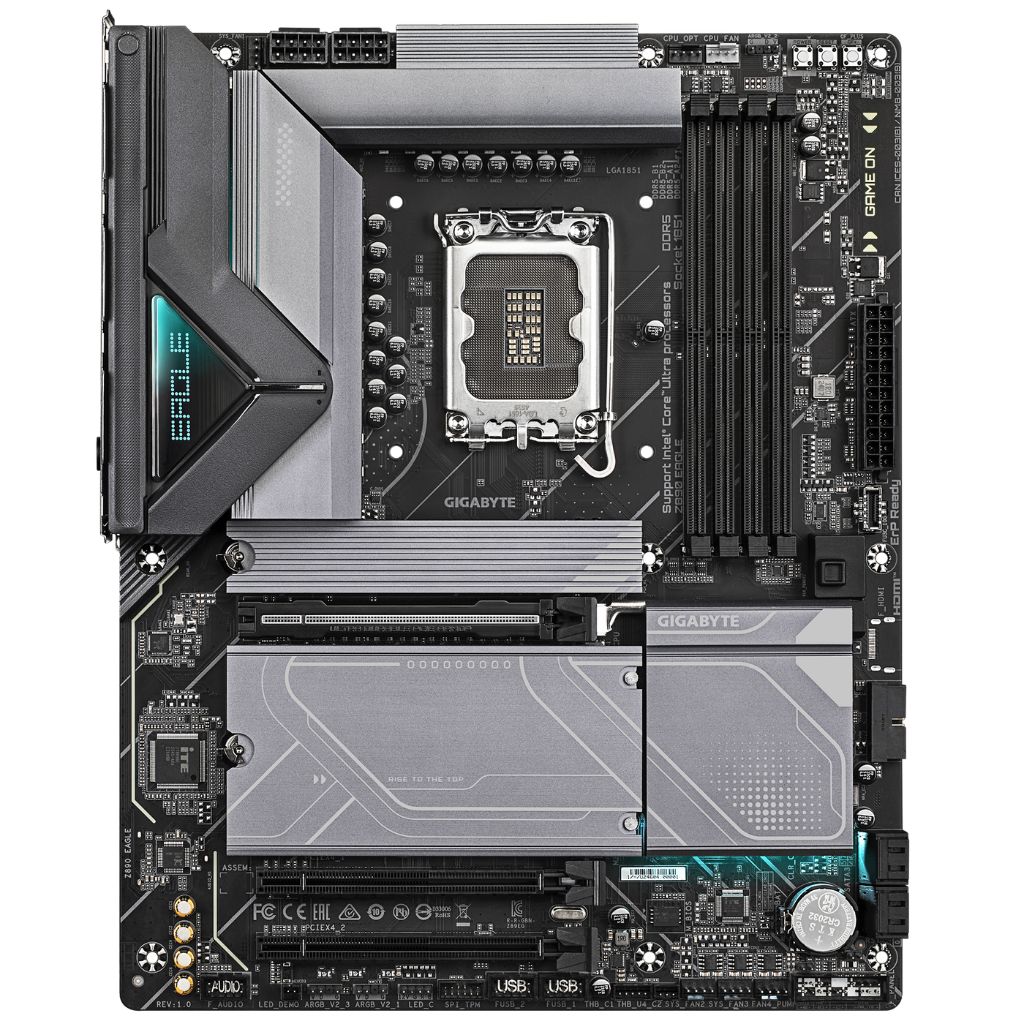

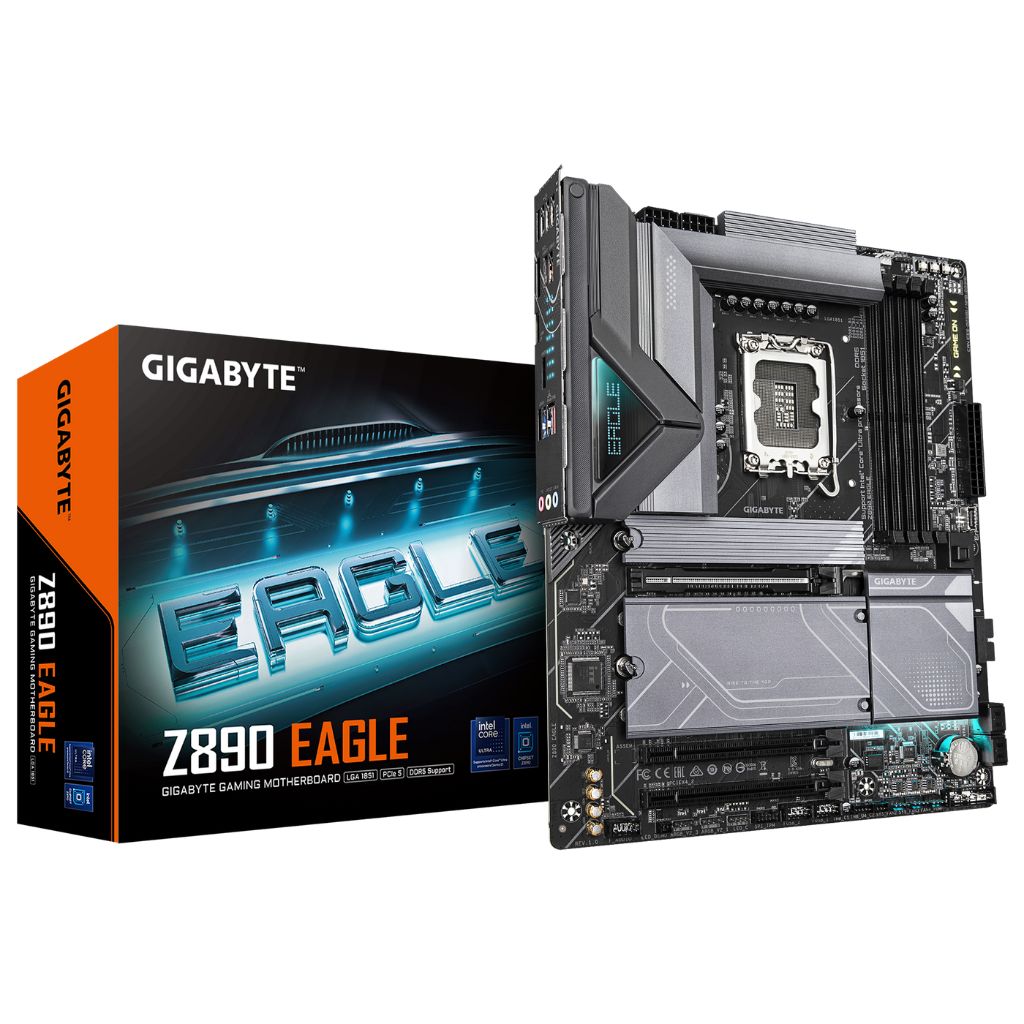

Gigabyte Z890 EAGLE DDR5 ATX LGA 1851 Intel Motherboard – GA-Z890-EAGLE
Full description Gigabyte.
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 14+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Suppor
| Specifications | |
| Brand: | Gigabyte |
| Series: | Z890 Series |
| Model: | GA-Z890-EAGLE |
| Technical Specs | |
| CPU Support: | LGA1851 socket: Support for Intel Core Ultra Processors |
| Chipset: | Intel Z890 Express Chipset |
| Memory: | Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory – Dual channel memory architecture – Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics: | Integrated Graphics Processor-Intel HD Graphics support: – 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz |
| Audio: | – Realtek® Audio CODEC – High Definition Audio – 2/4/5.1/7.1-channel |
| Connectivity | |
| LAN: | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless: | N/A |
| Bluetooth: | N/A |
| Expansion Slots: | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: |
| Storage Interface: | CPU: – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) – 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| On-Board Connectors | |
| USB: | CPU: – 1 x USB4® USB Type-C® port on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors: | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

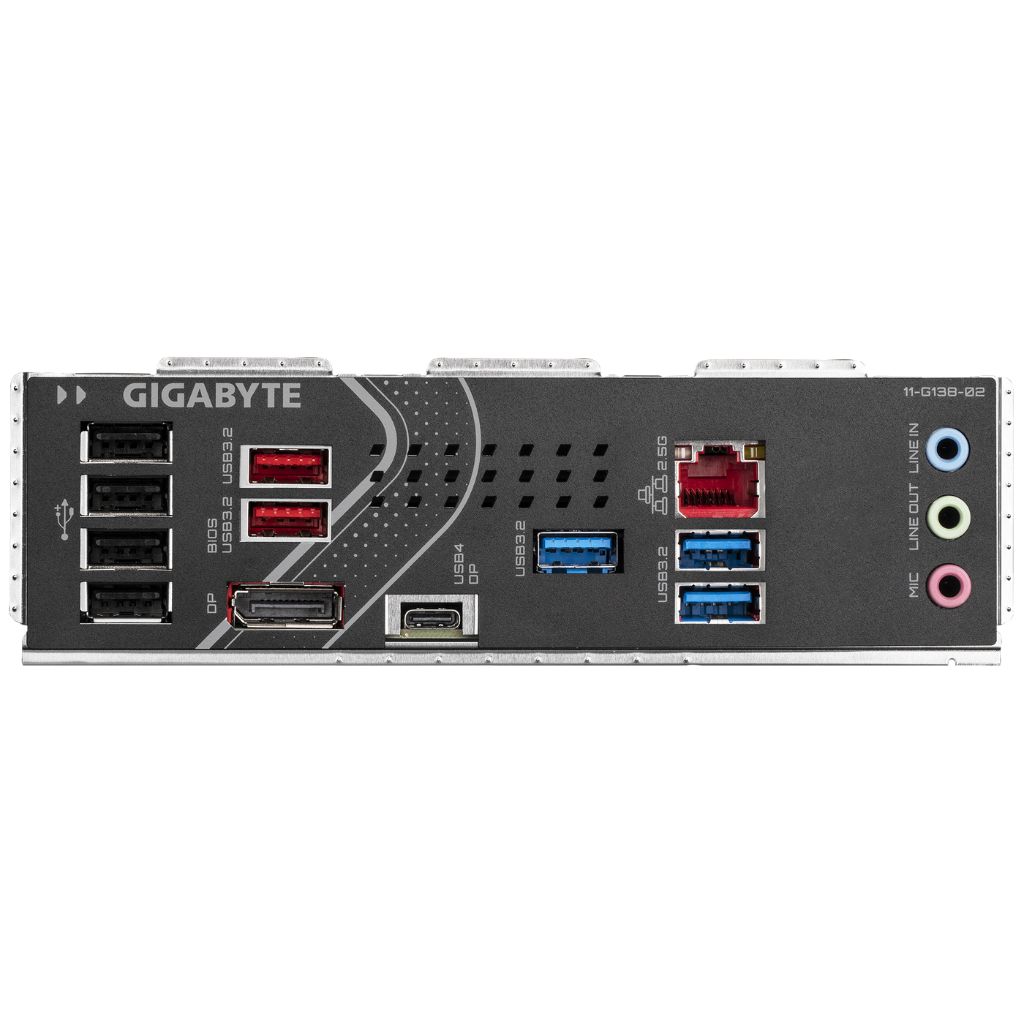

| Back Panel Connectors: | 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks |
| Software & Features | |
| BIOS: | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Features: | Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4 |
| Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort | |
| Fast Networking : 2.5GbE LAN | |
| Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard | |
| PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card | |
| General | |
| Operating System: | Support for Windows 11 64-bit |
| Form Factor: | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
