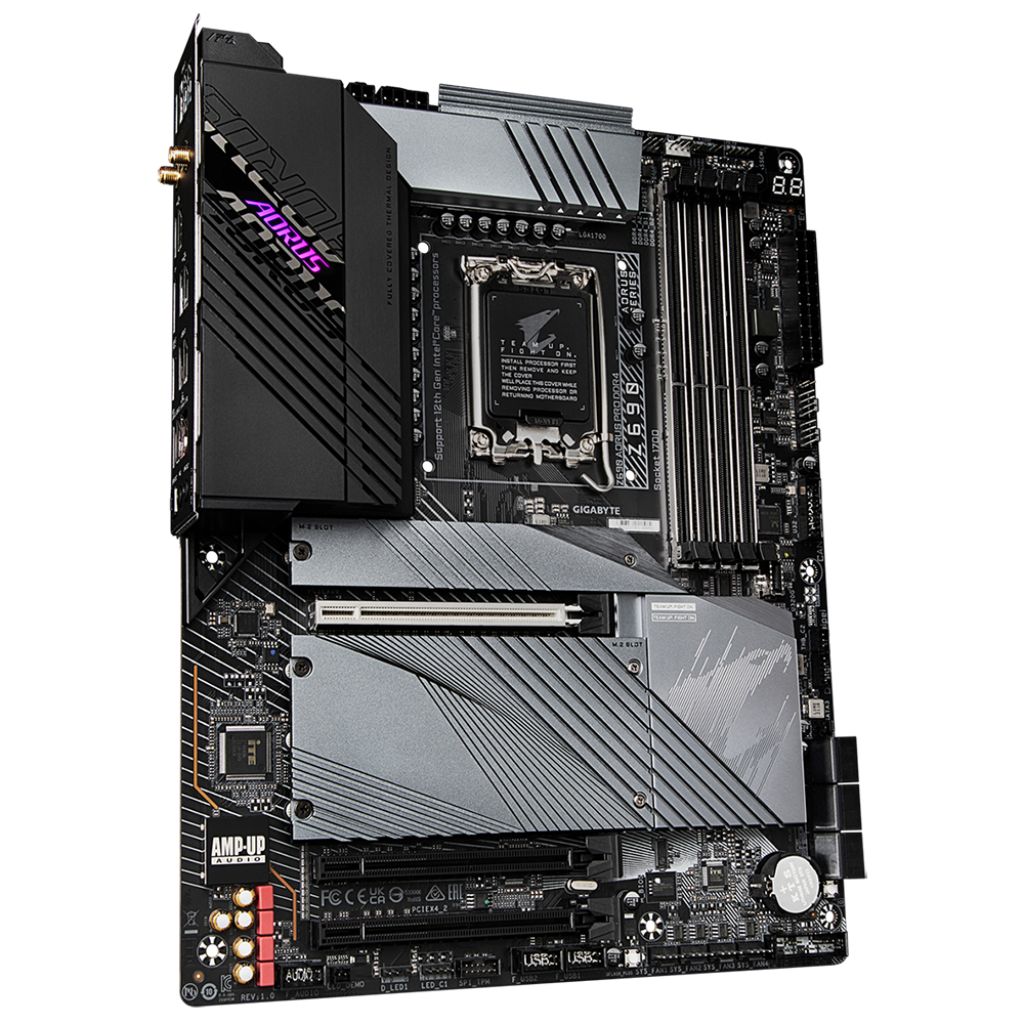

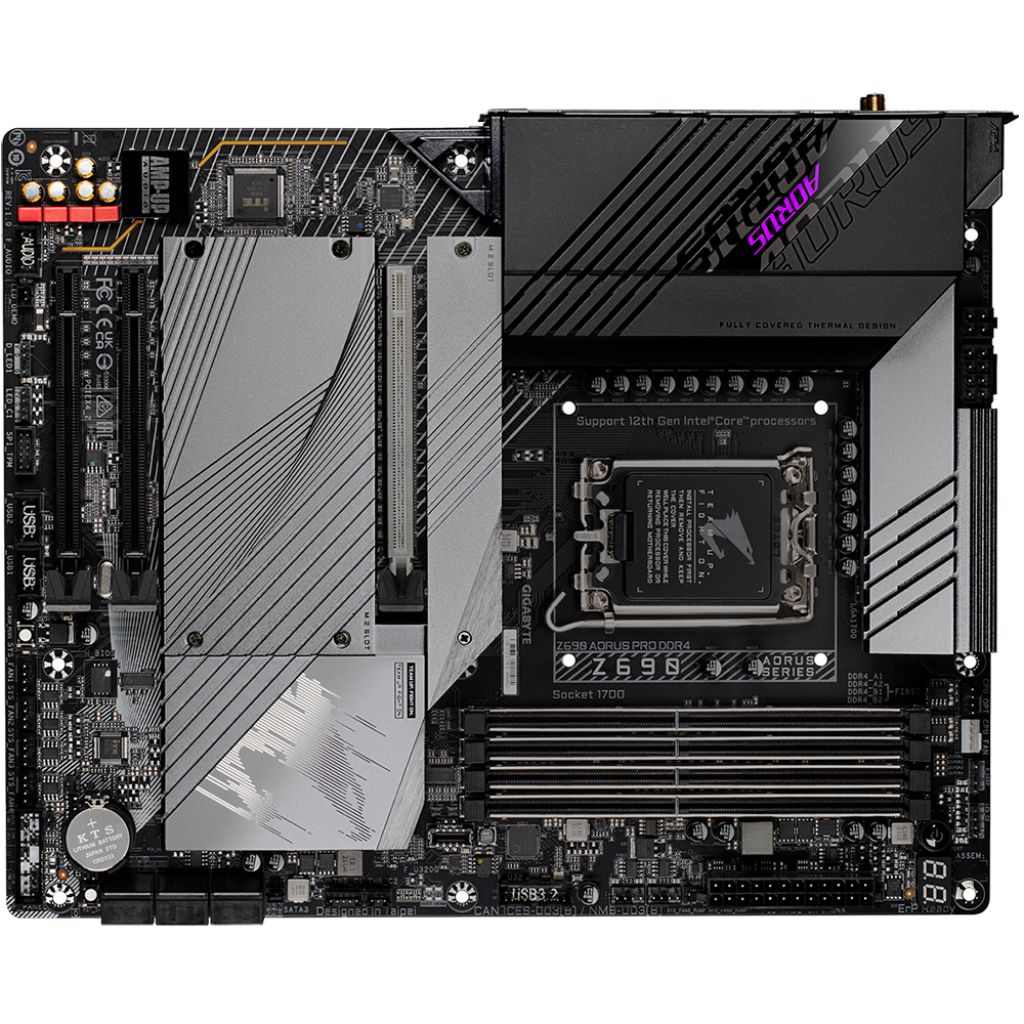

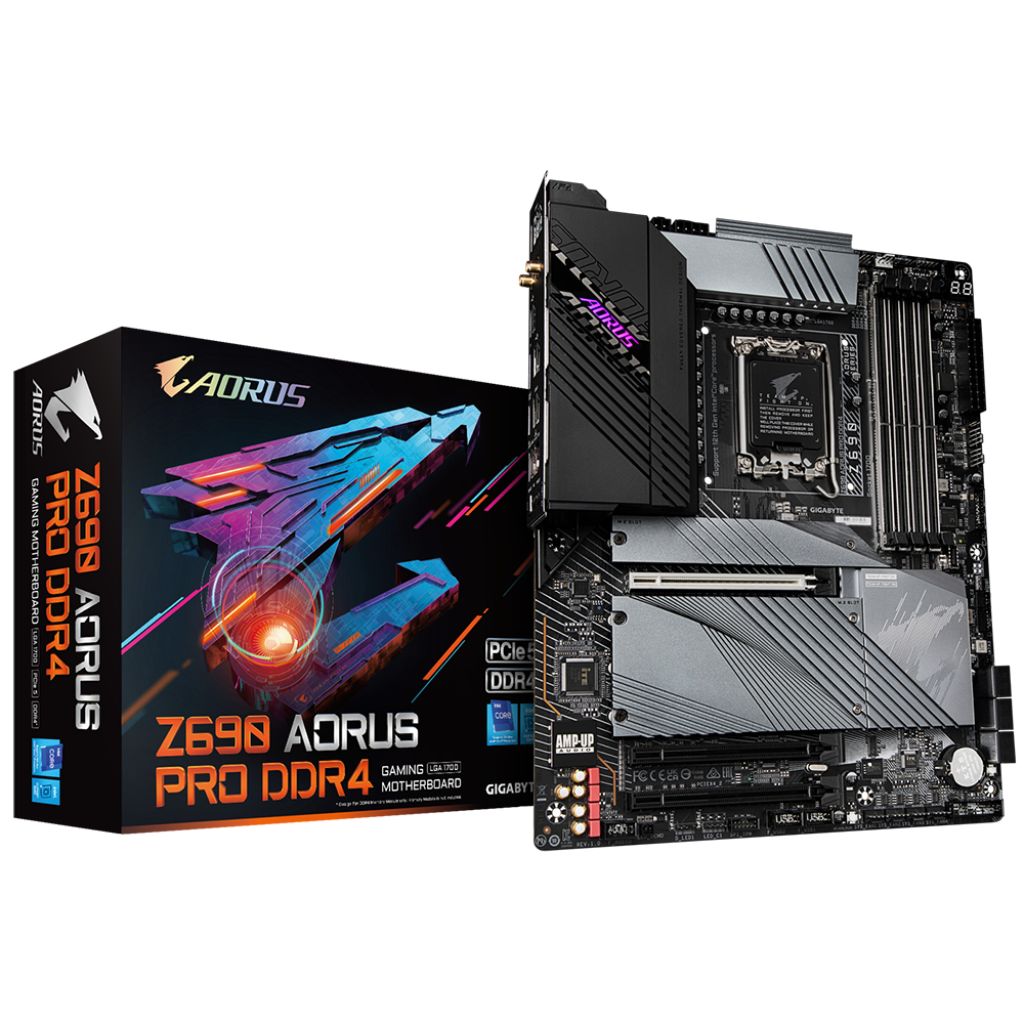

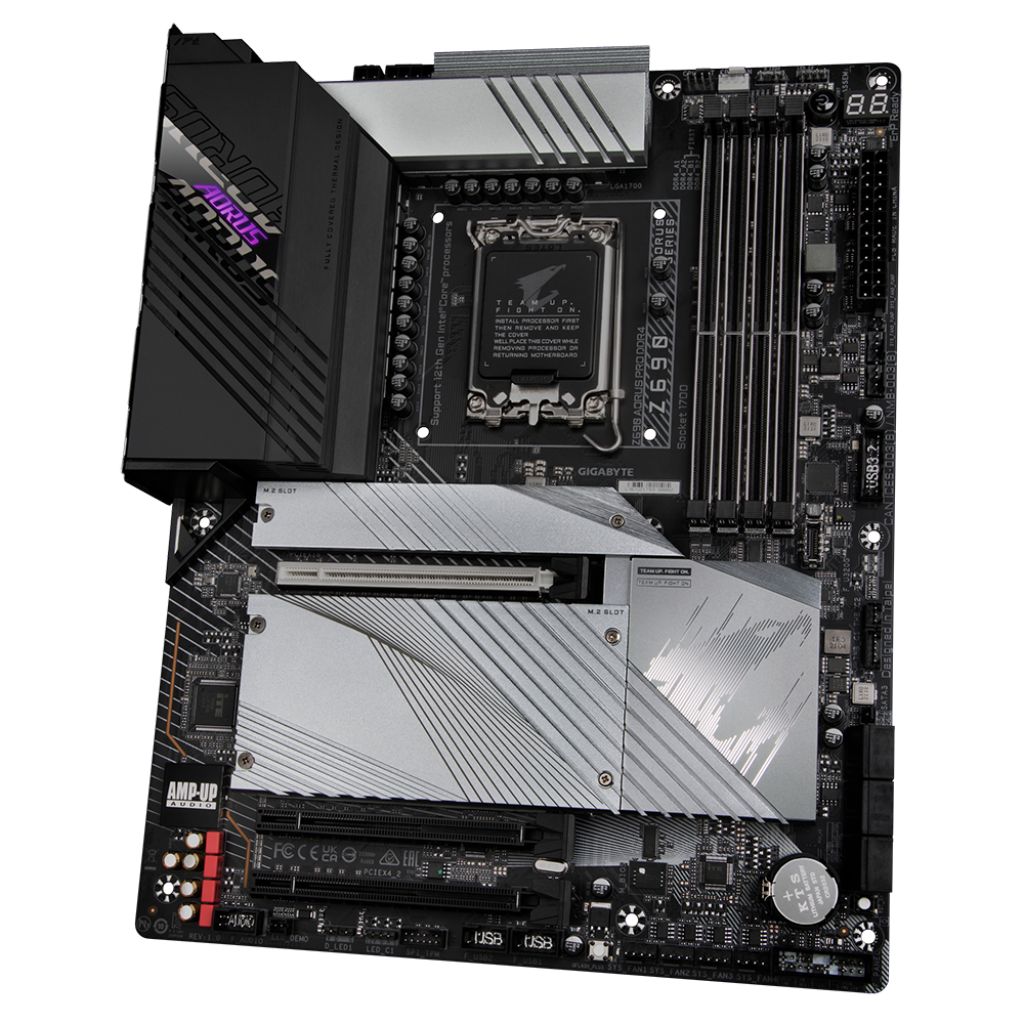

Gigabyte Z690 AORUS PRO DDR4 WiFi LGA1700 ATX Motherboard
Full description Gigabyte.
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 16+1+2 Direct Digital VRM Design with 90A Power Stage* and Tantalum Polymer Capacitor
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
- Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
SPECIFICATIONS |
|
| Brand | Gigabyte |
| Series | Z690 AORUS PRO DDR4 |
| Model | GA-Z690-AORUS-PRO-DDR4 |
| CPU | LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors |
| L3 cache varies with CPU | |
| Chipset | Intel Z690 Express Chipset |
| Memory | DDR4 5600(O.C.)/ 5400(O.C.)/ 5333(O.C.)/ DDR4 5133(O.C.)/ DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
|
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
| Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/1Rx16 memory modules |
|
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
|
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| Audio | Realtek ALC4080 CODEC |
| High Definition Audio | |
| 2-channel analog output | |
| Support for S/PDIF Out | |
| 7.1-channel digital signals | |
| * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
|
| LAN | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | Intel Wi-Fi 6 AX200: |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band | |
| BLUETOOTH 5.2 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Expansion Slots | – 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| (The PCIEX16 slot conforms to PCI Express 5.0 standard.) | |
| – 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) | |
| (The PCIEX4 slots conform to PCI Express 3.0 standard.) | |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Storage Interface | CPU: |
| – 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
| Chipset: | |
| – 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) |
|
| – 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB) |
|
| – 6 x SATA 6Gb/s connectors | |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| * Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. |
|
| Intel Optane Memory Ready | |
| * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
|
| USB | Chipset: |
| – 2 x USB Type-C ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) |
|
| – 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| Chipset 2 USB 3.2 Gen 1 Hubs: | |
| – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| Chipset 2 USB 2.0 Hub: | |
| – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
