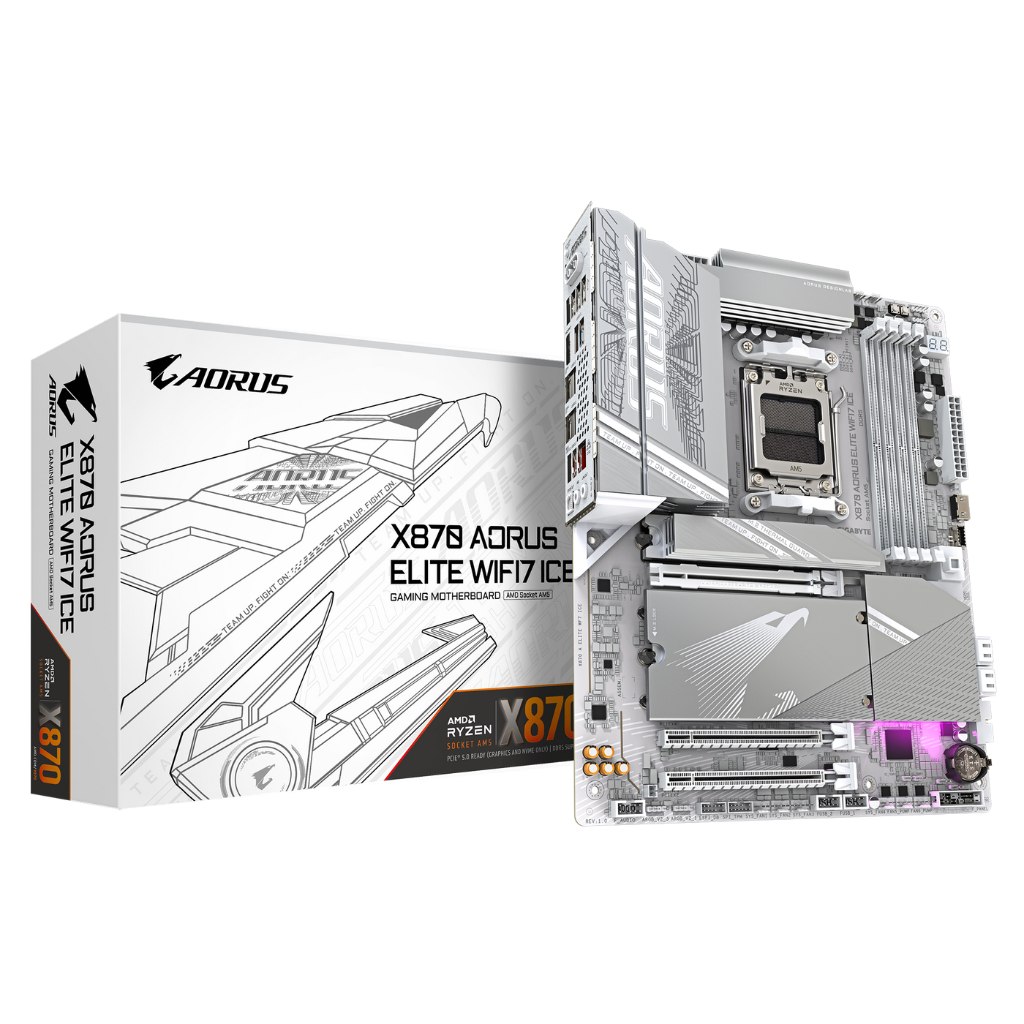

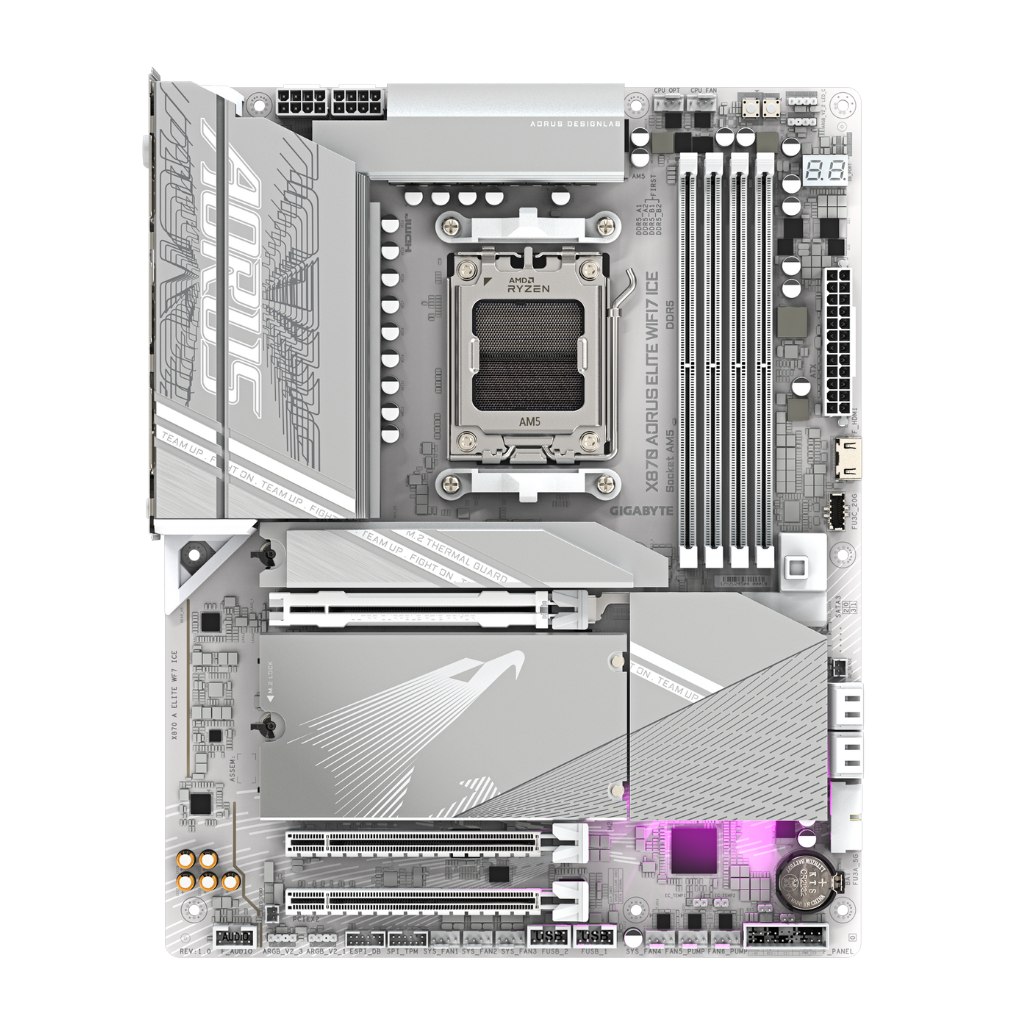

Gigabyte X870 AORUS ELITE WiFi 7 ICE DDR5 ATX AM5 AMD Motherboard – GA-X870-AORUS-ELITE-WIFI7-ICE
Full description Gigabyte.
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
| Specifications | |
| Brand: | Gigabyte |
| Series: | X870 Series |
| Model: | GA-X870-AORUS-ELITE-WIFI7-ICE |
| Technical Specs | |
| CPU Support: | AMD Socket AM5, support for: – AMD Ryzen™ 9000 Series Processors – AMD Ryzen™ 8000 Series Processors – AMD Ryzen™ 7000 Series Processors |
| Chipset: | X870 Chipset |
| Memory: | Support for DDR5: 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory – Dual channel memory architecture – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics: | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz * Support for DisplayPort 1.4 version and HDR.Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz |
| Audio: | – Realtek® ALC1220 CODEC – High Definition Audio – 2/4/5.1/7.1-channel – Support for S/PDIF Out |
| Connectivity | |
| LAN: | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless: | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standardRealtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard |
| Bluetooth: | – BLUETOOTH 5.4 |
| Expansion Slots: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode Chipset: * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Storage Interface: | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: – AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| On-Board Connectors | |
| USB: | CPU+ASMedia USB4® controller: – 2 x USB4® USB Type-C® ports on the back panel CPU+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors: | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors: | 1 x Q-Flash Plus button 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Software & Features | |
| BIOS: | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Features: | PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card |
| Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability | |
| Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI | |
| Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna | |
| Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4 | |
| General | |
| Operating System: | Support for Windows 11 64-bit |
| Form Factor: | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
