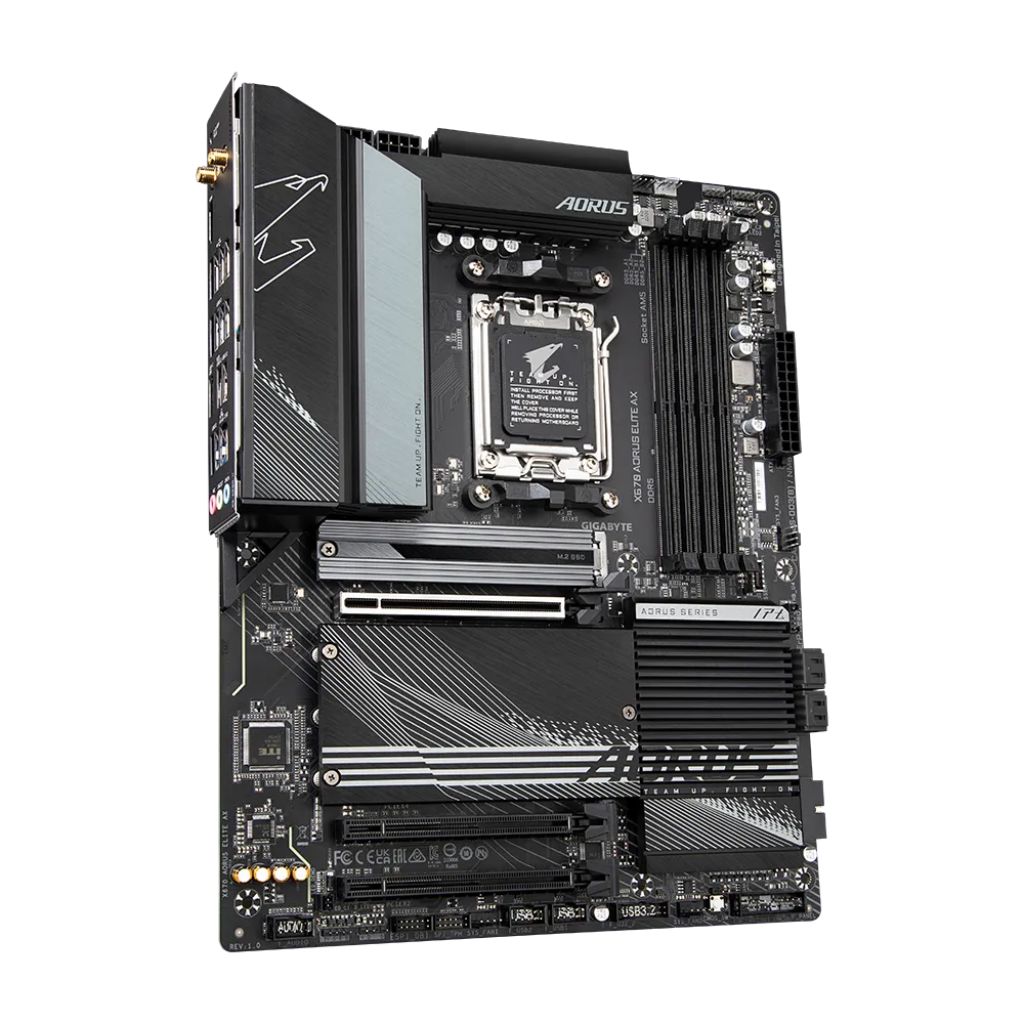

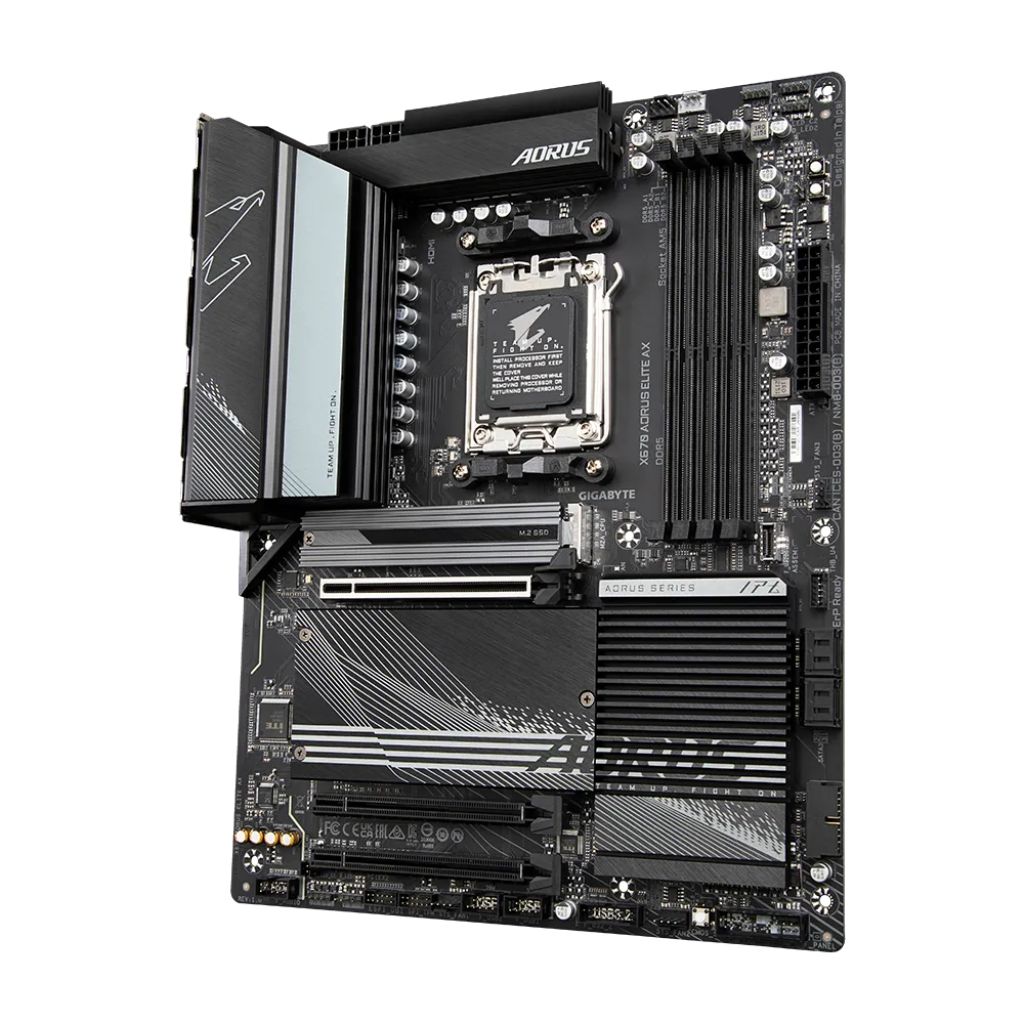

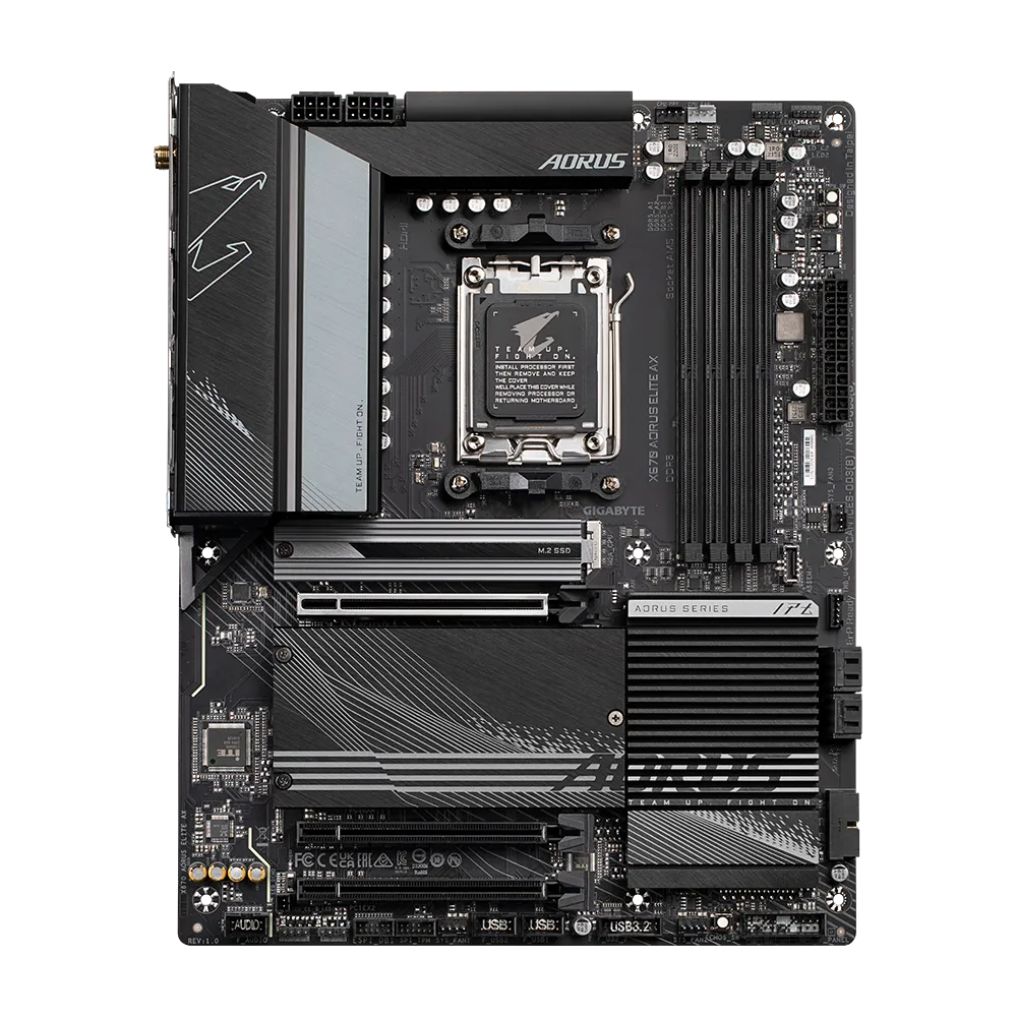

Gigabyte X670 AORUS Elite AX WiFi DDR5 AM5 ATX Motherboard

R 6 458.00

Prices Displayed are for EFT Only.

  • Brand: Gigabyte
  • Series: Aorus Elite
  • Model: X670 Aorus Elite AX
  • CPU Support: Supports AMD Ryzen 7000 Series Desktop Processors
  • Chipset: AMD X670
SKU GA-X670-AORUS-ELITE-AX Categories , ,
Add to wishlist

In stock

Only 1 items left in stock!

Gauteng: 1 - 3 Business days

Cape Town & Durban: 2 - 4 Business days

Other: 2 - 7 Business days


Gigabyte X670 Aorus Elite AX WiFi Motherboard

Full description Gigabyte.

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance：Twin 16*+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Next Generation Storage：1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
  • Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：HDMI, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card





Specifications
Brand: Gigabyte
Series: AMD X670 Series
Model: GA-X670-AORUS-ELITE-AX
Technical Specs
CPU Support:
  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipset:
  1. AMD X670
Memory:
  1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics: Integrated Graphics Processor:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
Audio:
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
Connectivity
LAN:
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless: AMD Wi-Fi 6E RZ616 (MT7922A22M)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Bluetooth:
  1. BLUETOOTH 5.2
Expansion Slots: CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Interface: CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)
    (Note) Actual support may vary by CPU.
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
  2. 4 x SATA 6Gb/s connectors
On-Board Connectors
USB: CPU:

  1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  2. 2 x USB 3.2 Gen 1 ports on the back panel

CPU + USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel

Chipset:

  1. 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
  2. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  3. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors: 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper

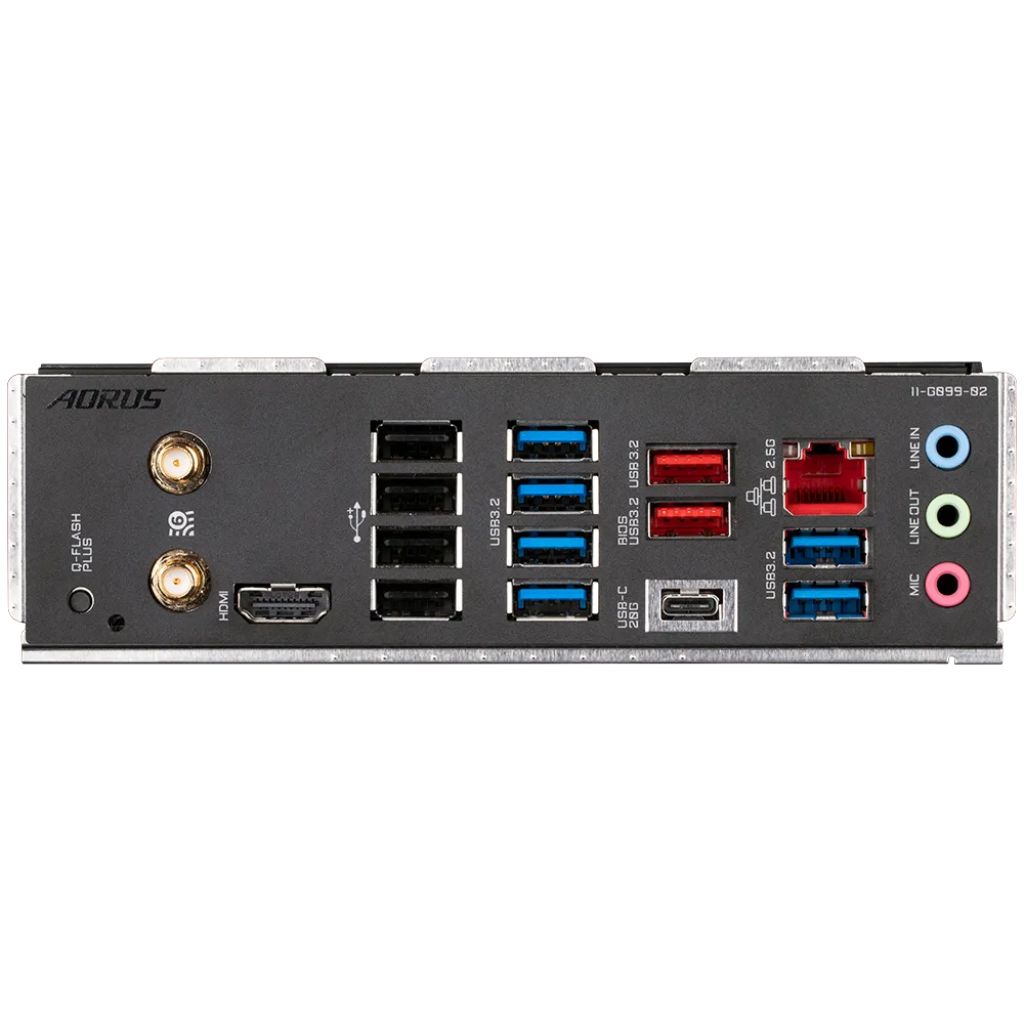

Back Panel Connectors: 1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port
6 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
1 x RJ-45 port
3 x audio jacks
Software & Features
BIOS:
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Software:
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Features: Support for Q-Flash Plus
Voltage detection
Temperature detection
Support for Q-Flash
Fan speed detection
Support for Smart Backup
General
Operating System:
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor:
  1. ATX – 30.5cm x 24.4cm
Warranty Information
Warranty: 3 Year Warranty
