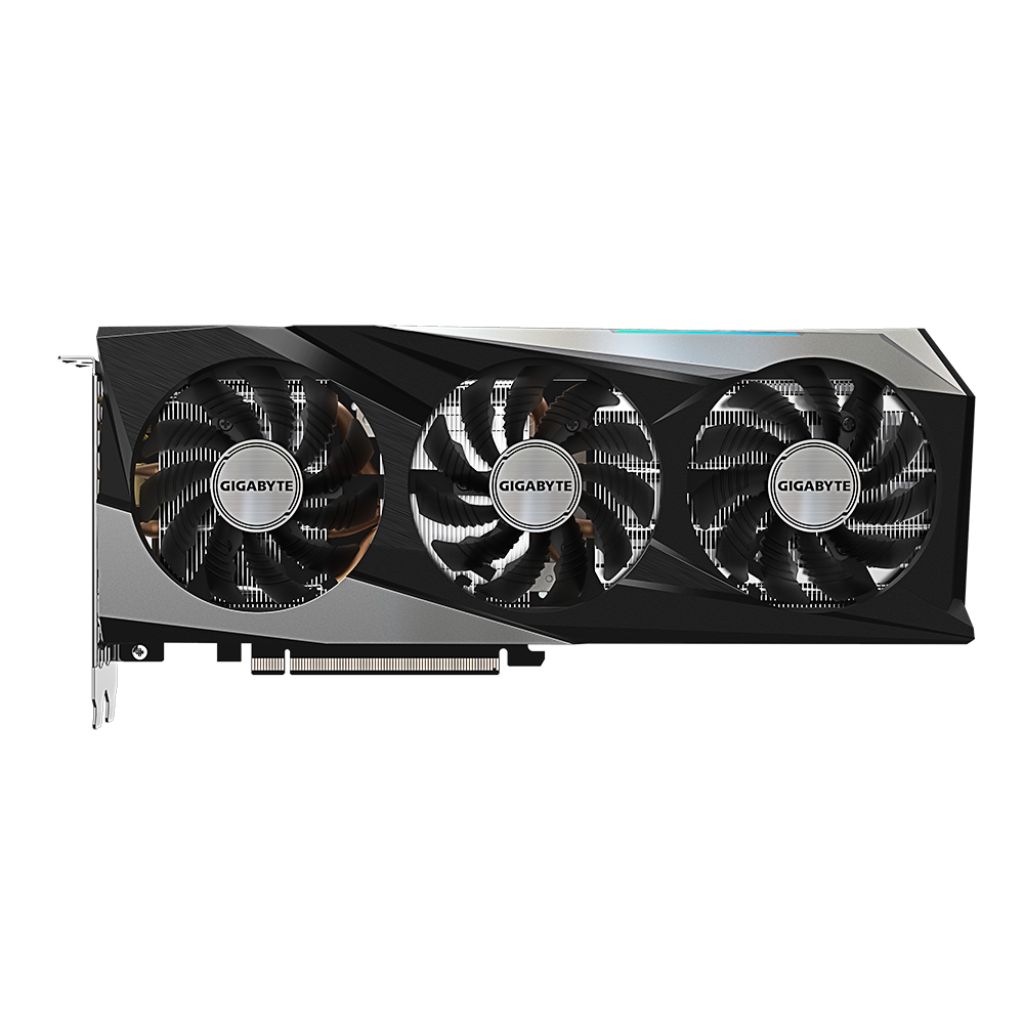

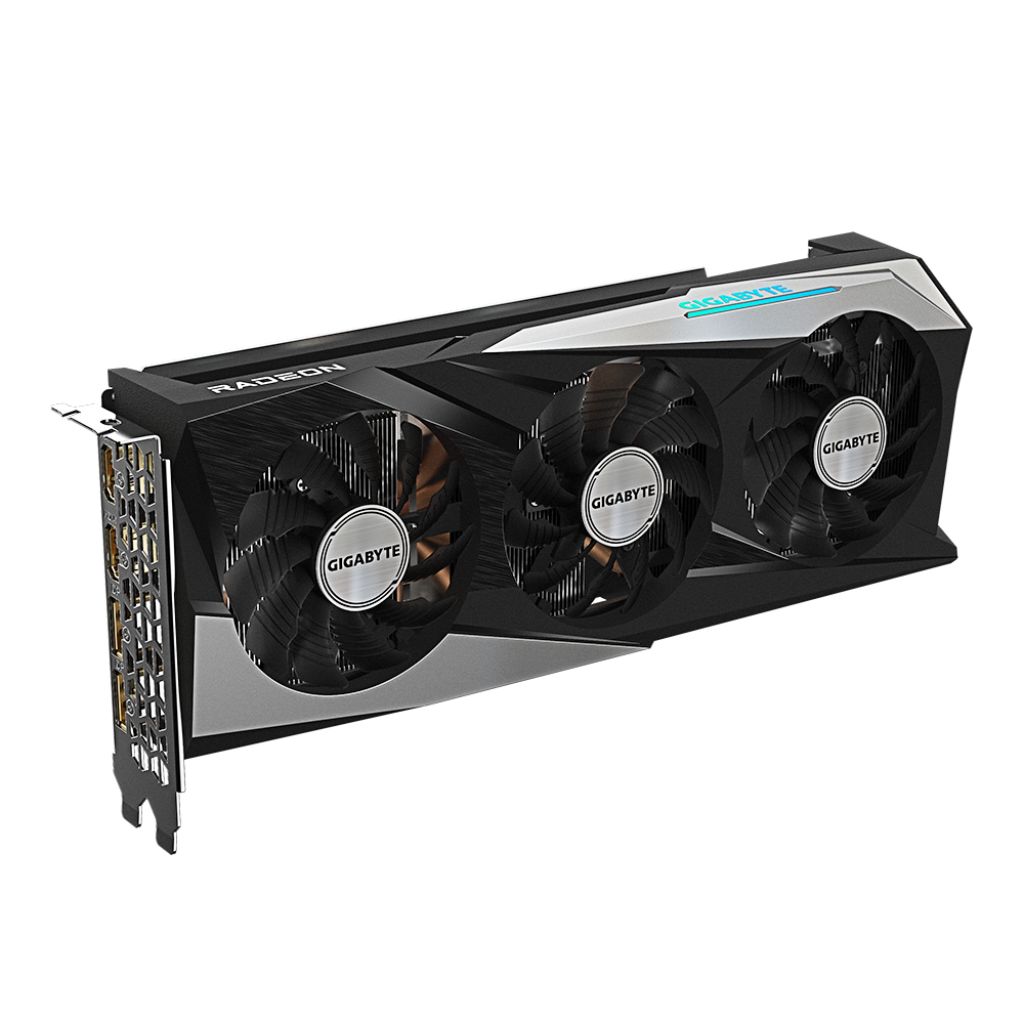

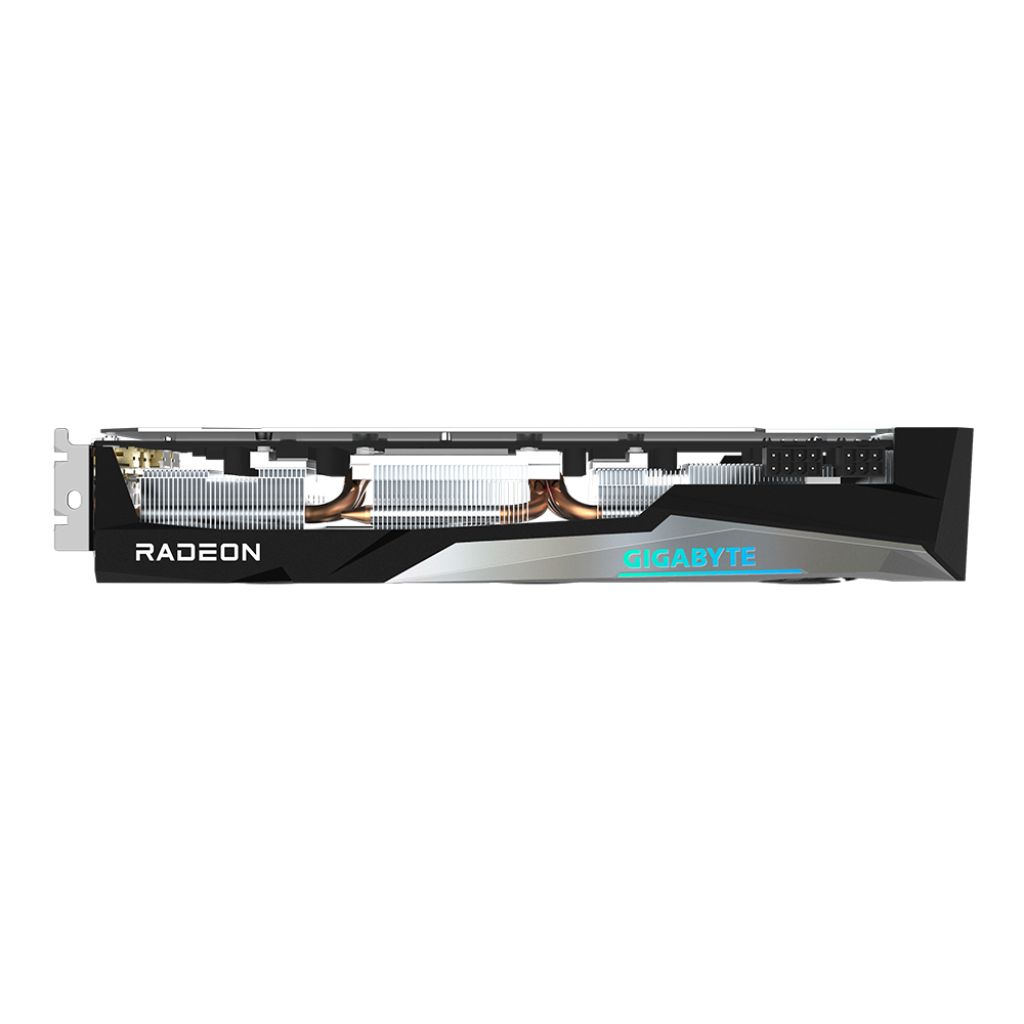

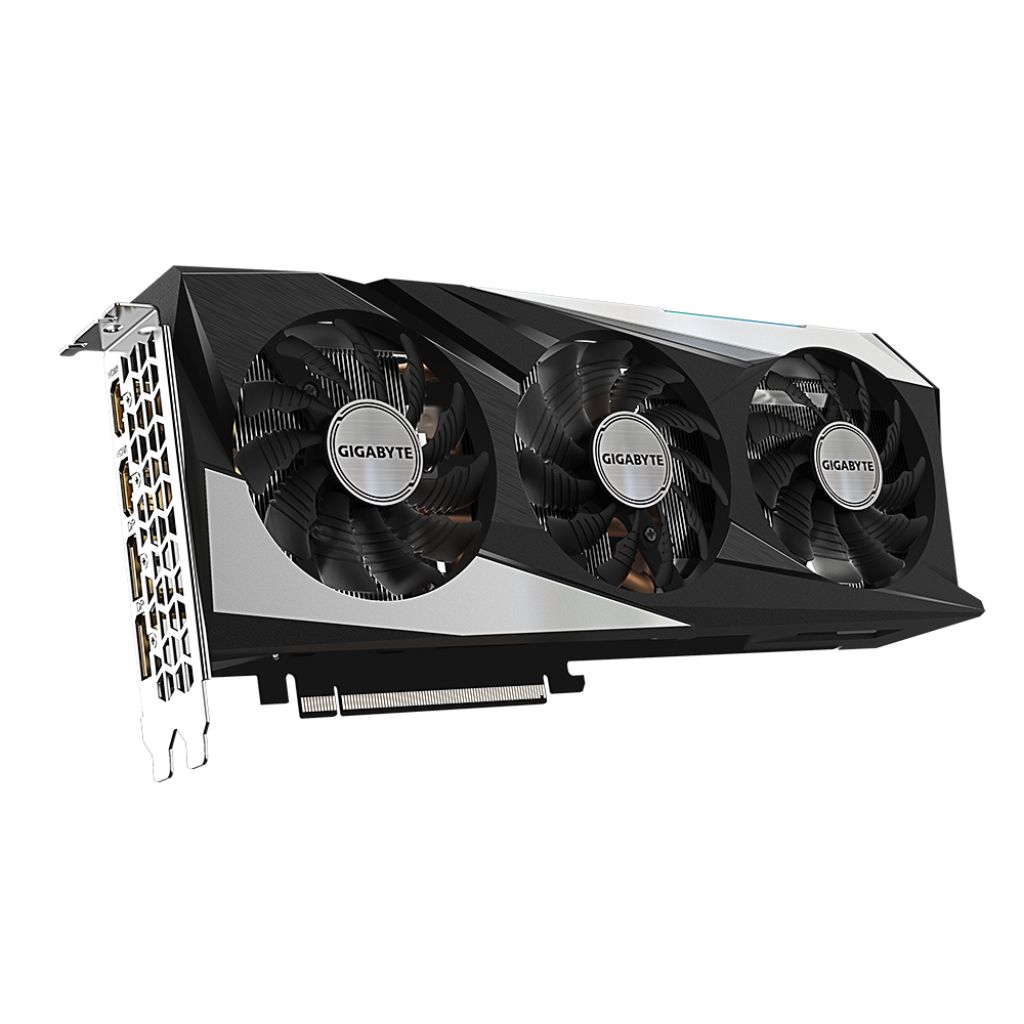

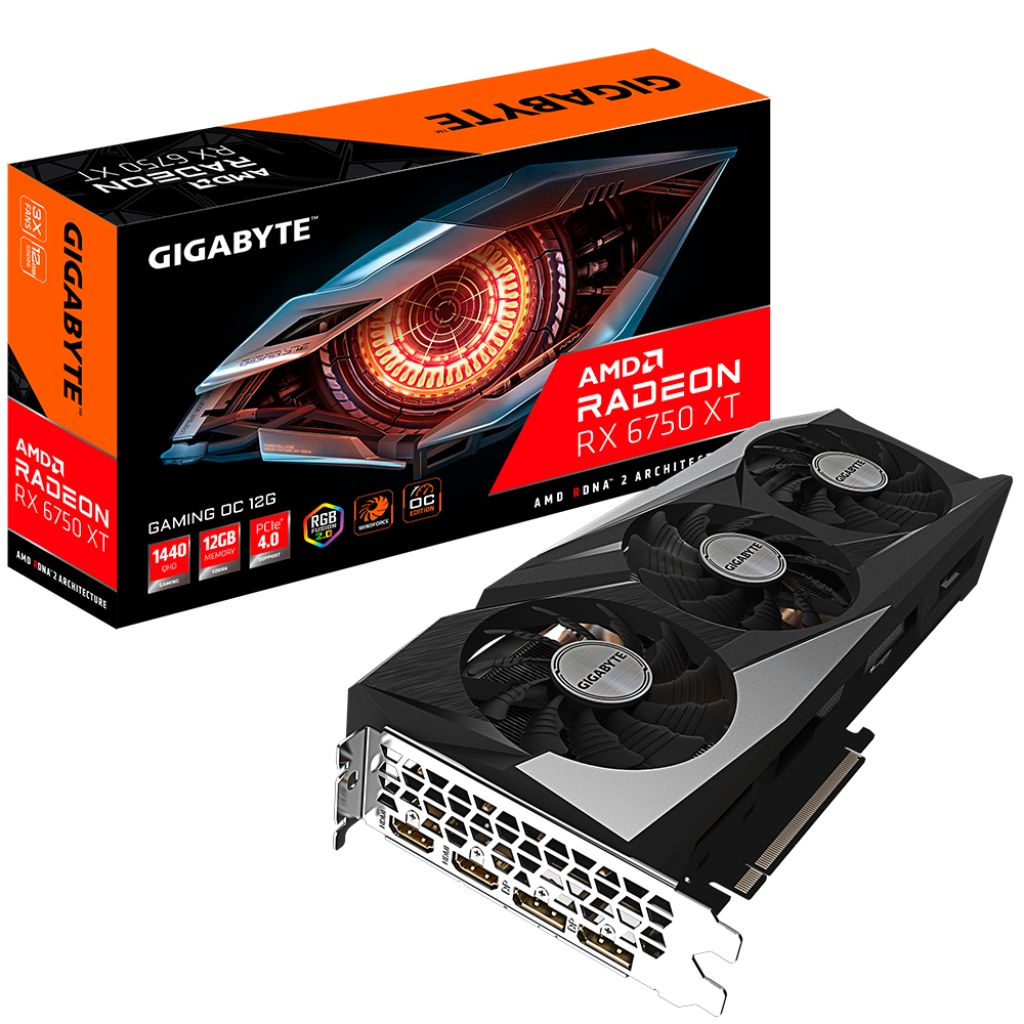

Gigabyte Radeon RX 6750 XT Gaming OC 12GB Graphics Card
Full description Gigabyte.
FEATURES
- Powered by AMD RDNA™ 2 Radeon™ RX 6750 XT
- Integrated with 12GB GDDR6 192-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- Screen cooling
- Graphene nano lubricant
- RGB Fusion 2.0

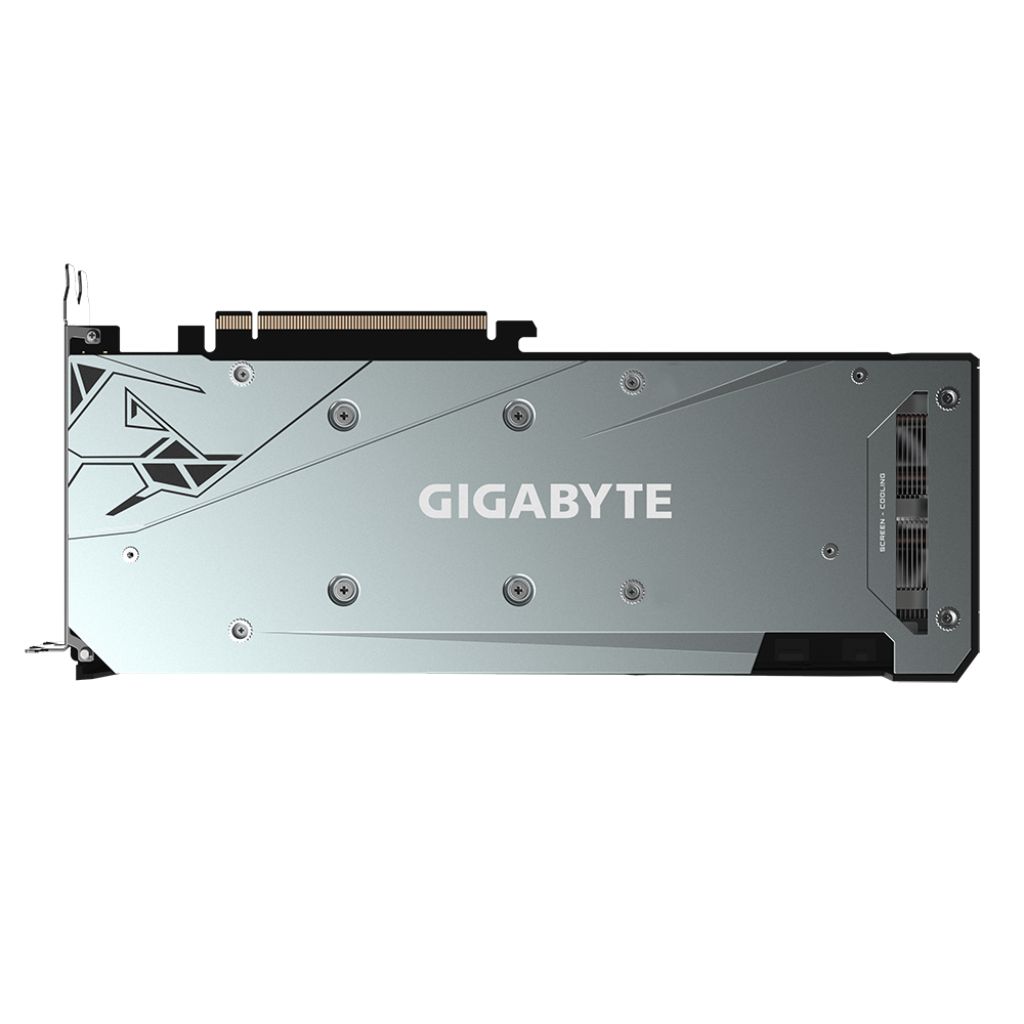

- Protection metal back plate
CORE CLOCK
- Boost Clock* : up to 2623 MHz (Reference card: 2600 MHz)
- Game Clock* : up to 2533 MHz (Reference card: 2495 MHz)
SPECIFICATIONS |
|
| Brand | Gigabyte |
| Series | Gaming |
| Model | RX 6750 XT Gaming OC 12G (GV-R675XTGAMING OC-12GD) |
| Chipset | |
| GPU | Radeon |
| Chipset Manufacturer | AMD |
| Interface | PCIe 4.0 x16 |
| Compute Units | 40 |
| Ray Accelerators | 40 |
| ROPs | 64 |
| Base Clock | 2150MHz |
| Game Clock | Up to 2533MHz |
| Boost Clock | Up to 2623MHz |
| Stream Processors | 2560 |
| Texture Units | 160 |
| GPU Architecture | AMD RDNA 2 Architecture |
| Memory | |
| Infinity Cache | 96MB |
| Effective Memory Clock | 18Gbps |
| Memory Size | 12GB |
| Memory Interface | 192-bit |
| Memory Type | GDDR6 |
| Memory Bandwidth | Up to 432GBps |
| 3D API | |
| DirectX | 12.2 Ultimate |
| OpenGL | 4.6 |
| OpenCL | 2.0 |
| Vulkan | 1.3 |
| Connectivity | |
| Ports | 2x DisplayPort 1.4 (with DSC) |
| 2x HDMI 2.1 (2.1 VRR and FRL) | |
| HDMI 4K Support | Yes |
| VR Ready | Yes, Radeon VR Ready Premium |
| General | |
| Features | 7nm GPU |
| PCI Express 4.0 Support | |
| AMD FreeSync Technology | |
| DisplayPort 1.4 with DSC | |
| HDMI 2.1 VRR | |
| HDMI 4K Support | |
| 4K H264 Decode | |
| 4K H264 Encode | |
| H265/HEVC Decode | |
| H265/HEVC Encode | |
| AV1 Decode | |
| Video Streaming up to 8K | |
| Game Driver Optimizations | |
| AMD Radeon VR Ready Premium | |
| AMD FidelityFX | |
| AMD Radeon Image Sharpening | |
| AMD Radeon Anti-Lag | |
| AMD Radeon Software | |
| Hardware-Accelerated Ray Tracing | |
| Power Requirements | |
| Total Graphics Power (TGP) | 250W |
| Minimum Recommended Power Supply | 650W |
| Recommended Power Supply | 700W |
| Power Connector | 1x 8-Pin PCI PEG, 1x 6-pin PCI PEG |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 2.5 Slot |
| Dimensions | 281 x 155 x 49mm (L x H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Linux Kernel 5.0 and newer | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
