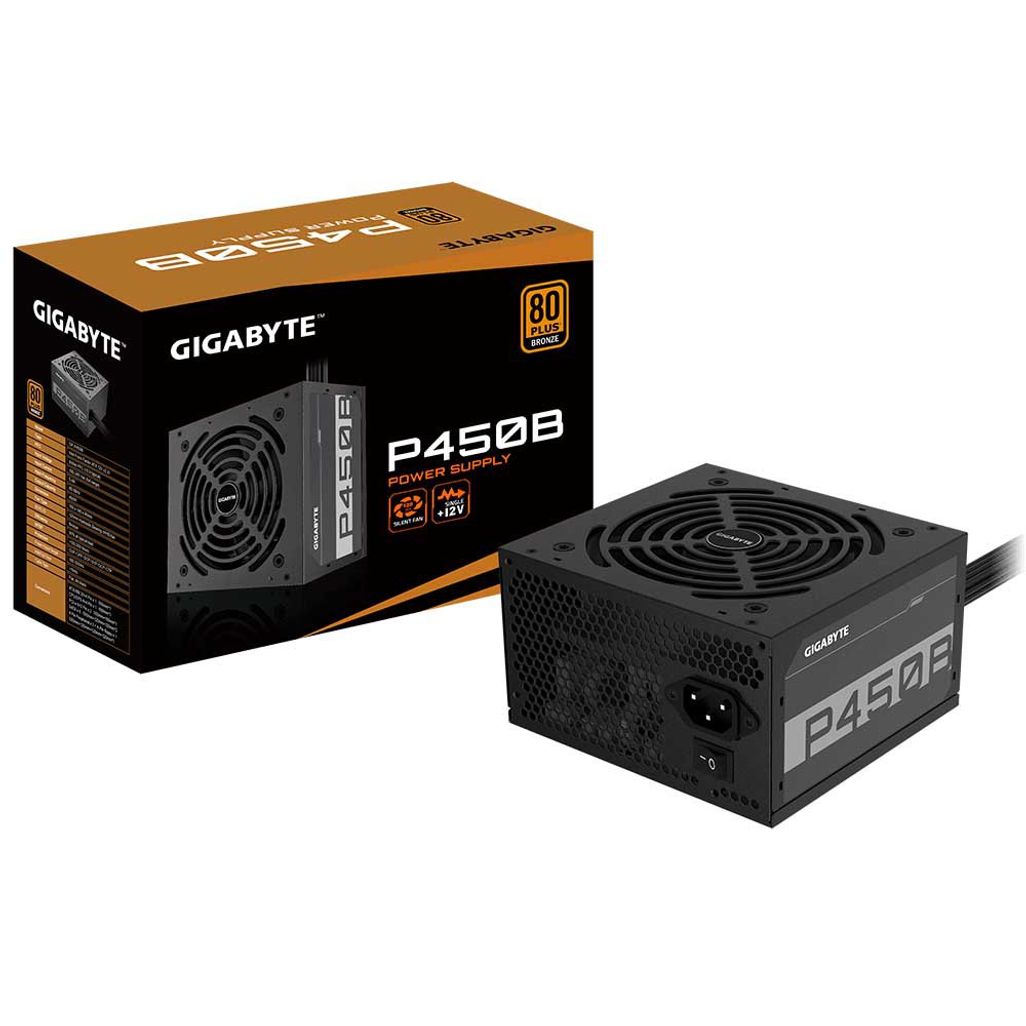

Gigabyte P450B 450W 80 Plus Bronze PSU
Full description Gigabyte.
Features
- 80 PLUS Bronze certified
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Reliable flat cable
- Single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Total power: 450 W
- AC input voltage: 100 – 240 V
- AC input frequency: 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- SATA power cable length: 500 mm
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- 80 PLUS certification: 80 PLUS Bronze
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Specifications
Design
| Product colour | Black |
|---|---|
| Number of fans | 1 |
| Cooling type | Active |
| Fan diameter | 120 |
| Fan location | Top |
| On/off switch | Y |
Weight & dimensions
| Width | 150 |
|---|---|
| Depth | 140 |
| Height | 86 |
Power
| AC input voltage | 100 – 240 |
|---|---|
| AC input frequency | 50/60 |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Total power | 450 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+12V) | 432 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 15 |
| Max output current (+3.3V) | 18 |
| Max output current (+12V) | 36 |
| Max output current (+5V) | 15 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 3 |
| Efficiency | 85 |
| Power factor | 0.9 |
| Hold time | 16 |
| Input current | 8 – 4 |
| Combined power (+3.3V) | 103 |
| Combined power (+5V) | 103 |
Performance
| 80 PLUS certification | 80 PLUS Bronze |
|---|---|
| Mean time between failures (MTBF) | 100000 |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| Bearing technology | HDB |
Ports & interfaces
| Peripheral (Molex) power connectors (4-pin) | 3 |
|---|---|
| Number of SATA power connectors | 6 |
| Floppy drive power connector | 1 |
| PCI Express connector | Y |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 550 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power cable length | 600 |
| ATX power connector (20+4 pin) | Y |
| CPU power connector (4+4 pin) | Y |
| Floppy disk drive connector | Y |
| SATA power cable length | 500 |
| Peripheral (Molex) power cable length | 500 |
| PCI Express power cable length | 550 |
