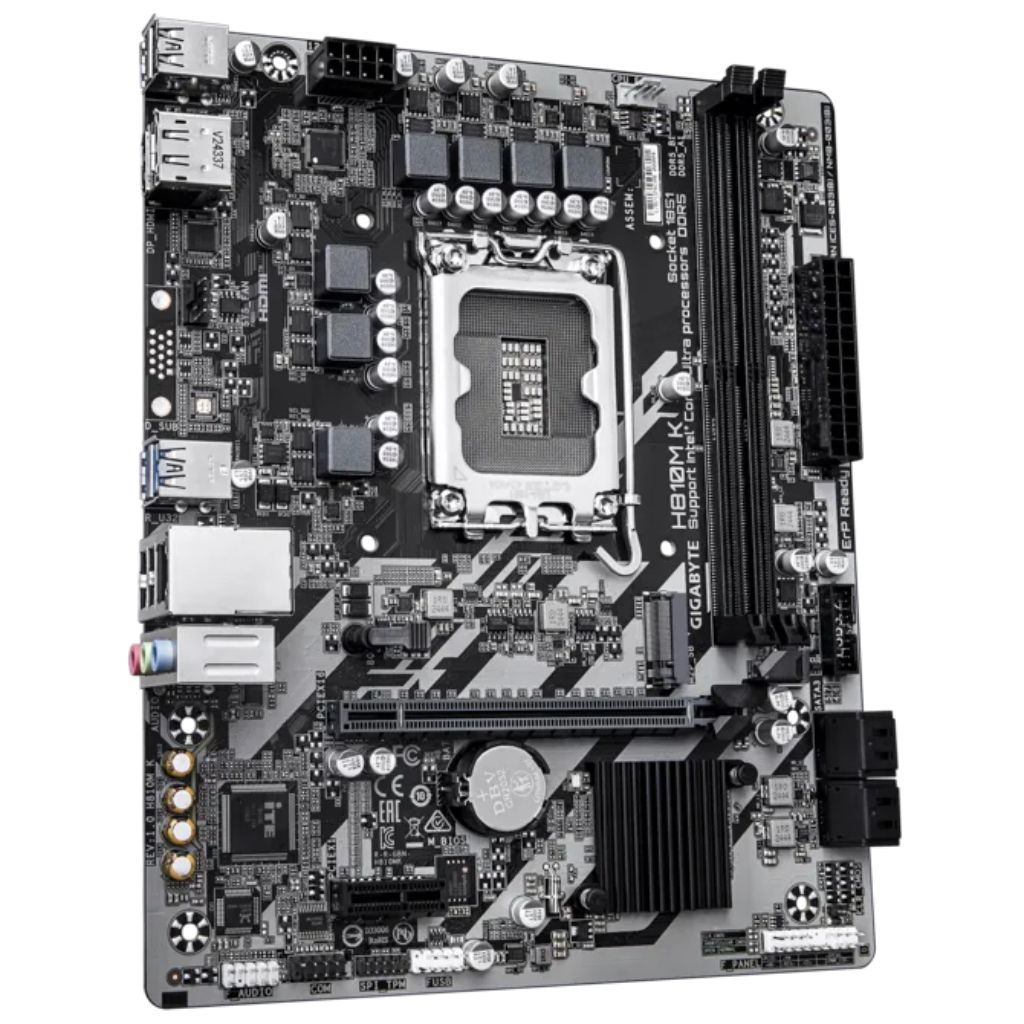

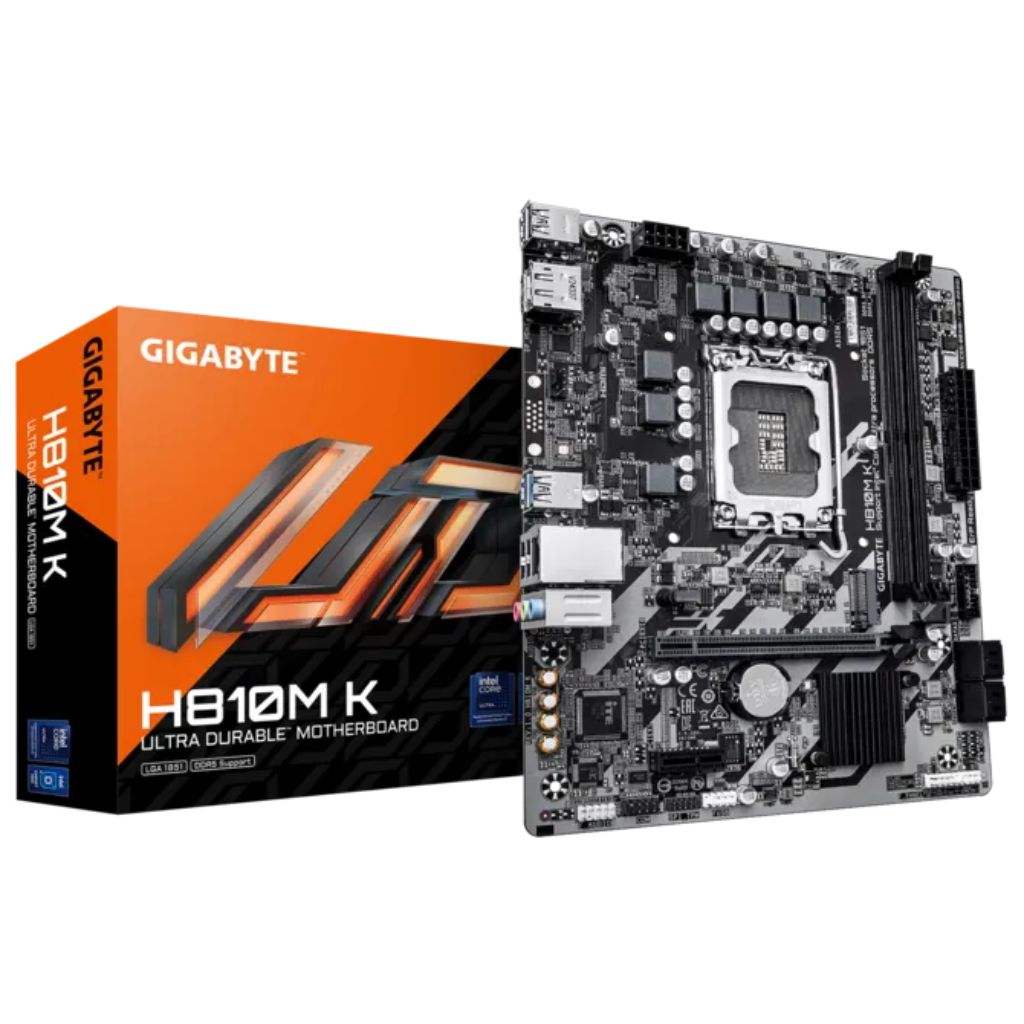

Gigabyte H810M-K DDR5 Micro-ATX LGA1851 Intel Motherboard – GA-H810M-K
Full description Gigabyte.
- Intel LGA1851 Platform Support – Built for Intel Core Ultra (Series 2) desktop processors.
- Next-Generation DDR5 Memory – Supports high-speed DDR5 memory for improved system responsiveness.
- Compact Micro-ATX Design – Ideal for space-efficient office and home PC builds.
- PCIe 4.0 Expansion Support – Ready for modern graphics cards and high-speed devices.
- Reliable Gigabyte Build Quality – Durable components designed for long-term stability.
| Specifications | |
|---|---|
| Brand: | Gigabyte |
| Model: | H810M-K |
| Product Type: | Desktop Motherboard |
| CPU Support | |
| CPU Socket: | LGA1851 |
| Chipset: | Intel H810 |
| Supported CPUs: | Intel Core Ultra (Series 2) |
| Memory | |
| Memory Type: | DDR5 |
| Memory Slots: | 2 × DDR5 DIMM |
| Max Memory Support: | Up to 128GB |
| Memory Speed Support: | Up to DDR5-6400 (OC) |
| Expansion Slots | |
| PCIe x16: | 1 × PCIe 4.0 x16 |
| PCIe x1: | 1 × PCIe 3.0 x1 |
| Storage | |
| M.2 Slots: | 1 × M.2 PCIe 4.0 x4 |
| SATA Ports: | 4 × SATA 6Gb/s |
| Graphics Output | |
| HDMI: | 1 × HDMI |
| DisplayPort: | 1 × DisplayPort |
| VGA: | 1 × D-Sub |
| Internal I/O Connectors | |
| 24-pin ATX Power: | 1 |
| 8-pin CPU Power: | 1 |
| CPU Fan Header: | 1 |
| System Fan Headers: | 2 |
| USB 3.2 Gen 1 Header: | 1 (Supports 2 Ports) |
| USB 2.0 Headers: | 2 (Supports 4 Ports) |
| Front Panel Header: | Yes |
| Front Panel Audio Header: | Yes |
| TPM Header: | Yes |
| Back Panel Connectors | |
| PS/2 Port: | 1 × Keyboard/Mouse Combo |
| USB 3.2 Gen 1: | 2 × USB-A |
| USB 2.0: | 4 × USB-A |
| HDMI: | 1 |
| DisplayPort: | 1 |
| VGA: | 1 |
| Ethernet: | 1 × Gigabit LAN (RJ-45) |
| Audio Jacks: | 3 × 3.5mm |
| Operating System Support | |
| Supported OS: | Windows 11 64-bitWindows 10 64-bit |
| Form Factor | |
| Form Factor: | Micro-ATX |
| General | |
| Use Case: | Office PC, Home PC, Entry-Level Builds |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
