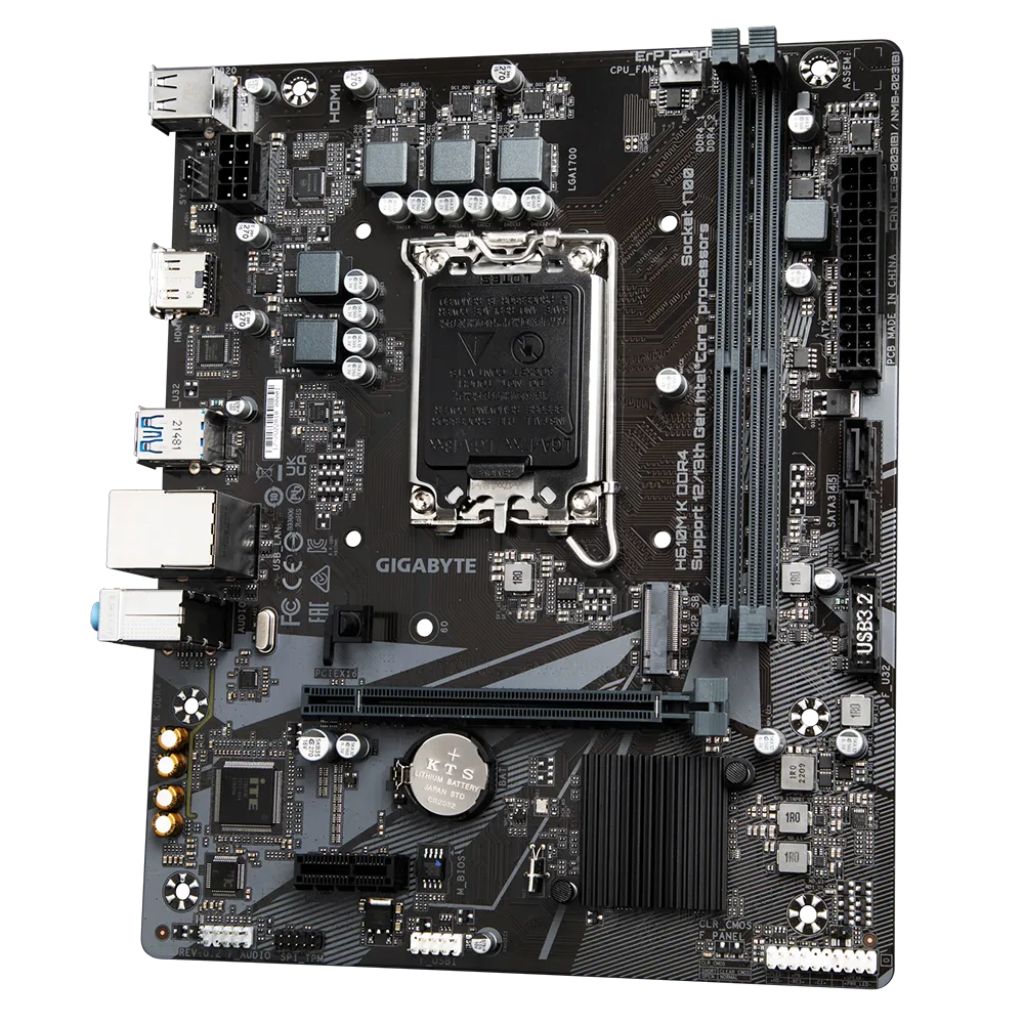

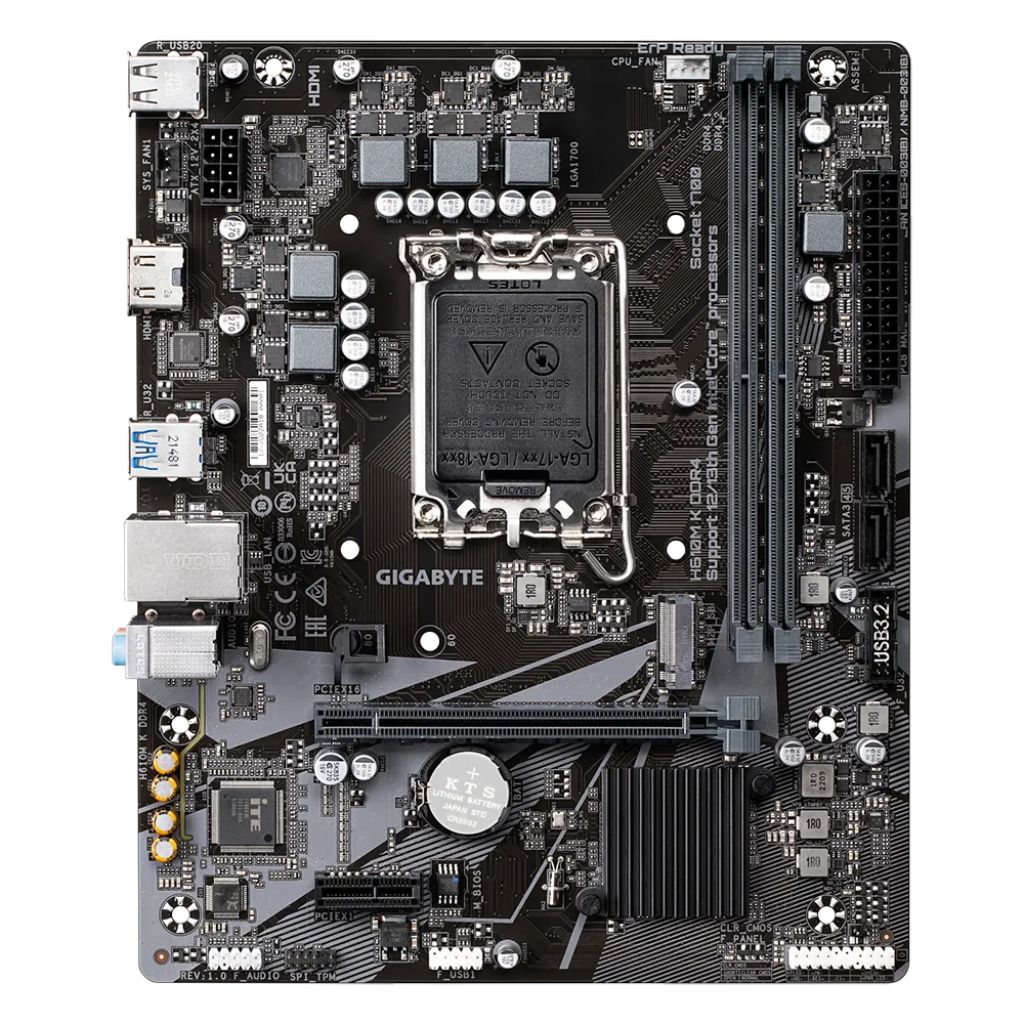

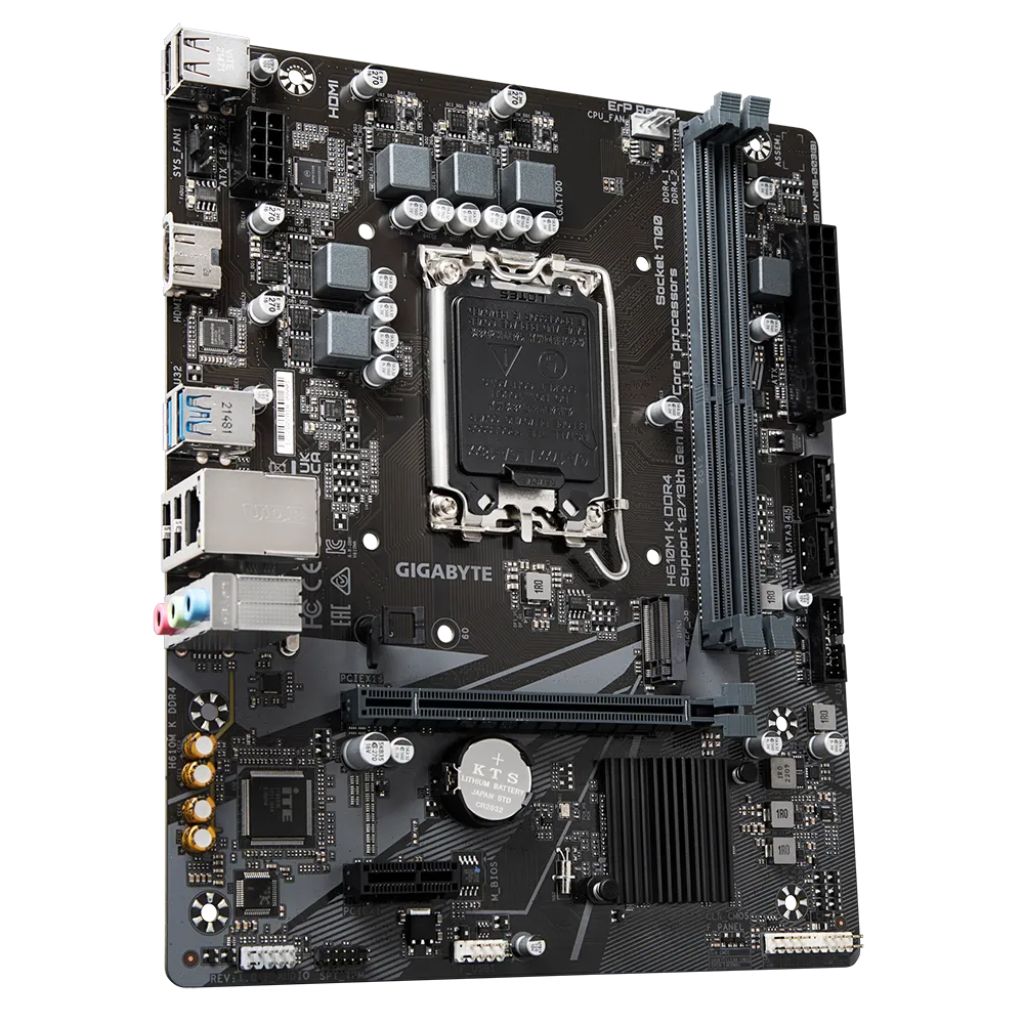

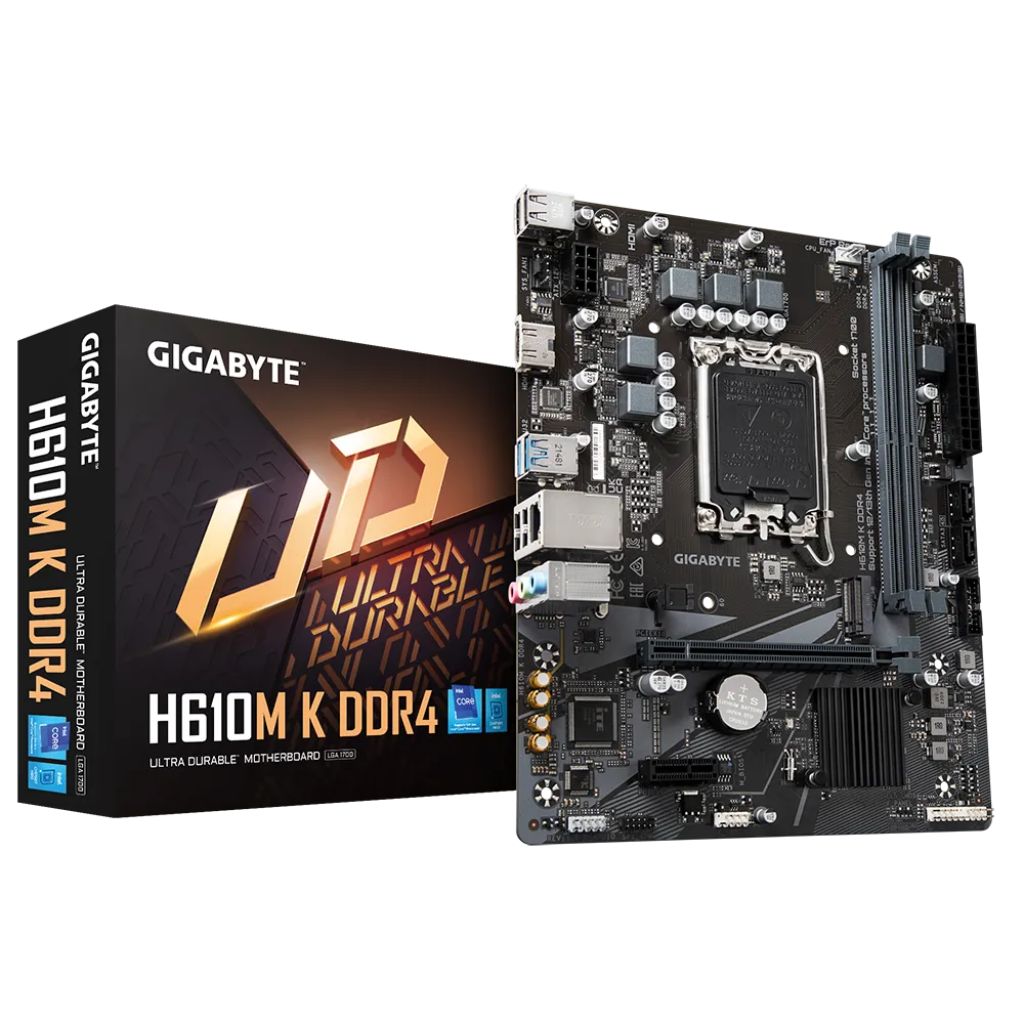

Gigabyte H610M K DDR4 Micro-ATX LGA1700 Intel Motherboard
Full description Gigabyte.
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
| Specifications |
| Brand: |
Gigabyte |
| Series: |
H610 Series |
| Model: |
GA-H610M-K-DDR4 |
| Technical Specs |
| CPU Support: |
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- L3 cache varies with CPU
|
| Chipset: |
- Intel® H610 Express Chipset
|
| Memory: |
- Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
|
| Onboard Graphics: |
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
|
| Audio: |
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
|
| Connectivity |
| LAN: |
- Realtek® GbE LAN chip (1 Gbps/100 Mbps)
|
| Wireless: |
n/a |
| Bluetooth: |
n/a |
| Expansion Slots: |
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
|
| Storage Interface: |
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
- 2 x SATA 6Gb/s connectors
|
| On-Board Connectors |
| USB: |
Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
|
| Internal I/O Connectors: |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 2 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x Clear CMOS jumper
|
| Back Panel Connectors: |
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
|
| Software & Features |
| BIOS: |
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
|
| Software: |
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
|
| Features: |
NVMe PCIe 3.0 x4 M.2 |
| High Quality Audio Capacitors and Audio Noise Guard |
| Smart Fan 6 Features Multiple Temperature Sensors |
| GIGABYTE APP Center, Simple and Easy Use |
| Anti-Sulfur Resistors Design |
| General |
| Operating System: |
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
|
| Form Factor: |
- Micro ATX Form Factor; 22.6cm x 18.5cm
|
| Warranty Information |
| Warranty: |
3 Year Warranty |
