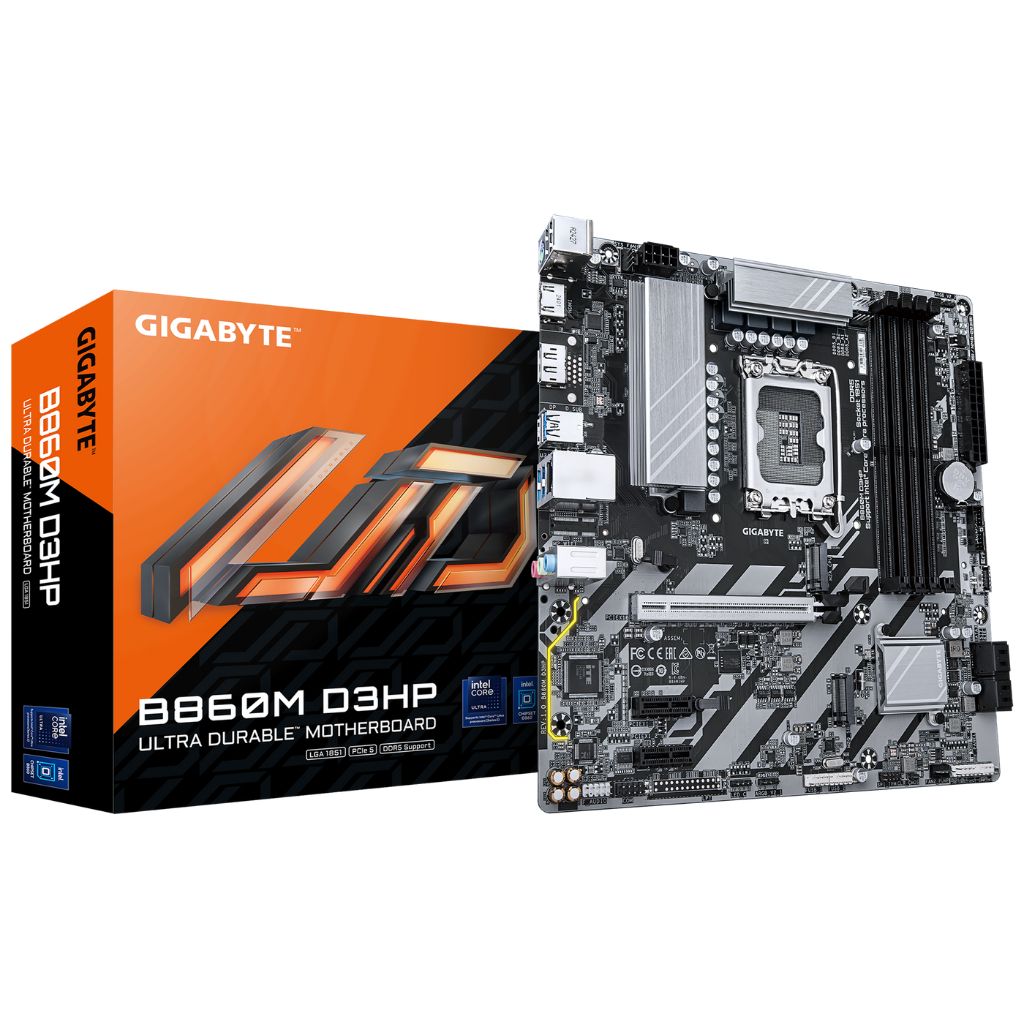

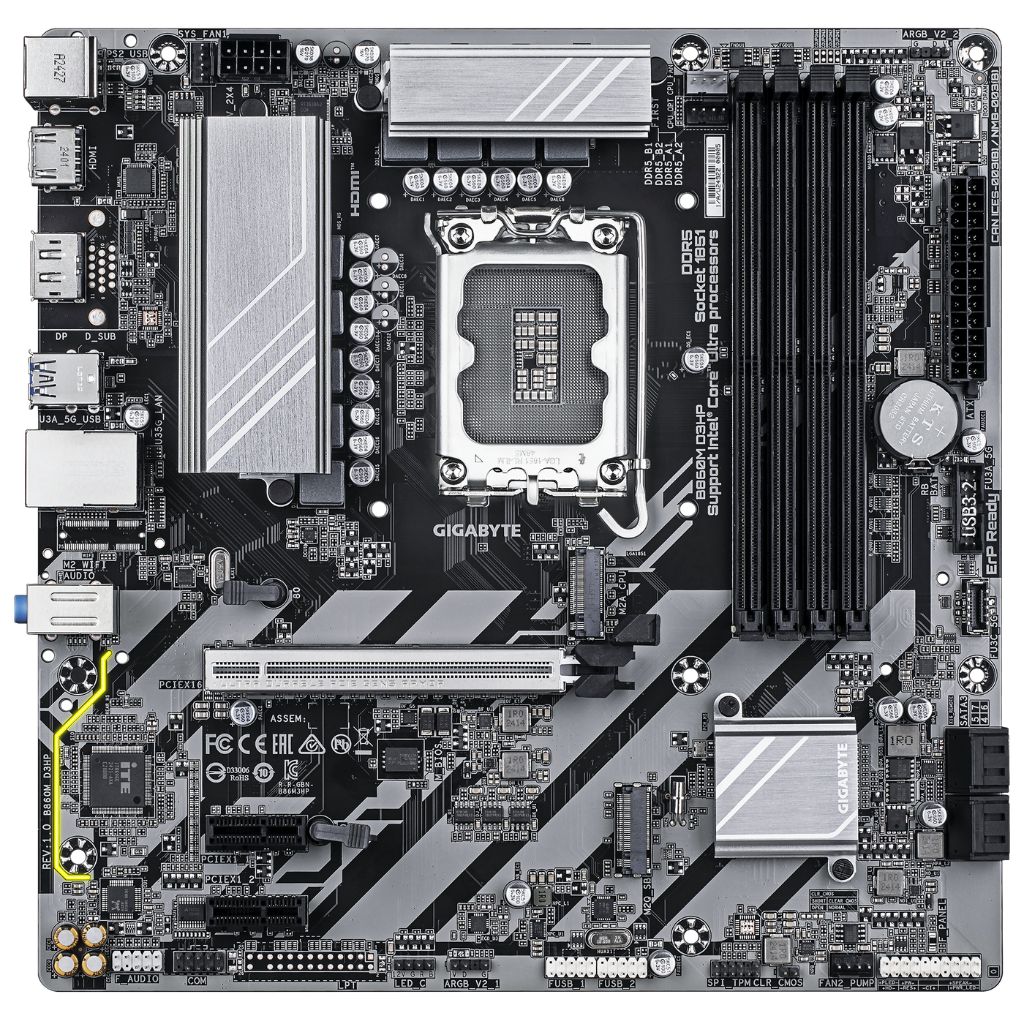

Gigabyte B860M D3HP DDR5 Micro-ATX LGA 1851 Intel Motherboard – GA-B860M-D3HP
Full description Gigabyte.
- Supports Intel Core Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
| Specifications | |
| Brand: | Gigabyte |
| Series: | Intel B860 Series |
| Model: | GA-B860M-D3HP |
| Technical Specs | |
| CPU Support: | Support for Intel Core Ultra Processors |
| Chipset: | Intel B860 Express Chipset |
| Memory: | Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory – Dual channel memory architecture – Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics: | Integrated Graphics Processor-Intel HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz- 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 H |
| Audio: | Realtek® Audio CODEC – High Definition Audio – 2/4/5.1/7.1-channel |
| Connectivity | |
| LAN: | Realtek® GbE LAN chip |
| Wireless: | N/A |
| Bluetooth: | N/A |
| Expansion Slots: | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16Chipset: – 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface: | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| On-Board Connectors | |
| USB: | Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) – 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors: | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Back Panel Connectors: | 3 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort* 1 x HDMI port* 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| Software & Features | |
| BIOS: | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software: | Support for GIGABYTE Control Center (GCC) |
| Features: | EZ-Latch : PCIe x16 Slot with Quick Release Design |
| Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW | |
| Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors | |
| Fast Networking : GbE LAN | |
| Extended Connectivity : DisplayPort, HDMI | |
| General | |
| Operating System: | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor: | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
Gigabyte B860M D3HP DDR5 Micro-ATX LGA 1851 Intel Motherboard – GA-B860M-D3HP
Contact us if you would like to enquire about this product.
