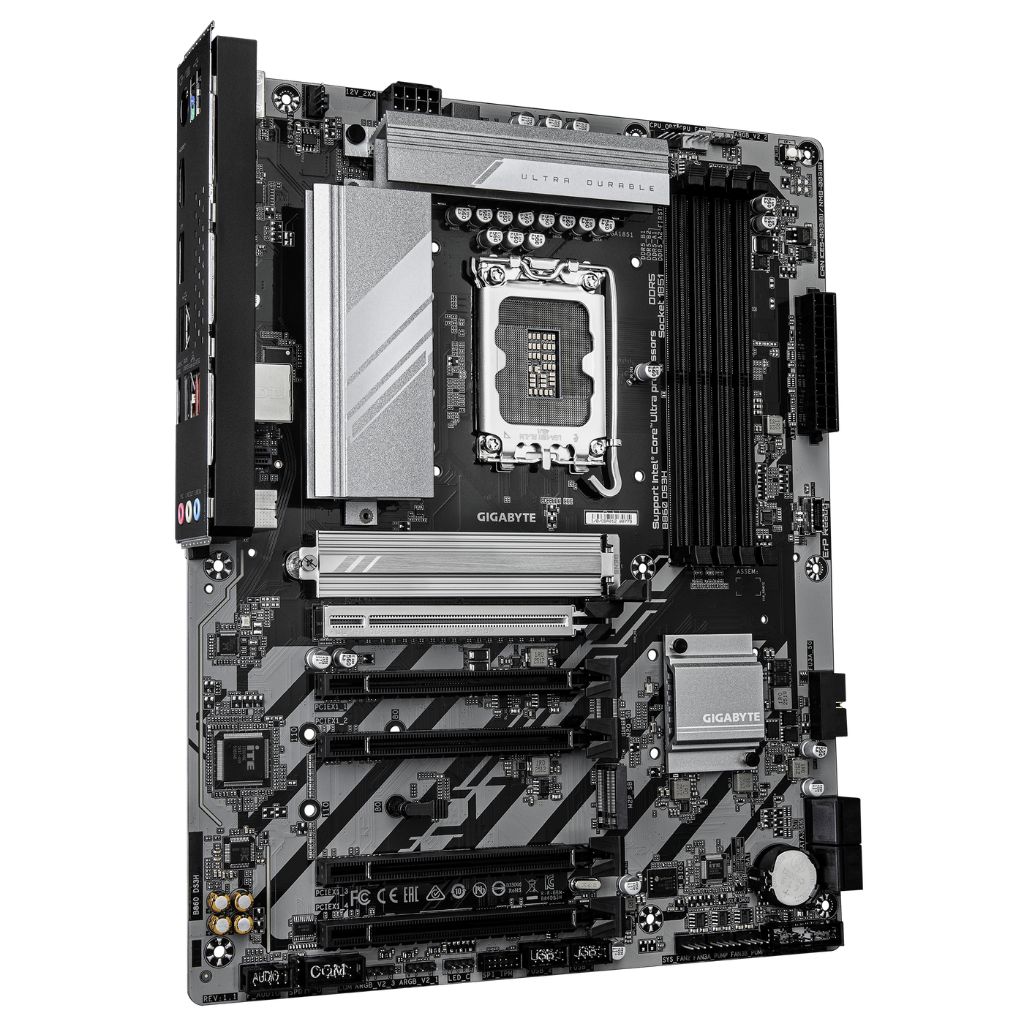

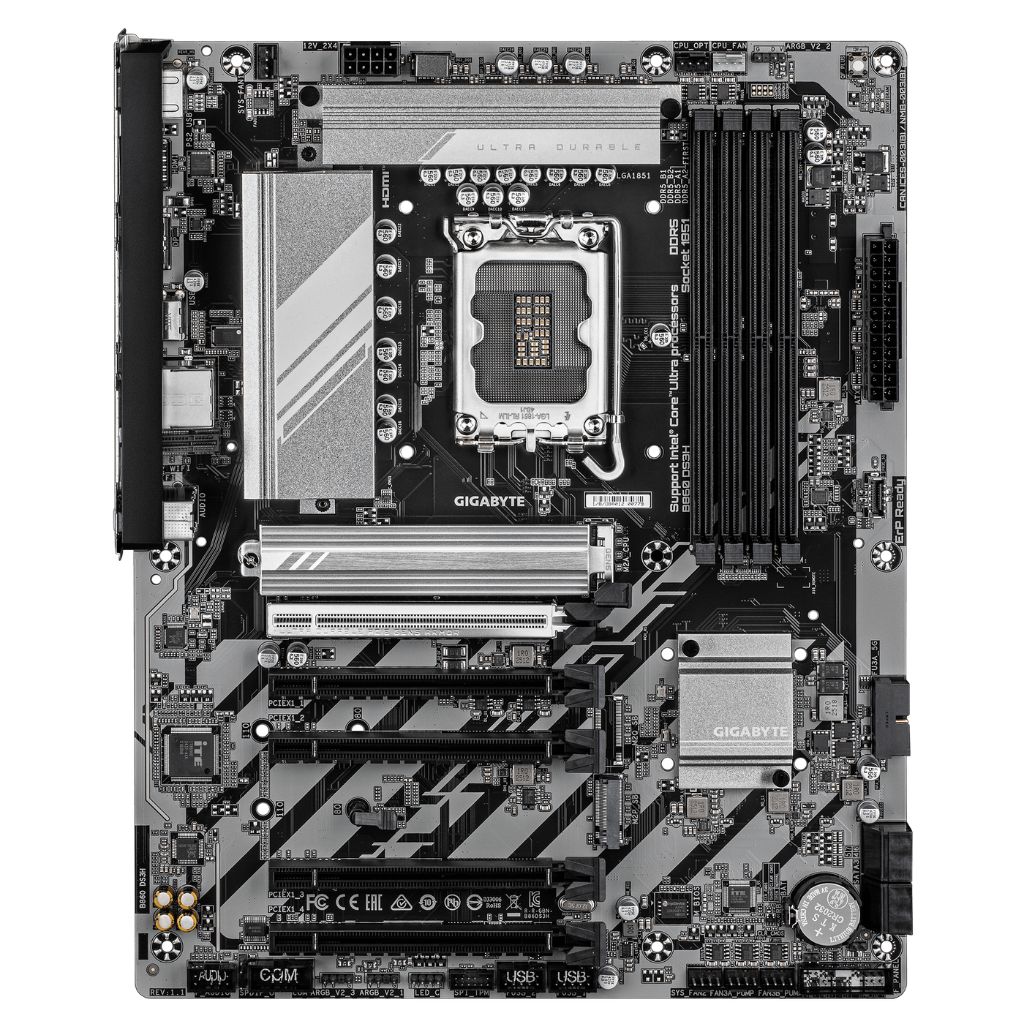

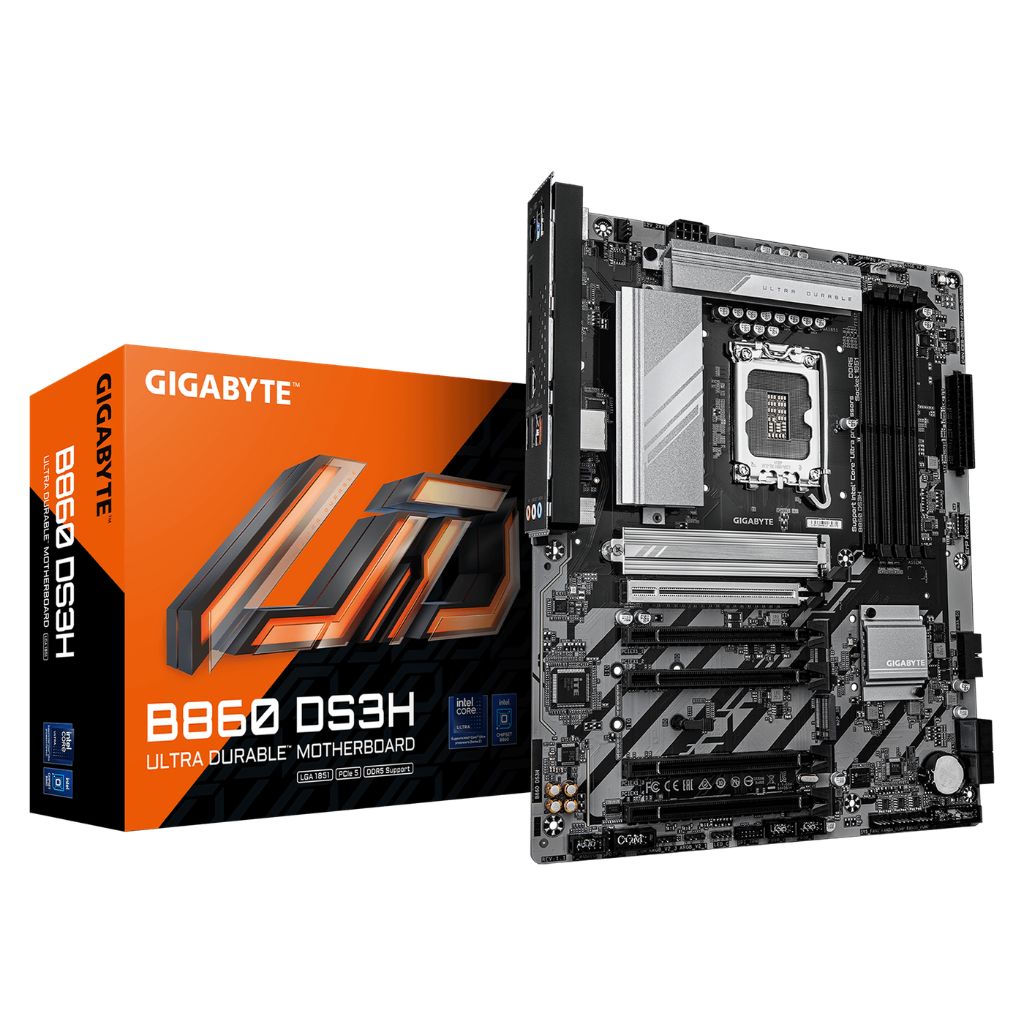

Gigabyte B860 DS3H DDR5 ATX LGA1851 Intel Motherboard – GA-B860-DS3H
Full description Gigabyte.
- Intel® Core™ Ultra Ready (LGA1851 Socket)
Designed for Intel® Core™ Ultra processors with PCIe 5.0 graphics support and next-gen platform performance. - DDR5 Memory up to 9066MHz (OC)
Supports up to 256GB DDR5 with XMP memory profiles for ultra-fast multitasking and system responsiveness. - PCIe 5.0 x16 + Dual M.2 NVMe
Features one PCIe 5.0 x16 slot for next-gen GPUs and dual M.2 slots (PCIe 5.0 + 4.0) for high-speed NVMe SSDs. - 2.5GbE LAN for High-Speed Networking
Integrated Realtek® 2.5 Gigabit LAN ensures faster and more stable wired connections for gaming and streaming. - Q-Flash Plus & Smart Cooling Support
Easy BIOS updates without CPU installation plus multiple fan and pump headers with Smart Fan control.
| Specifications | |
|---|---|
| Brand: | Gigabyte |
| Model: | B860 DS3H |
| Part Number: | GA-B860-DS3H |
| Chipset: | Intel® B860 Express |
| Socket: | LGA1851 |
| Form Factor: | ATX (30.5cm x 24.4cm) |
| CPU Support | |
| Supported Processors: | Intel® Core™ Ultra Processors |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 4 |
| Maximum Capacity: | 256GB |
| Memory Architecture: | Dual Channel |
| Memory Support: | DDR5 up to 9066MHz (OC) |
| XMP Support: | Yes |
| ECC Support: | Non-ECC & ECC Un-buffered DIMM (non-ECC mode) |
| Onboard Graphics (CPU Dependent) | |
| HDMI: | 1x HDMI (up to 4096×2160 @ 60Hz) |
| DisplayPort: | 1x DisplayPort (up to 3840×2160 @ 144Hz) |
| Audio | |
| Audio Codec: | Realtek® HD Audio CODEC |
| Channels: | 2/4/5.1/7.1-channel |
| S/PDIF Out: | Yes |
| Networking | |
| LAN: | Realtek® 2.5GbE LAN (2.5Gbps/1Gbps/100Mbps) |
| Wireless: | None |
| Bluetooth: | None |
| Expansion Slots | |
| PCIe x16 Slot (CPU): | 1x PCIe 5.0 x16 |
| PCIe x1 Slots (Chipset): | 4x PCIe 4.0 x1 |
| Storage Interface | |
| M.2 (CPU): | 1x M.2 PCIe 5.0 x4 (2280) |
| M.2 (Chipset): | 1x M.2 PCIe 4.0 x4 (2280) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 5 / 10 (SATA) |
| USB (Rear Panel) | |
| USB Type-C®: | 1x USB 3.2 Gen2x2 Type-C® |
| USB 3.2 Gen2 Type-A: | 1 |
| USB 3.2 Gen1 Type-A: | 2 |
| USB 2.0: | 4 |
| Internal I/O Connectors | |
| 24-pin ATX Power Connector: | 1 |
| 8-pin ATX 12V Power Connector: | 1 |
| CPU Fan Header: | 1 |
| CPU Pump Header: | 1 |
| System Fan Headers: | 3 |
| RGB LED Headers: | 3x Addressable Gen2 |
| M.2 Socket Connectors: | 2 |
| SATA Connectors: | 4 |
| Front Panel Header: | 1 |
| Front Audio Header: | 1 |
| USB 3.2 Gen1 Header: | 1 |
| USB Type-C® Header: | 1 (USB 3.2 Gen1 support) |
| USB 2.0 Headers: | 2 |
| TPM Header: | 1 |
| Q-Flash Plus Button: | Yes |
| Clear CMOS Jumper: | Yes |
| Back Panel I/O Ports | |
| PS/2 Keyboard/Mouse Port: | 1 |
| HDMI Port: | 1 |
| DisplayPort: | 1 |
| USB Type-C® (Gen2x2): | 1 |
| USB 3.2 Gen2 Type-A: | 1 |
| USB 3.2 Gen1 Type-A: | 2 |
| USB 2.0 Ports: | 4 |
| RJ-45 LAN Port: | 1 |
| Audio Jacks: | 3 |
| BIOS | |
| BIOS Type: | 256 Mbit Flash AMI UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows® 10 64-bit / Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
