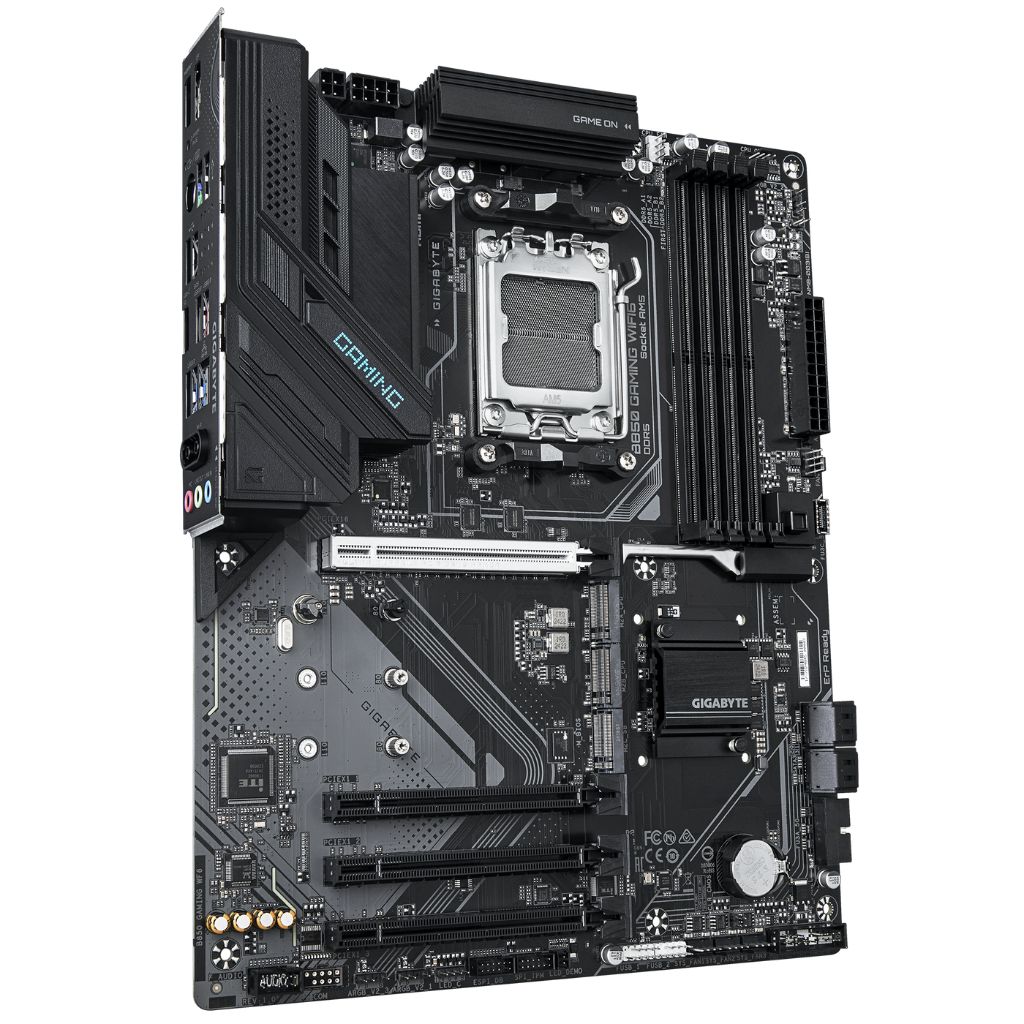

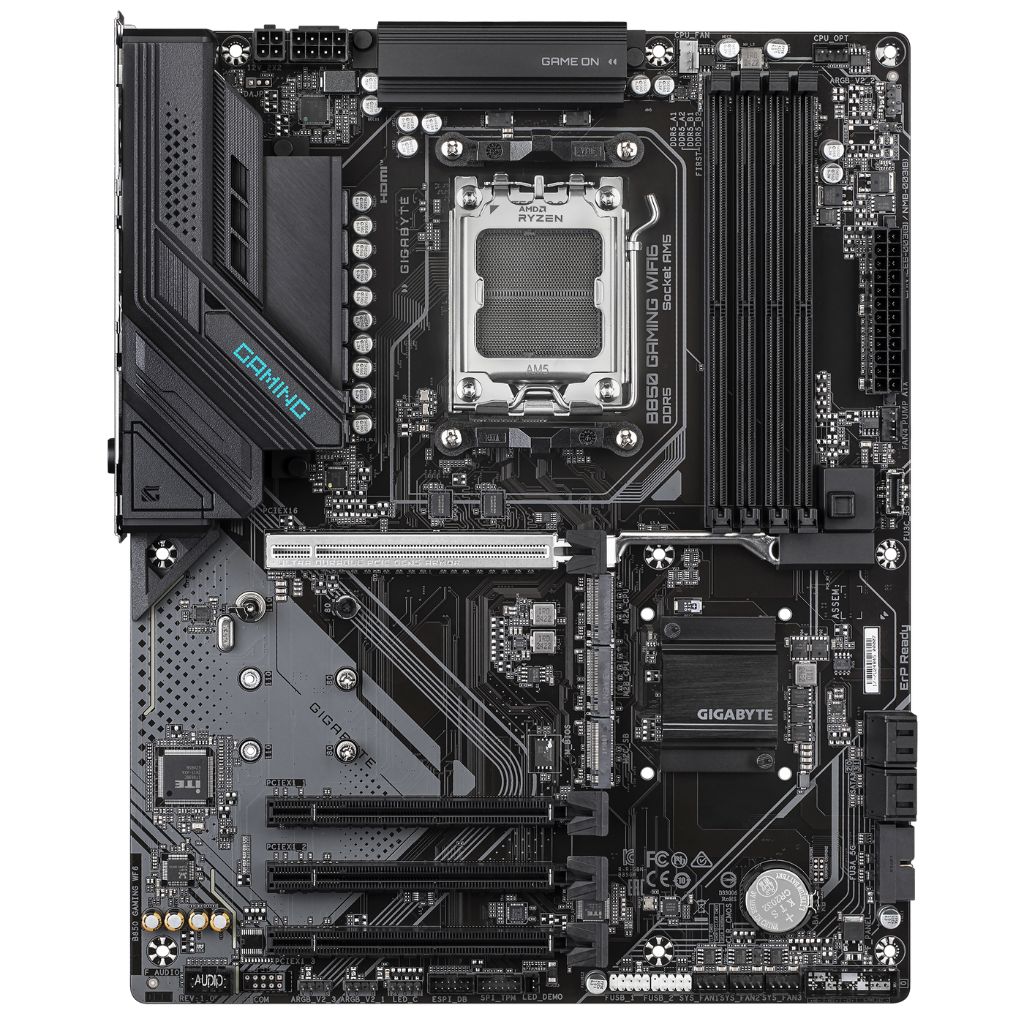

Gigabyte B850 Gaming WiFi 6 DDR5 ATX AM5 AMD Motherboard – GA-B850-GAMING-WIFI6
Full description Gigabyte.
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital 6+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
| Specifications | |
| Brand: | Gigabyte |
| Series: | B850 Series |
| Model: | GA-B850-GAMING-WIFI6 |
| Technical Specs | |
| CPU Support: | AMD Socket AM5, support for: – AMD Ryzen 9000 Series Processors – AMD Ryzen 8000 Series Processors – AMD Ryzen 7000 Series Processors |
| Chipset: | AMD B850 |
| Memory: | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory – Dual channel memory architecture – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics: | Integrated Graphics Processor with AMD Radeon Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| Audio: | Realtek Audio CODEC – High-Definition Audio – 2/4/5.1/7.1-channel |
| Connectivity | |
| LAN: | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless: | Realtek Wi-Fi 6 RTL8851BE – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands – Support for 11ax 80MHz wireless standard |
| Bluetooth: | – BLUETOOTH 5.3 |
| Expansion Slots: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: |
| Storage Interface: | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: – AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs – RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| On-Board Connectors | |
| USB: | CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors: | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors: | 1 x DisplayPort (Note) 1 x HDMI port (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 3 x audio jacks |
| Software & Features | |
| BIOS: | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software: | Support for GIGABYTE Control Center (GCC) |
| Features: | Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. |
| Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0×4 slot | |
| Efficient Thermal : VRM Thermal Armor Advanced | |
| Fast Networking : GbE LAN & Wi-Fi 6 802.11ax | |
| Extended Connectivity : HDMI, Displayport | |
| General | |
| Operating System: | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor: | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
