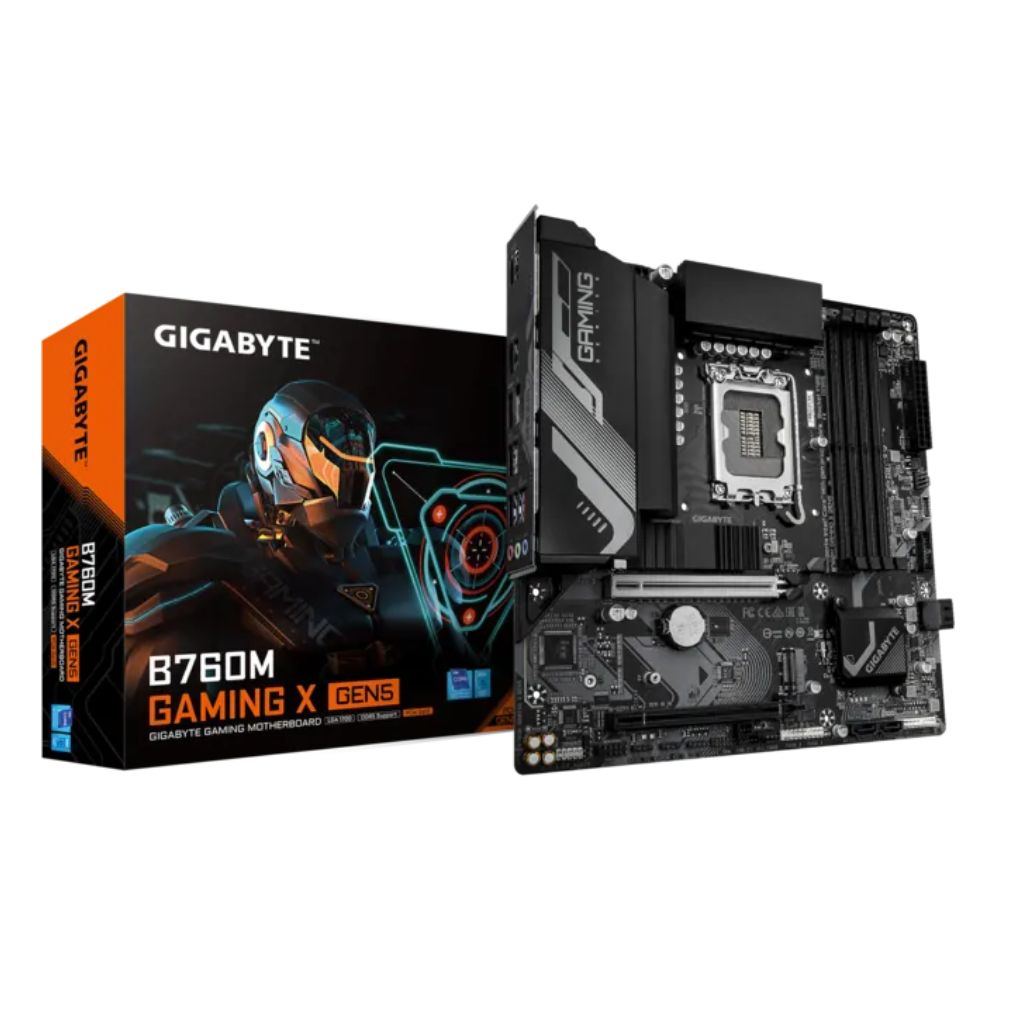

Gigabyte B760M GAMING X GEN5 DDR5 Micro-ATX LGA1700 Intel Motherboard – GA-B760M-GAMING-X GEN5
Full description Gigabyte.
- Intel LGA1700 Platform Support – Compatible with Intel 12th, 13th & 14th Gen Core processors.
- PCIe Gen5 Graphics Slot – Future-ready PCIe 5.0 x16 slot for next-generation GPUs.
- DDR5 High-Speed Memory Support – Supports fast DDR5 memory for smooth gaming and multitasking.
- Gaming-Grade Power & Cooling Design – Built with a robust VRM layout and quality components for stability.
- Compact Micro-ATX Layout – Ideal for smaller gaming cases without sacrificing performance features.
| Specifications | |
|---|---|
| Brand: | Gigabyte |
| Model: | B760M GAMING X GEN5 |
| Product Type: | Desktop Motherboard |
| CPU Support | |
| CPU Socket: | LGA1700 |
| Chipset: | Intel B760 |
| Supported CPUs: | Intel Core 12th / 13th / 14th Gen |
| Memory | |
| Memory Type: | DDR5 |
| Memory Slots: | 4 × DDR5 DIMM |
| Max Memory Support: | Up to 192GB |
| Memory Speed Support: | Up to DDR5-7600 (OC) |
| Expansion Slots | |
| PCIe x16 (GPU): | 1 × PCIe 5.0 x16 |
| PCIe x16 (Chipset): | 1 × PCIe 4.0 x4 |
| PCIe x1: | 1 × PCIe 3.0 x1 |
| Storage | |
| M.2 Slots: | 3 × M.2 (PCIe 4.0 x4) |
| SATA Ports: | 4 × SATA 6Gb/s |
| Graphics Output | |
| HDMI: | 1 × HDMI |
| DisplayPort: | 1 × DisplayPort |
| Internal I/O Connectors | |
| 24-pin ATX Power: | 1 |
| 8-pin CPU Power: | 2 |
| CPU Fan Header: | 1 |
| System Fan Headers: | 3 |
| USB 3.2 Gen 2 Type-C Header: | 1 |
| USB 3.2 Gen 1 Headers: | 2 (Supports 4 Ports) |
| USB 2.0 Headers: | 2 (Supports 4 Ports) |
| Front Panel Header: | Yes |
| Front Panel Audio Header: | Yes |
| TPM Header: | Yes |
| RGB Headers: | 2 × RGB (12V) |
| ARGB Headers: | 3 × Addressable RGB (5V) |
| Back Panel Connectors | |
| USB 3.2 Gen 2 Type-C: | 1 |
| USB 3.2 Gen 2 Type-A: | 1 |
| USB 3.2 Gen 1 Type-A: | 4 |
| USB 2.0: | 4 |
| HDMI: | 1 |
| DisplayPort: | 1 |
| Ethernet: | 1 × 2.5GbE LAN |
| Audio Jacks: | 3 × 3.5mm |
| Networking | |
| LAN Controller: | Realtek 2.5GbE |
| Wireless: | Not included |
| Operating System Support | |
| Supported OS: | Windows 11 64-bitWindows 10 64-bit |
| Form Factor | |
| Form Factor: | Micro-ATX |
| General | |
| Use Case: | Gaming PC, Performance Builds |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
