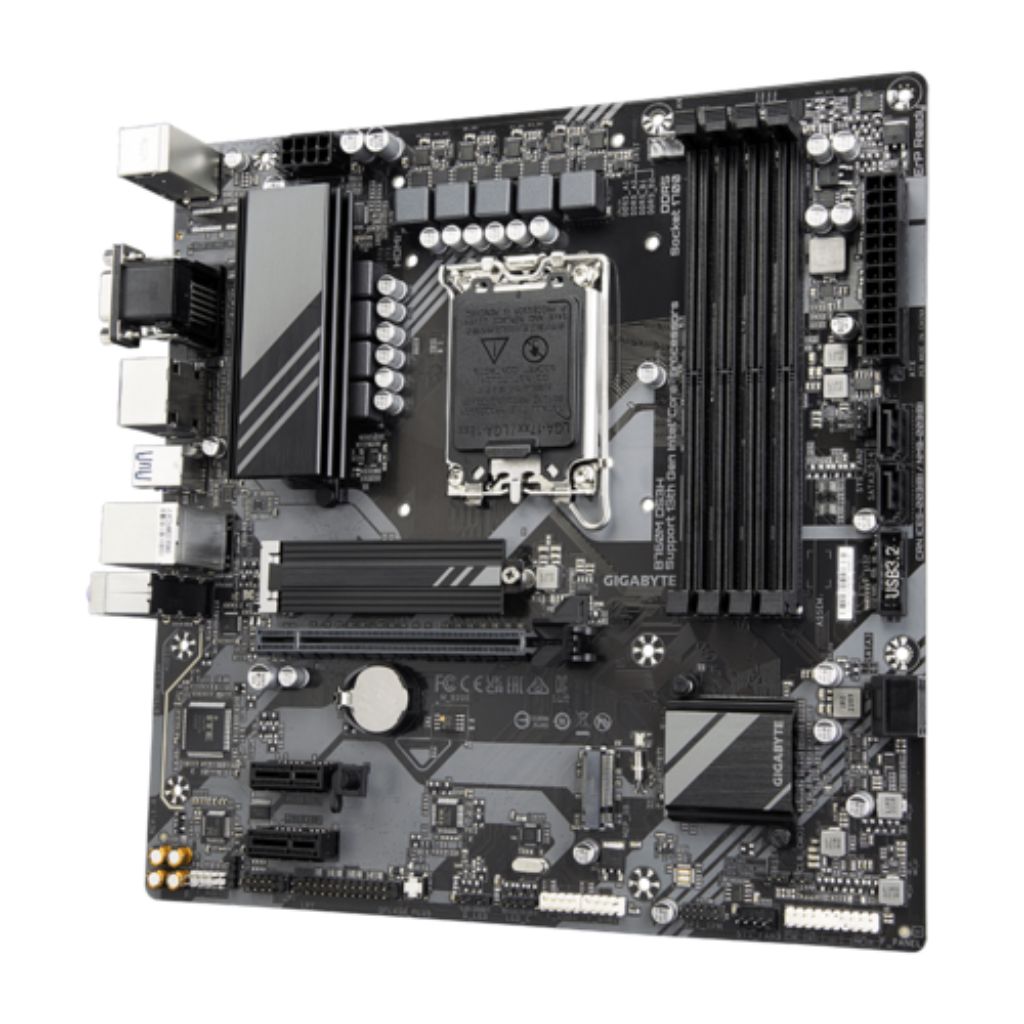

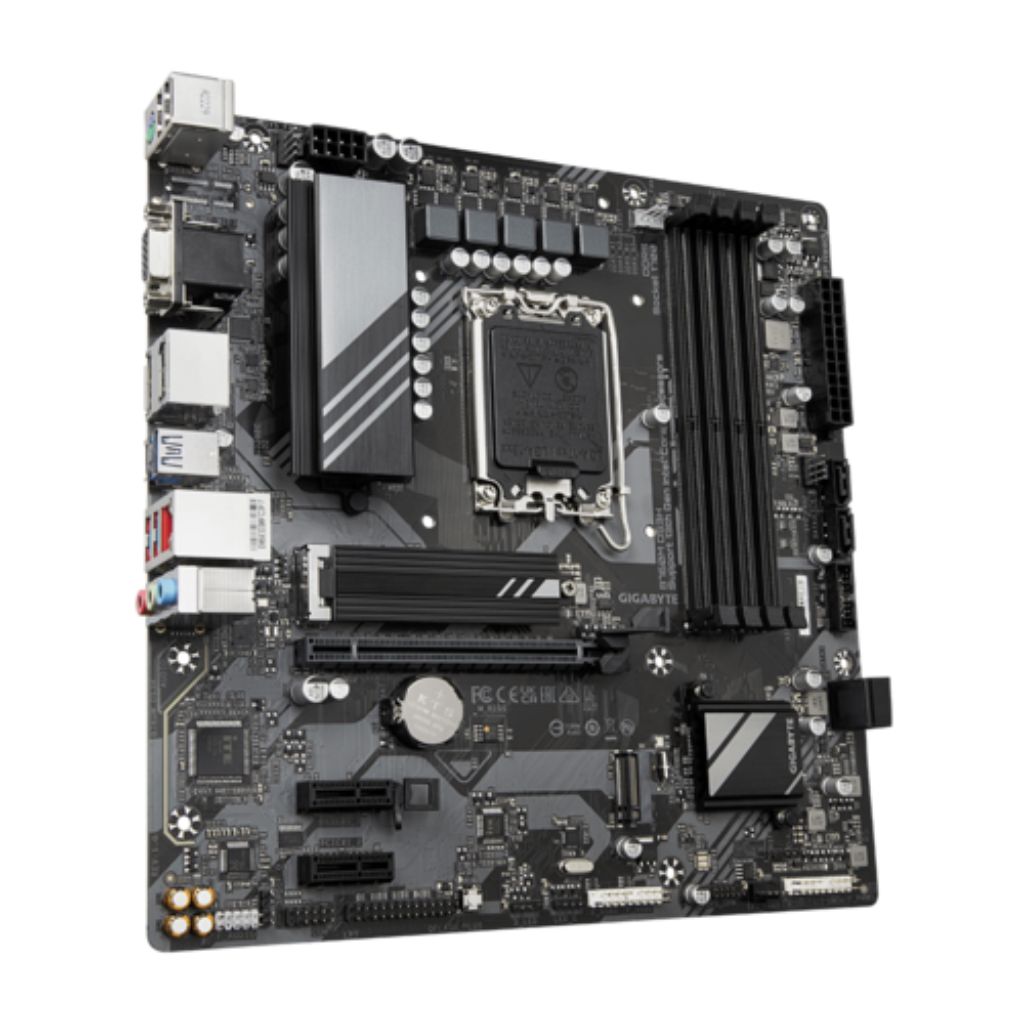

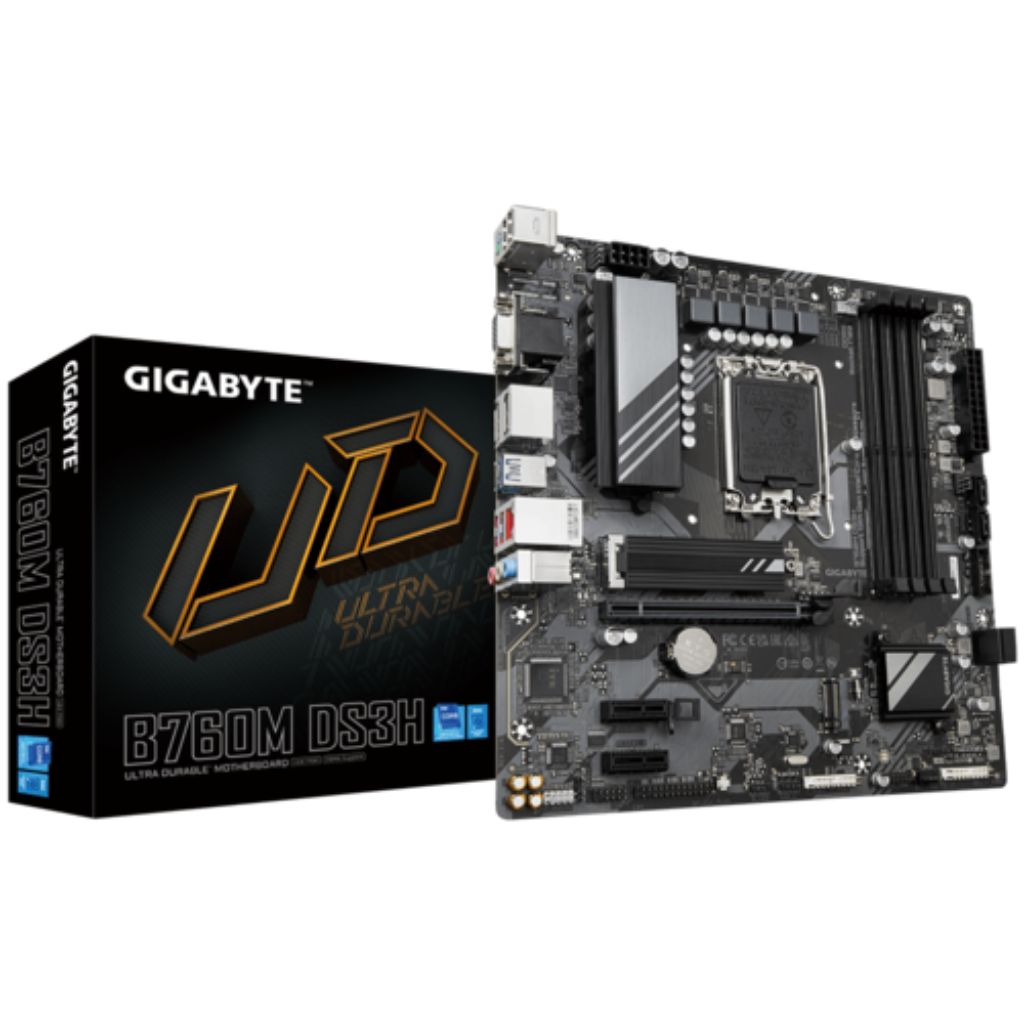

Gigabyte B760M DS3H DDR5 LGA1700 m-ATX Motherboard

R 2 837.00

Prices Displayed are for EFT Only.

  • Brand: Gigabyte
  • Series: B760M DS3H
  • Model: GA-B760M-DS3H
  • CPU: LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
SKU GA-B760M-DS3H Categories , ,
Add to wishlist

In stock

Only 9 items left in stock!

Gauteng: 1 - 3 Business days

Cape Town & Durban: 2 - 4 Business days

Other: 2 - 7 Business days


Gigabyte B760M DS3H DDR5 Motherboard

Full description Gigabyte.

  • Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • M.2 Thermal Guard：To Ensure M.2 SSD Performance
  • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card



Specifications
Brand: Gigabyte
Series: Intel B760 series
Model: GA-B760M-DS3H
Technical Specs
CPU Support:
  1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  2. L3 cache varies with CPU
Chipset:
  1. Intel® B760 Express Chipset
Memory:
  1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics:
Integrated Graphics Processor – Intel® HD Graphics support
  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
  3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3.
  4. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version.
Audio:
  1. Realtek® audio codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
Connectivity
LAN:
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless: N/A
Bluetooth: N/A
Expansion Slots:
CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
  1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface:
CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors
On-Board Connectors
USB:
Chipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  3. 2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors: 2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Software & Features
BIOS:
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Software:
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Features: Support for GIGABYTE Control Center (GCC)
Extended Connectivity
Support for Q-Flash
PCIe 4.0 x4 M.2 Connectors
Support for Q-Flash Plus
General
Operating System:
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor:
  1. Micro ATX – 24.4cm x 24.4cm
Warranty Information
Warranty: 3 Year Warranty



Gigabyte B760M DS3H DDR5 Motherboard

Contact us if you would like to enquire about this product.

← Back

Thank you for your response. ✨

Additional information

Global Brands

Gigabyte
Global Manufacturer

Intel
Global CPU Socket

LGA 1700
Global Motherboard Chipset

Intel B760
Global MB Form Factor

Micro-ATX
