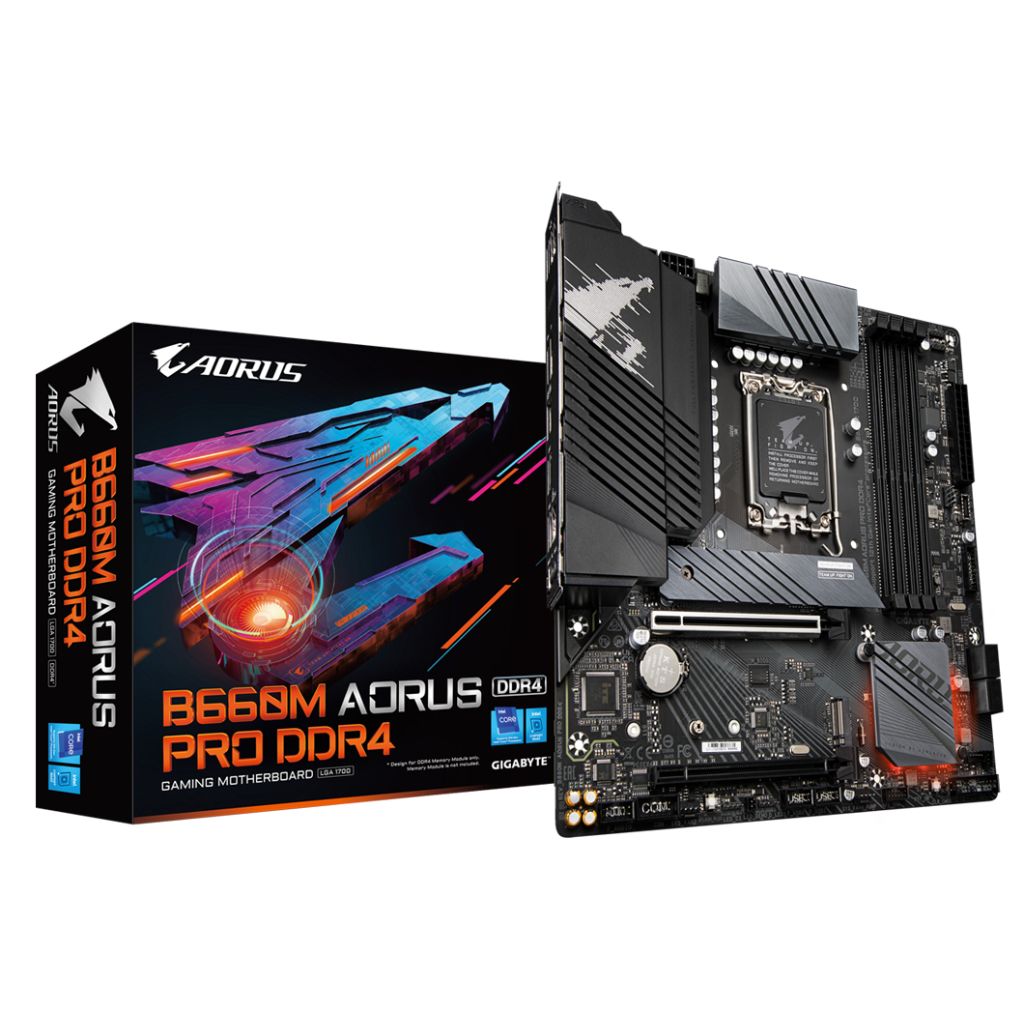

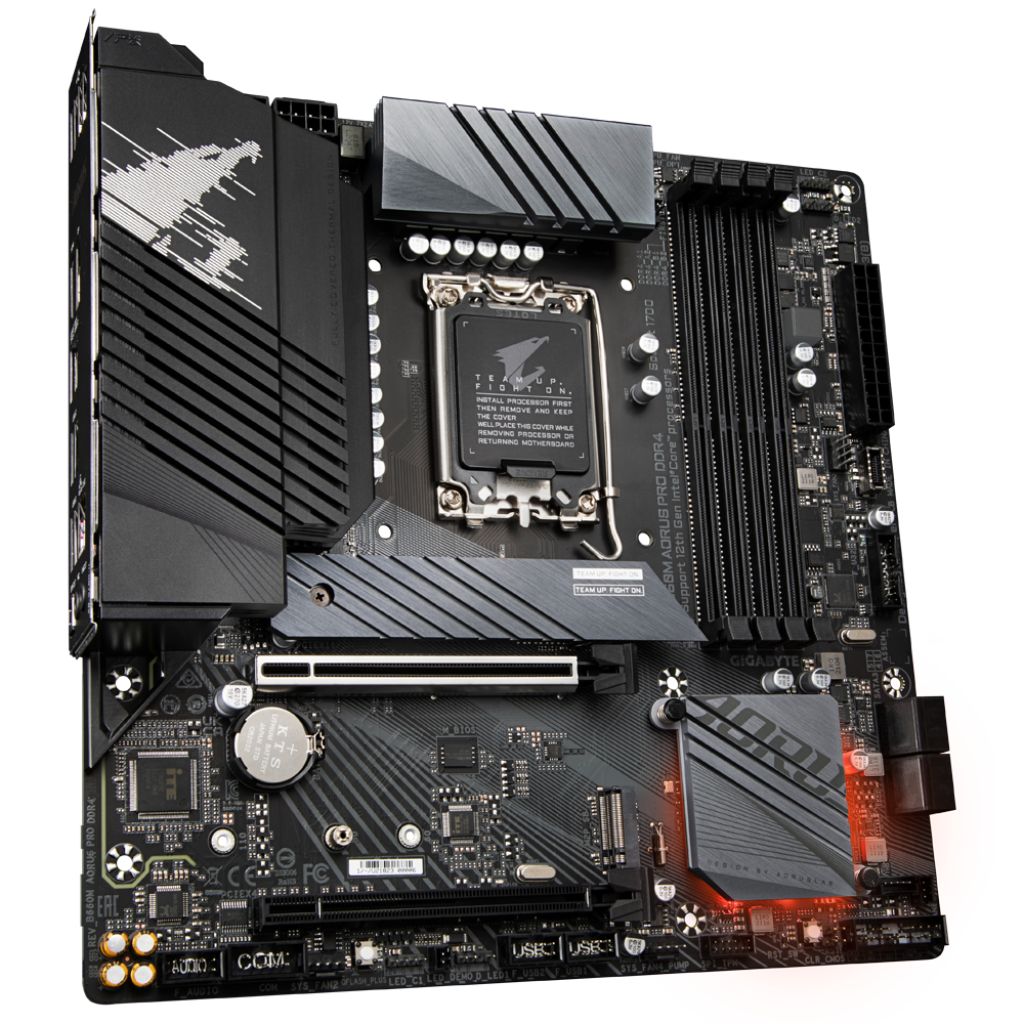

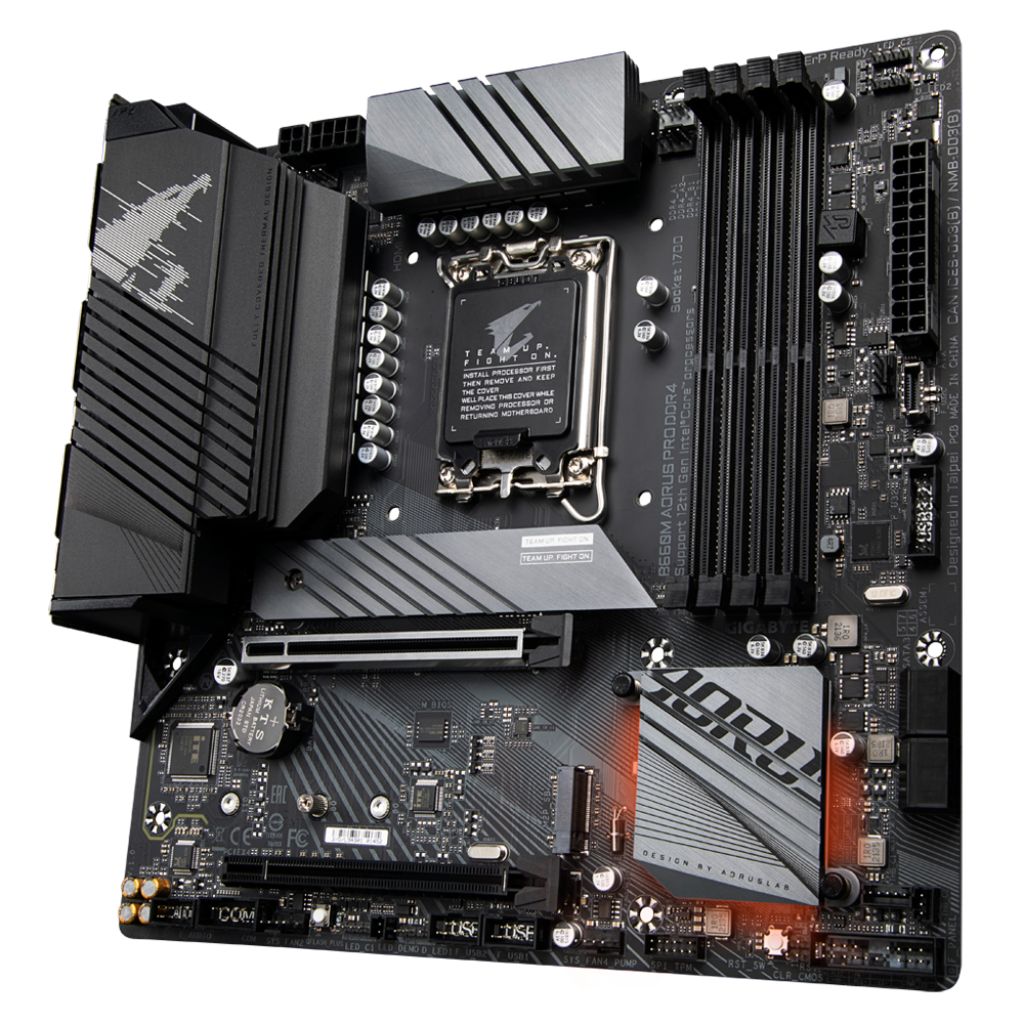

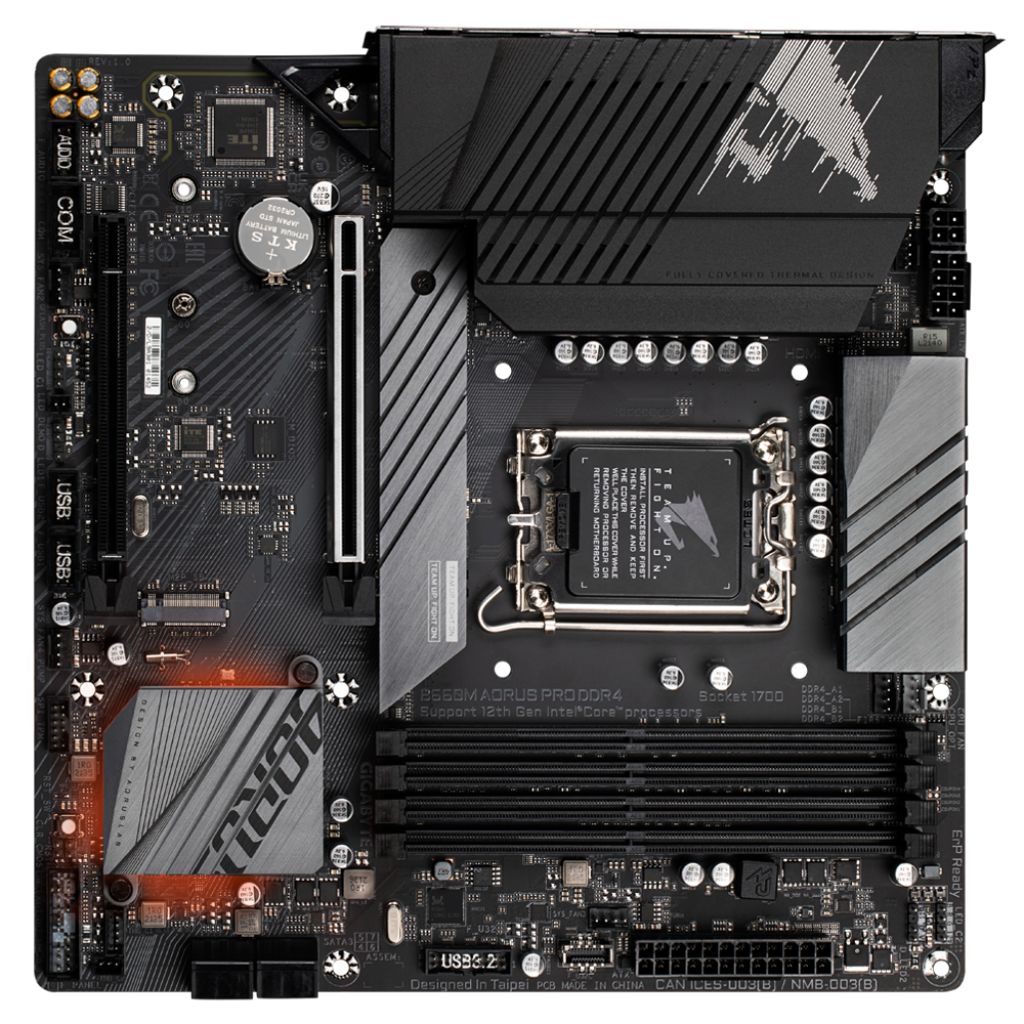

Gigabyte B660M Aorus Pro Motherboard
Full description Gigabyte.
Intel® B660 AORUS Motherboard with 12*+1+1 Twin Hybrid Phases Digital VRM Design, Fully Covered Thermal Design , 2 x PCIe 4.0 M.2 with Thermal Guard, Intel® 2.5GbE LAN, Rear USB 3.2 Gen 2×2 Type-C®, RGB FUSION 2.0, Q-Flash Plus
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
- SuperSpeed USB 3.2 Gen 2×2 Type-C® delivers up to 20Gb/s transfer speeds
- Pre-installed IO Shield for easy and quick installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
SPECIFICATIONS |
|
| Brand | Gigabyte |
| Series | AORUS PRO (D4) |
| Model | GA-B660M-AORUS-PRO-DDR4 |
| CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| L3 Cache Varies With CPU | |
| Please Refer To CPU Support List For more Information | |
| Chipset | Intel B660 Express Chipset |
| Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz Memory Modules |
| 4x DDR DIMM Sockets Supporting Up to 128 GB (32 GB Single DIMM Capacity) Of System Memory | |
| Dual Channel Memory Architecture | |
| Support for ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) | |
| Support for non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules | |
| Support for Extreme Memory Profile (XMP) Memory Modules | |
| Onboard Graphics | 1x HDMI Port, Supporting a Maximum Resolution of 4096×2160@60 Hz |
| Support For HDMI 2.1 Version and HDCP 2.3 | |
| Support Native HDMI 2.1 TMDS compatible ports | |
| 1x DisplayPort, Supporting A Maximum Resolution Of 4096×2304@60 Hz | |
| Support For DisplayPort 1.2 Version and HDCP 2.3 | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-Channel | |
| To Configure 7.1-Channel Audio, You Need To Open The Audio Software and Select Device Advanced Settings > Playback Device To Change The Default Setting First. Please Visit GIGABYTE’s Website For Details On Configuring The Audio Software | |
| Support For S/PDIF Out | |
| LAN | Intel 2.5GbE LAN Chip (2.5Gbps/1 Gbps/100Mbps) |
| Expansion Slots | 1x PCI Express x16 Slot, Running At x16 (PCIEX16) |
| For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot | |
| (The PCIEX16 Slot Conforms To PCI Express 4.0 Standard) | |
| 1x PCI Express x16 Slot, Running At x4 (PCIEX4) | |
| (The PCIEX4 slot conforms to PCI Express 3.0 standard) | |
| Multi-Graphics Technology | Support For AMD Quad-GPU CrossFire And 2-Way AMD CrossFire Technologies |
| Storage Interface | |
| CPU Native | 1x M.2 Connector (Socket 3, M-key, Type 2260/2280 PCIe 4.0 x4/x2 SSD Support) (M2A_CPU) |
| Intel B660 Chipset | 1x M.2 Connector (Socket 3, M-key, Type 2260/2280/22110 PCIe 4.0 x4/x2 SSD Support) (M2P_SB) |
| 4x SATA 6Gb/s Connectors | |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Intel Optane Memory Ready | |
| System Acceleration with Intel Optane Memory Can Only Be Enabled On The M.2 Connector Supported By The Chipset | |
| USB | |
| Chipset | 1x USB Type-C Port On The Back Panel, With USB 3.2 Gen 2×2 Support |
| 1x USB Type-C Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header | |
| 1x USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel | |
| Chipset 2 USB 3.2 Gen 1 Hubs: | 6x USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) |
| Chipset 2 USB 2.0 Hubs: | 8x USB 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) |
| Internal I/O Connectors | 1x 24-Pin ATX Main Power Connector |
| 1x 8-Pin ATX 12V Power Connector | |
| 1x 4-Pin ATX 12V Power Connector | |
| 1x CPU fan Header | |
| 1x Water Cooling CPU Fan Header | |
| 3x System Fan Headers | |
| 1x System Fan/Water Cooling Pump Header | |
| 2x Addressable LED Strip Headers | |
| 2x RGB LED Strip Headers | |
| 2x M.2 Socket 3 Connectors | |
| 4x SATA 6Gb/s Connectors | |
| 1x Front Panel Header | |
| 1x Front Panel Audio Header | |
| 1x USB Type-C Header, With USB 3.2 Gen 2 Support | |
| 1x USB 3.2 Gen 1 Header | |
| 2x USB 2.0/1.1 Headers | |
| 2x Thunderbolt Add-In Card Connectors | |
| 1x Trusted Platform Module Header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) | |
| 1x Serial Port Header | |
| 1x Reset Button | |
| 1x Q-Flash Plus Button | |
| 1x Reset Jumper | |
| 1x Clear CMOS Jumper | |

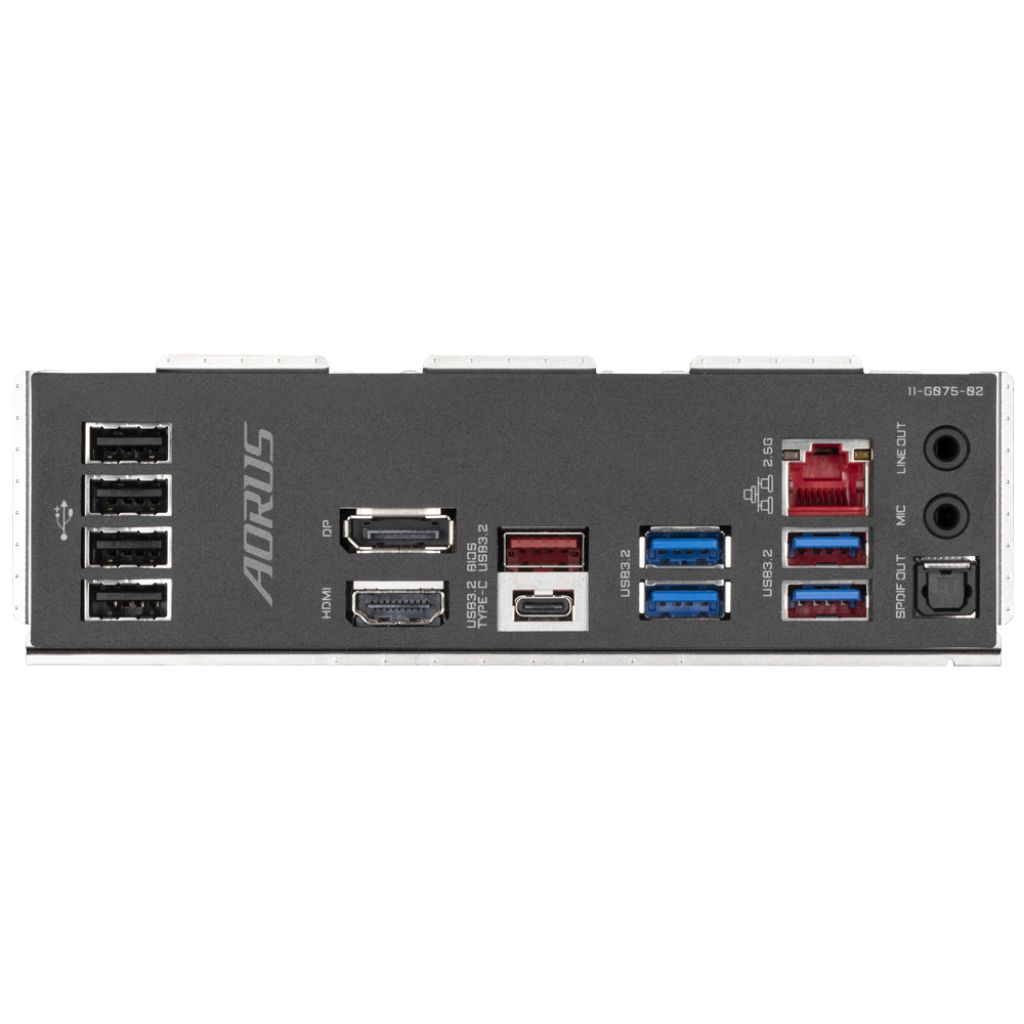

| Back Panel Connectors | 1x USB Type-C Port, With USB 3.2 Gen 2×2 Support |
| 1x USB 3.2 Gen 2 Type-A Port (Red) | |
| 4x USB 3.2 Gen 1 Ports | |
| 4x USB 2.0/1.1 Ports | |
| 1x HDMI Port | |
| 1x DisplayPort | |
| 1x RJ-45 Port | |
| 1x Optical S/PDIF Out Connector | |
| 2x Audio Jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage Detection |
| Temperature Detection | |
| Fan Speed Detection | |
| Water Cooling Flow Rate Detection | |
| Fan Fail Warning | |
| Fan Speed Control | |
| Whether The Fan (Pump) Speed Control Function Is Supported Will Depend On The Fan (Pump) You Install | |
| BIOS | 1x 256 Mbit Flash |
| Use Of Licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support For APP Center |
| Available Applications In APP Center May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications. | |
| BIOS | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| Support for Q-Flash Plus | |
| Support for Q-Flash | |
| Support for Xpress Install | |
| Bundled Software | Norton Internet Security (OEM version) |
| cFosSpeed | |
| Operating System | Support For Windows 11 64-bit |
| Support For Windows 10 64-bit | |
| Form Factor | Micro-ATX Form Factor |
| 244 x 244mm (L x W) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
